P80-G12-G34 Manual 6 Spool Monoblock Directional Valve

Rated Flow:80 L/min (21.2 US gpm)

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80 Series Monoblock Directional Valve

Productsize:25.1*32.2*8

Netweight:17.80 kg

Availability: In Stock

Description

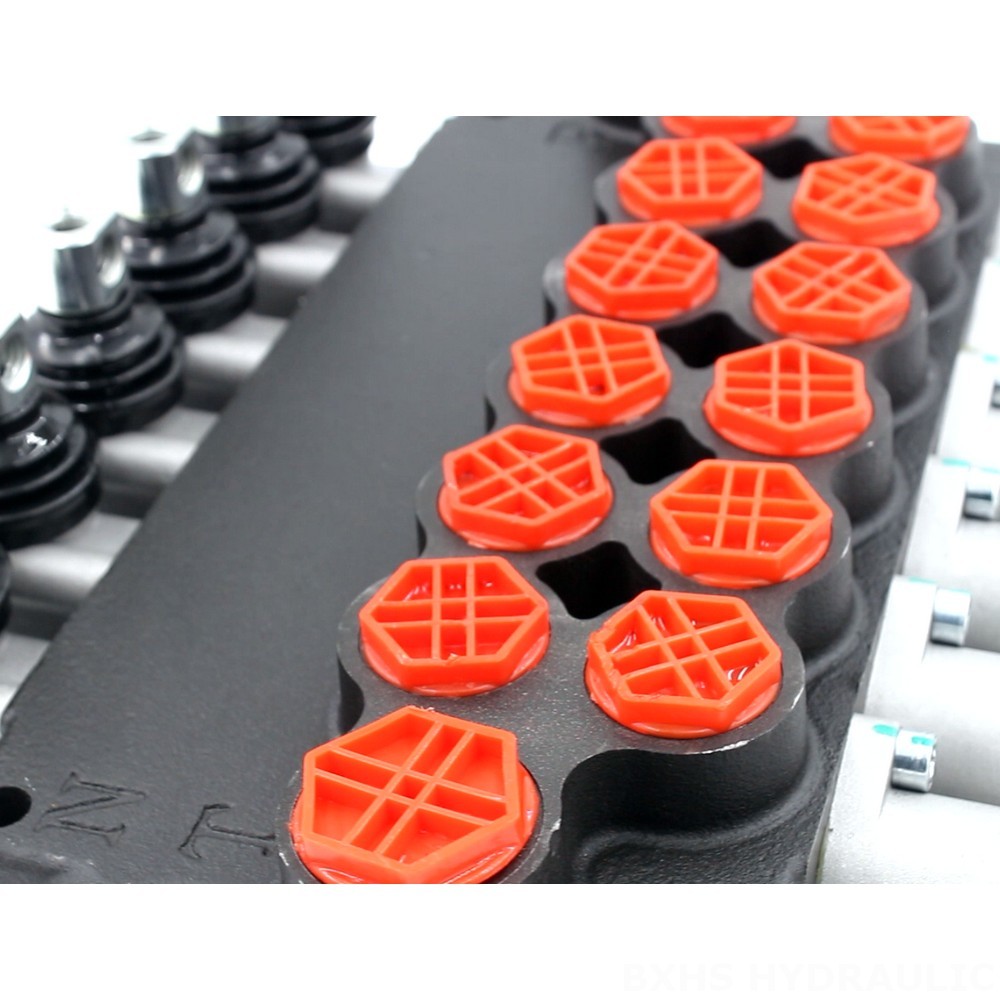

P80-G12-G34 Manual 6 Spool Monoblock Directional Valve detailed image

P80-G12-G34 Manual 6 Spool Monoblock Directional Valve drawing image

The P80-G12-G34 Manual 6 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for demanding applications in various industries. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it provides precise and reliable flow control for hydraulic systems. Its monoblock construction ensures durability and compactness, making it ideal for space-constrained applications.

P80 Series Monoblock Directional Valve Parameters
Spool	1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Control Method	Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick
Port Size	G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT
Section	1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure	315 bar (4600 psi)
Rated Flow	80 L/min (21.2 US gpm)
Structure Type	Monoblock valve
Inlet Port	G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

**Product Features and Benefits:**

* Manual control for precise flow regulation
* 6 spool design for versatile flow path configurations
* Monoblock construction for durability and compact size
* High flow capacity of 80 L/min
* Maximum pressure of 250 bar
* Operating viscosity range of 15 - 75 mm²/s
* Ambient temperature range of -40°C to +80°C

**Applications:**

The P80-G12-G34 Manual 6 Spool Monoblock Directional Valve is widely used in various hydraulic applications, including:

* Mobile hydraulics: construction equipment, agricultural machinery, industrial vehicles
* Material handling: forklifts, telehandlers, cranes
* Industrial machinery: presses, injection molding machines

P80-G12-G34 Manual 6 Spool Monoblock Directional Valve application image
