P80-G12-G34-OT 4-Spool Hydraulic Directional Valve | Factory Direct & Customizable

Control Method:Manual

Spool:4 Spool

Rated Flow:80 L/min (21.2 US gpm)

Max Pressure:250 bar (3600 psi)

Inlet Port:G1/2

Outlet Port:G3/4

Port Size:G1/2

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80 Series Monoblock Directional Valve

Packagingsize:26*27*11

Grossweight:13.40 kg

Availability: In Stock

595 Views are Looking for this Product

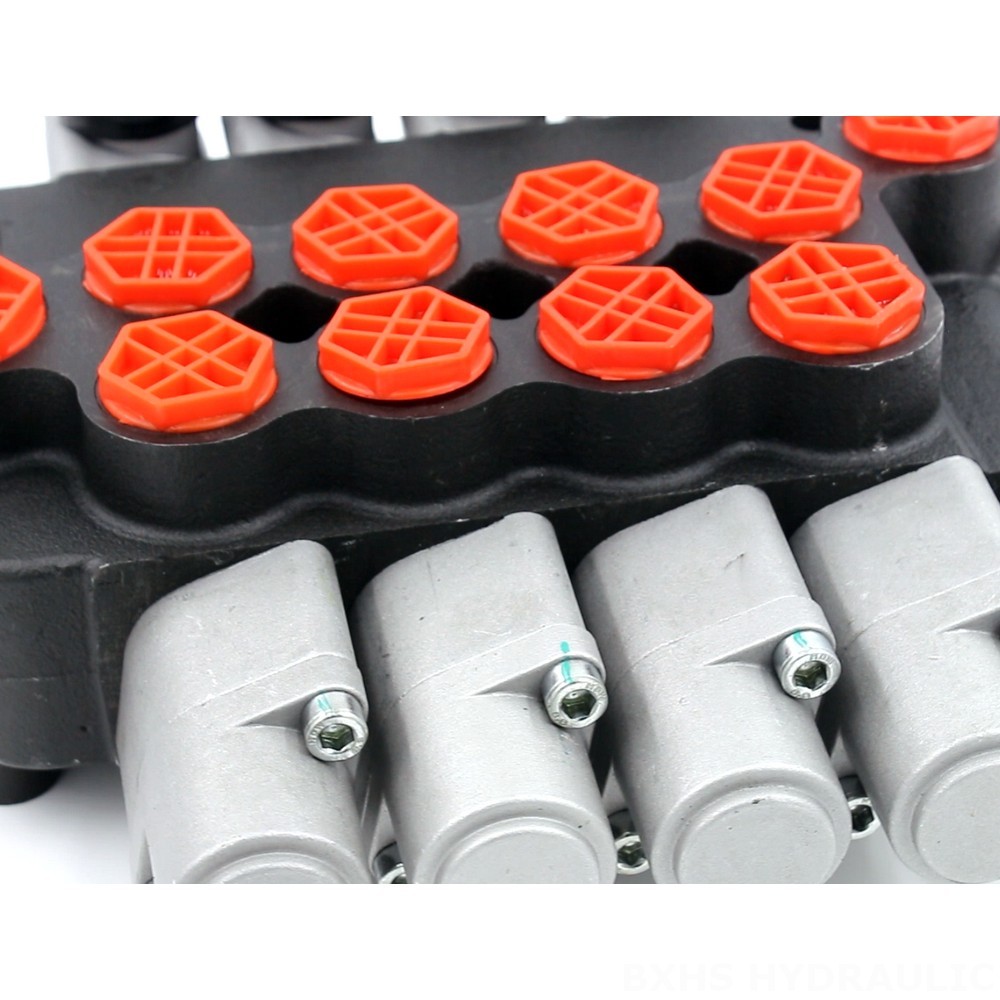

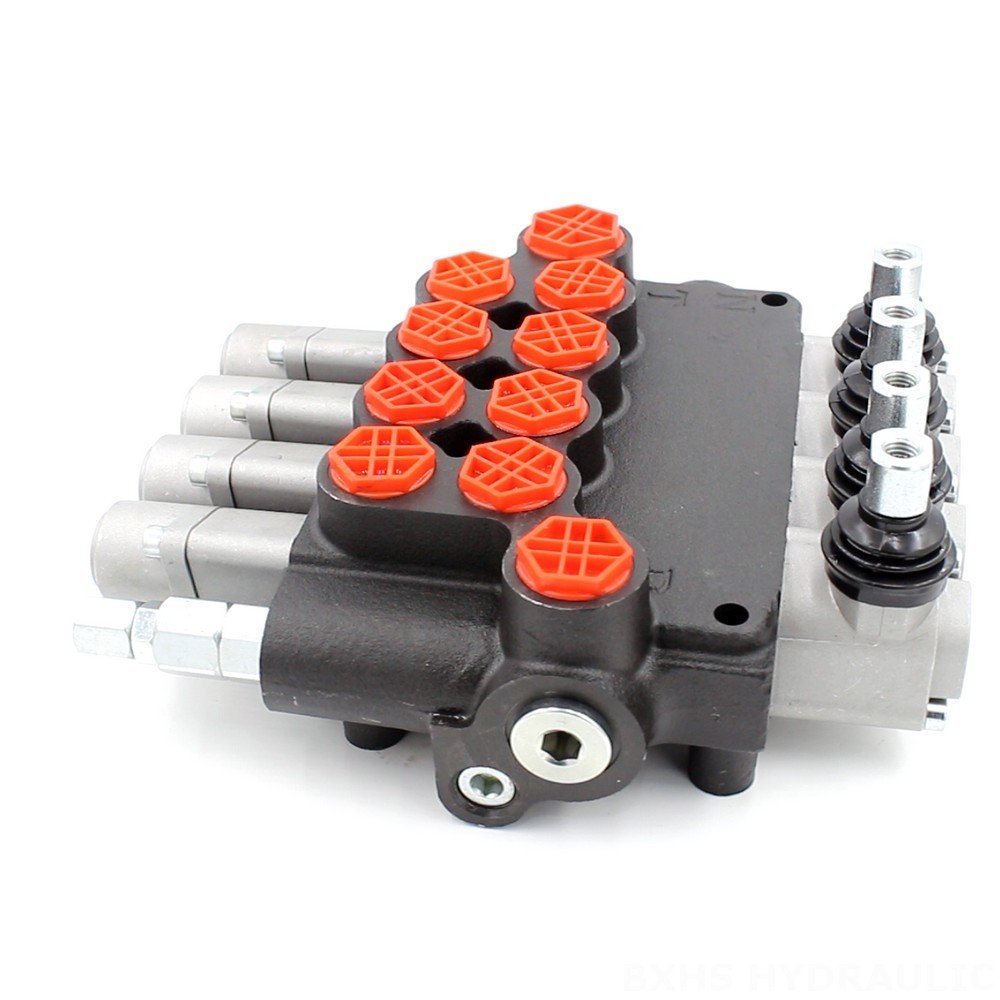

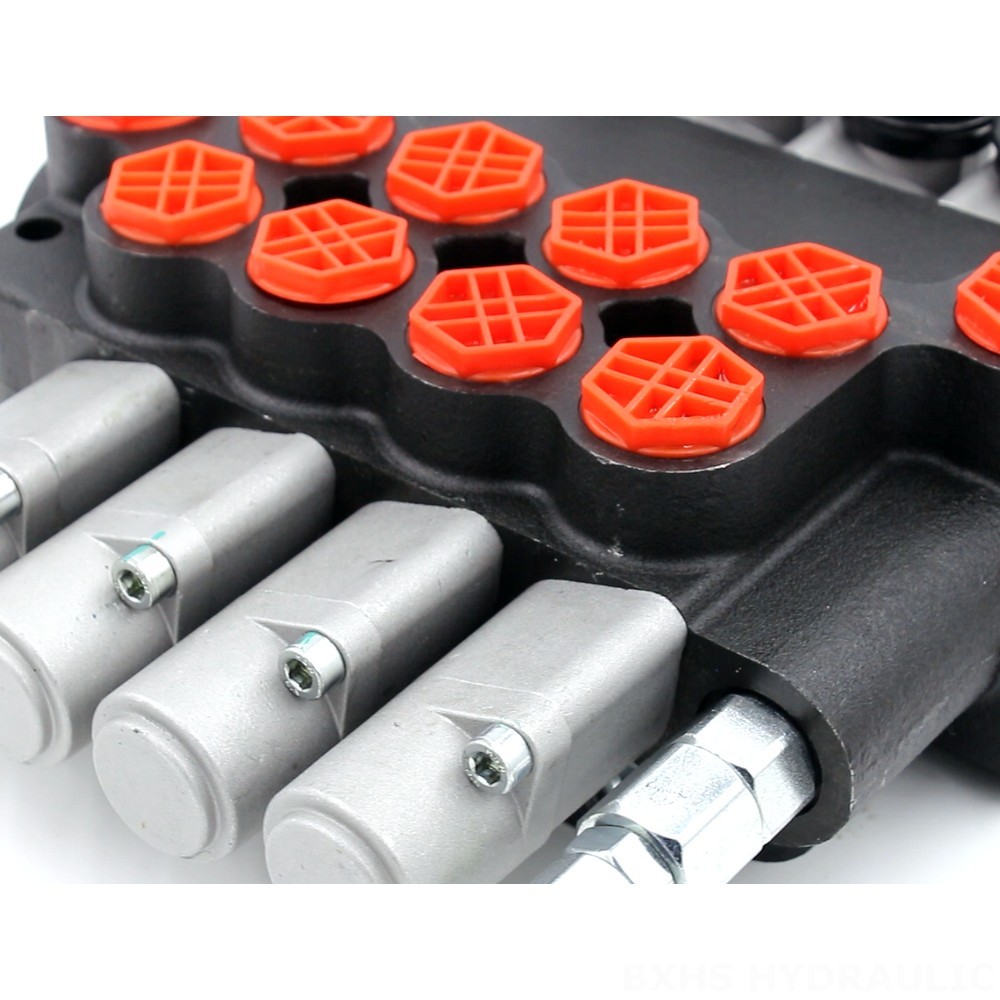

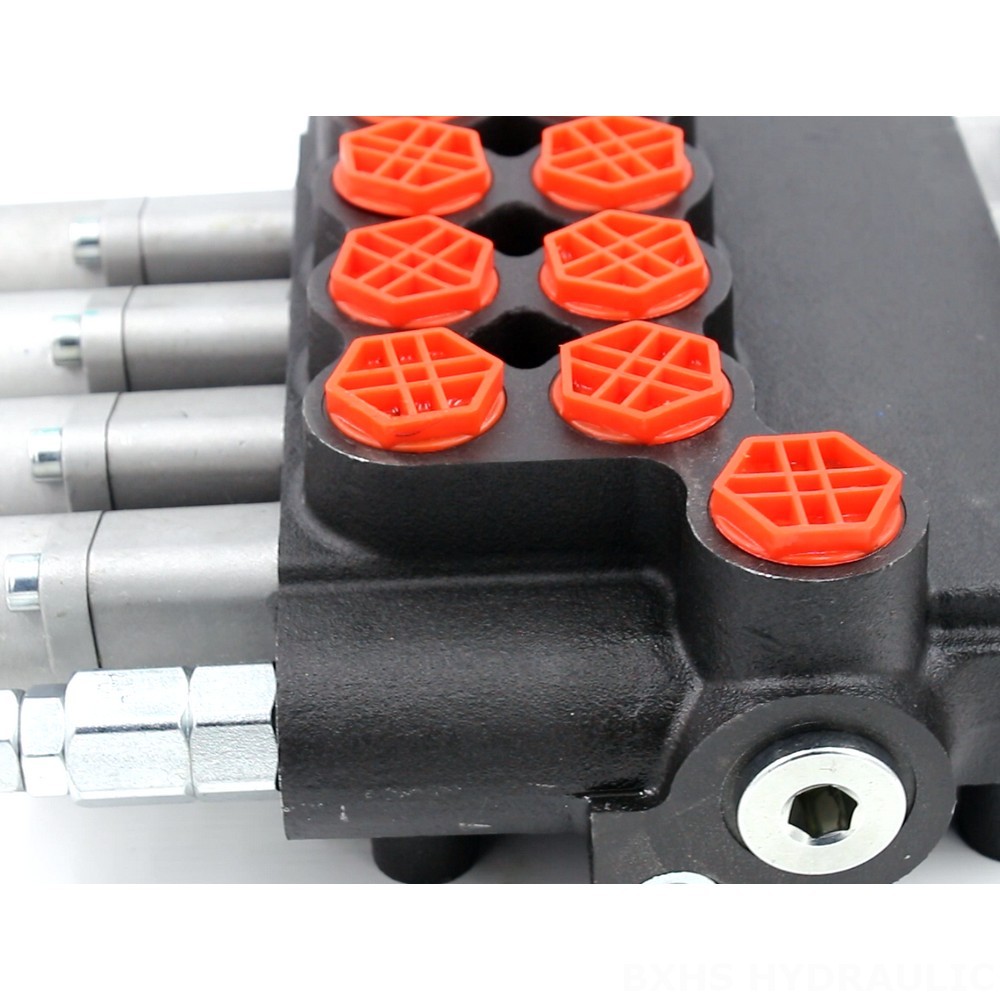

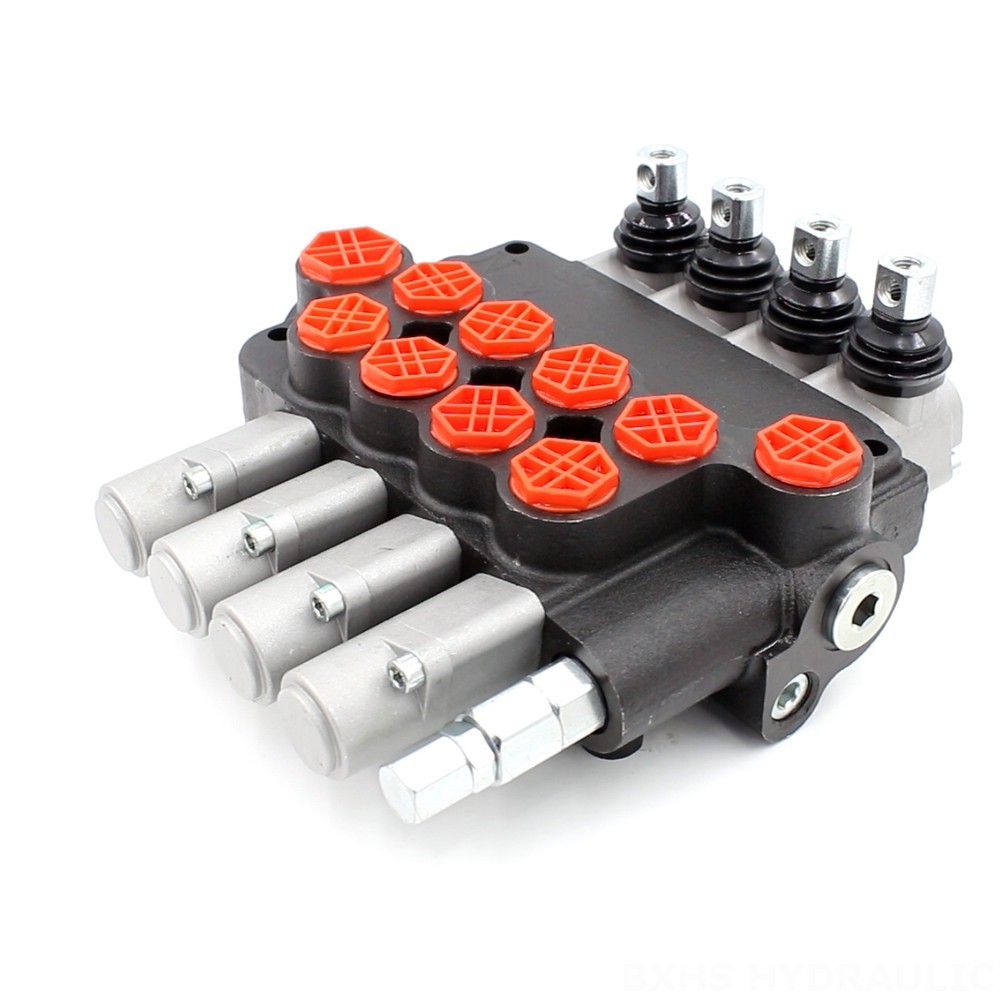

P80-G12-G34-OT 4-Spool Hydraulic Directional Valve | Factory Direct & Customizable detailed image

P80-G12-G34-OT 4-Spool Hydraulic Directional Valve | Factory Direct & Customizable detailed image

P80-G12-G34-OT 4-Spool Hydraulic Directional Valve | Factory Direct & Customizable drawing image

The P80-G12-G34-OT 4-Spool Hydraulic Directional Valve is a high-performance valve designed for demanding applications in various industries. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it ensures efficient and reliable operation. Its monoblock construction provides durability and compact size, making it ideal for space-constrained applications.

P80 Series Monoblock Directional Valve Parameters
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure 315 bar (4600 psi)
Rated Flow 80 L/min (21.2 US gpm)
Structure Type Monoblock valve

**P80-G12-G34-OT 4-Spool Hydraulic Directional Valve**

**Key Features:**

* Control Method: Manual
* Section: 4 Section
* Structure Type: Monoblock valve
* Rated Flow: 80 L/min (21.2 US gpm)
* Max Pressure: 250 bar (3600 psi)
* Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F)
* Spool: 4 Spool
* Series: P80 Series

**Applications:**

* MATERIAL HANDLING
* CONSTRUCTION AND EARTH MOVING
* AGRICULTURE
* INDUSTRIAL VEHICLES

**Applicable Models:**

* TELEHANDLER
* FORKLIFT
* ALL TERRAIN CRANE
* STACKER
* AERIAL PLATFORM
* MOTOR GRADER
* MIDI-EXCAVATOR
* MINI-EXCAVATOR
* SKID STEER LOADER
* BACKHOE LOADER

The P80-G12-G34-OT 4-Spool Hydraulic Directional Valve is a versatile and robust component that meets the highest industry standards. Its exceptional performance and durability make it an ideal choice for a wide range of hydraulic systems in demanding applications.
