P80-G12-G34-OT Manual 3 Spool Monoblock Directional Valve

Rated Flow:80 L/min (21.2 US gpm)

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80 Series Monoblock Directional Valve

Productsize:25.1*20.8*8

Netweight:10.10 kg

Availability: In Stock

Description

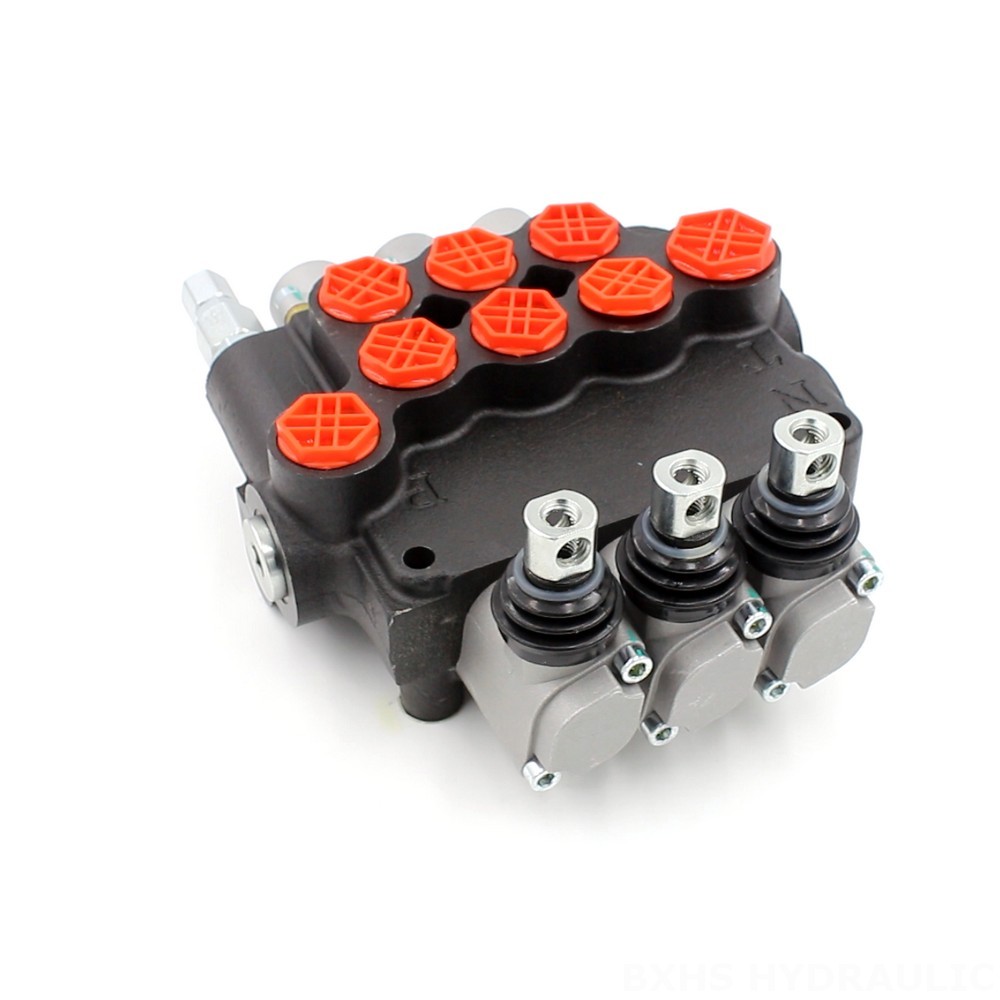

P80-G12-G34-OT Manual 3 Spool Monoblock Directional Valve detailed image

P80-G12-G34-OT Manual 3 Spool Monoblock Directional Valve drawing image

The P80-G12-G34-OT Manual 3 Spool Monoblock Directional Valve is a hydraulic valve designed for use in a variety of applications including material handling, construction and earth moving, agriculture, and industrial vehicles. It features a rated flow of 80 L/min, a max pressure of 250 bar, and an operating viscosity range of 15 - 75 mm²/s. The valve has a manual control method and a monoblock structure type.

P80 Series Monoblock Directional Valve Parameters
Spool	1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Control Method	Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick
Port Size	G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT
Section	1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure	315 bar (4600 psi)
Rated Flow	80 L/min (21.2 US gpm)
Structure Type	Monoblock valve
Inlet Port	G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

**Product Features and Benefits:**

* Rated flow of 80 L/min
* Max pressure of 250 bar
* Operating viscosity range of 15 - 75 mm²/s
* Manual control method
* Monoblock structure type

**Applications:**

The P80-G12-G34-OT Manual 3 Spool Monoblock Directional Valve can be used in a variety of applications including:

* Material handling
* Construction and earth moving
* Agriculture
* Industrial vehicles

P80-G12-G34-OT Manual 3 Spool Monoblock Directional Valve application image
