P80-G12-G34-QW Manual 2 Spool Monoblock Directional Valve

Rated Flow:80 L/min (21.2 US gpm)

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80 Series Monoblock Directional Valve

Productsize:25.1*17*8

Netweight:7.80 kg

Availability: In Stock

Description

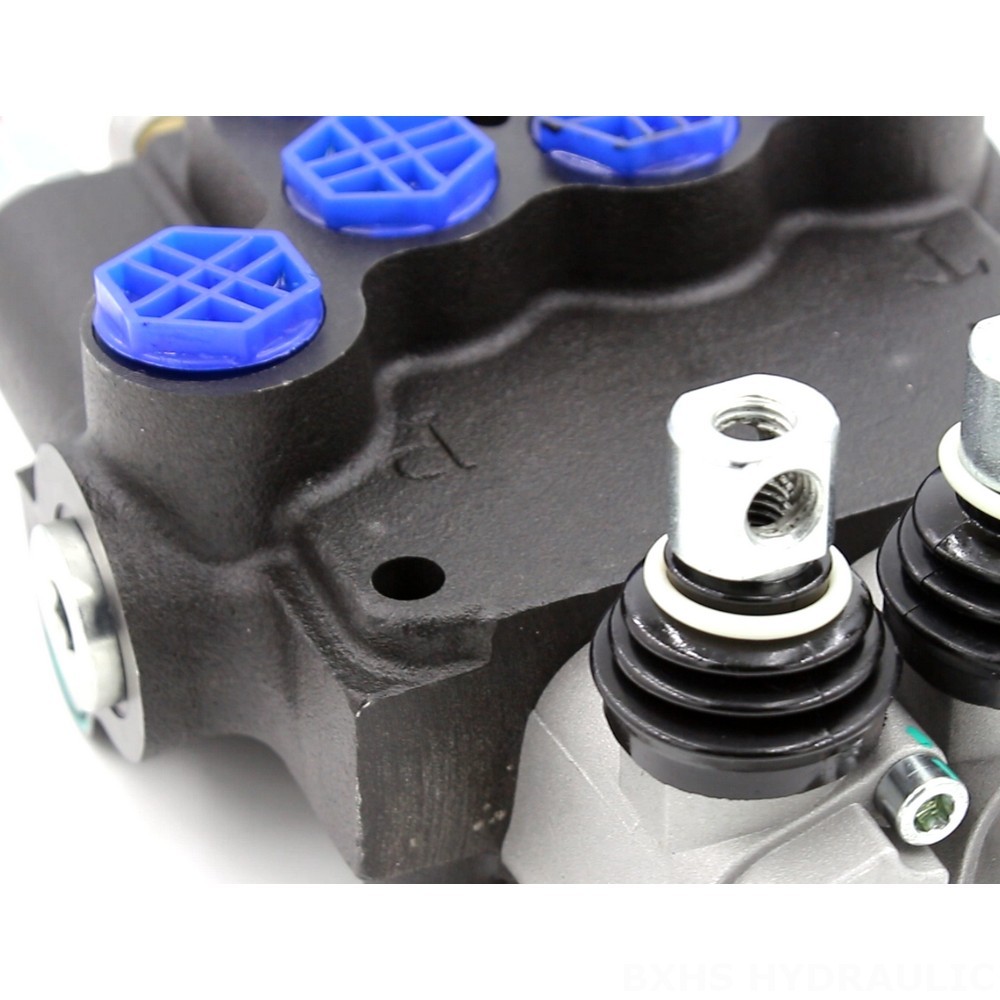

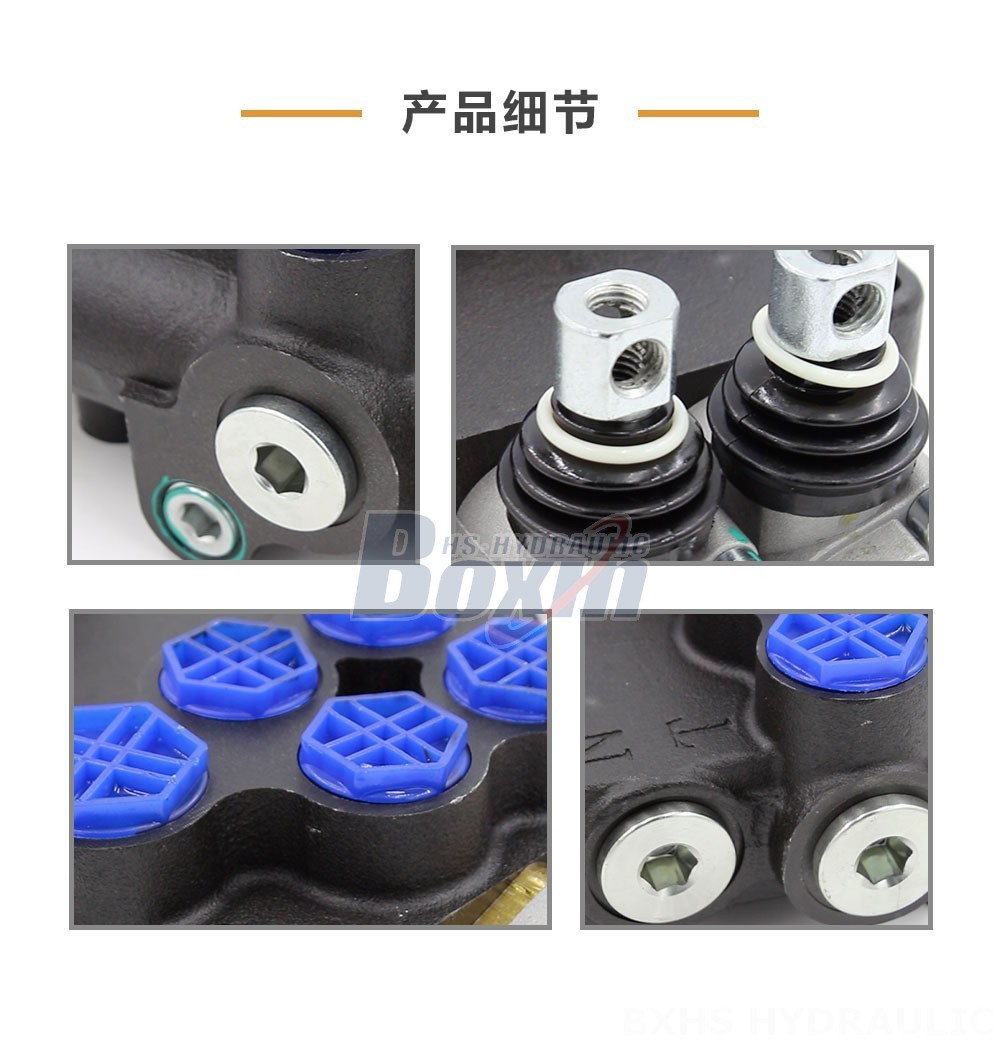

P80-G12-G34-QW Manual 2 Spool Monoblock Directional Valve detailed image

P80-G12-G34-QW Manual 2 Spool Monoblock Directional Valve drawing image

The P80-G12-G34-QW is a manual 2 spool monoblock directional valve designed for use in hydraulic systems. It has a rated flow of 80 L/min and a maximum pressure of 250 bar. The valve is suitable for use in a wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles.

P80 Series Monoblock Directional Valve Parameters
Spool	1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Control Method	Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick
Port Size	G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT
Section	1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure	315 bar (4600 psi)
Rated Flow	80 L/min (21.2 US gpm)
Structure Type	Monoblock valve
Inlet Port	G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

**Product Features and Benefits:**

* Manual operation for precise control
* Monoblock construction for reduced size and weight
* High flow capacity for demanding applications
* Durable construction for long service life

**Applications:**

The P80-G12-G38-QW is suitable for use in a variety of applications, including:

* Mobile hydraulic systems
* Industrial machinery
* Construction equipment
* Agricultural machinery
* Material handling equipment

P80-G12-G34-QW Manual 2 Spool Monoblock Directional Valve application image
