P80-G12 Manual 1 Spool Monoblock Directional Valve

Rated Flow:80 L/min (21.2 US gpm)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80 Series Monoblock Directional Valve

Productsize:25.1*10.5*8

Netweight:4.80 kg

Availability: In Stock

Description

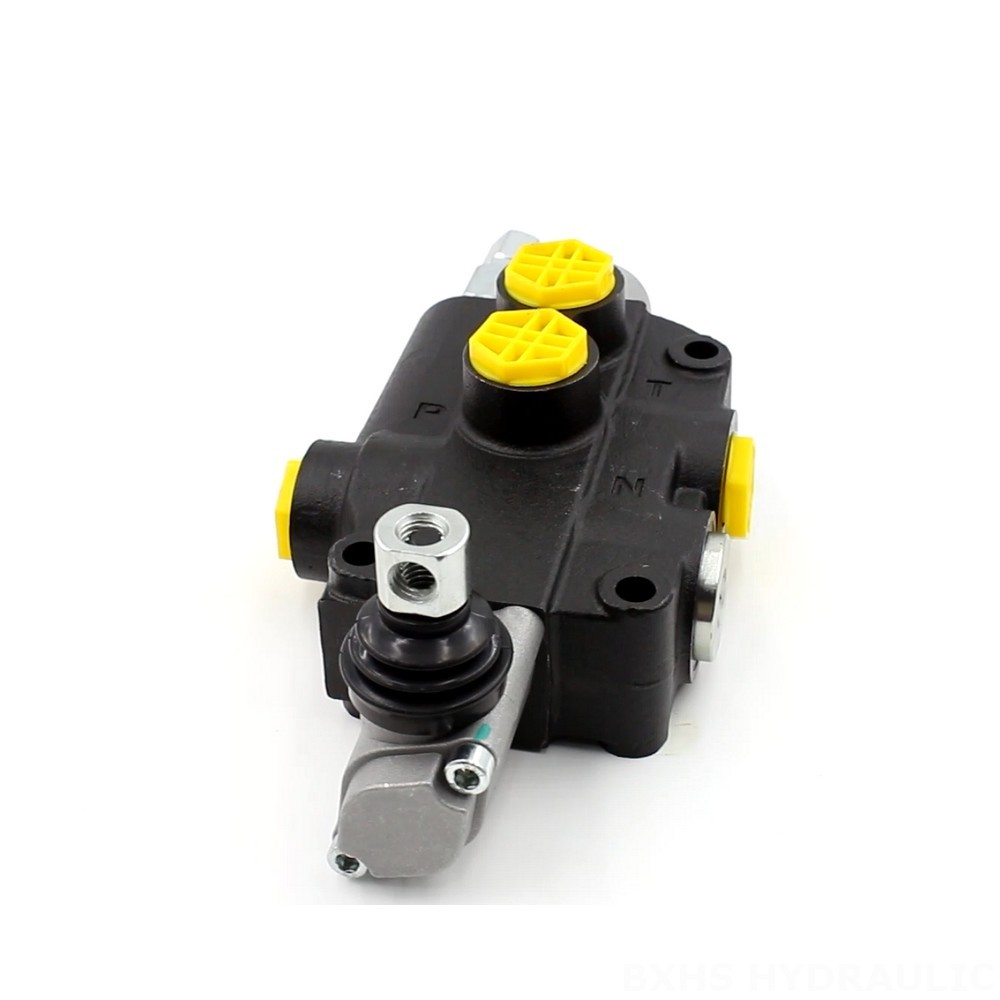

P80-G12 Manual 1 Spool Monoblock Directional Valve detailed image

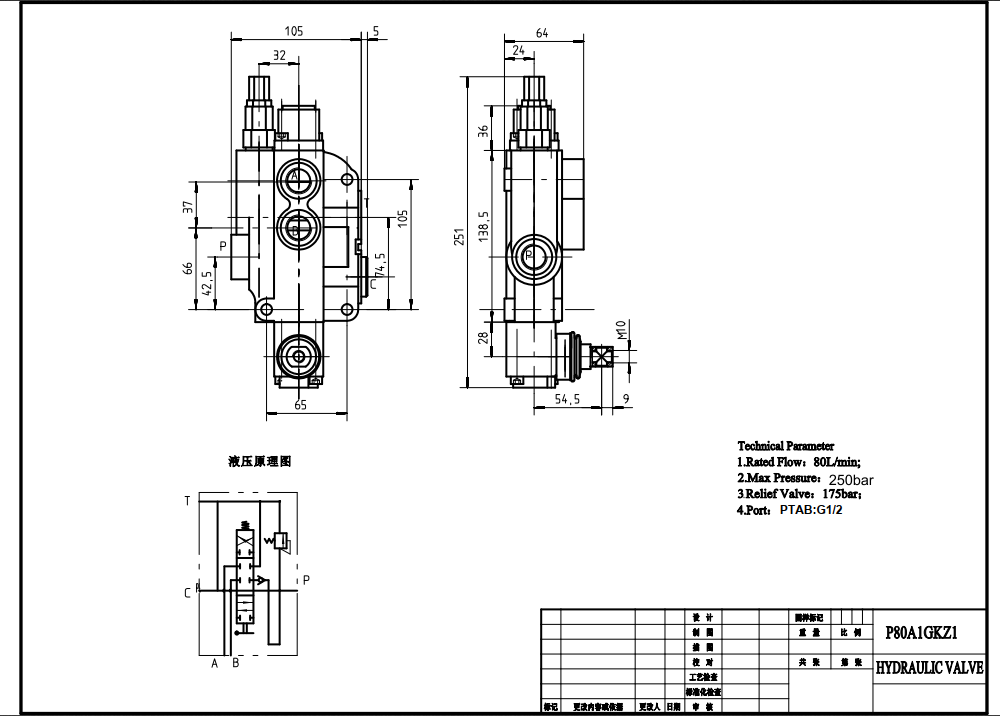

P80-G12 Manual 1 Spool Monoblock Directional Valve drawing image

The P80-G12 Manual 1 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a wide range of mobile applications. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this valve is capable of handling demanding hydraulic systems. Its monoblock construction provides a compact and durable solution, while its manual control allows for precise and responsive operation.

Section	1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section
Structure Type	Monoblock valve
Control Method	Manual
Rated Flow	80 L/min (21.2 US gpm)
Max Pressure	315 bar (4600 psi)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)
Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)

**Product Features and Benefits:**

* Rated flow of 80 L/min for high-flow applications
* Maximum pressure of 250 bar for demanding hydraulic systems
* Monoblock construction for a compact and durable solution
* Manual control for precise and responsive operation
* Operating viscosity range of 15 - 75 mm²/s for compatibility with a wide range of hydraulic fluids
* Ambient temperature range of -40°C to +80°C for use in extreme environments

**Applications:**

The P80-G12 Manual 1 Spool Monoblock Directional Valve is ideal for use in a variety of mobile applications, including:

* Construction equipment
* Agriculture equipment
* Industrial vehicles
* Material handling equipment
* Forestry equipment
* Mining equipment
