P80-G34-5OT Manual 5 Spool Monoblock Directional Valve

Rated Flow:80 L/min (21.2 US gpm)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80 Series Monoblock Directional Valve

Productsize:25.1*28.4*8

Netweight:14.80 kg

Availability: In Stock

  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
248 Views are Looking for this Product

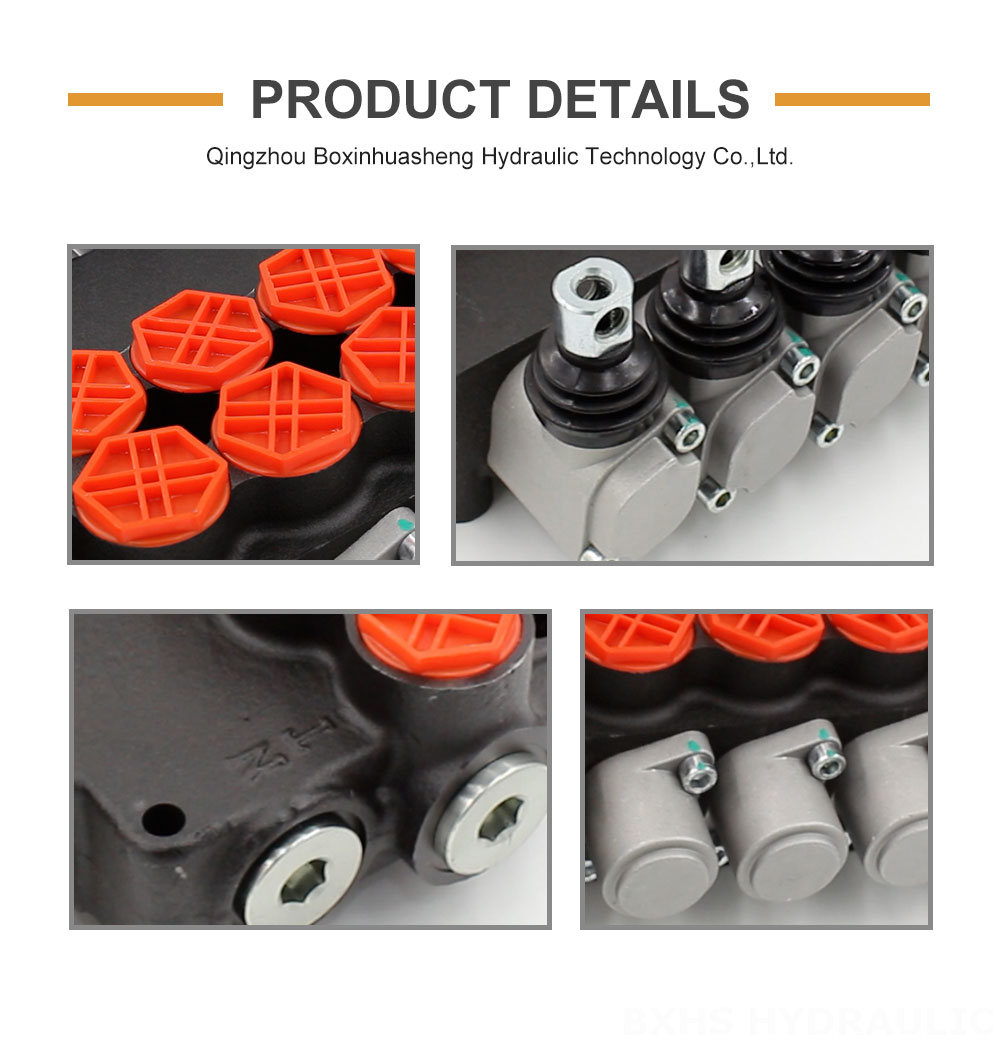

P80-G34-5OT Manual 5 Spool Monoblock Directional Valve detailed image

P80-G34-5OT Manual 5 Spool Monoblock Directional Valve detailed image

P80-G34-5OT Manual 5 Spool Monoblock Directional Valve drawing image

The P80-G34-5OT Manual 5 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a wide range of industrial applications. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this valve is capable of handling demanding hydraulic systems. It features a robust monoblock construction for increased durability and reliability, and its 5 spool design allows for precise control of fluid flow. The valve's operating viscosity range of 15 - 75 mm²/s and ambient temperature range of -40°C to +80°C make it suitable for use in various environments.

Section 1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section
Structure Type Monoblock valve
Control Method Manual
Rated Flow 80 L/min (21.2 US gpm)
Max Pressure 315 bar (4600 psi)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)

**Product Features and Benefits:**

* **High flow capacity:** Rated flow of 80 L/min for efficient system operation
* **High pressure capability:** Maximum pressure of 250 bar for demanding applications
* **Monoblock construction:** Robust and reliable design for increased durability
* **5 spool design:** Precise control of fluid flow for complex hydraulic systems
* **Wide operating viscosity range:** 15 - 75 mm²/s for compatibility with various fluids
* **Wide ambient temperature range:** -40°C to +80°C for use in diverse environments

**Applications:**

* Construction equipment: Excavators, loaders, bulldozers
* Material handling equipment: Forklifts, cranes, conveyor systems
* Agricultural machinery: Tractors, harvesters, sprayers
* Industrial vehicles: Sweepers, waste compactors, hook-loaders
* And many more

P80-G34-5OT Manual 5 Spool Monoblock Directional Valve application image

P80-G34-5OT Manual 5 Spool Monoblock Directional Valve packing image

P80-G34-5OT Manual 5 Spool Monoblock Directional Valve company image

P80-G34-5OT Manual 5 Spool Monoblock Directional Valve certification image
