P80-G34 6-Spool Hydraulic Directional Valve | Factory Direct & Customizable

Max Pressure:315 bar (4600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80 Series Monoblock Directional Valve

Productsize:25.1*32.2*8

Netweight:17.80 kg

Availability: In Stock

  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
87 Views are Looking for this Product

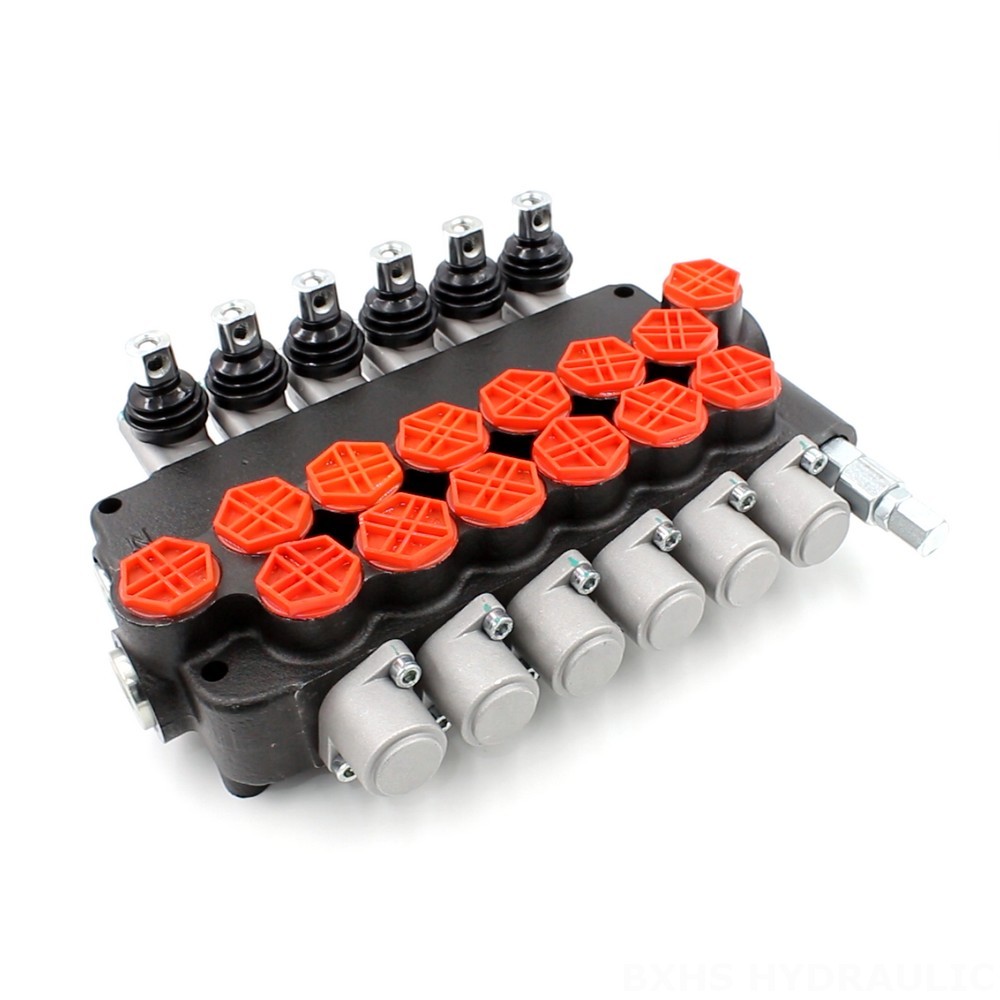

P80-G34 6-Spool Hydraulic Directional Valve | Factory Direct & Customizable detailed image

P80-G34 6-Spool Hydraulic Directional Valve | Factory Direct & Customizable detailed image

P80-G34 6-Spool Hydraulic Directional Valve | Factory Direct & Customizable drawing image

The P80-G34 6-Spool Hydraulic Directional Valve is a precision-engineered hydraulic valve designed for demanding applications in various industries. It features a robust monoblock construction, manual control, and a high flow rate of up to 80 L/min. The valve can withstand pressures up to 250 bar and operates within a wide viscosity range. Its versatility makes it suitable for material handling, construction, agriculture, and industrial vehicles.

Section 1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section
Structure Type Monoblock valve
Rated Flow 80 L/min (21.2 US gpm)
Max Pressure 315 bar (4600 psi)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)

**P80-G34 6-Spool Hydraulic Directional Valve**

**Key Features:**

* Monoblock construction for durability and compactness
* Manual control for precise operation
* High flow rate of up to 80 L/min (21.2 US gpm)
* Max pressure of 250 bar (3600 psi)
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient temperature range of -40°C to +80°C (-40°F to +176°F)
* 6 spool design for versatile flow control

**Applications:**

* Telehandlers
* Forklifts
* All Terrain Cranes
* Stackers
* Aerial Platforms
* Motor Graders
* Mini-Excavators
* Skid Steer Loaders
* Compact Wheel Loaders

This Hydraulic Directional Valve is an essential component for hydraulic systems in a wide range of industries, offering precise flow control, reliability, and performance.

P80-G34 6-Spool Hydraulic Directional Valve | Factory Direct & Customizable application image

P80-G34 6-Spool Hydraulic Directional Valve | Factory Direct & Customizable packing image

P80-G34 6-Spool Hydraulic Directional Valve | Factory Direct & Customizable company image

P80-G34 6-Spool Hydraulic Directional Valve | Factory Direct & Customizable certification image
