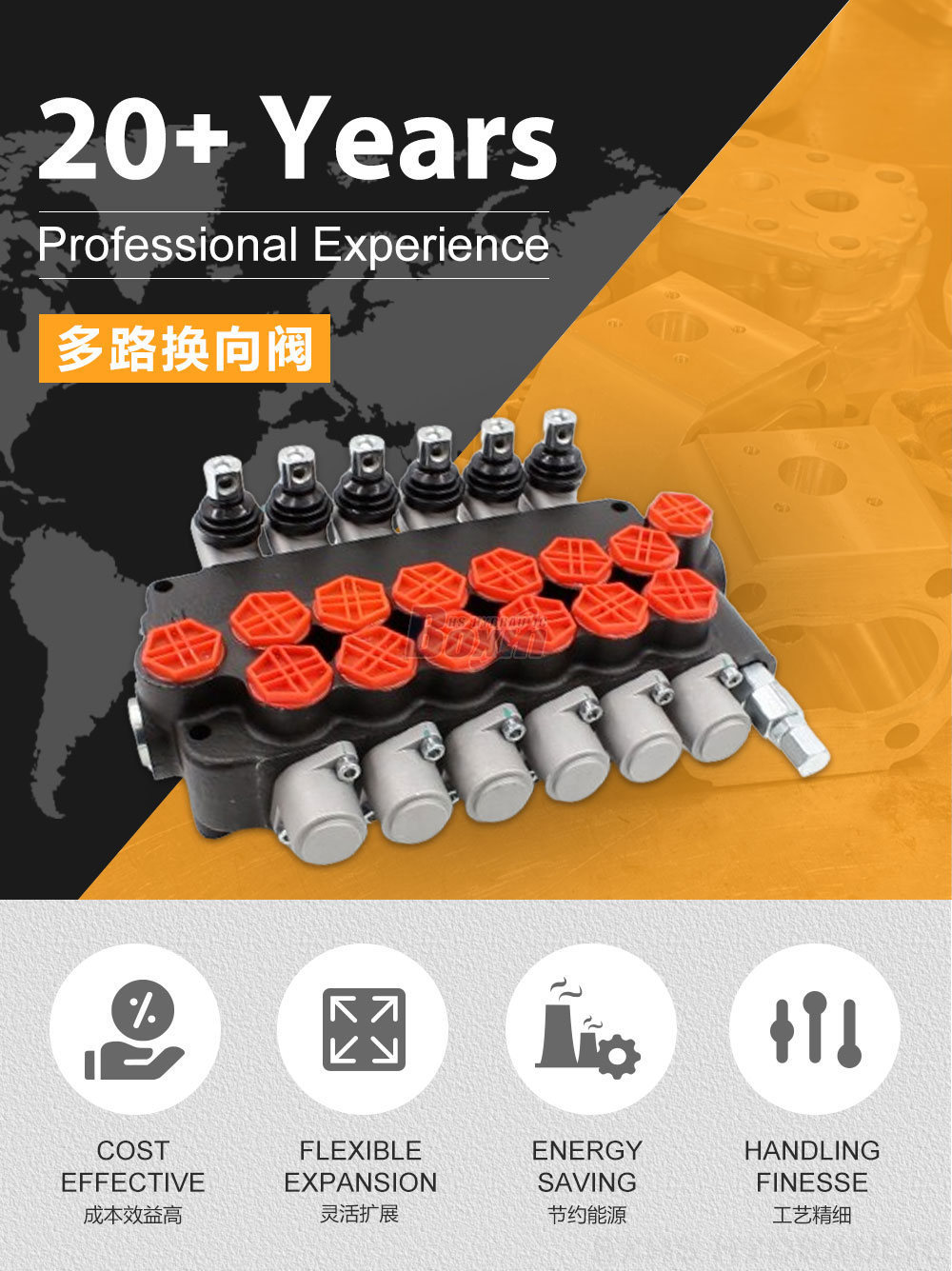

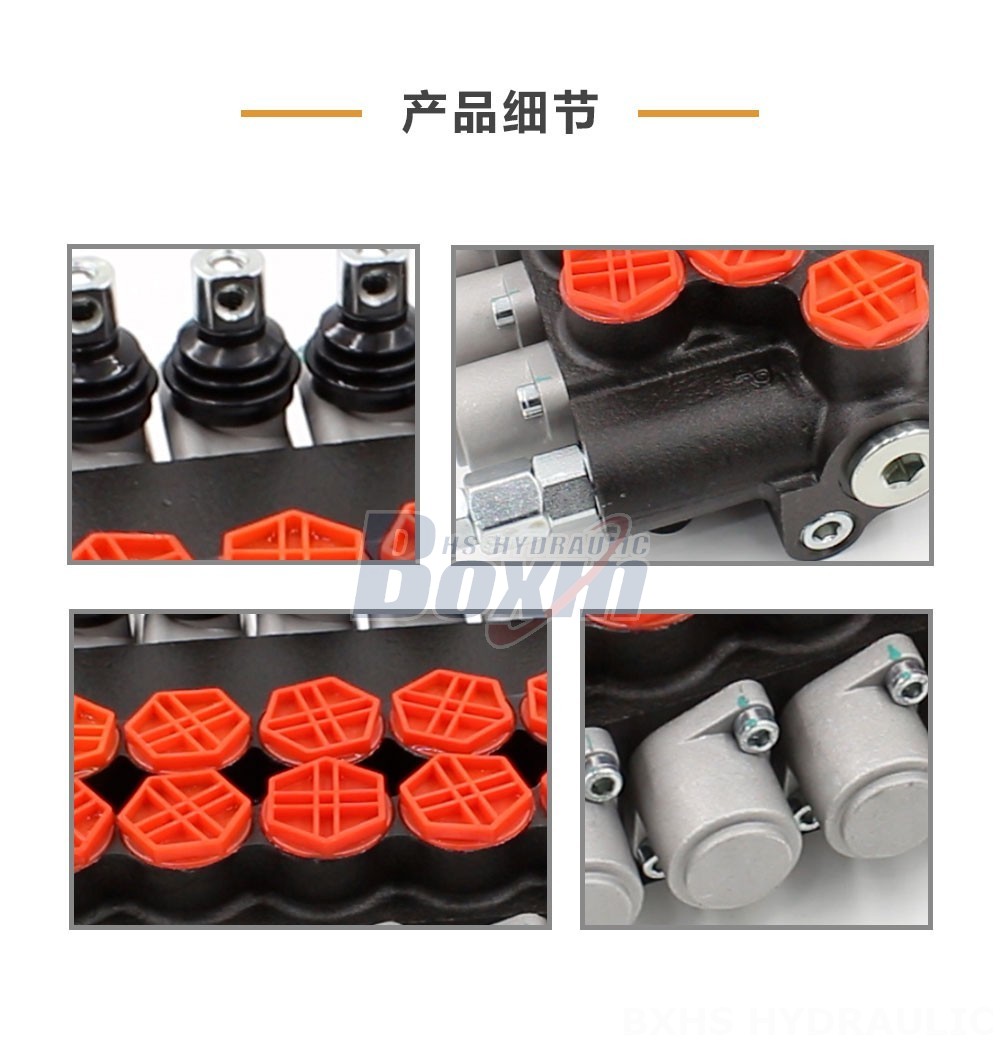

The P80-G34-6OT Manual 6 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for various applications in MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, and INDUSTRIAL VEHICLES. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it offers reliable and efficient flow control in hydraulic systems.
| P80 Series Monoblock Directional Valve Parameters | |
|---|---|
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick |
| Port Size | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Max Pressure | 315 bar (4600 psi) |
| Rated Flow | 80 L/min (21.2 US gpm) |
| Structure Type | Monoblock valve |
| Inlet Port | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
**Product Features and Benefits:**
* Manual control for precise and responsive operation
* Monoblock construction for compact size and durability
* 6 spool design for versatile flow control
* High flow capacity of 80 L/min for demanding applications
* Maximum pressure of 250 bar for robust performance
* Wide operating viscosity range (15 - 75 mm²/s) for compatibility with various hydraulic fluids
* Extensive operating temperature range (-40°C to +80°C) for use in diverse environments
**Applications:**
The P80-G34-6OT Manual 6 Spool Monoblock Directional Valve finds applications in a wide range of hydraulic systems, including:
* Mobile hydraulics: construction machinery, agricultural equipment, industrial vehicles
* Industrial machinery: manufacturing equipment, material handling systems
* Power units: pumps, motors, valves
* Test benches: hydraulic testing and simulation
