P80-G34-G12-1OT Manual 1 Spool Monoblock Directional Valve

Rated Flow:80 L/min (21.2 US gpm)

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80 Series Monoblock Directional Valve

Productsize:25.1*10.5*8

Netweight:4.80 kg

Availability: In Stock

Description

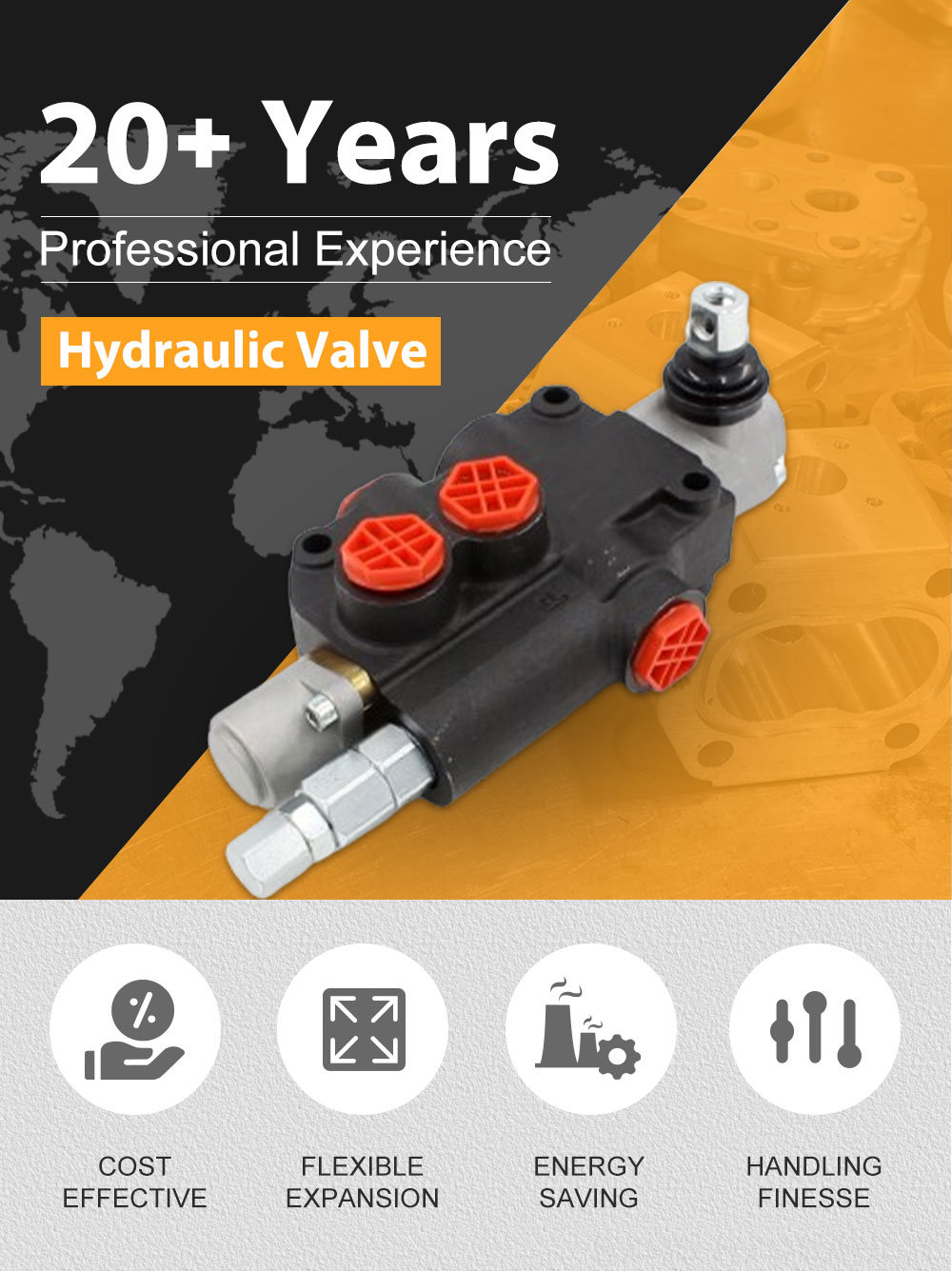

P80-G34-G12-1OT Manual 1 Spool Monoblock Directional Valve detailed image

P80-G34-G12-1OT Manual 1 Spool Monoblock Directional Valve drawing image

The P80-G34-G12-1OT Manual 1 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in various industrial applications. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this valve offers excellent flow control and pressure handling capabilities. Its compact monoblock design ensures durability and reliability, making it an ideal choice for demanding hydraulic systems.

P80 Series Monoblock Directional Valve Parameters
Control Method	Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick
Spool	1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)
Structure Type	Monoblock valve
Section	1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)
Rated Flow	80 L/min (21.2 US gpm)
Max Pressure	315 bar (4600 psi)
Inlet Port	G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Outlet Port	G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Size	G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

**Product Features and Benefits:**

* Manual control for precise flow regulation
* Monoblock construction for durability and leak-free operation
* High flow capacity (80 L/min) for efficient system performance
* Maximum pressure rating of 250 bar for demanding applications
* Wide operating viscosity range (15 - 75 mm²/s) for compatibility with various hydraulic fluids
* Compact design for easy integration into hydraulic systems

**Applications:**

This directional valve is suitable for a wide range of hydraulic applications, including:

* Industrial machinery
* Construction equipment
* Agricultural machinery
* Material handling equipment
* Mobile hydraulics
* And many more
