P80-G34-G12-2OT-YW-2OT Manual 5 Spool Monoblock Directional Valve

Rated Flow:80 L/min (21.2 US gpm)

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80 Series Monoblock Directional Valve

Productsize:25.1*28.4*8

Netweight:14.80 kg

Availability: In Stock

  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
682 Views are Looking for this Product

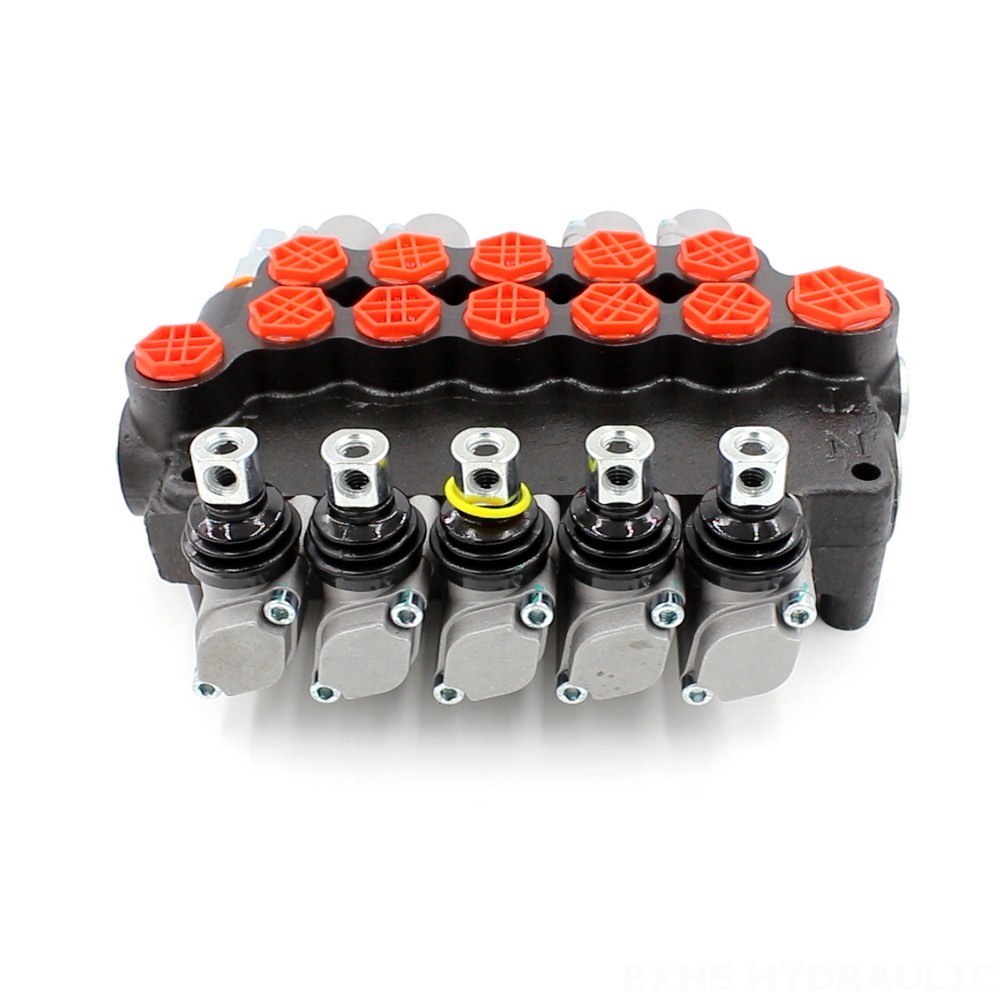

P80-G34-G12-2OT-YW-2OT Manual 5 Spool Monoblock Directional Valve detailed image

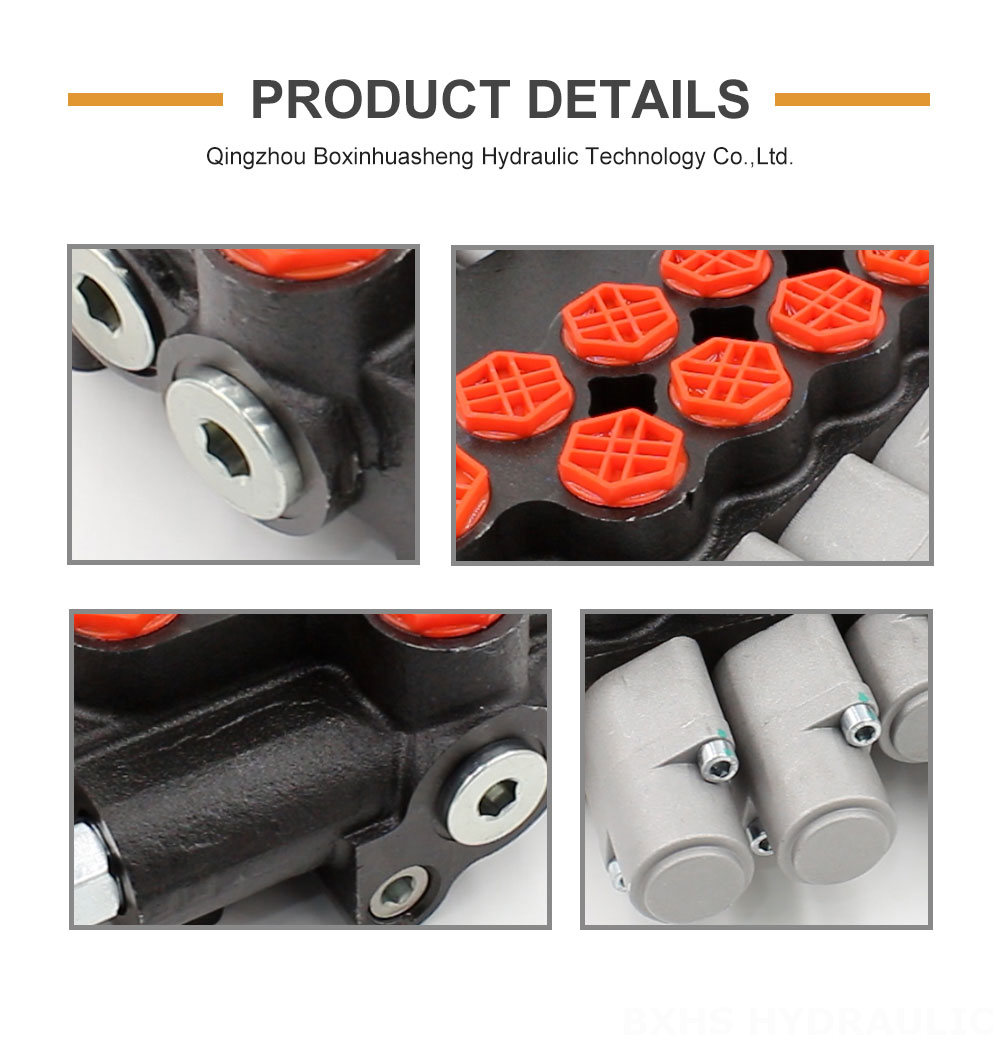

P80-G34-G12-2OT-YW-2OT Manual 5 Spool Monoblock Directional Valve detailed image

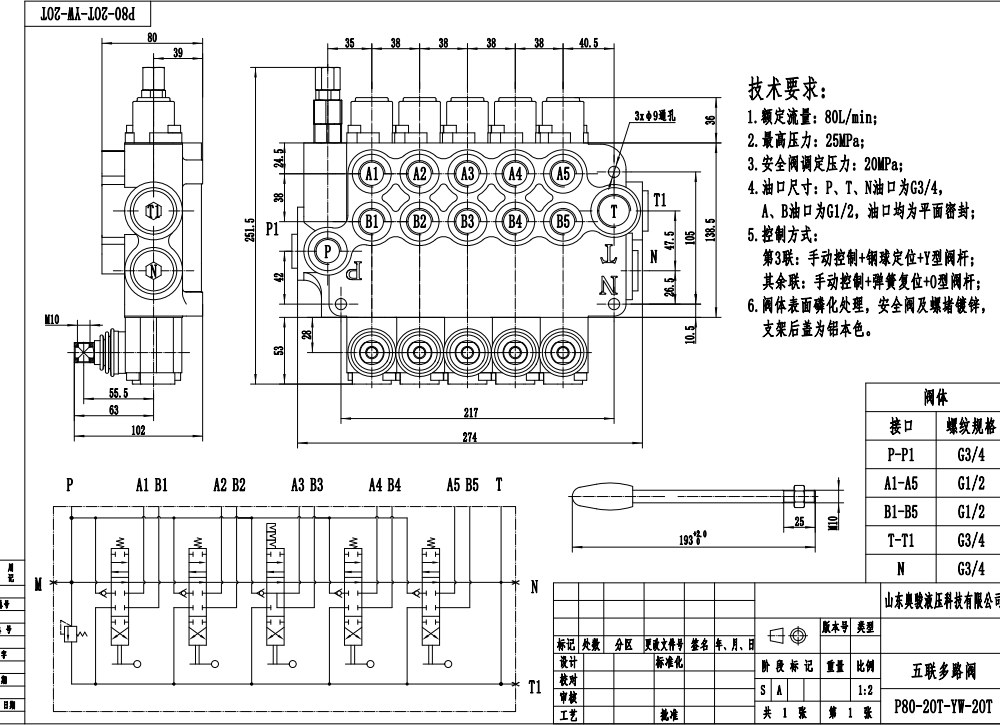

P80-G34-G12-2OT-YW-2OT Manual 5 Spool Monoblock Directional Valve drawing image

The P80-G34-G12-2OT-YW-2OT Manual 5 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in various industrial applications. With a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi), this valve is capable of handling demanding hydraulic systems. Its manual control and 5 spool design provide precise and efficient operation, making it a reliable choice for a wide range of applications.

P80 Series Monoblock Directional Valve Parameters
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick
Port Size G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure 315 bar (4600 psi)
Rated Flow 80 L/min (21.2 US gpm)
Structure Type Monoblock valve
Inlet Port G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

**Product Features and Benefits:**

* Manual control for precise and responsive operation
* 5 spool design for versatility and flexibility
* Rated flow of 80 L/min (21.2 US gpm) for high-flow applications
* Maximum pressure of 250 bar (3600 psi) for durability and reliability
* Compact monoblock design for space optimization
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various hydraulic fluids
* Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for operation in harsh environments

**Applications:**

The P80-G34-G12-2OT-YW-2OT Manual 5 Spool Monoblock Directional Valve is widely used in a variety of industrial applications, including:

* Construction equipment
* Industrial vehicles
* Agricultural machinery
* Material handling equipment
* Forestry equipment
* Mining equipment
