P80-G34-G12-4OT Manual 4 Spool Monoblock Directional Valve

Rated Flow:80 L/min (21.2 US gpm)

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80 Series Monoblock Directional Valve

Productsize:25.1*24.6*8

Netweight:12.80 kg

Availability: In Stock

Description

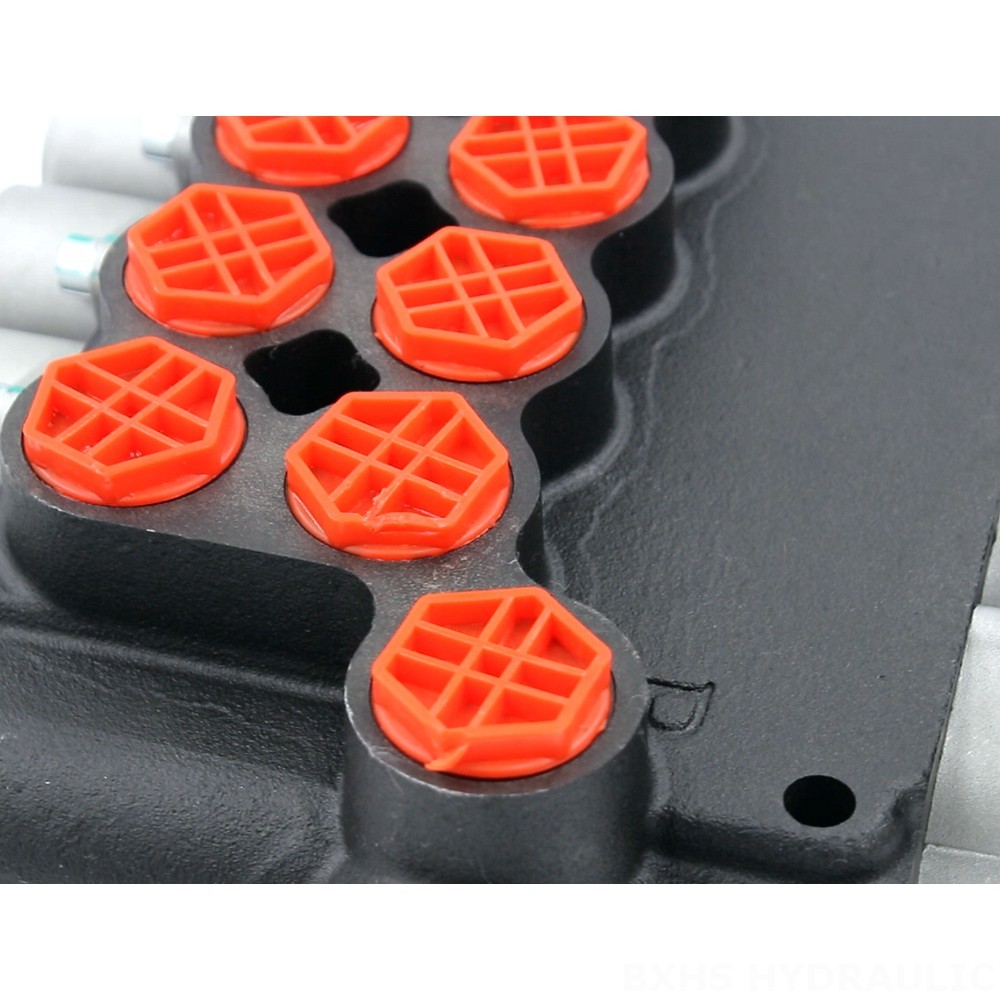

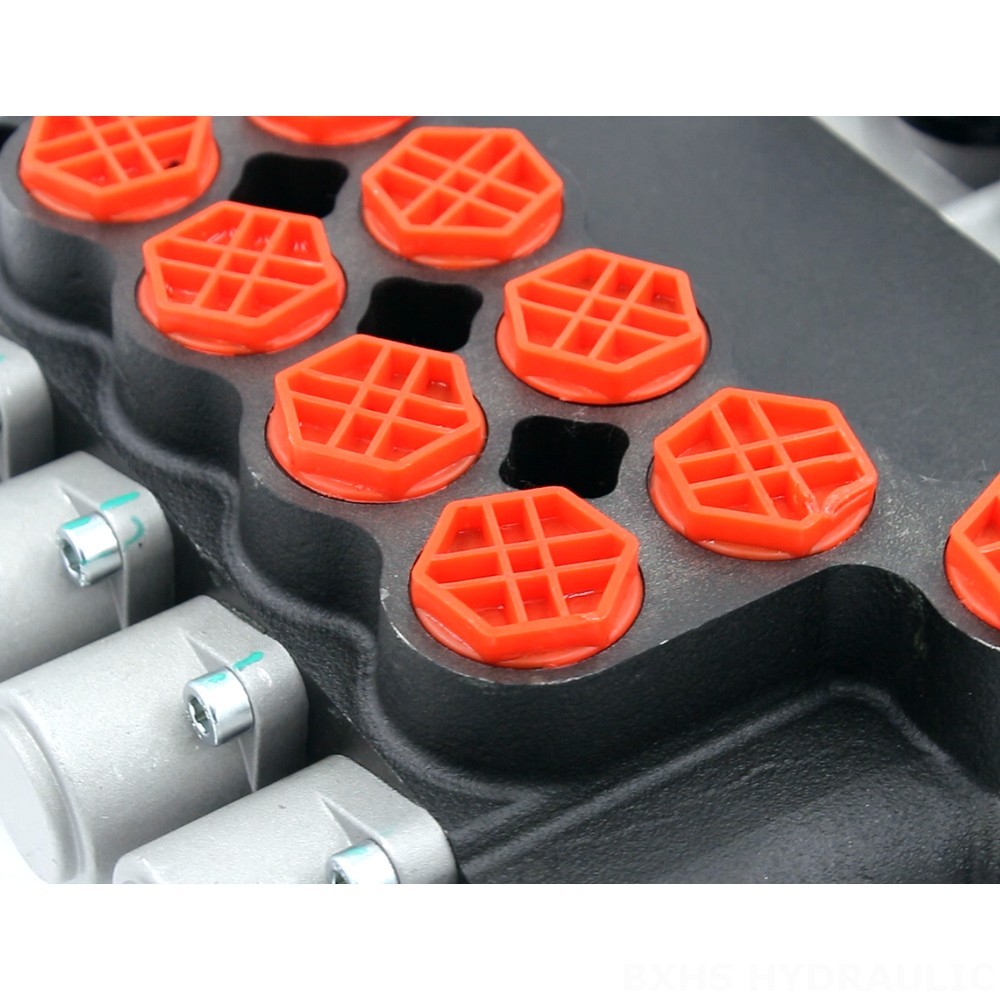

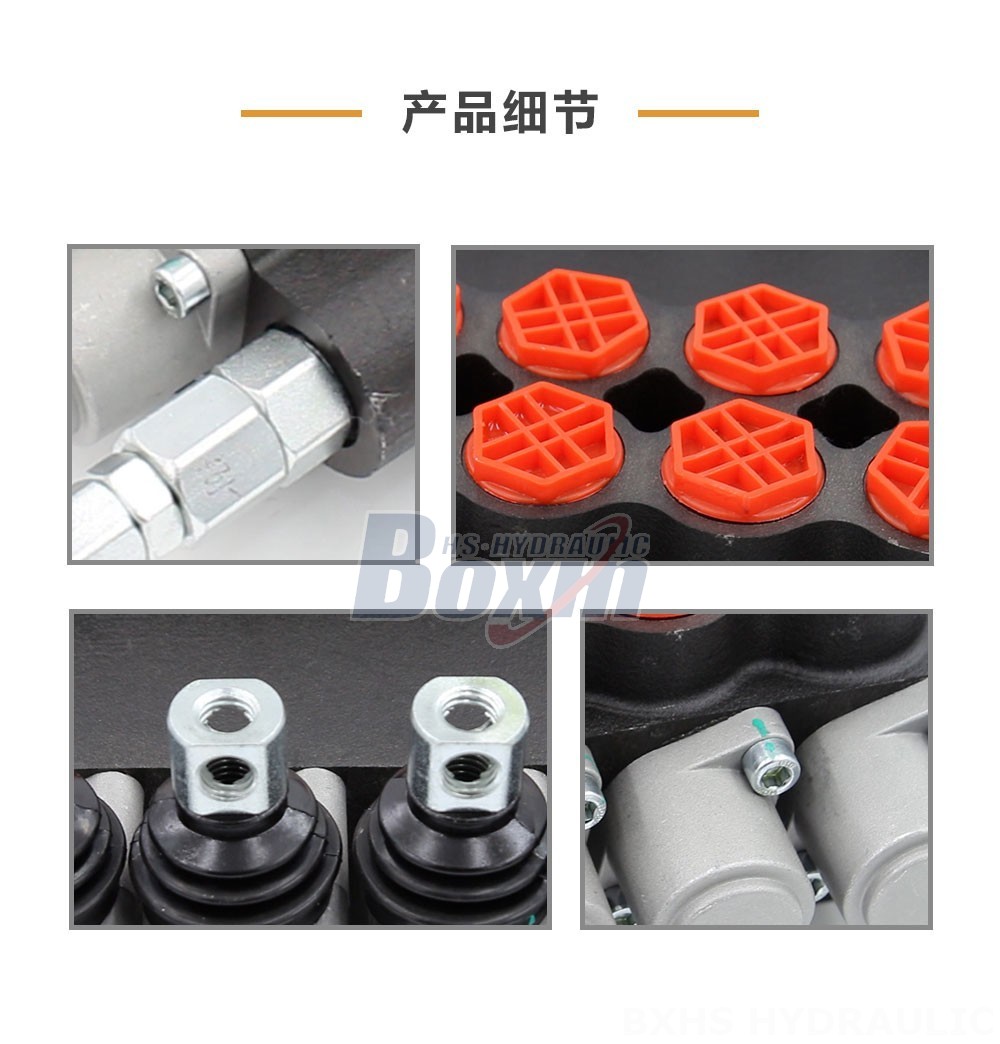

P80-G34-G12-4OT Manual 4 Spool Monoblock Directional Valve detailed image

P80-G34-G12-4OT Manual 4 Spool Monoblock Directional Valve drawing image

P80-G34-G12-4OT Manual 4 Spool Monoblock Directional Valve is a hydraulic valve designed for use in various industrial applications. It is a 4 spool valve with a rated flow rate of 80 L/min and a maximum pressure of 250 bar. The valve is suitable for use in a wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles.

P80 Series Monoblock Directional Valve Parameters
Spool	1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Control Method	Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick
Port Size	G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT
Section	1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure	315 bar (4600 psi)
Rated Flow	80 L/min (21.2 US gpm)
Structure Type	Monoblock valve
Inlet Port	G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

**Product Features and Benefits:**

* High flow rate of 80 L/min for efficient operation
* Maximum pressure of 250 bar for demanding applications
* 4 spool design for precise control of hydraulic circuits
* Monoblock construction for compact and durable design
* Manual control for ease of use

**Applications:**

* Material handling equipment, such as forklifts and telehandlers
* Construction and earth moving machinery, such as excavators and loaders
* Agricultural equipment, such as tractors and harvesters
* Industrial vehicles, such as sweepers and waste compactors

P80-G34-G12-4OT Manual 4 Spool Monoblock Directional Valve application image
