P80-G12-2QTW-OT Manual 3 Spool Monoblock Directional Valve

Rated Flow:80 L/min (21.2 US gpm)

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80 Series Monoblock Directional Valve

Productsize:25.1*20.8*8

Netweight:10.10 kg

Availability: In Stock

Description

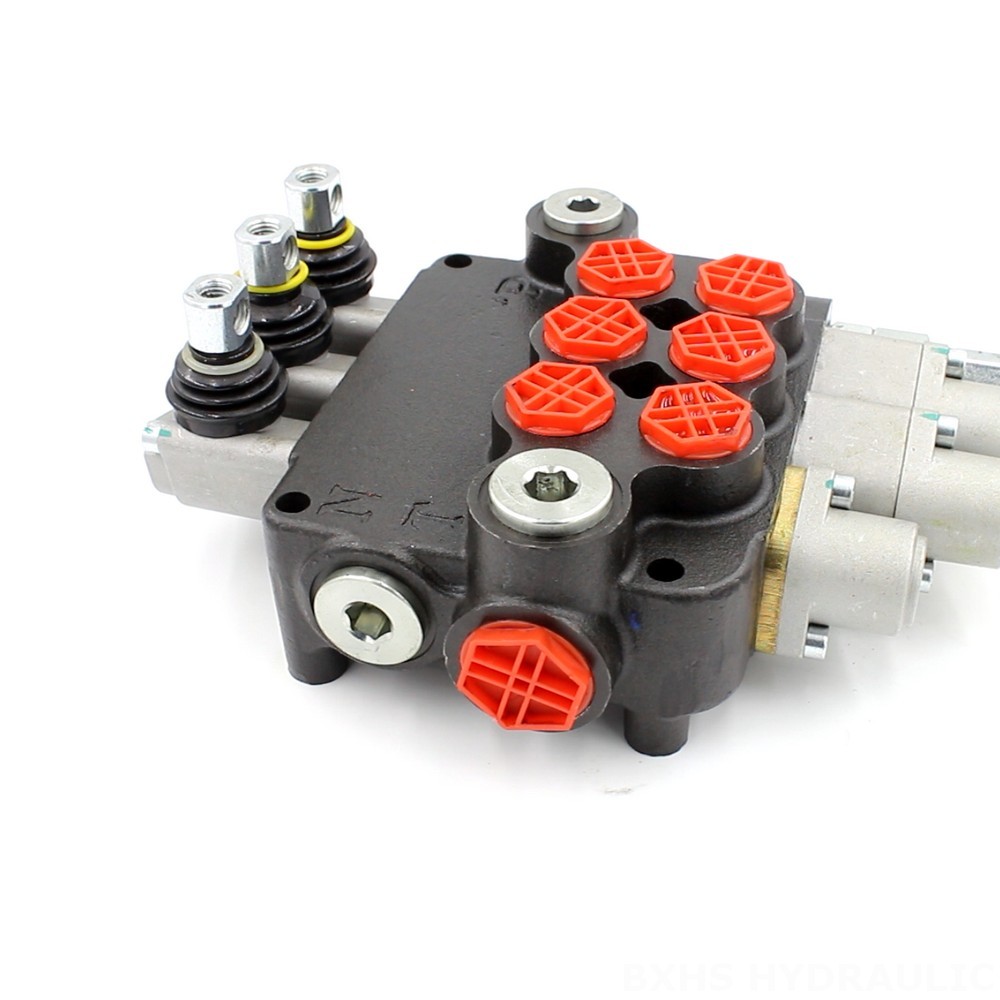

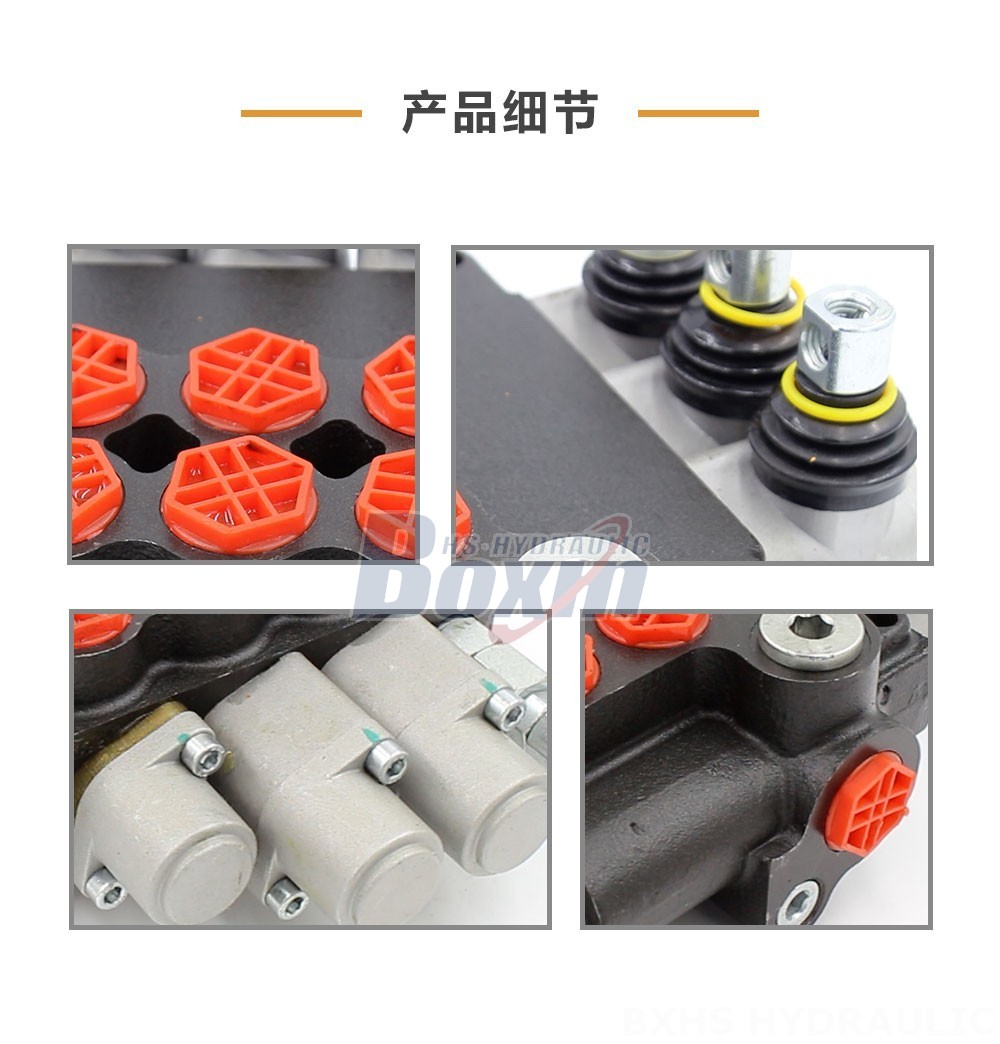

P80-G12-2QTW-OT Manual 3 Spool Monoblock Directional Valve detailed image

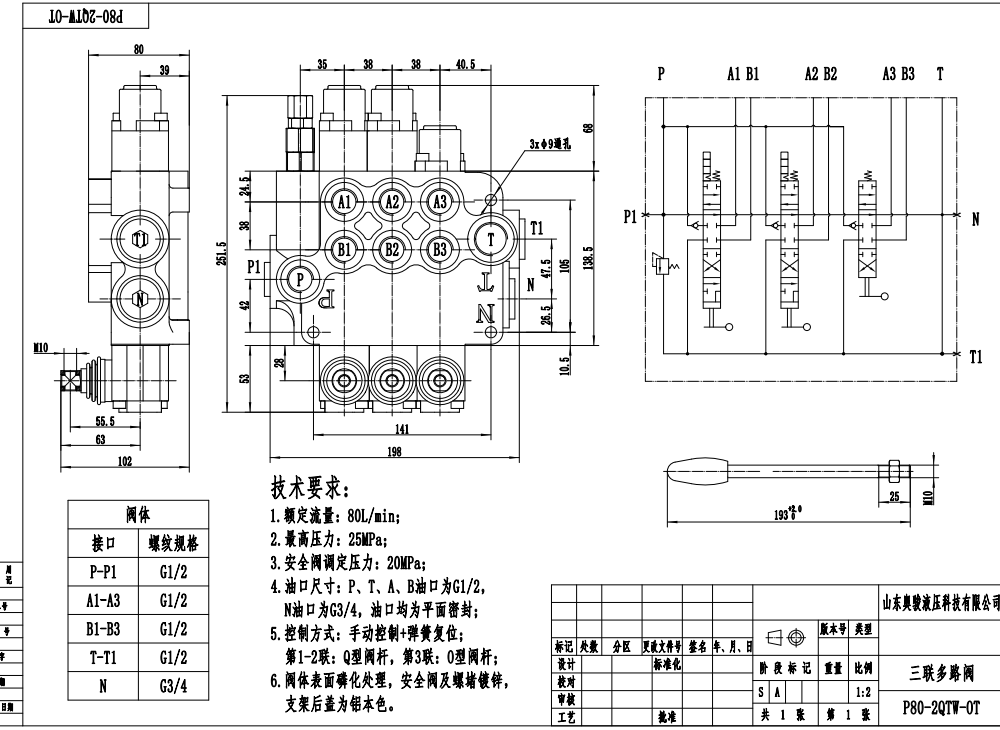

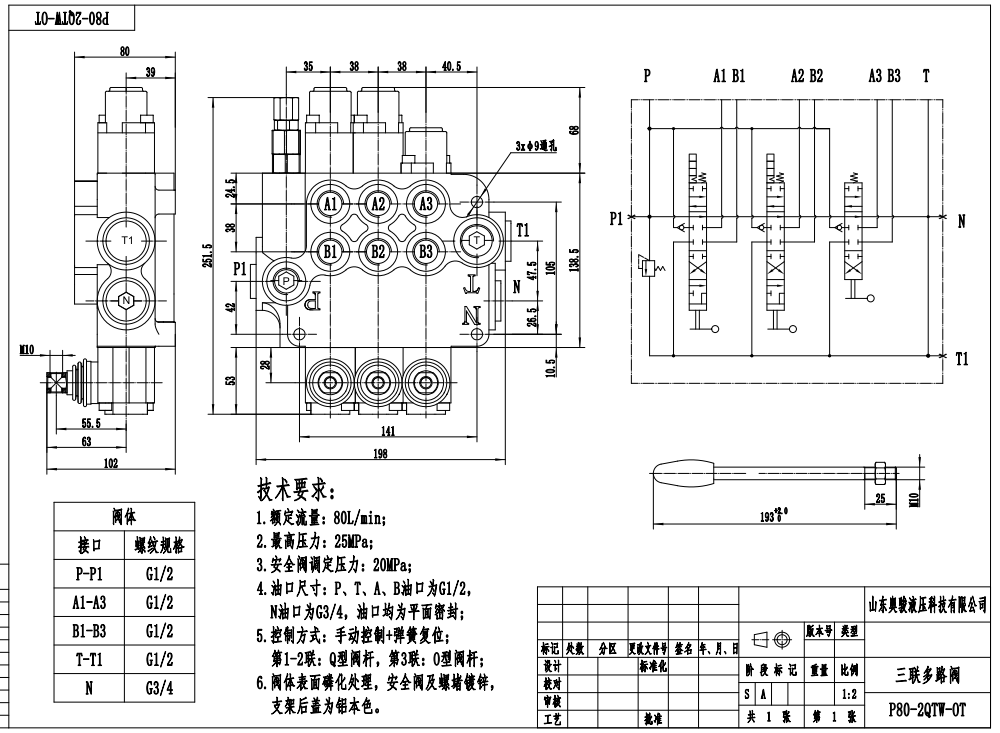

P80-G12-2QTW-OT Manual 3 Spool Monoblock Directional Valve drawing image

The P80-G12-2QTW-OT is a manual 3 spool monoblock directional valve designed for hydraulic systems. It offers a rated flow of 80 L/min, a maximum pressure of 250 bar, and an operating viscosity range of 15 - 75 mm²/s. This valve is commonly used in various applications across industries such as material handling, construction, earth moving, and agriculture.

P80 Series Monoblock Directional Valve Parameters
Spool	1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Control Method	Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick
Port Size	G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT
Section	1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure	315 bar (4600 psi)
Rated Flow	80 L/min (21.2 US gpm)
Structure Type	Monoblock valve
Inlet Port	G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

**Product Features and Benefits:**

* Manual control for precise operation
* Monoblock construction for durability and compact size
* High flow capacity of 80 L/min for efficient system performance
* Maximum pressure of 250 bar for demanding applications
* Wide operating viscosity range for compatibility with various hydraulic fluids
* Suitable for ambient temperatures ranging from -40°C to +80°C

**Applications:**

The P80-G12-2QTW-OT manual directional valve is widely used in hydraulic systems of mobile and industrial machinery, including:

* Material handling equipment such as forklifts, telehandlers, and cranes
* Construction and earth moving machinery such as excavators, loaders, and graders
* Agricultural machinery such as tractors, harvesters, and balers
* Industrial vehicles such as sweepers, waste compactors, and hook-loaders

P80-G12-2QTW-OT Manual 3 Spool Monoblock Directional Valve application image
