1244 Views are Looking for this Product

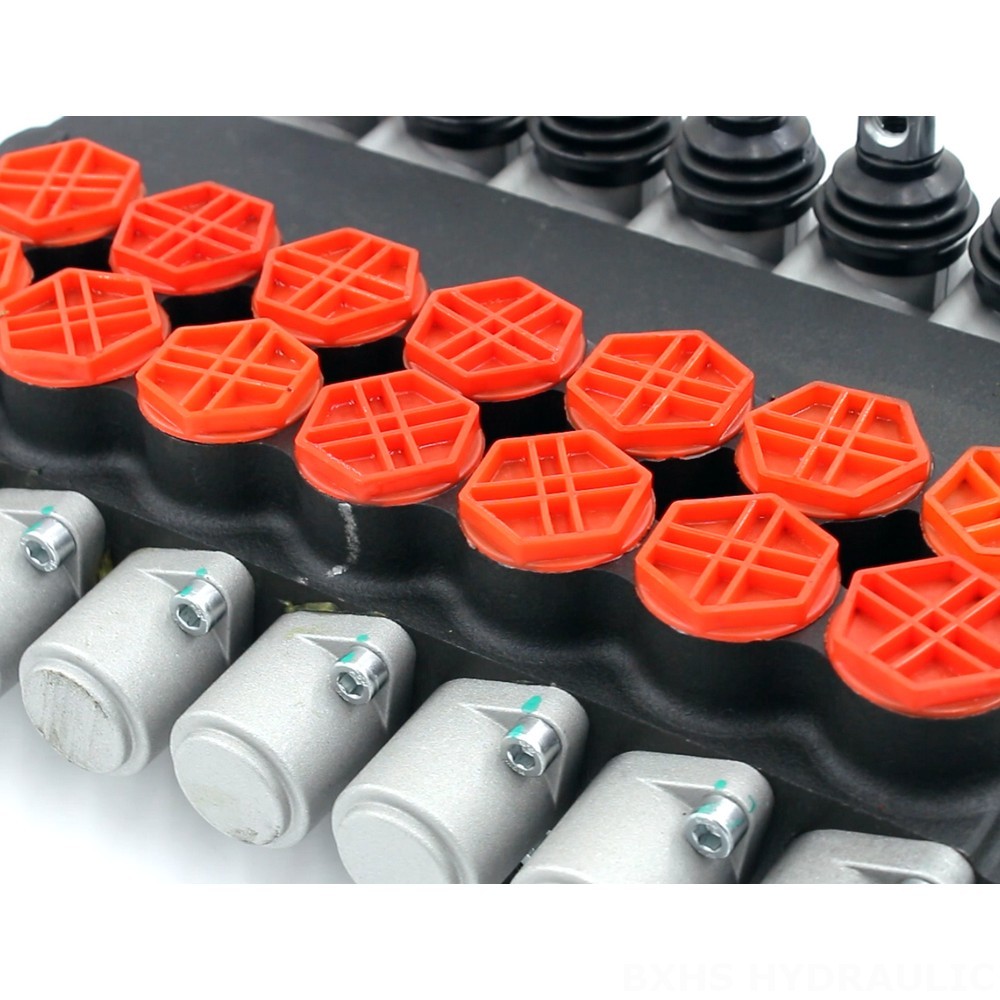

The P80-G34-OT Hydraulic Valve is a high-performance, precision-control valve designed for demanding applications in various industries. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it ensures efficient and reliable operation in challenging conditions.
| Port Size | G1/2,G3/4,M22×1.5,M27×2.0,SAE 10,1/2 NPT,3/4 NPT |
|---|---|
| Section | 1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Max Pressure | 315 bar (4600 psi) |
| Rated Flow | 80 L/min (21.2 US gpm) |
| Structure Type | Monoblock valve |
| Inlet Port | G1/2,G3/4,M27×2.0,SAE 10,SAE 12,1/2 NPT,3/4 NPT |
**P80-G34-OT Hydraulic Valve: Precision Control for Demanding Applications**
**Control Method:** Manual
**Section:** 7 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 80 L/min (21.2 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 7 Spool
**Series:** P80 Series
The P80-G34-OT Hydraulic Valve is a versatile and robust valve suitable for applications in material handling, construction and earth moving, agriculture, and industrial vehicles. Its precision control and high performance make it an ideal choice for demanding hydraulic systems that require precise and reliable operation.
