1589 Views are Looking for this Product

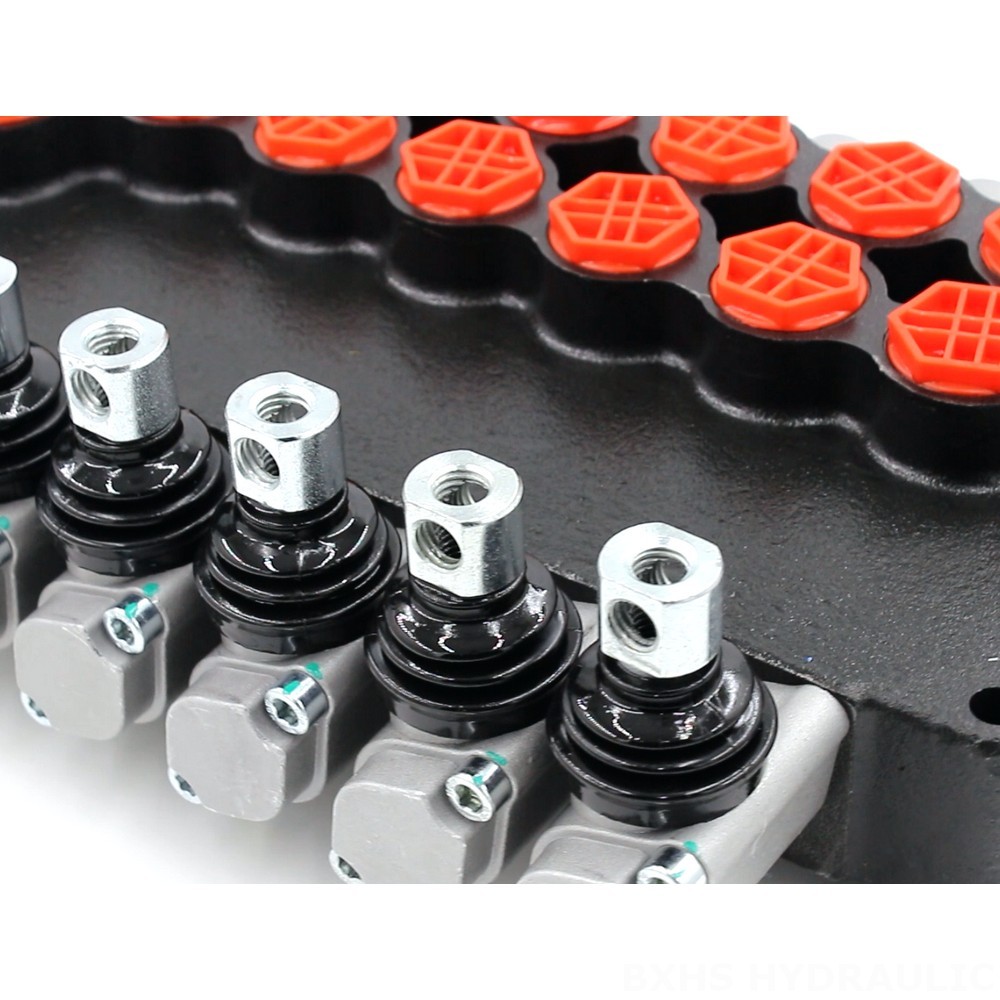

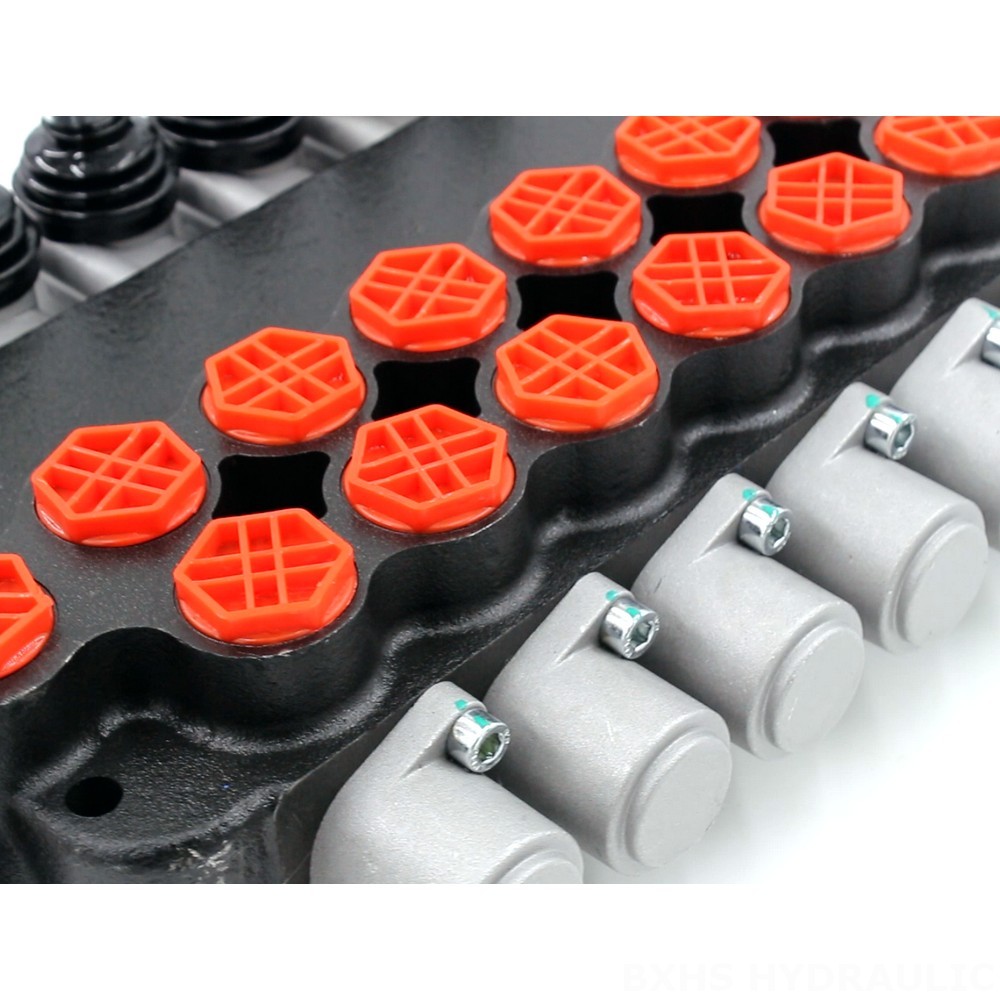

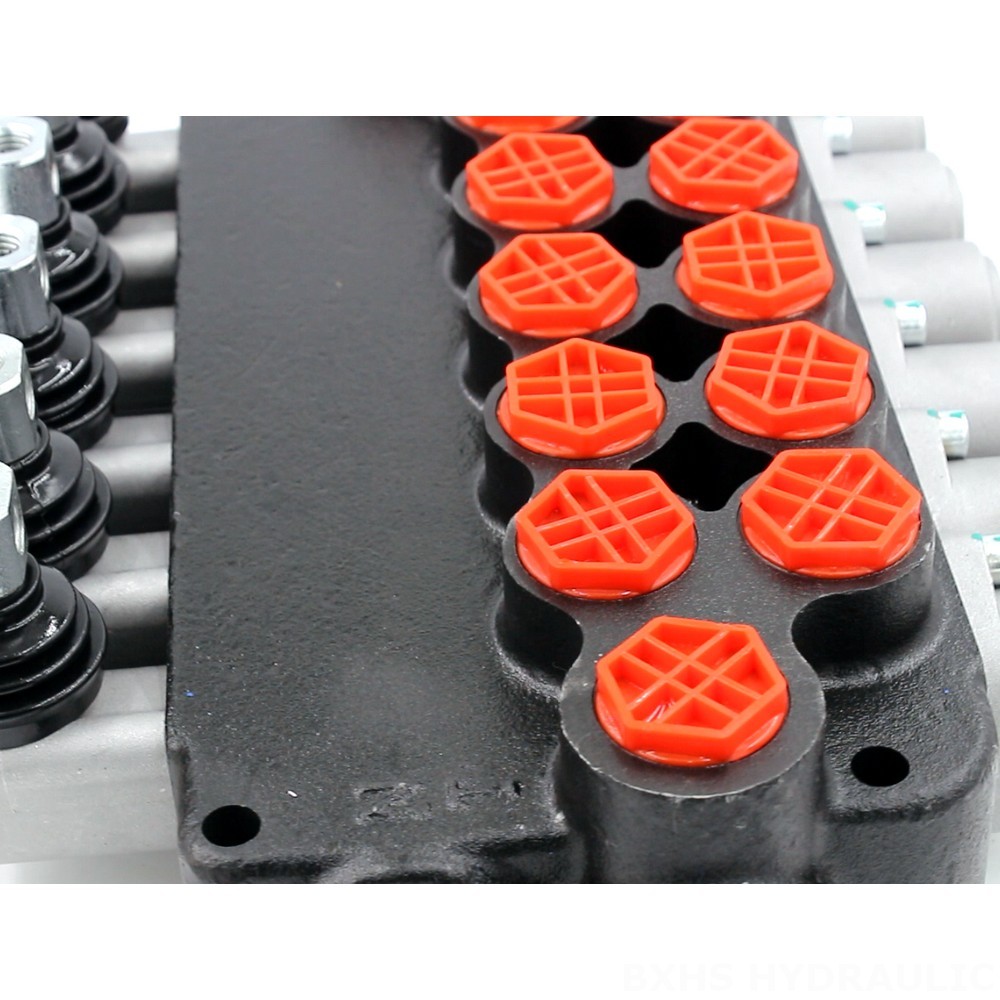

The P80-G34-OT Manual 6 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for a wide range of applications in various industries. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this valve offers precise and reliable flow control, making it an ideal choice for demanding hydraulic systems.
| P80 Series Monoblock Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Structure Type | Monoblock valve |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Rated Flow | 80 L/min (21.2 US gpm) |
| Max Pressure | 315 bar (4600 psi) |
| Inlet Port | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Outlet Port | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Size | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**Product Features and Benefits**
- Manual control for precise flow regulation
- 6 spool design for versatile flow path configurations
- Monoblock construction for compact and robust design
- High flow capacity of 80 L/min for efficient system operation
- Maximum pressure of 250 bar for demanding applications
- Operating viscosity range of 15 - 75 mm²/s for compatibility with various hydraulic fluids
- Wide ambient temperature range (-40°C to +80°C) for operation in harsh environments
**Applications**
- Material handling equipment (forklifts, telehandlers, cranes)
- Construction and earth moving machinery (excavators, loaders, graders)
- Agricultural machinery (tractors, harvesters, balers)
- Industrial vehicles (sweepers, waste compactors, hook-loaders)
