P80 Hydraulic Control Valves SD5-G38 Monoblock Valve: Unlocking Superior Hydraulic Performance

Control Method:Manual

Spool:1 Spool

Rated Flow:45 L/min (11.8 US gpm)

Max Pressure:315 bar (4600 psi)

Inlet Port:G3/8

Outlet Port:G3/8

Port Size:G3/8

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:SD5 Series Monoblock Directional Valve

Packagingsize:23*20*12

Grossweight:3.80 kg

Availability: In Stock

674 Views are Looking for this Product

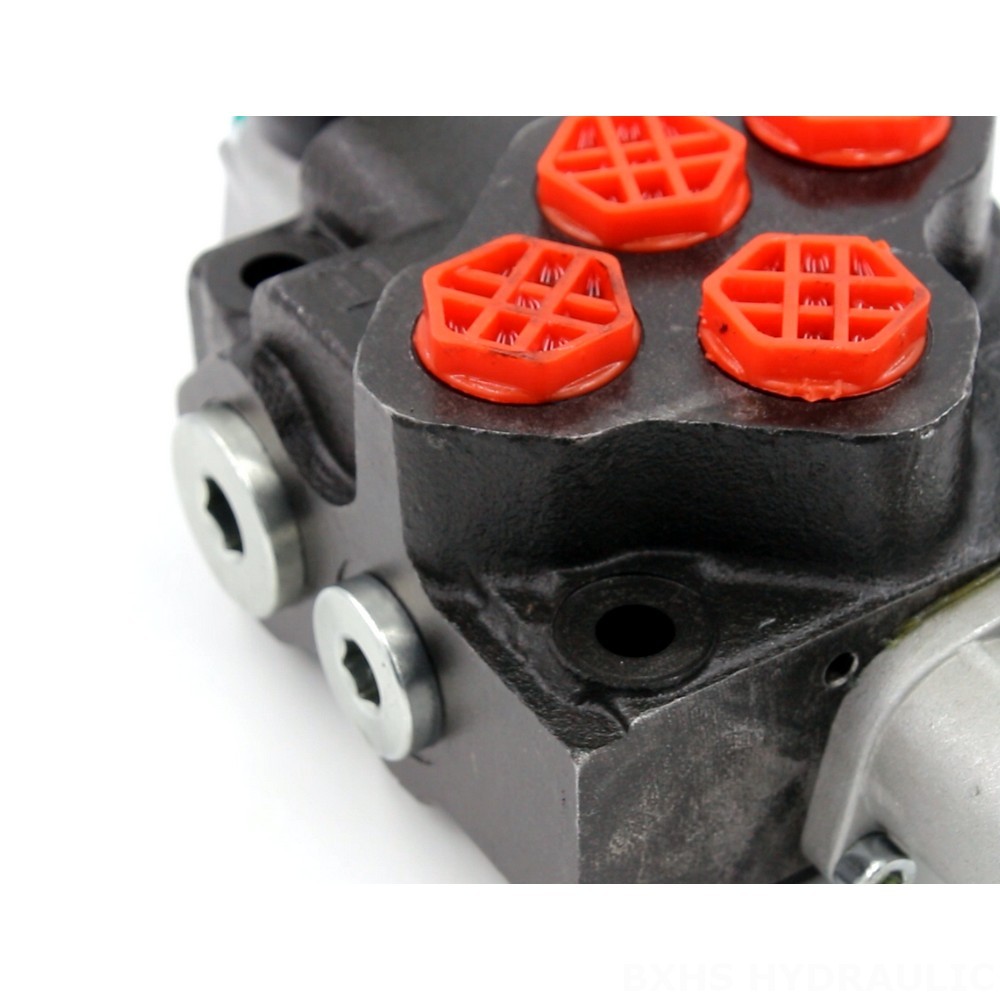

P80 Hydraulic Control Valves SD5-G38 Monoblock Valve: Unlocking Superior Hydraulic Performance detailed image

P80 Hydraulic Control Valves SD5-G38 Monoblock Valve: Unlocking Superior Hydraulic Performance detailed image

P80 Hydraulic Control Valves SD5-G38 Monoblock Valve: Unlocking Superior Hydraulic Performance drawing image

The P80 Hydraulic Control Valve SD5-G38 is a high-performance monoblock valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. This 1-section valve features a manual control method, a rated flow of 40 L/min, and a maximum pressure of 305 bar, making it ideal for a wide range of equipment.

SD5 Series Monoblock Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool
Rated Flow 40 L/min (10.5 US gpm)
Max Pressure 305 bar (4400 psi)
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Structure Type Monoblock valve
Ambient Temperature Range -40°C to +60°C (-40°F to +140°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

The P80 Hydraulic Control Valve SD5-G38 is a robust and reliable monoblock valve designed for heavy-duty applications. This 1-section valve features a manual control method, offering precise control over hydraulic systems. With a rated flow of 40 L/min and a maximum pressure of 305 bar, the P80 valve is capable of handling demanding workloads. It is compatible with a wide range of equipment, including telehandlers, forklifts, cranes, stackers, aerial platforms, mini excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, harvesters, bale wrappers, backhoes, and seeding machines. The P80 valve operates within a viscosity range of 15 - 75 mm²/s and can withstand ambient temperatures from -40°C to +60°C. This makes it suitable for a variety of operating environments. The valve's compact design and robust construction ensure long-lasting performance and reliability, even in demanding conditions.
