P80 Solenoid 2 Spool Monoblock Directional Valve

Rated Flow:80 L/min (21.2 US gpm)

Max Pressure:200 bar (2900 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80 Series Monoblock Directional Valve

Productsize:33*18*11

Netweight:9.30 kg

Availability: In Stock

Description

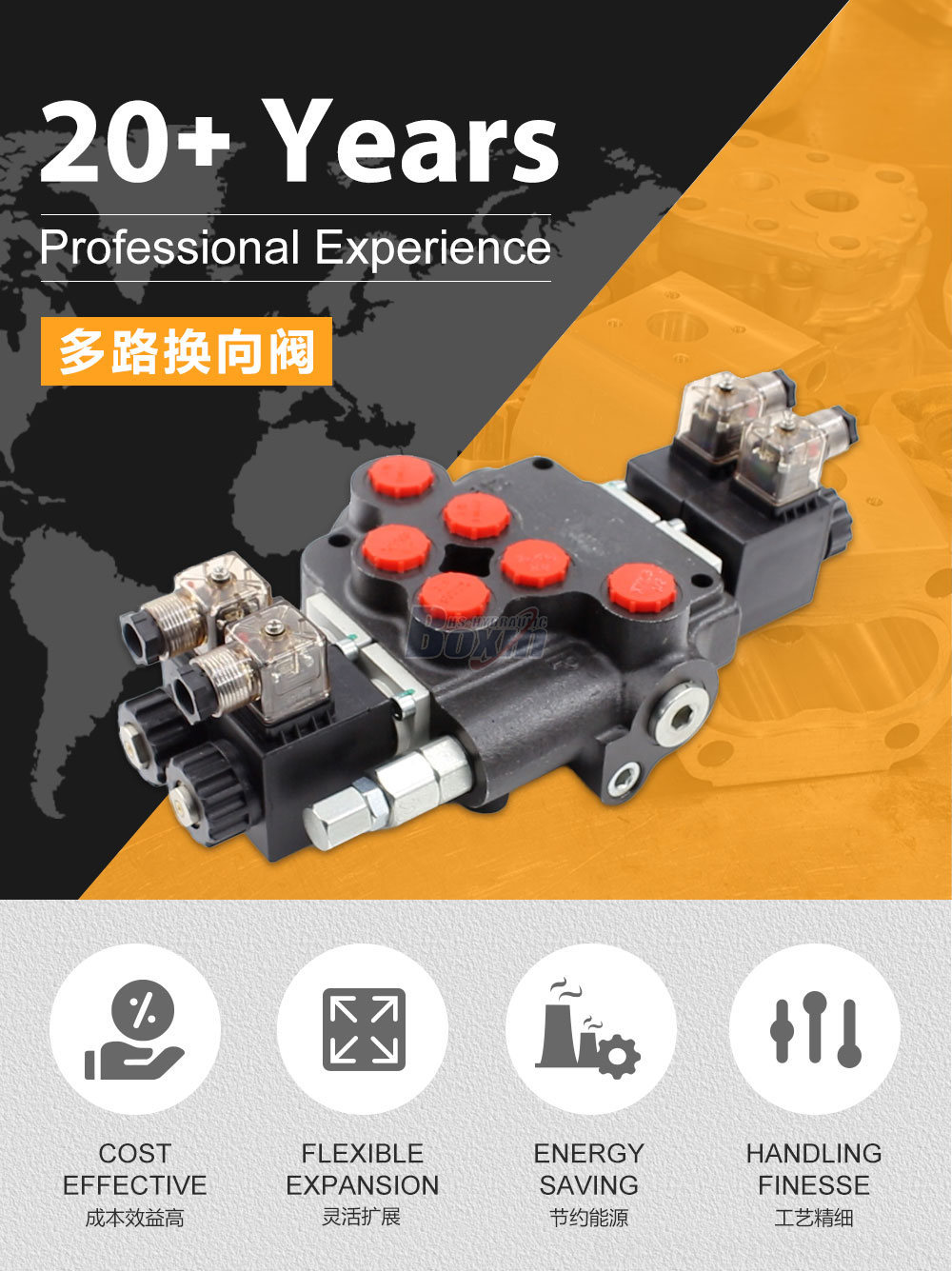

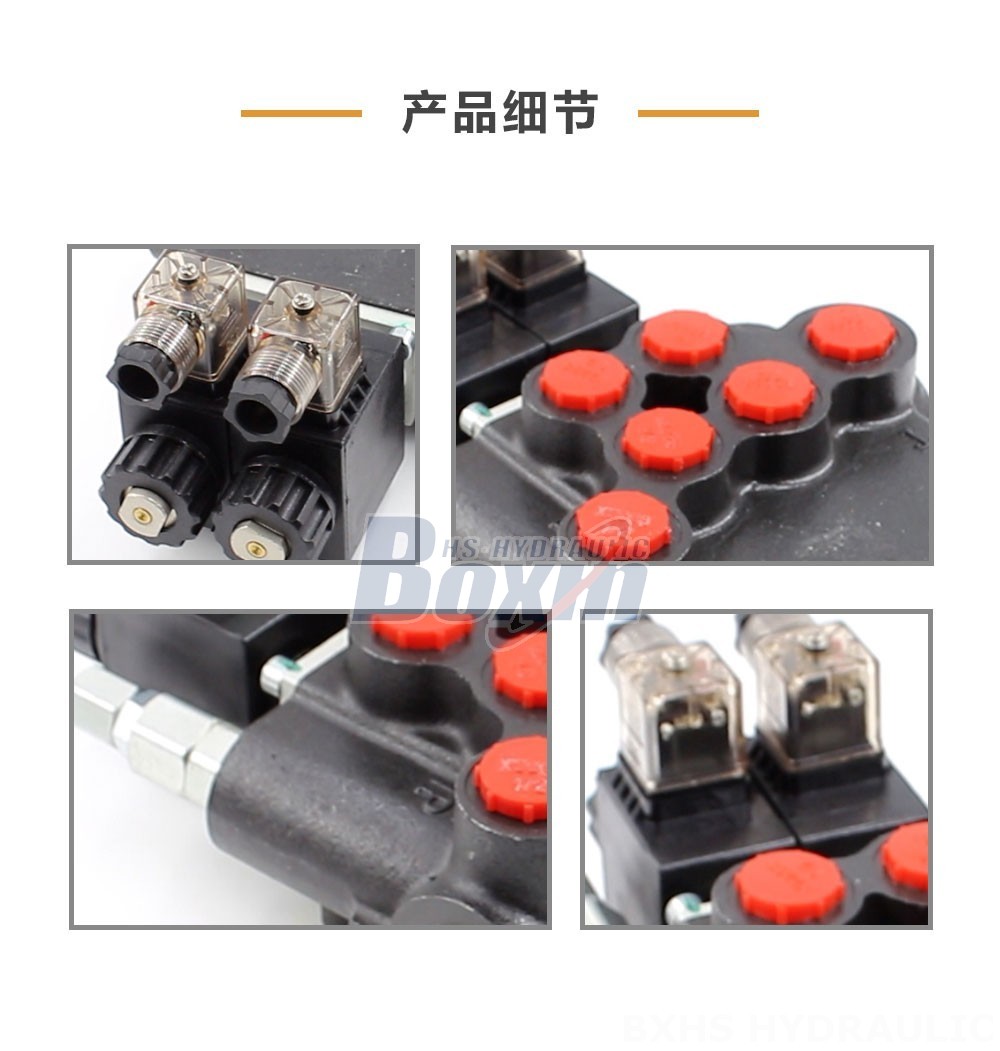

P80 Solenoid 2 Spool Monoblock Directional Valve detailed image

P80 Solenoid 2 Spool Monoblock Directional Valve drawing image

The P80 Solenoid 2 Spool Monoblock Directional Valve is an electro-hydraulic valve designed to control the flow of hydraulic fluid in a wide range of industrial and mobile equipment applications. Its monoblock construction provides high strength and durability, while the solenoid actuation offers precise and reliable control. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this valve is suitable for demanding applications requiring precise fluid control.

P80 Series Monoblock Directional Valve Parameters
Spool	1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Control Method	Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick
Port Size	G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT
Section	1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure	315 bar (4600 psi)
Rated Flow	80 L/min (21.2 US gpm)
Structure Type	Monoblock valve
Inlet Port	G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

**Product Features and Benefits:**

* Monoblock construction for high strength and durability
* Solenoid actuation for precise and reliable control
* Rated flow of 80 L/min for high flow capacity
* Maximum pressure of 250 bar for demanding applications
* Compact design for easy installation and maintenance
* Wide operating temperature range (-40°C to +80°C)
* Suitable for a wide range of hydraulic fluids

**Applications:**

The P80 Solenoid 2 Spool Monoblock Directional Valve is widely used in various industrial and mobile equipment applications, including:

* Material handling equipment
* Construction and earth-moving equipment
* Agricultural machinery
* Industrial vehicles
* Hydraulic power units
* Test and measurement equipment
