P80-U116-U78 Hydraulic Valve: Private Label, OEM & Custom Manufacturing Services

Control Method:Manual

Spool:1 Spool

Rated Flow:80 L/min (21.2 US gpm)

Max Pressure:250 bar (3600 psi)

Inlet Port:SAE 12

Outlet Port:SAE 12

Port Size:SAE 10

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80 Series Monoblock Directional Valve

Packagingsize:25.1*15*11

Grossweight:5.00 kg

Availability: In Stock

597 Views are Looking for this Product

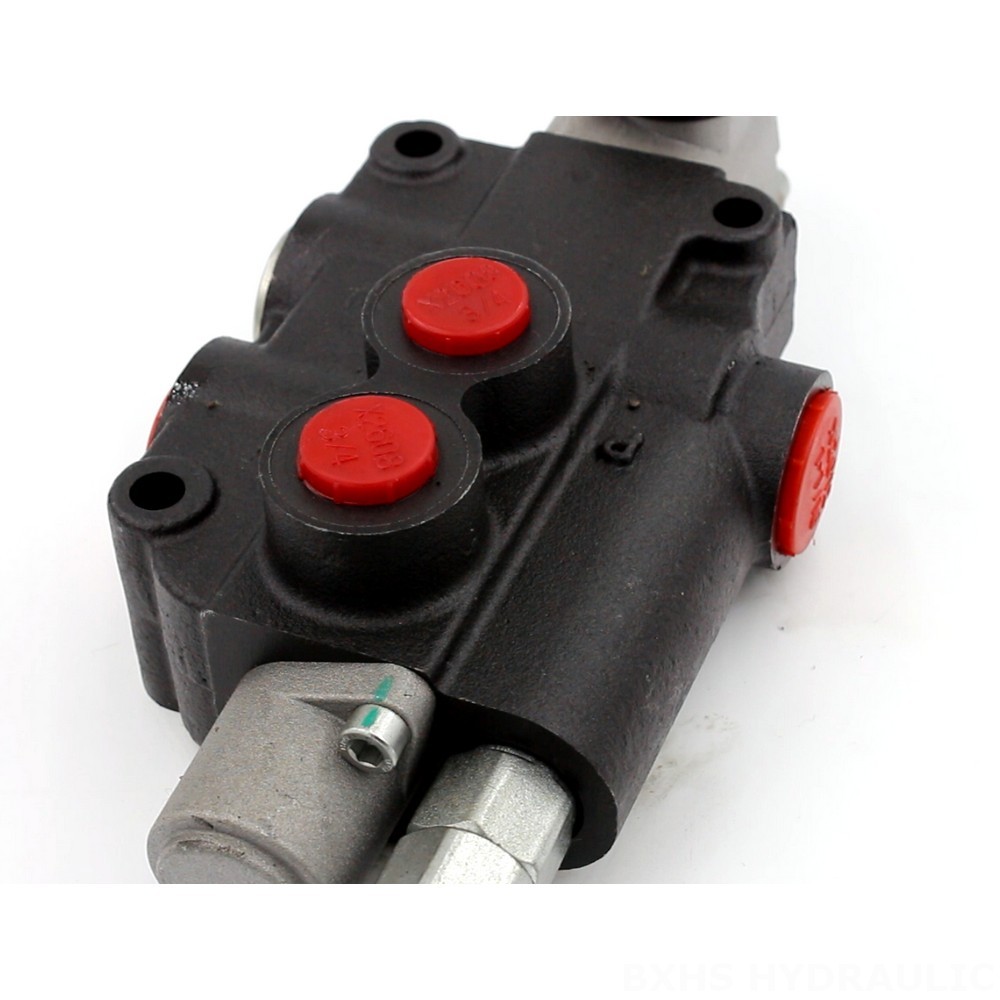

P80-U116-U78 Hydraulic Valve: Private Label, OEM & Custom Manufacturing Services detailed image

P80-U116-U78 Hydraulic Valve: Private Label, OEM & Custom Manufacturing Services detailed image

P80-U116-U78 Hydraulic Valve: Private Label, OEM & Custom Manufacturing Services drawing image

The P80-U116-U78 Hydraulic Valve is a monoblock valve with a rated flow of 80 L/min and a maximum pressure of 250 bar. It is suitable for use in a wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles.

P80 Series Monoblock Directional Valve Parameters
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure 315 bar (4600 psi)
Rated Flow 80 L/min (21.2 US gpm)
Structure Type Monoblock valve

The P80-U116-U78 Hydraulic Valve is a manually controlled, 1-section, monoblock valve. It has a rated flow of 80 L/min and a maximum pressure of 250 bar. The valve's operating viscosity range is 15 - 75 mm²/s (15 cSt to 75 cSt), and its ambient temperature range is -40°C to +80°C (-40°F to +176°F). The valve has 1 spool and is part of the P80 Series. It is suitable for use in a wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. Some specific examples of applicable models include telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders.

P80-U116-U78 Hydraulic Valve: Private Label, OEM & Custom Manufacturing Services application image

P80-U116-U78 Hydraulic Valve: Private Label, OEM & Custom Manufacturing Services packing image

P80-U116-U78 Hydraulic Valve: Private Label, OEM & Custom Manufacturing Services company image

P80-U116-U78 Hydraulic Valve: Private Label, OEM & Custom Manufacturing Services certification image
