P80-U116-U78-OT Manual 5 Spool Monoblock Directional Valve

Rated Flow:80 L/min (21.2 US gpm)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80 Series Monoblock Directional Valve

Productsize:25.1*28.4*8

Netweight:14.80 kg

Availability: In Stock

  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
220 Views are Looking for this Product

P80-U116-U78-OT Manual 5 Spool Monoblock Directional Valve detailed image

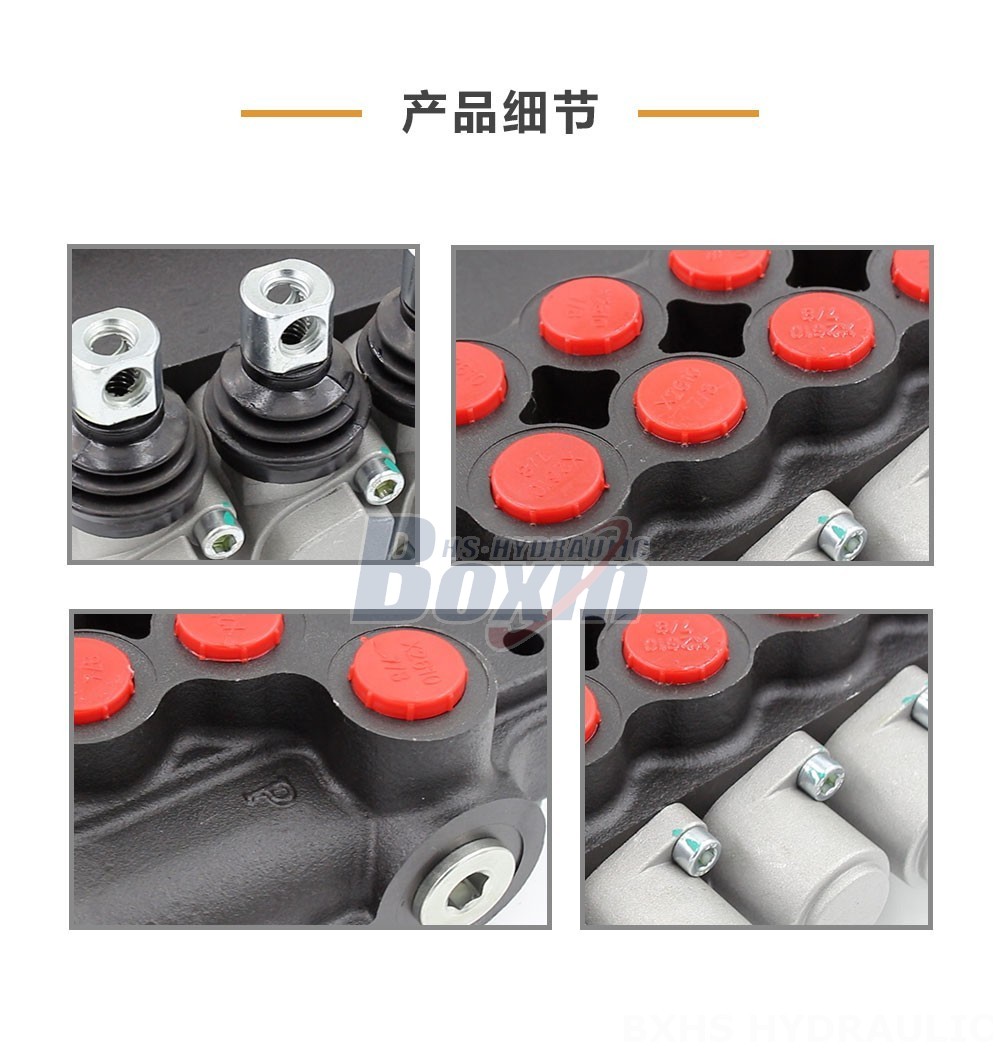

P80-U116-U78-OT Manual 5 Spool Monoblock Directional Valve detailed image

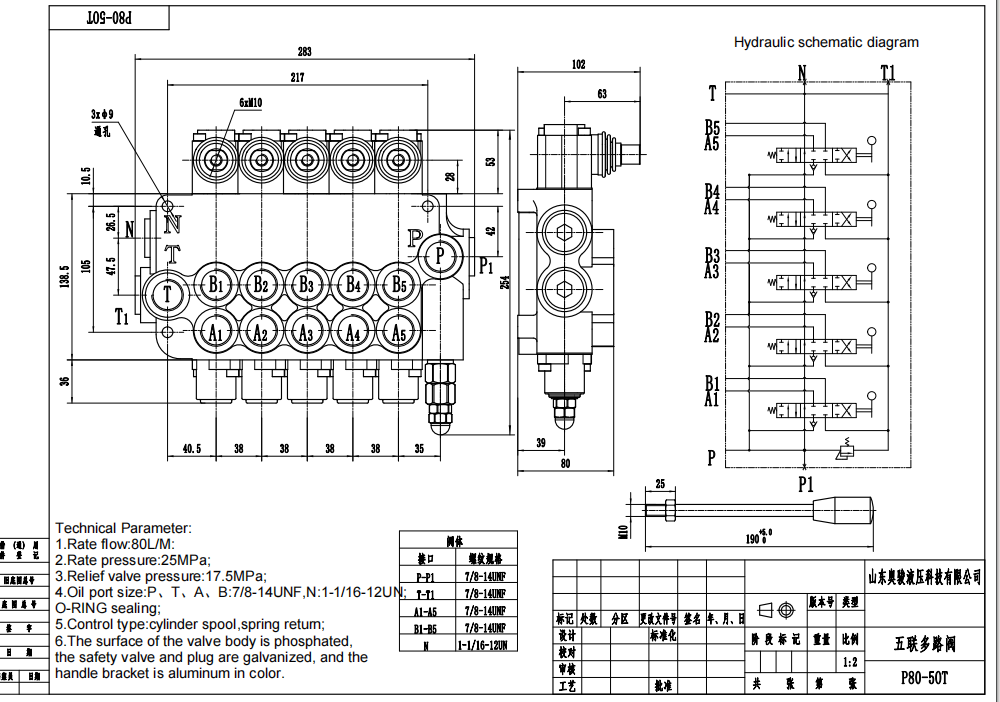

P80-U116-U78-OT Manual 5 Spool Monoblock Directional Valve drawing image

The P80-U116-U78-OT Manual 5 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for various industrial applications. With a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi), it ensures efficient and reliable operation in demanding hydraulic systems. Its compact monoblock design and manual control provide ease of installation and operation.

Section 1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section
Structure Type Monoblock valve
Control Method Manual
Rated Flow 80 L/min (21.2 US gpm)
Max Pressure 315 bar (4600 psi)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)

**Product Features and Advantages:**

* Compact monoblock design for space-saving and ease of installation
* Manual control for precise and responsive operation
* High flow capacity of 80 L/min (21.2 US gpm) for efficient system performance
* Maximum pressure of 250 bar (3600 psi) for demanding applications
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various hydraulic fluids
* Wide ambient temperature range of -40°C to +80°C (-40°F to +176°F) for operation in harsh environments

**Applications:**

The P80-U116-U78-OT Manual 5 Spool Monoblock Directional Valve finds applications in a wide range of industries, including:

* Material handling equipment, such as forklifts, telehandlers, and stackers
* Construction and earth-moving machinery, such as excavators, loaders, and motor graders
* Agricultural vehicles, such as tractors and harvesters
* Industrial vehicles, such as sweepers, waste compactors, and hook-loaders

P80-U116-U78-OT Manual 5 Spool Monoblock Directional Valve application image

P80-U116-U78-OT Manual 5 Spool Monoblock Directional Valve packing image

P80-U116-U78-OT Manual 5 Spool Monoblock Directional Valve company image

P80-U116-U78-OT Manual 5 Spool Monoblock Directional Valve certification image
