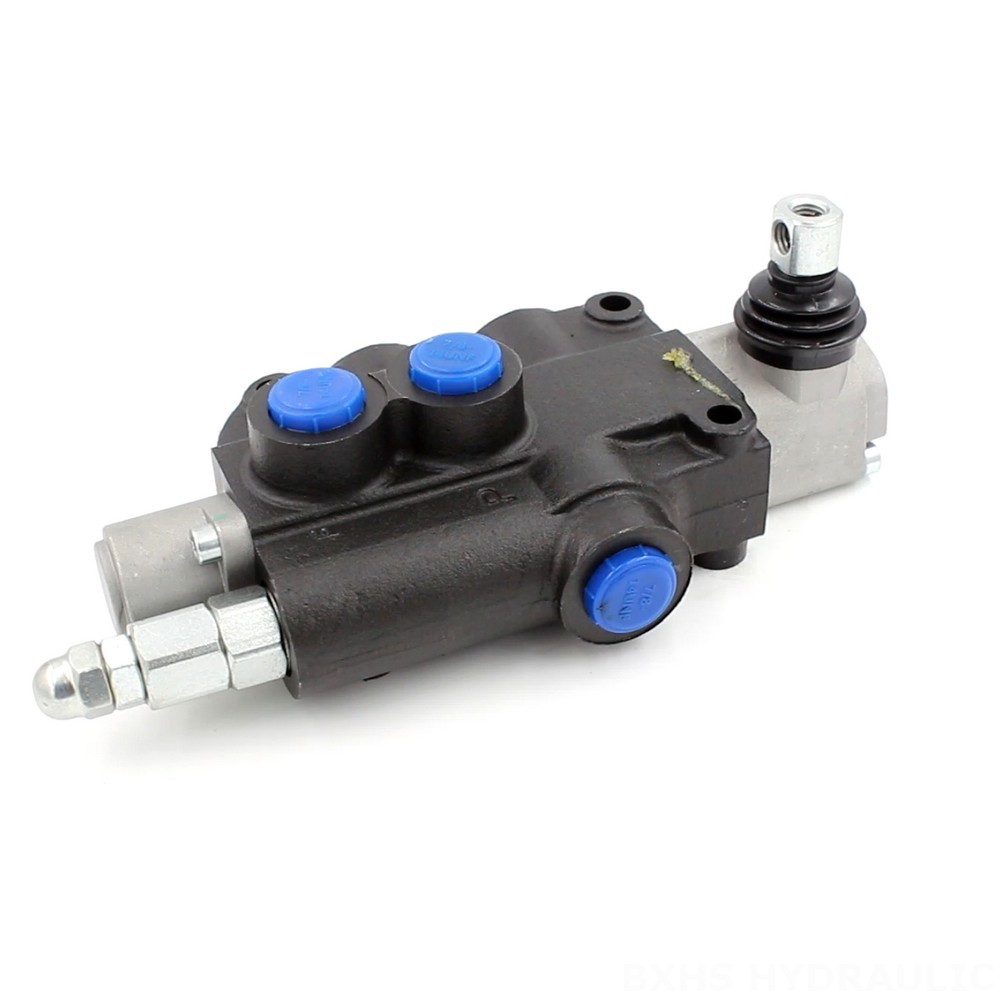

P80-U78-1OT Manual 1 Spool Monoblock Directional Valve

Rated Flow:80 L/min (21.2 US gpm)

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80 Series Monoblock Directional Valve

Productsize:25.1*10.5*8

Netweight:4.80 kg

Availability: In Stock

  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
1009 Views are Looking for this Product

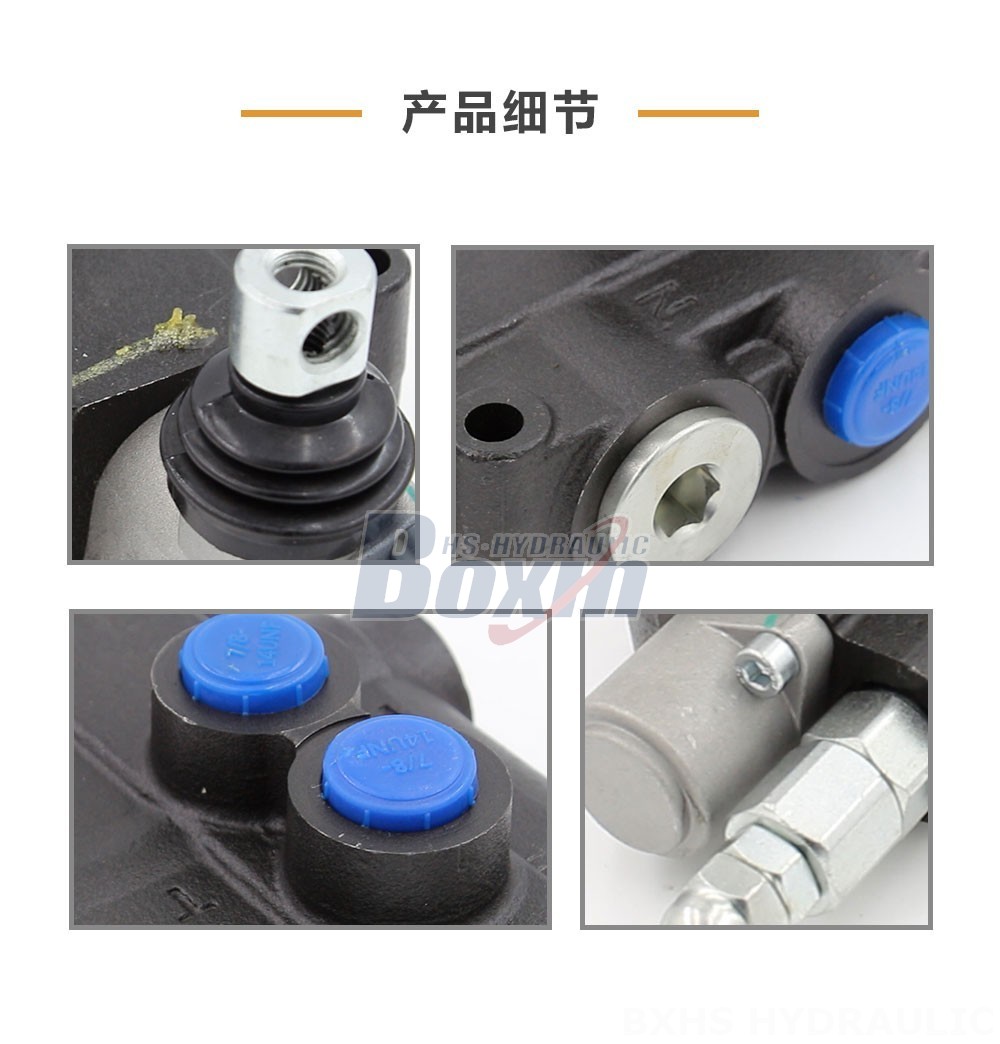

P80-U78-1OT Manual 1 Spool Monoblock Directional Valve detailed image

P80-U78-1OT Manual 1 Spool Monoblock Directional Valve detailed image

P80-U78-1OT Manual 1 Spool Monoblock Directional Valve drawing image

The P80-U78-1OT Manual 1 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in various industrial applications. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this valve is suitable for demanding applications requiring precise control of fluid flow.

P80 Series Monoblock Directional Valve Parameters
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick
Port Size G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure 315 bar (4600 psi)
Rated Flow 80 L/min (21.2 US gpm)
Structure Type Monoblock valve
Inlet Port G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

**Product Features and Benefits:**

* Manual control for precise flow regulation
* Monoblock construction for compact and reliable operation
* 1 spool design for versatility and ease of use
* High flow capacity of 80 L/min to meet the demands of heavy-duty applications
* Maximum pressure rating of 250 bar for exceptional durability
* Wide operating viscosity range of 15 - 75 mm²/s for compatibility with various fluids
* Ambient temperature range of -40°C to +80°C for operation in extreme conditions

**Applications:**

The P80-U78-1OT Manual 1 Spool Monoblock Directional Valve is ideal for use in a wide range of hydraulic systems, including:

* Material handling equipment
* Construction and earth moving machinery
* Agricultural equipment
* Industrial vehicles
