1011 Views are Looking for this Product

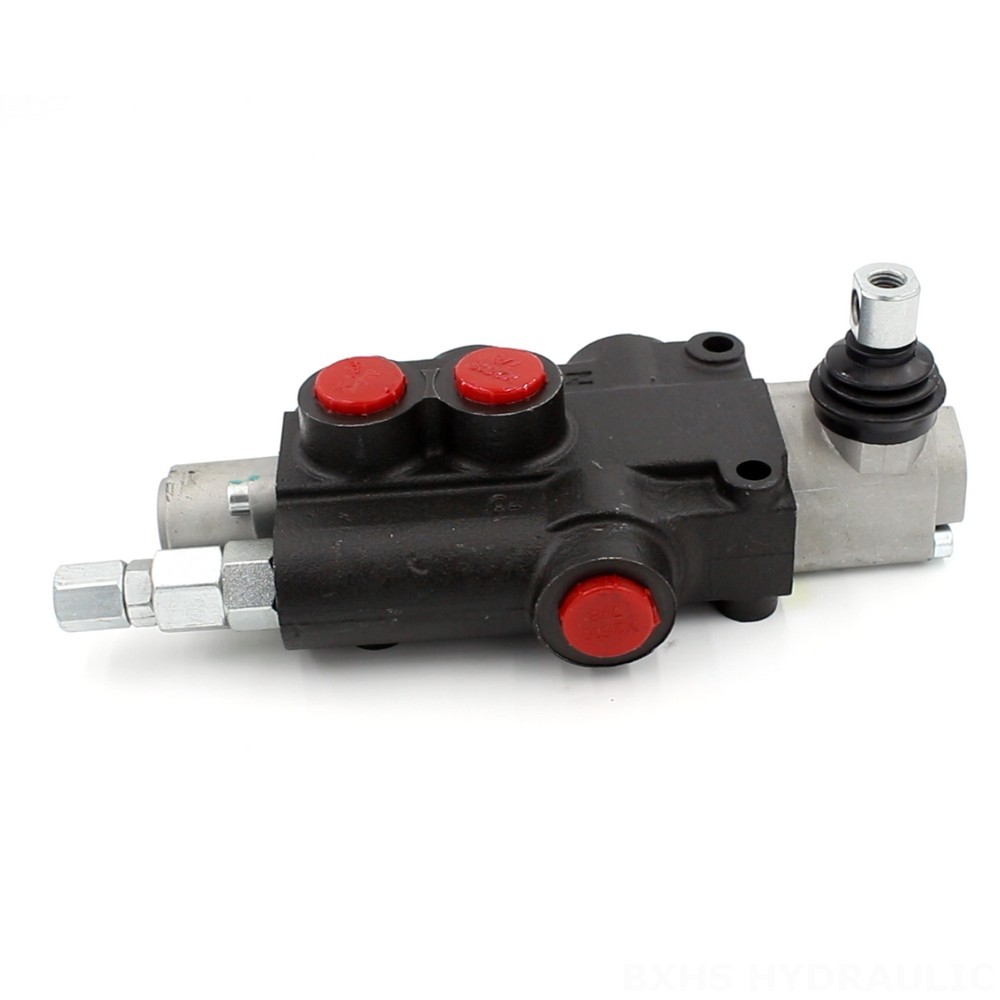

The P80-U78 Manual 1 Spool Monoblock Directional Valve is a highly efficient and durable hydraulic valve designed for use in a wide range of industrial applications. With its robust construction and precision engineering, this valve ensures reliable performance and long service life. The valve's manual control provides precise and responsive operation, allowing for precise control of fluid flow in hydraulic systems.
| P80 Series Monoblock Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Structure Type | Monoblock valve |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Rated Flow | 80 L/min (21.2 US gpm) |
| Max Pressure | 315 bar (4600 psi) |
| Inlet Port | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Outlet Port | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Size | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**Product Features and Benefits:**
* Manual control for precise and responsive operation
* Monoblock construction for high strength and durability
* 80 L/min rated flow for efficient fluid handling
* 250 bar max pressure for demanding applications
* 15 - 75 mm²/s operating viscosity range for compatibility with various fluids
* -40°C to +80°C ambient temperature range for operation in harsh environments
**Applications:**
The P80-U78 Manual 1 Spool Monoblock Directional Valve is widely used in various industrial applications, including:
* Material handling equipment
* Construction machinery
* Agricultural machinery
* Industrial vehicles
* Hydraulic power units
