P80A Manual 2 Spool Monoblock Directional Valve

Rated Flow:80 L/min (21.2 US gpm)

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80A Series Monoblock Directional Valve

Productsize:26.5*19.0*11.5

Netweight:7.80 kg

Availability: In Stock

Description

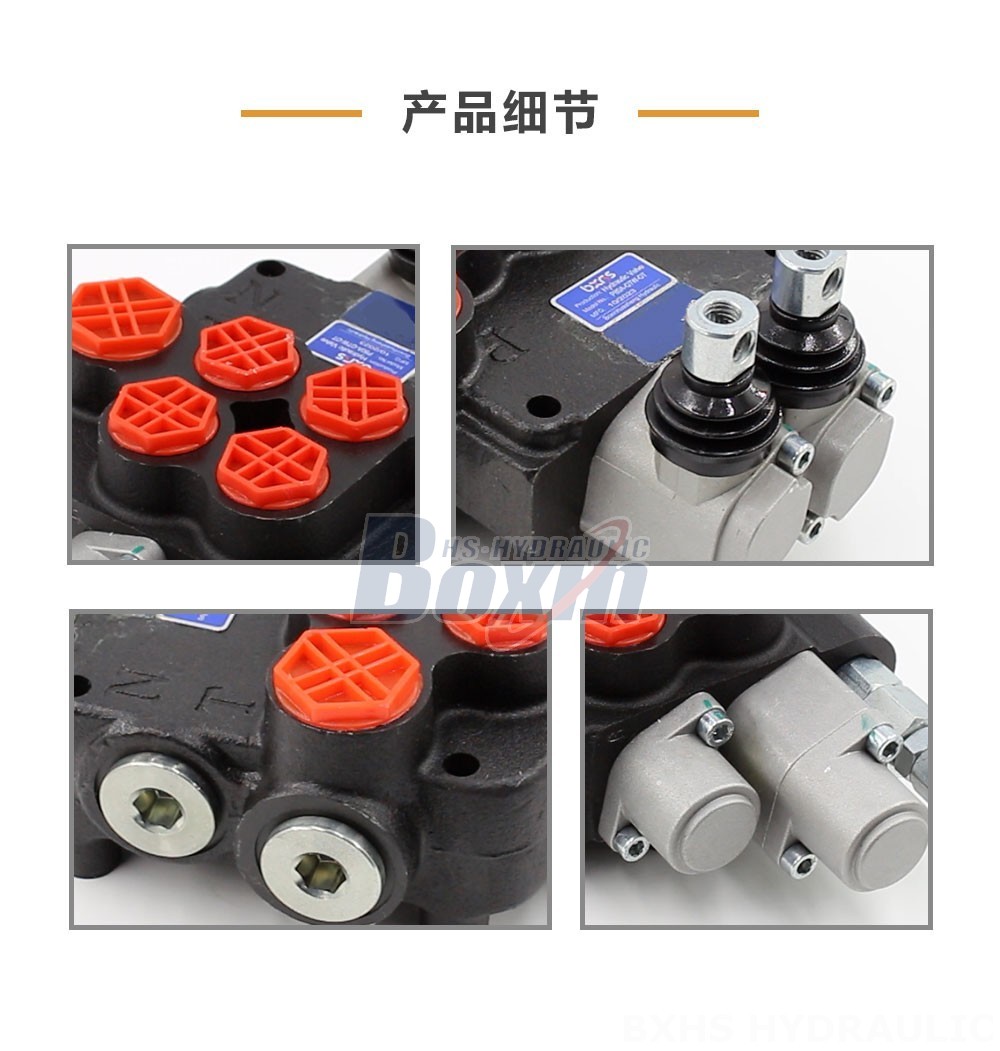

P80A Manual 2 Spool Monoblock Directional Valve detailed image

P80A Manual 2 Spool Monoblock Directional Valve drawing image

The P80A Manual 2 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in various industrial applications. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this valve provides precise and reliable flow control. Its manual operation allows for easy and intuitive control, making it suitable for a wide range of applications.

P80A Series Monoblock Directional Valve Parameters
Spool	1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Control Method	Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Electric, Solenoid And Manual, Solenoid and Joystick, Manual and Joystick
Port Size	G1/2,G3/4,M27×2.0,SAE 10,SAE 12,1/2 NPT,3/4 NPT
Section	1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section
Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)
Outlet Port	G1/2,G3/4,M27×2.0,SAE 12,1/2 NPT,3/4 NPT
Max Pressure	315 bar (4600 psi)
Rated Flow	80 L/min (21.2 US gpm)
Structure Type	Monoblock valve

**Product Features and Benefits:**

* Manual control for precise and intuitive operation
* Monoblock construction for compact and robust design
* High flow capacity of 80 L/min
* Maximum pressure of 250 bar
* Durable and reliable construction

**Applications:**

* Industrial machinery
* Construction equipment
* Agricultural machinery
* Material handling equipment
* Hydraulic power units

P80A Manual 2 Spool Monoblock Directional Valve application image
