P80AZ Hydraulic and Manual 5 Spool Outrigger Control Valve

Rated Flow:80 L/min (21.2 US gpm)

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Outrigger Control Valve

Product Series:P80AZ Series Outrigger Control Valve

Productsize:26*30*11

Netweight:16.00 kg

Availability: In Stock

  • Manual
  • 5 Spool
181 Views are Looking for this Product

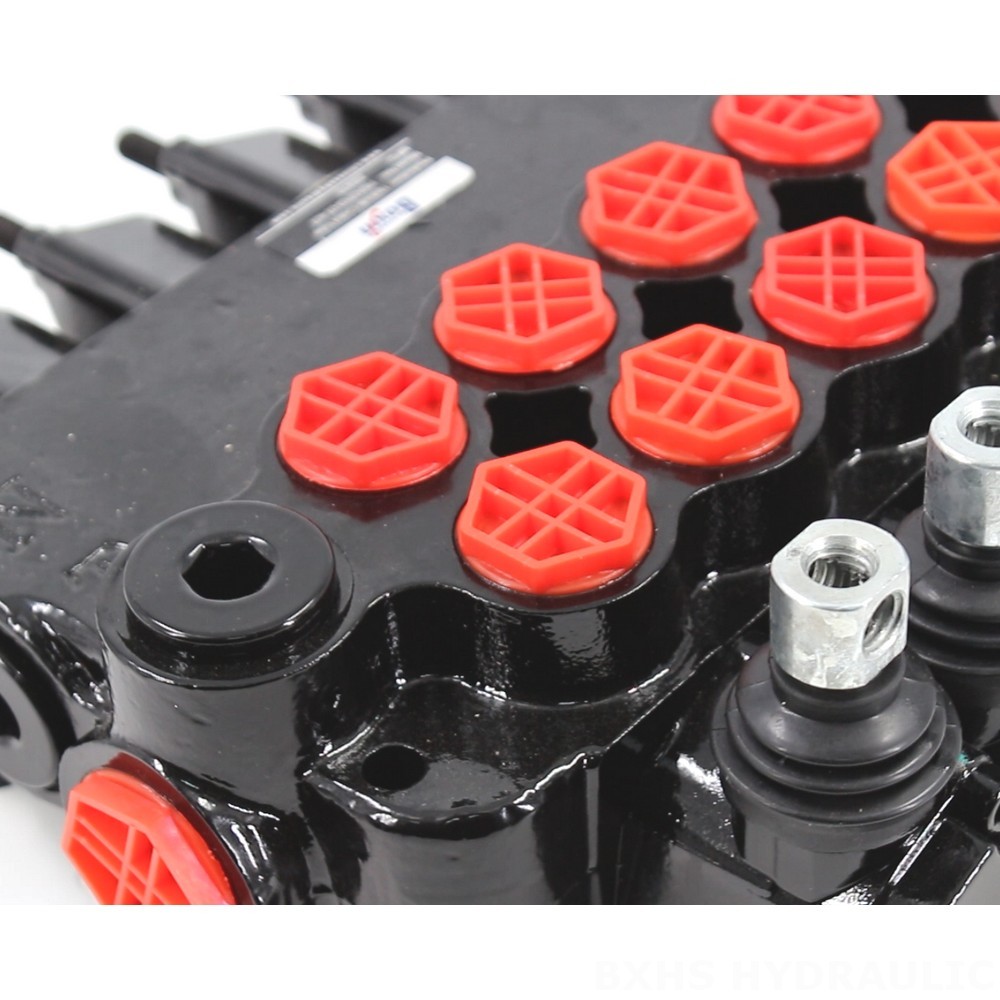

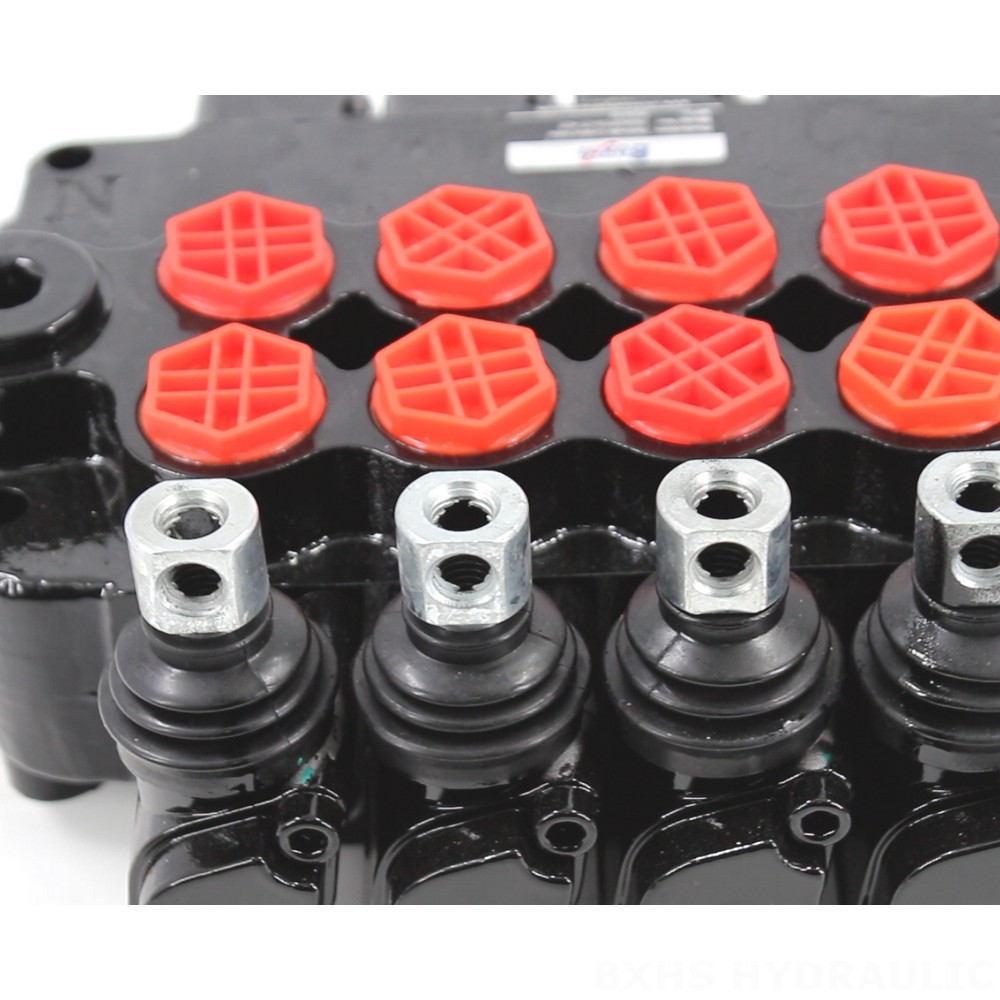

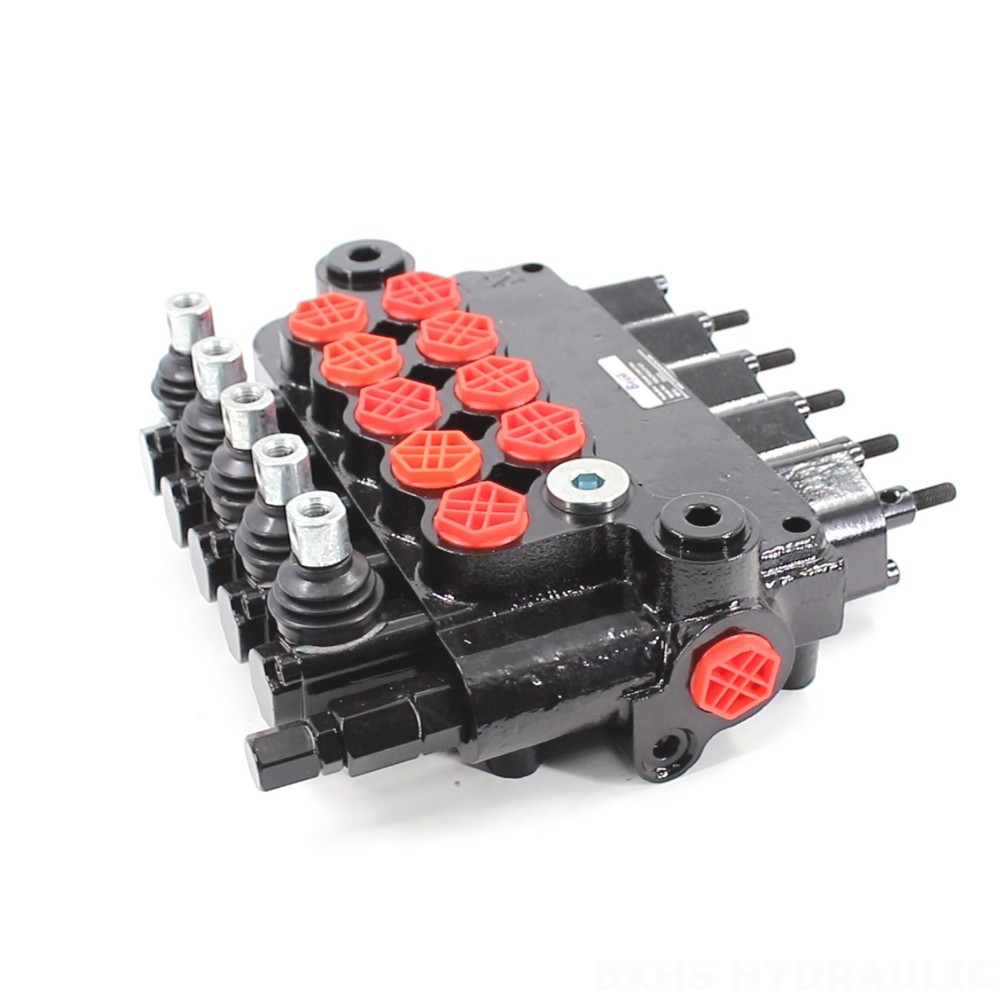

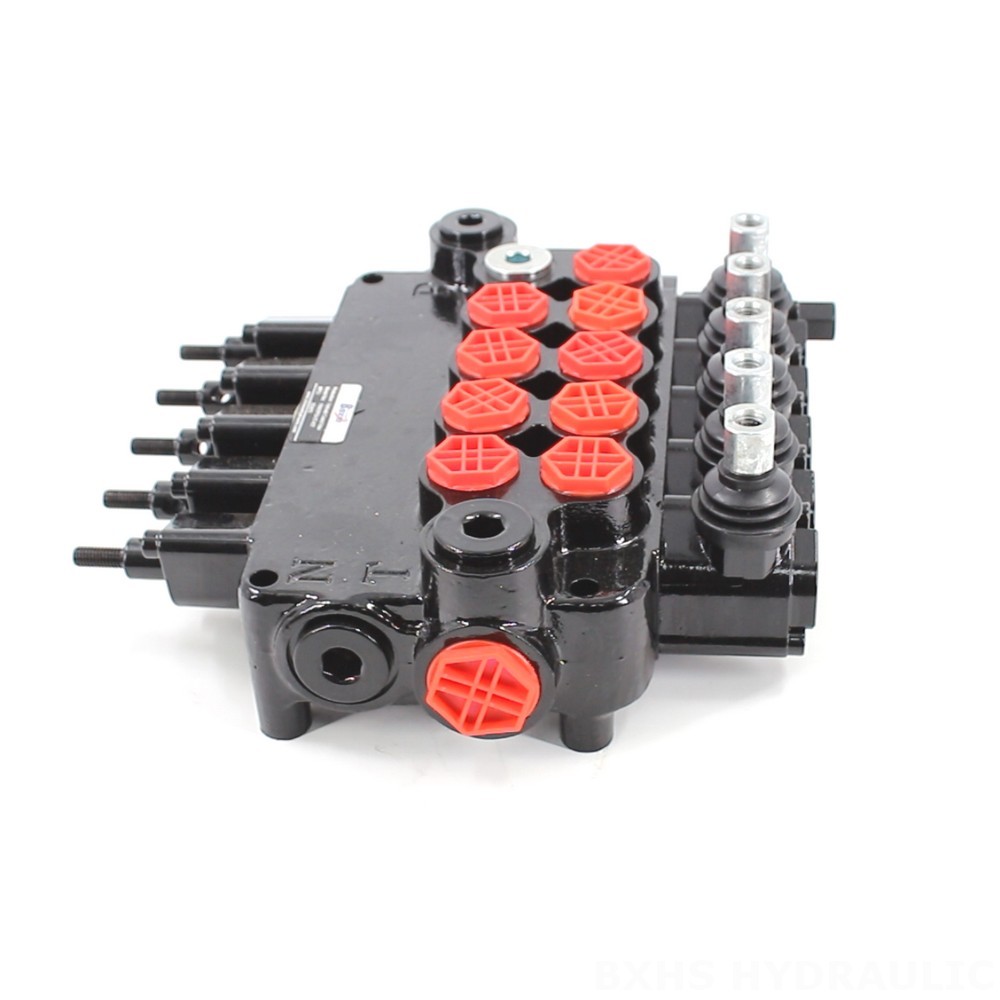

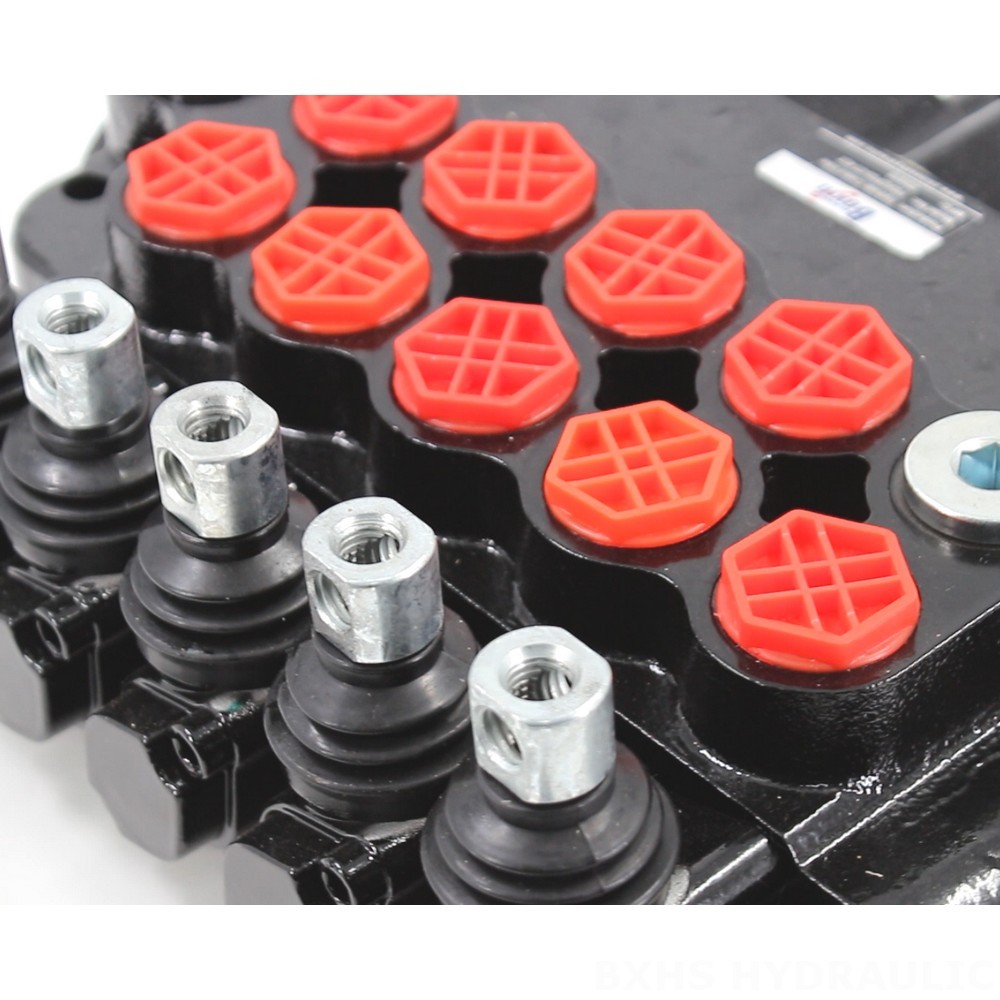

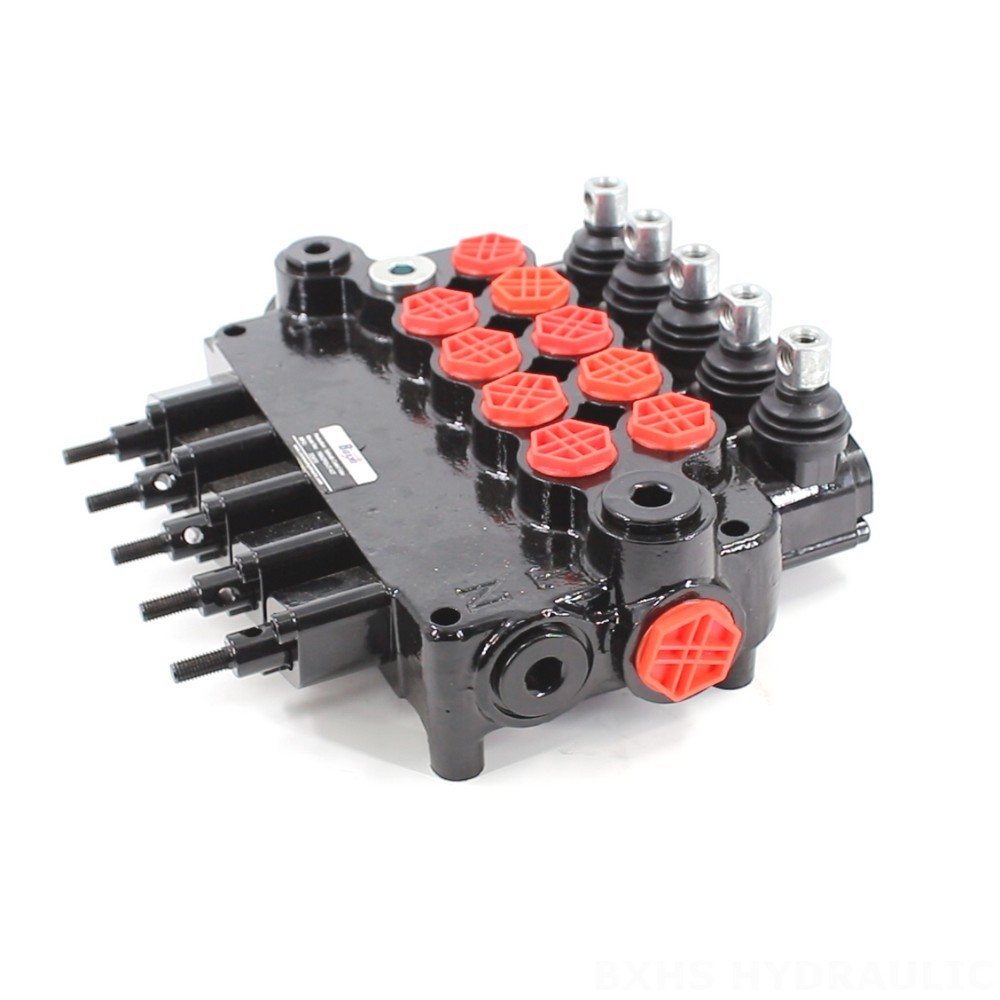

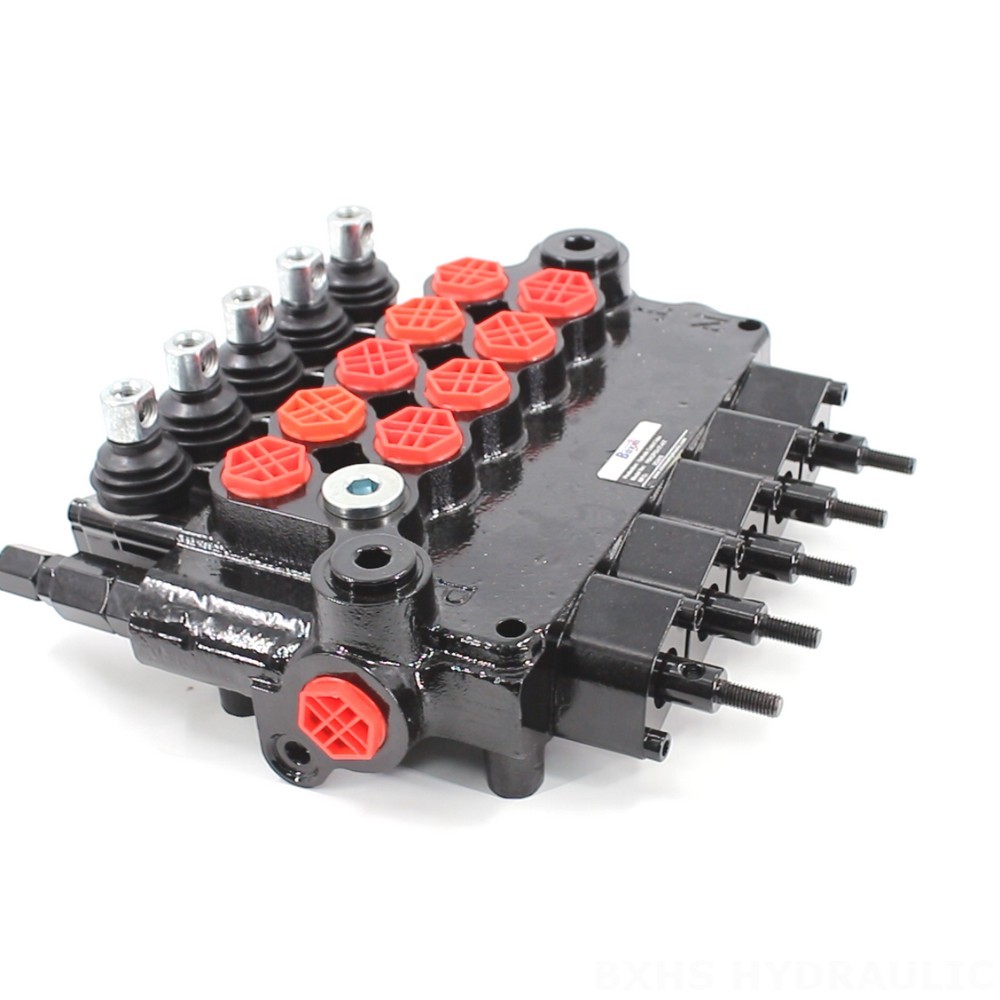

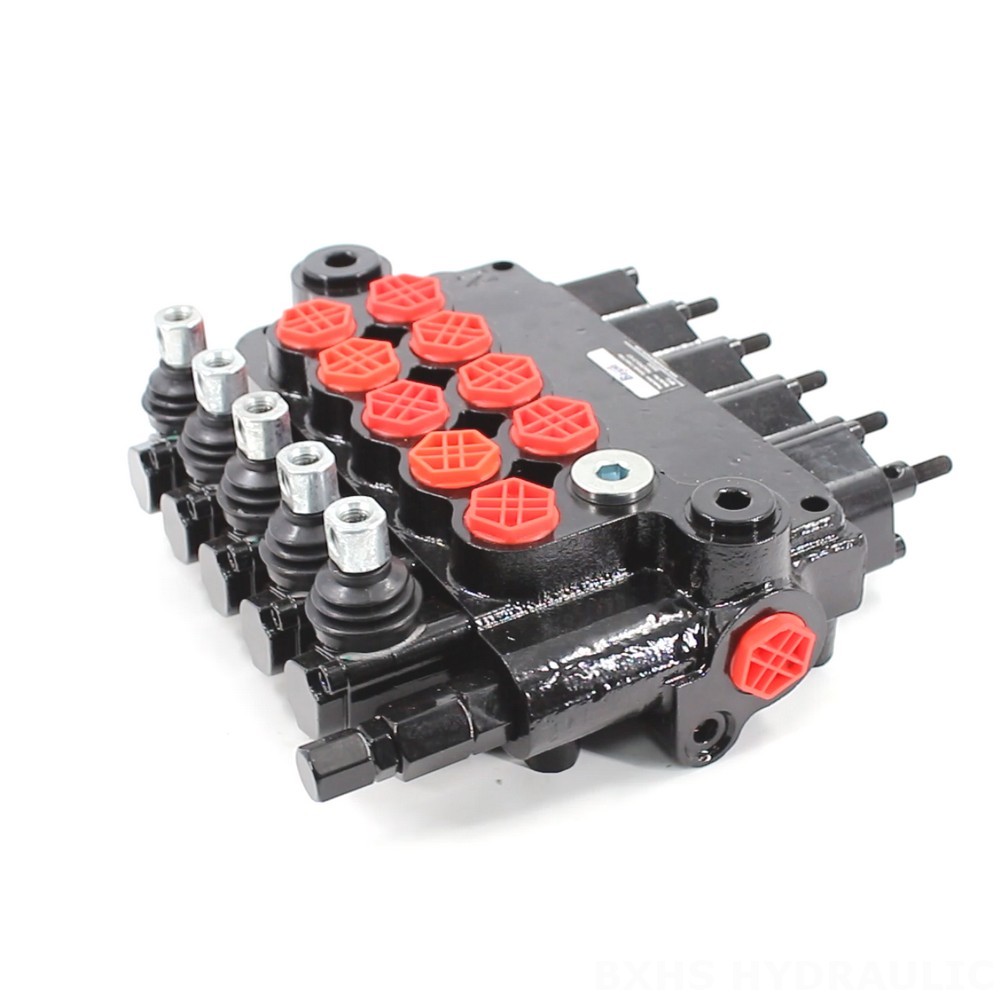

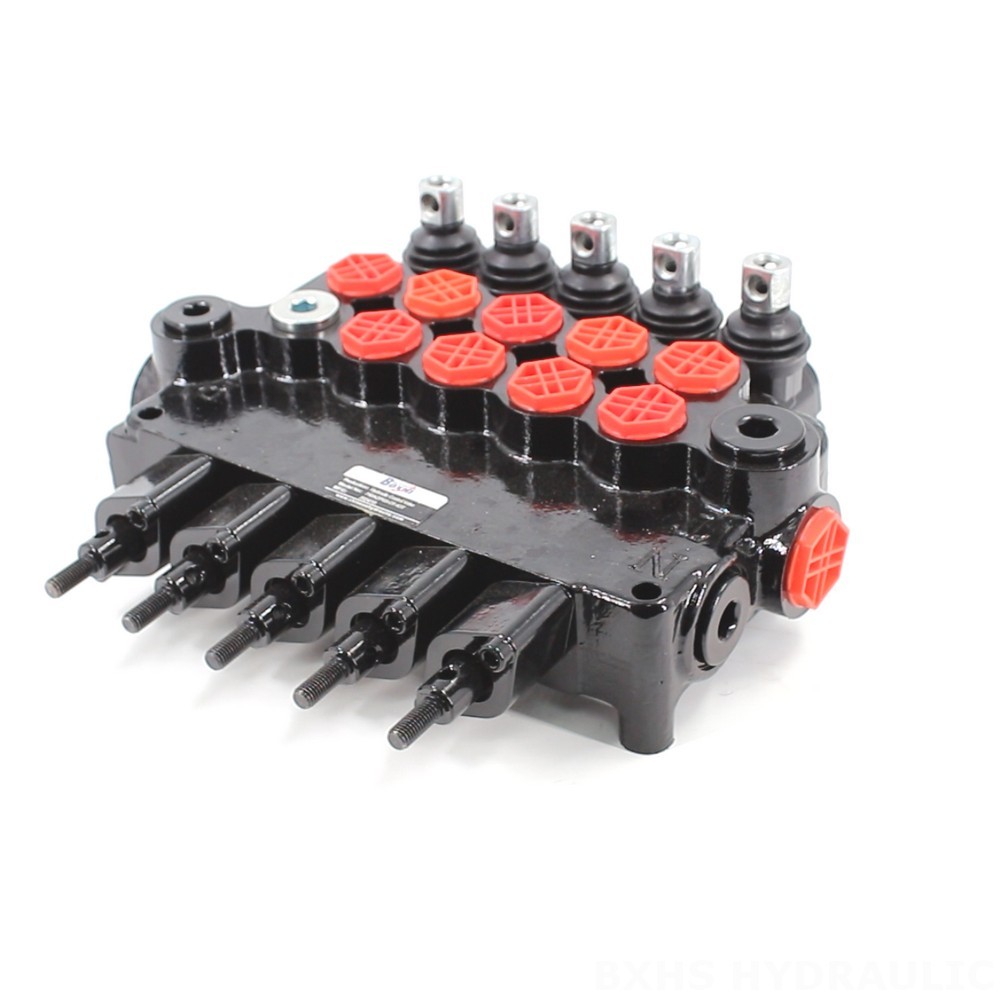

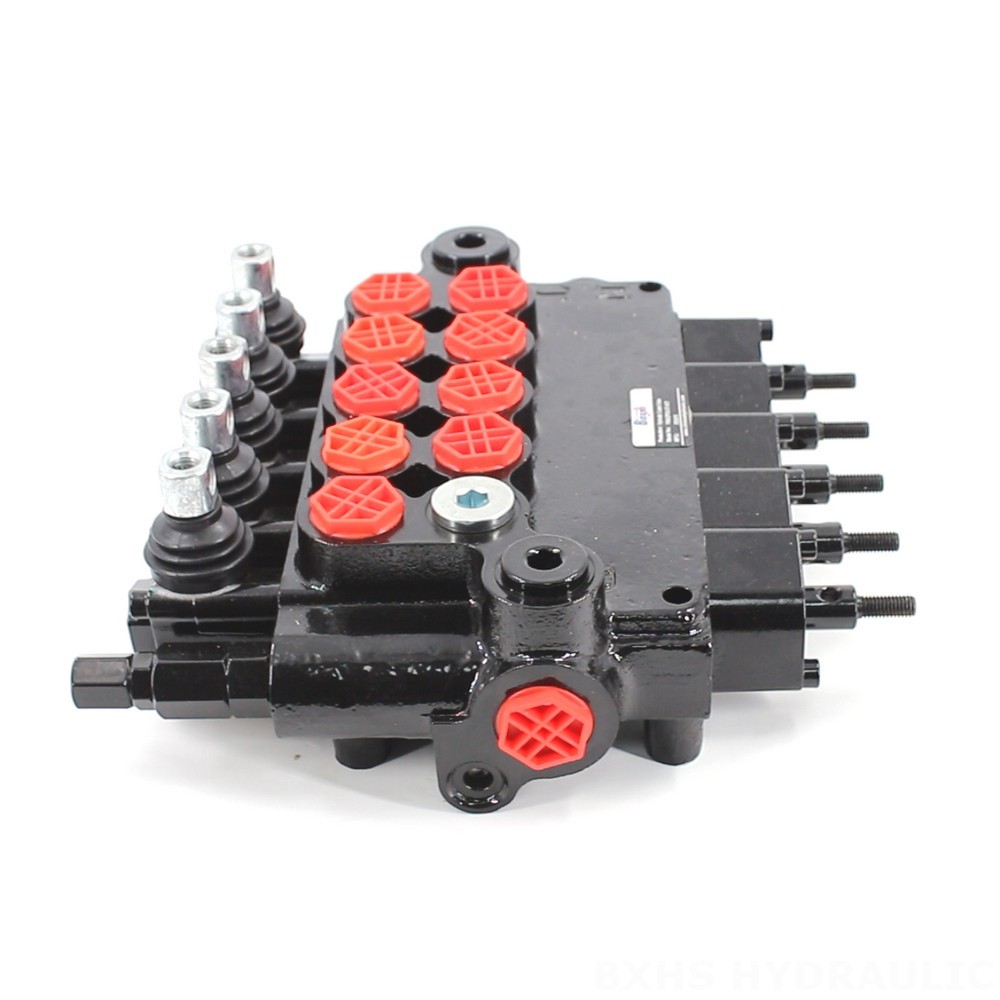

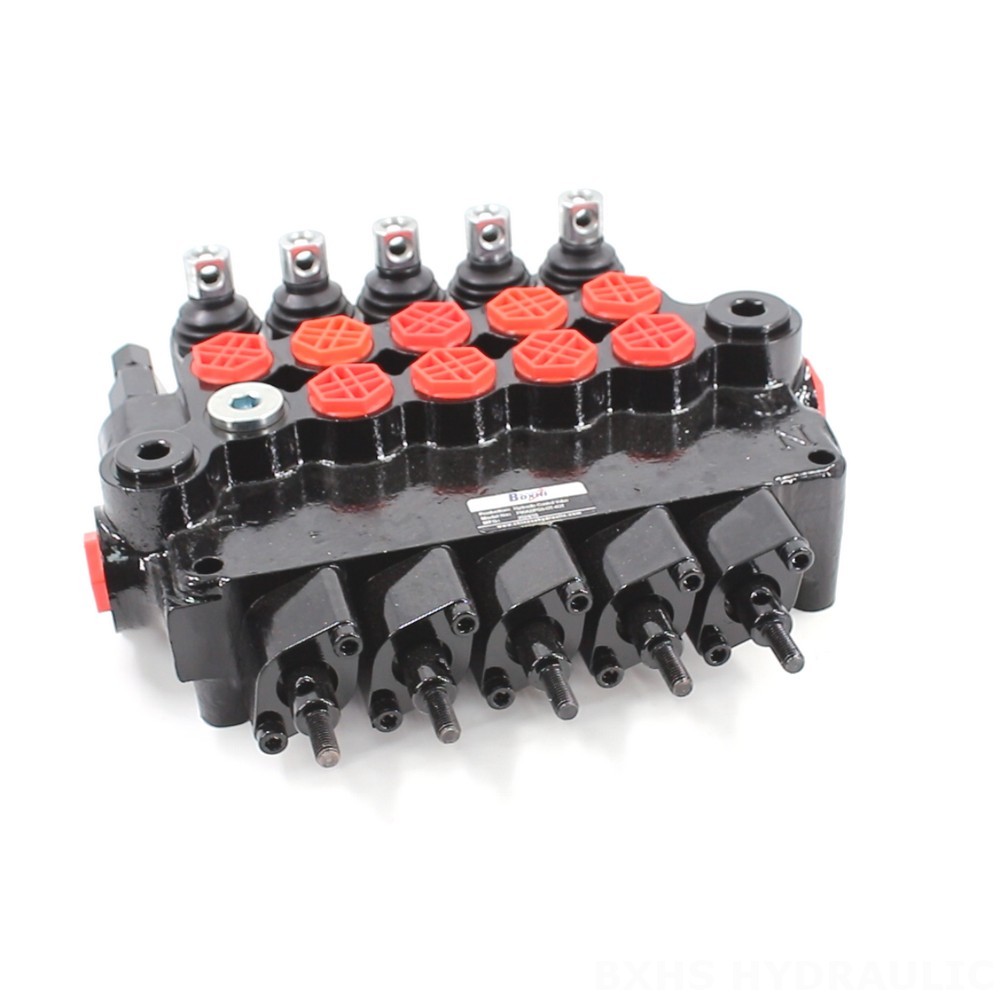

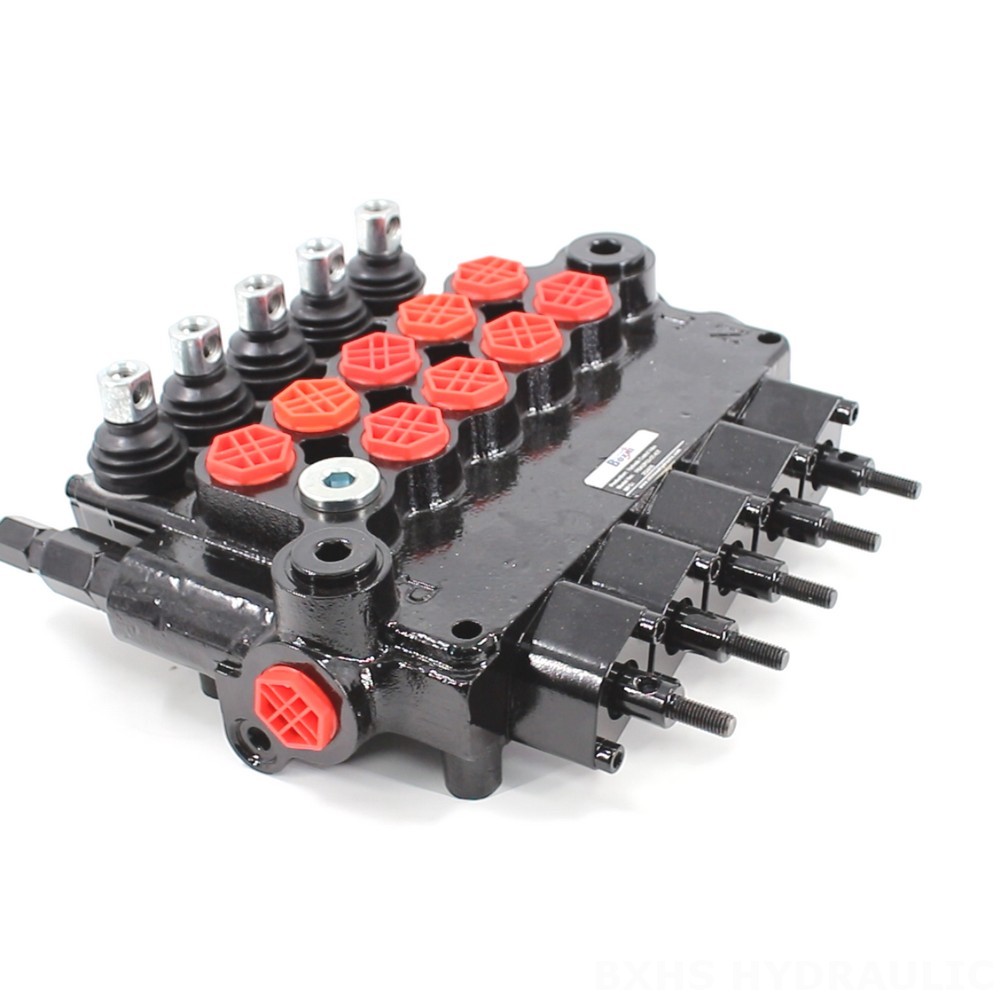

P80AZ Hydraulic and Manual 5 Spool Outrigger Control Valve detailed image

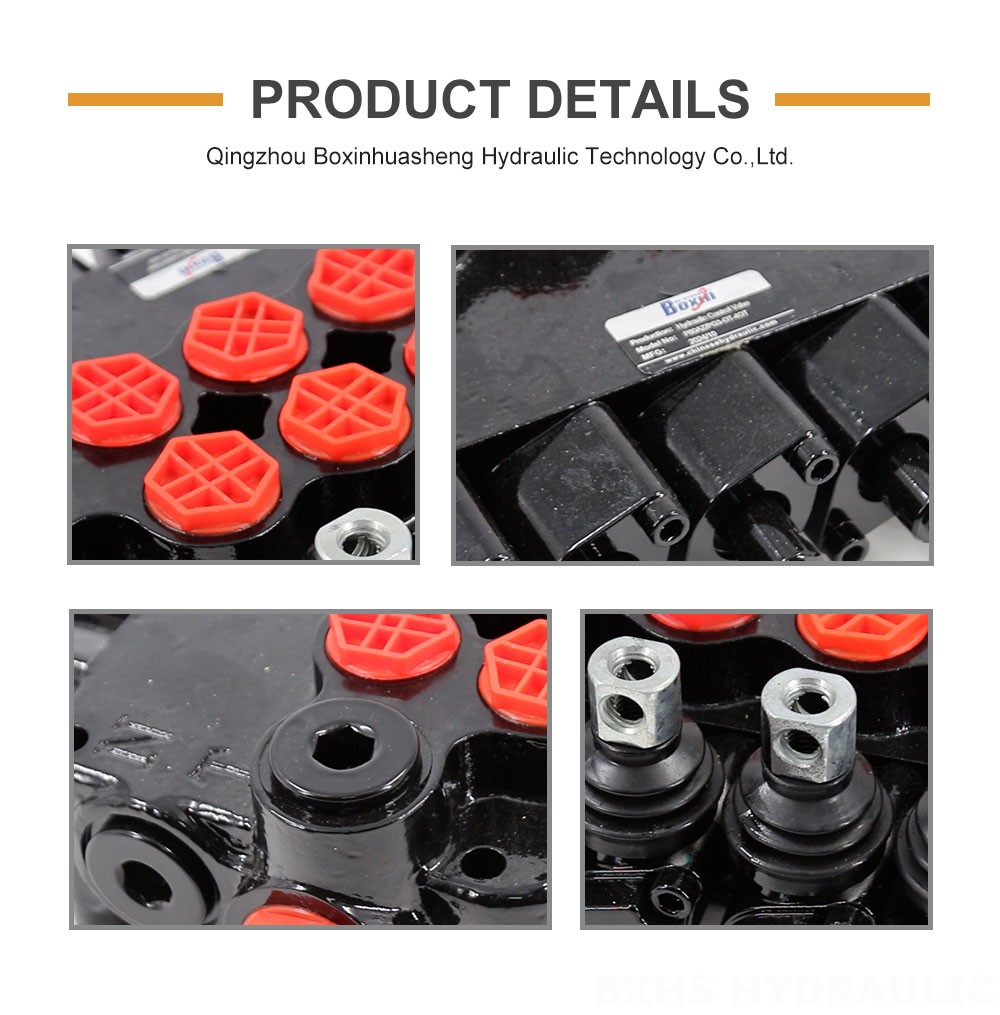

P80AZ Hydraulic and Manual 5 Spool Outrigger Control Valve detailed image

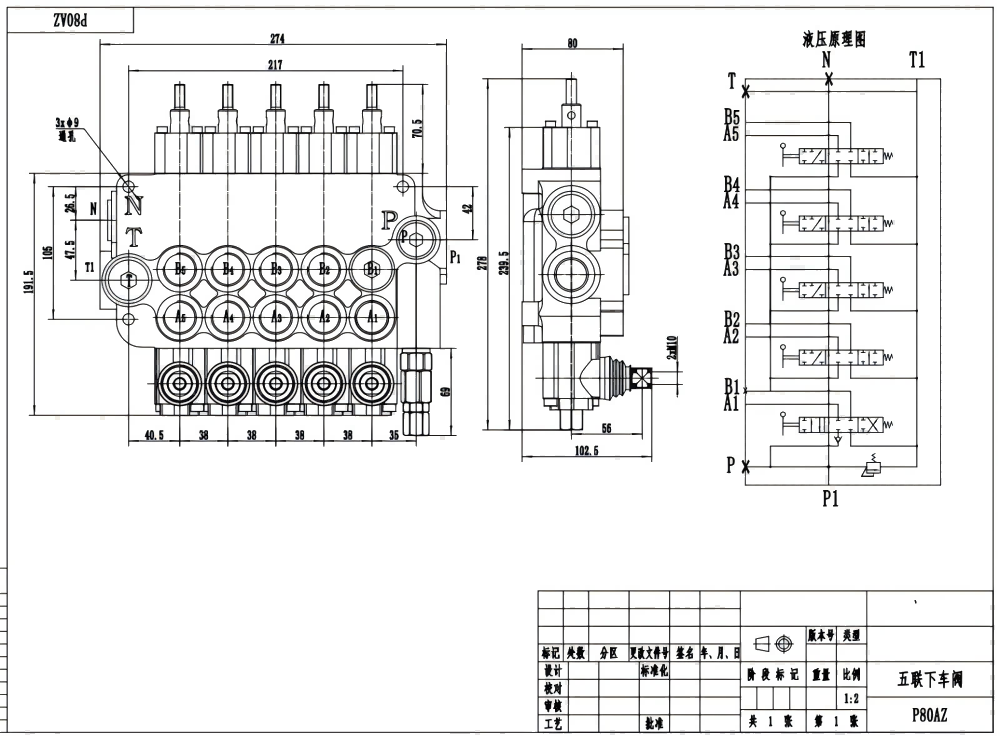

P80AZ Hydraulic and Manual 5 Spool Outrigger Control Valve drawing image

The P80AZ is a robust 5-spool monoblock directional valve offering both hydraulic and manual control. Rated for 80 L/min flow and 250 bar pressure, it's ideal for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. Its durable design and wide operating temperature range ensure reliable performance in demanding environments.

P80AZ Series Outrigger Control Valve Parameters
Control Method Manual
Spool 5 Spool
Rated Flow 80 L/min (21.2 US gpm)
Max Pressure 250 bar (3600 psi)
Inlet Port G3/4, M22×1.5, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Outlet Port G1/2, G3/4, M22×1.5, SAE 10, SAE 12, 3/4 NPT
Port Size G1/2, G3/4, M22×1.5, SAE 10, SAE 12, 3/4 NPT
Section 5 Section
Structure Type Monoblock valve
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

The P80AZ Hydraulic and Manual 5 Spool Monoblock Directional Valve is a high-performance solution for controlling hydraulic systems in various machinery. Its monoblock construction provides exceptional strength and rigidity, while the 5-spool design allows for precise control of multiple hydraulic functions. The valve offers both hydraulic and manual control options, providing flexibility for different operational needs. Key features include:

* **High Flow Rate:** 80 L/min (21.2 US gpm) ensures efficient operation of hydraulic systems.
* **High Pressure Rating:** 250 bar (3600 psi) provides the strength needed for heavy-duty applications.
* **Wide Operating Temperature Range:** -40°C to +80°C (-40°F to +176°F) allows for use in diverse climates and applications.
* **Durable Construction:** Robust monoblock design ensures long-term reliability and resistance to wear and tear.
* **Versatile Control:** Both hydraulic and manual control options enhance adaptability and simplify maintenance.
* **Wide Application:** Suitable for various machines such as forklifts, telehandlers, skid steer loaders, compact wheel loaders, mini-excavators, tractors, harvesters, balers, wood splitters, and sweepers across material handling, construction, agriculture, and industrial vehicle sectors. The valve's reliability and performance make it a cost-effective solution for OEMs and end-users alike. We offer manufacturing, OEM services, private labeling, customization, and wholesale options. We are actively seeking distributors, wholesalers, agents, and trading partners globally.
