P80F-G34 Hydraulic 1 Spool Monoblock Directional Valve

Rated Flow:80 L/min (21.2 US gpm)

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80F Series Monoblock Directional Valve

Productsize:25.1*10.5*8

Netweight:4.80 kg

Availability: In Stock

  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
777 Views are Looking for this Product

P80F-G34 Hydraulic 1 Spool Monoblock Directional Valve detailed image

P80F-G34 Hydraulic 1 Spool Monoblock Directional Valve detailed image

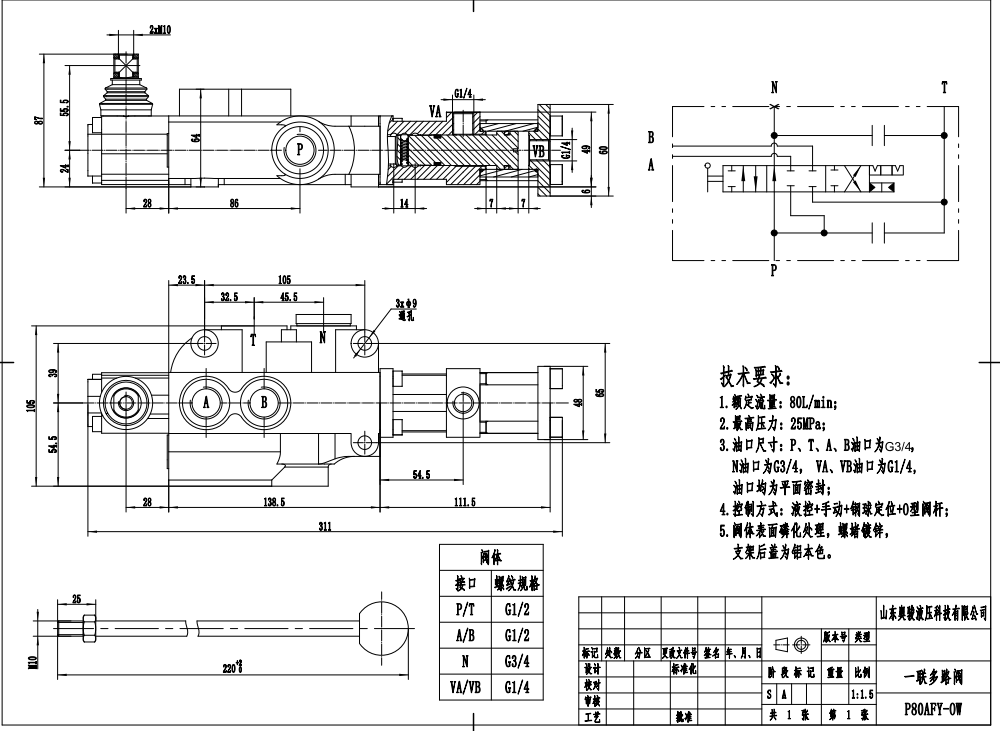

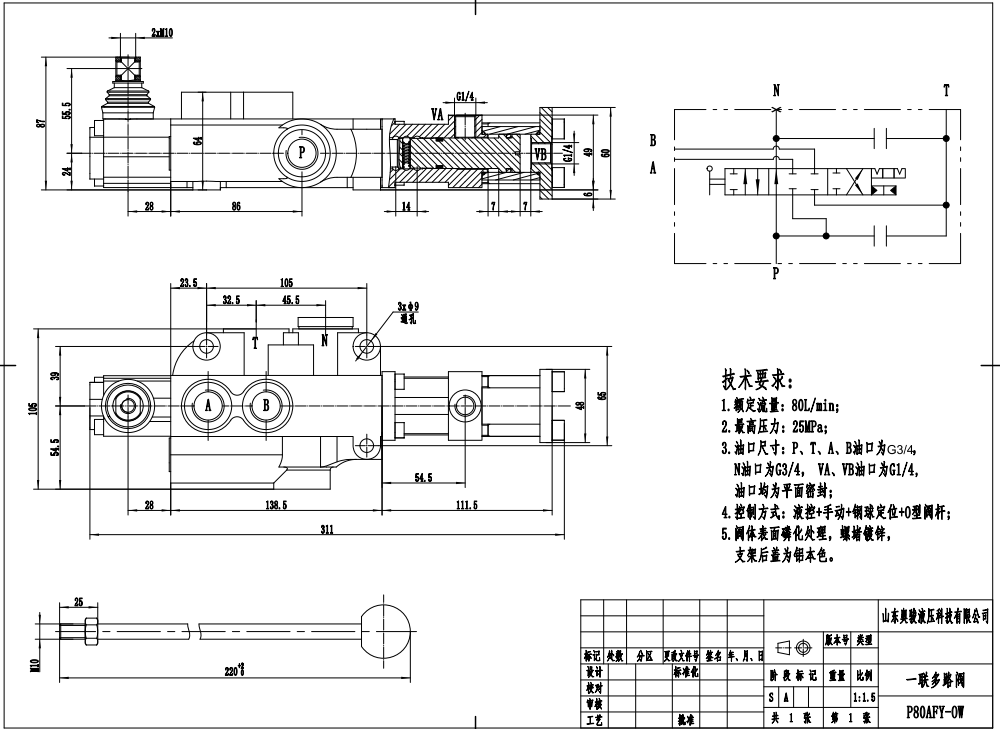

P80F-G34 Hydraulic 1 Spool Monoblock Directional Valve drawing image

The P80F-G34 Hydraulic 1 Spool Monoblock Directional Valve is designed to control the flow of hydraulic fluid in various industrial and mobile applications. It features a compact monoblock design, 1 section, and a rated flow rate of 80 L/min (21.2 US gpm) at a maximum pressure of 250 bar (3600 psi). The valve is suitable for operating viscosity ranges from 15 - 75 mm²/s (15 cSt to 75 cSt) and ambient temperatures from -40°C to +80°C (-40°F to +176°F).

P80F Series Monoblock Directional Valve Parameters
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick
Port Size G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Outlet Port G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT
Max Pressure 315 bar (4600 psi)
Rated Flow 80 L/min (21.2 US gpm)
Structure Type Monoblock valve
Inlet Port G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

**Product Features and Benefits:**

* Compact monoblock design for space-saving installation
* 1 spool for simple and reliable flow control
* Rated flow rate of 80 L/min (21.2 US gpm) for efficient fluid handling
* Maximum pressure of 250 bar (3600 psi) for demanding applications
* Suitable for operating viscosity ranges from 15 - 75 mm²/s (15 cSt to 75 cSt)
* Wide ambient temperature range of -40°C to +80°C (-40°F to +176°F) for use in diverse environments

**Applications:**

The P80F-G34 Hydraulic 1 Spool Monoblock Directional Valve is widely used in various industrial and mobile applications, including:

* Material handling equipment (forklifts, telehandlers, cranes)
* Construction and earth moving machinery (excavators, wheel loaders, skid steer loaders)
* Agricultural machinery (tractors, harvesters, balers)
* Industrial vehicles (sweepers, waste compactors, hook-loaders)
* And many more...
