P80Q-G-4OT Pneumatic 4 Spool Monoblock Directional Valve

Rated Flow:80 L/min (21.2 US gpm)

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80 Series Monoblock Directional Valve

Productsize:31.5*23.6*11

Netweight:14.00 kg

Availability: In Stock

  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
  • Manual and Joystick
  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
126 Views are Looking for this Product

P80Q-G-4OT Pneumatic 4 Spool Monoblock Directional Valve detailed image

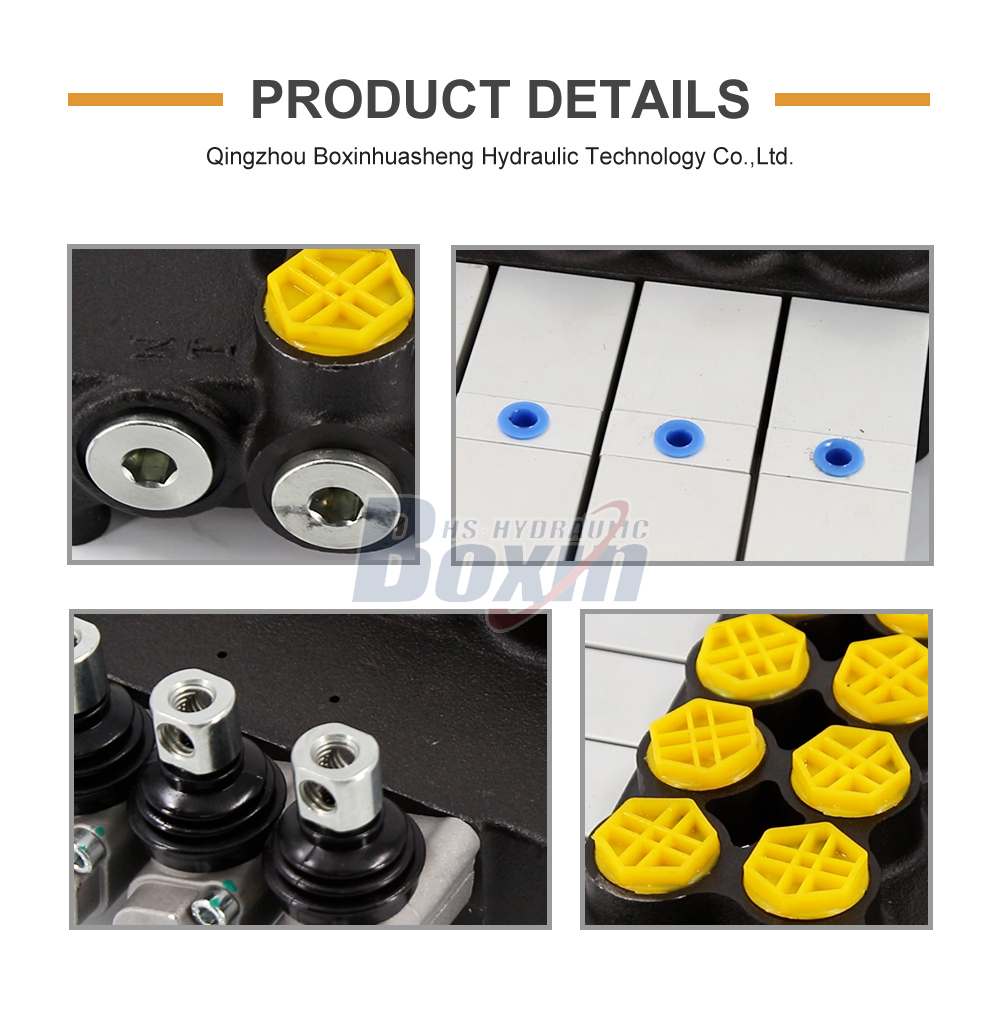

P80Q-G-4OT Pneumatic 4 Spool Monoblock Directional Valve detailed image

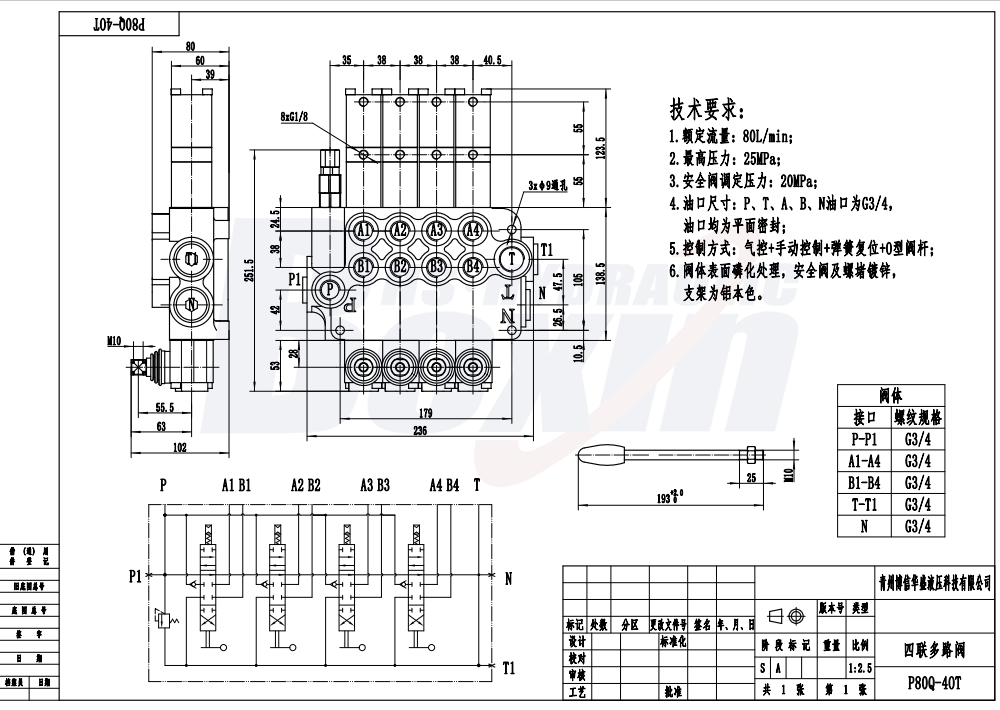

P80Q-G-4OT Pneumatic 4 Spool Monoblock Directional Valve drawing image

The P80Q-G-4OT is a high-performance 4-spool monoblock pneumatic directional control valve, engineered for precision and durability. Supporting flows up to 80 L/min and pressures reaching 315 bar, it offers versatile porting options and extreme temperature resistance, making it an ideal choice for demanding mobile and industrial hydraulic applications.

P80 Series Monoblock Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Structure Type Monoblock valve
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Rated Flow 80 L/min (21.2 US gpm)
Max Pressure 315 bar (4600 psi)
Inlet Port G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Outlet Port G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Size G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

Key features of the P80Q-G-4OT include a robust monoblock structural design that ensures long-term reliability and leak prevention under high pressure. The pneumatic control mechanism allows for smooth, remote operation, reducing operator fatigue and improving safety in complex machinery environments. With a wide operating temperature range (-40°C to +80°C), this valve performs consistently in harsh climates, from arctic conditions to high-heat industrial sites. Its high flow capacity (80 L/min) and wide variety of NPT, SAE, and G-thread port options ensure seamless integration into diverse hydraulic systems, including construction equipment, agricultural machinery, and material handling vehicles. Designed for flexibility, this valve is perfect for OEMs and distributors seeking standardized yet highly capable hydraulic components for heavy-duty applications.
