Pneumatic Hydraulic Sectional Valve with 6 Spool Configuration

Control Method:Electro-pneumatic

Spool:6 Spool

Rated Flow:60 L/min (15.8 US gpm)

Max Pressure:315 bar (4600 psi)

Inlet Port:G1/2

Outlet Port:G1/2

Port Size:G1/2

Vendor:BXHS

Product Type:Sectional Directional Valve

Product Series:DCV60 Series Sectional Directional Valve

Packagingsize:38*16*35

Grossweight:34.00 kg

Availability: In Stock

100 Views are Looking for this Product

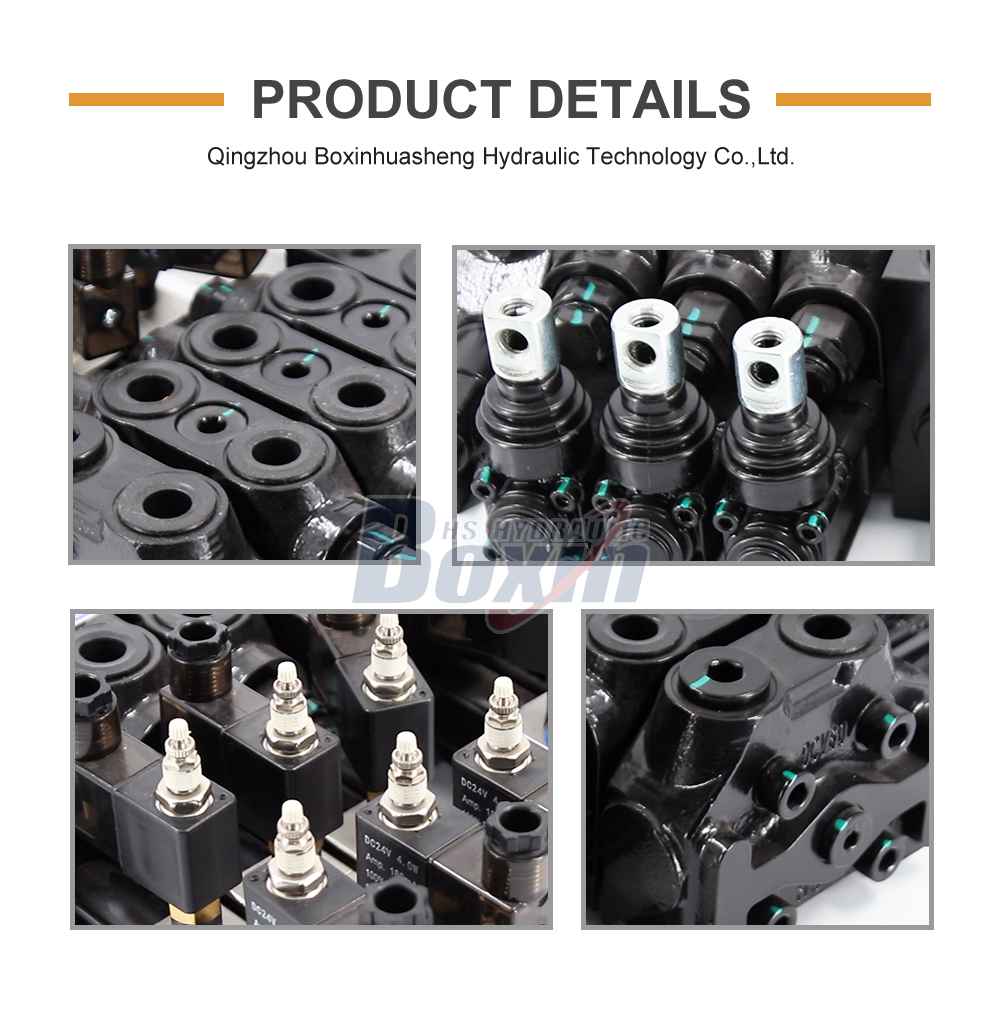

Pneumatic Hydraulic Sectional Valve with 6 Spool Configuration detailed image

Pneumatic Hydraulic Sectional Valve with 6 Spool Configuration detailed image

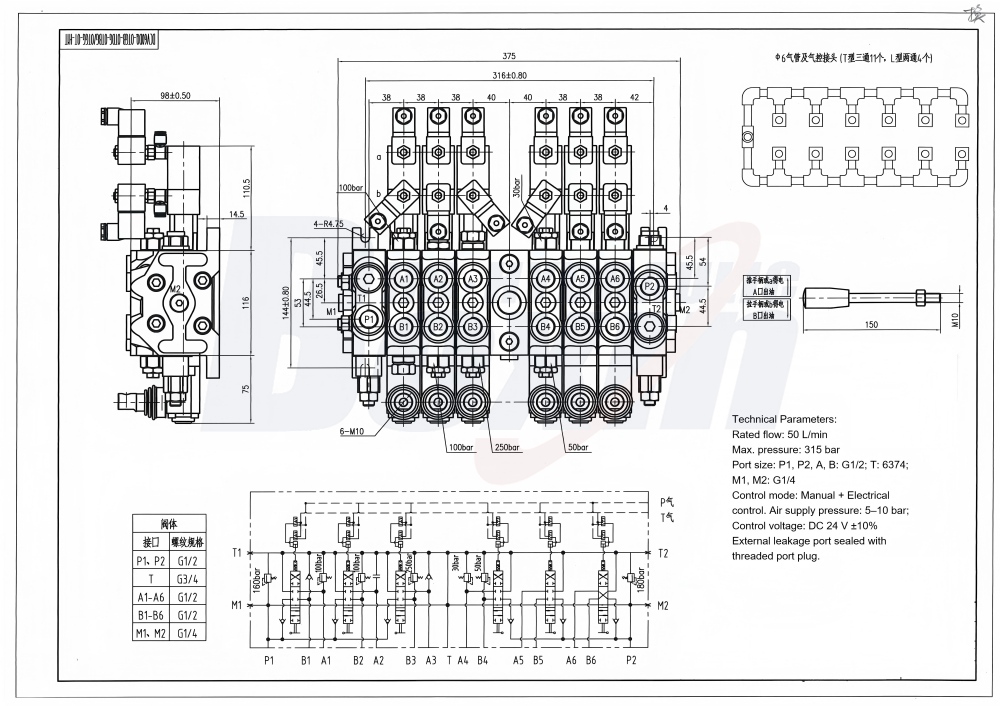

Pneumatic Hydraulic Sectional Valve with 6 Spool Configuration drawing image

The DCV60 series is a high-performance 6-spool electro-pneumatic sectional valve engineered for demanding mobile and industrial applications. Offering a flow rate of 60 L/min and pressure handling up to 350 bar, this robust unit provides precise control for construction, agricultural, and material handling machinery.

DCV60 Series Sectional Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Hydraulic, Hydraulic and Manual, Cable, Joystick, Solenoid and Manual, Solenoid and Joystick, Manual and Joystick, Electric motor
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Structure Type Sectional valve
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section, 11 Section, 12 Section
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Rated Flow 60 L/min (15.8 US gpm)
Max Pressure 315 bar (4600 psi), 350 bar (5100 psi)

As a leading manufacturer specializing in hydraulic power solutions, we provide the DCV60 series 6-spool sectional valve designed for reliability in harsh operating environments. Our production facility offers comprehensive support for OEM, ODM, and private labeling, ensuring customized hydraulic configurations that meet your specific equipment requirements. We focus on consistent quality and competitive factory-direct pricing for all wholesale orders. We are actively seeking partnerships with global distributors, wholesalers, trade agents, and industry-specific traders who require high-pressure, precision-engineered flow components. Whether you are supplying parts for tractors, excavators, forklifts, or wood splitters, our professional team provides end-to-end manufacturing services, from custom design to bulk distribution. Partner with our factory to streamline your supply chain and leverage our global logistics capability for high-quality hydraulic valve solutions.
