Proportional Hydraulic Control Amplifierwith Feedb 3 Spool Valve

Control Method:Manual

Spool:3 Spool

Rated Flow:80 L/min (21.2 US gpm)

Max Pressure:250 bar (3600 psi)

Inlet Port:G3/4

Outlet Port:G3/4

Port Size:G3/4

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80 Series Monoblock Directional Valve

Packagingsize:26*23*11

Grossweight:10.70 kg

Availability: In Stock

680 Views are Looking for this Product

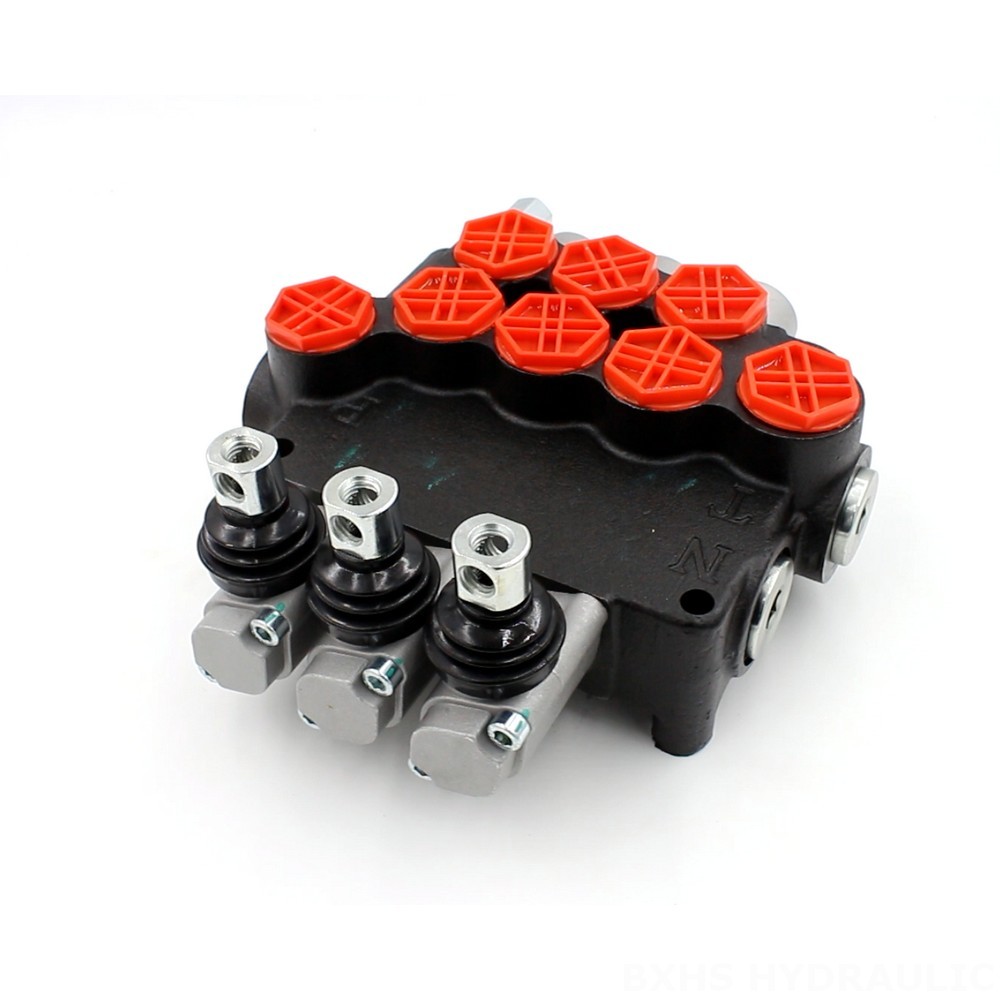

Proportional Hydraulic Control Amplifierwith Feedb 3 Spool Valve detailed image

Proportional Hydraulic Control Amplifierwith Feedb 3 Spool Valve detailed image

Proportional Hydraulic Control Amplifierwith Feedb 3 Spool Valve drawing image

This proportional hydraulic control amplifier with 3 spool valve is designed for demanding applications in material handling, construction, and agriculture. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it's suitable for various machinery including telehandlers, forklifts, excavators, and loaders.

P80 Series Monoblock Directional Valve Parameters
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure 315 bar (4600 psi)
Rated Flow 80 L/min (21.2 US gpm)
Structure Type Monoblock valve

This 3-section monoblock valve features manual control and a rated flow of 80 L/min (21.2 US gpm). It operates at a maximum pressure of 250 bar (3600 psi) and is designed for operating viscosity ranges from 15 to 75 mm²/s (15 cSt to 75 cSt). The valve can handle temperatures from -40°C to +80°C (-40°F to +176°F). It's ideal for various applications in material handling, construction, and agriculture, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dumpers, face drill rigs, concrete boom pumps, pave rollers, rotary drilling, crushers and stone cutters.

Proportional Hydraulic Control Amplifierwith Feedb 3 Spool Valve application image

Proportional Hydraulic Control Amplifierwith Feedb 3 Spool Valve packing image

Proportional Hydraulic Control Amplifierwith Feedb 3 Spool Valve company image

Proportional Hydraulic Control Amplifierwith Feedb 3 Spool Valve certification image
