Proportional Valve Hydraulic Hydraulic Directional Control Valves: P40-DKL Valve Range Overview

Control Method:Solenoid

Spool:1 Spool

Rated Flow:40 L/min (10.5 US gpm)

Max Pressure:250 bar (3600 psi)

Inlet Port:G1/2

Outlet Port:G1/2

Port Size:G3/8

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40-DKL Series Monoblock Directional Valve

Packagingsize:31*16*17

Grossweight:5.30 kg

Availability: In Stock

718 Views are Looking for this Product

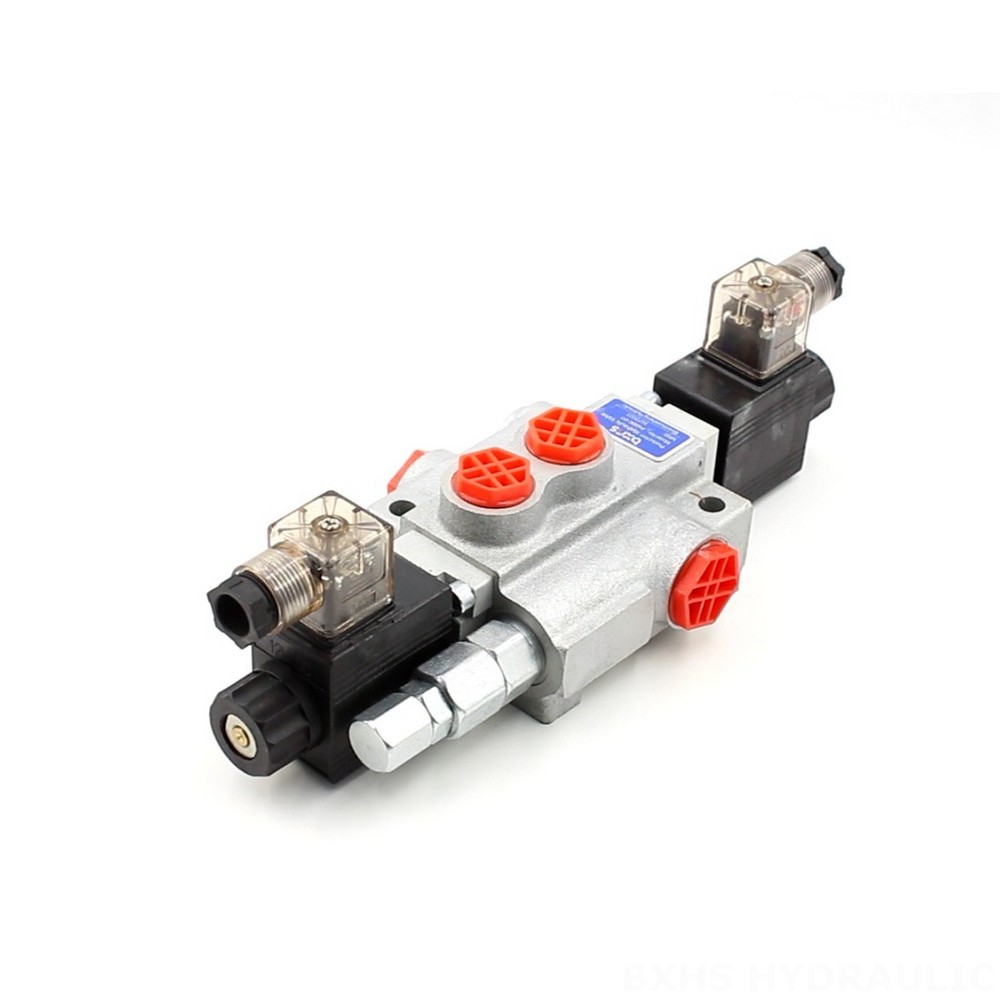

Proportional Valve Hydraulic Hydraulic Directional Control Valves: P40-DKL Valve Range Overview detailed image

Proportional Valve Hydraulic Hydraulic Directional Control Valves: P40-DKL Valve Range Overview detailed image

Proportional Valve Hydraulic Hydraulic Directional Control Valves: P40-DKL Valve Range Overview drawing image

The P40-DKL Series Proportional Valve is a high-performance, solenoid-operated directional control valve designed for use in a wide range of mobile hydraulic applications, including construction equipment, material handling, agriculture, and industrial vehicles. This monoblock valve offers a rated flow of 40 L/min, maximum pressure of 250 bar, and operating viscosity range of 15-75 mm²/s.

P40-DKL Series Monoblock Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Rated Flow 40 L/min (10.5 US gpm)
Max Pressure 250 bar (3600 psi)
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Structure Type Monoblock valve
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

The P40-DKL Series Proportional Valve is a reliable and durable solution for controlling hydraulic flow in demanding applications. This single-section, monoblock valve features a solenoid control method and a single spool for precise and efficient operation. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is well-suited for use in a variety of mobile hydraulic applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders. The P40-DKL Series valve is designed for operation in a wide range of ambient temperatures, from -40°C to +80°C. Its robust construction and advanced design ensure long-lasting performance and minimal maintenance requirements. This valve offers a high level of precision and control, allowing for smooth and efficient operation in demanding hydraulic applications.
