Q45 Manual 2 Spool Monoblock Directional Valve

Rated Flow:45 L/min (11.8 US gpm)

Max Pressure:315 bar (4600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:Q45 Series Monoblock Directional Valve

Productsize:16*21*11

Netweight:4.90 kg

Availability: In Stock

Description

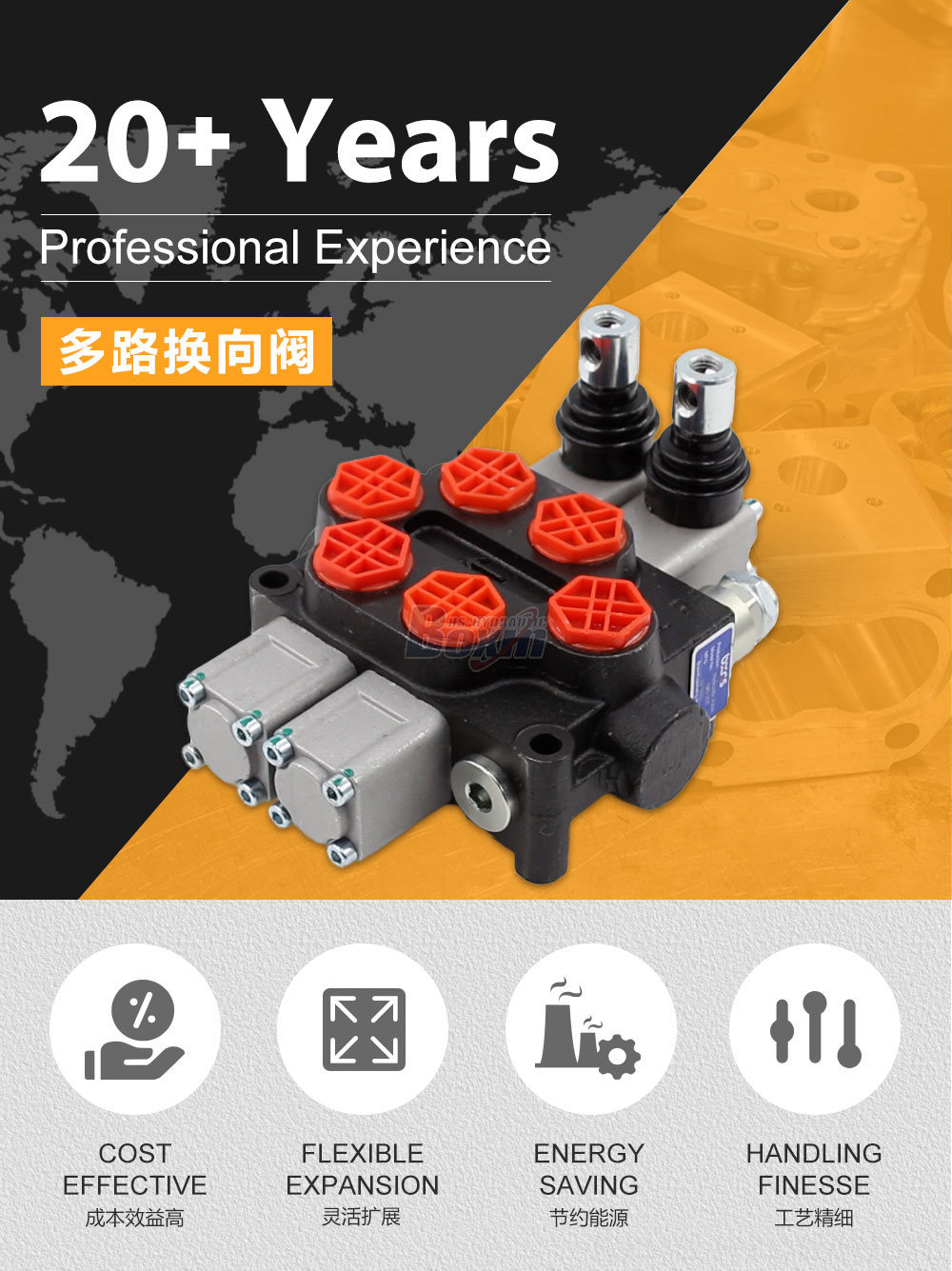

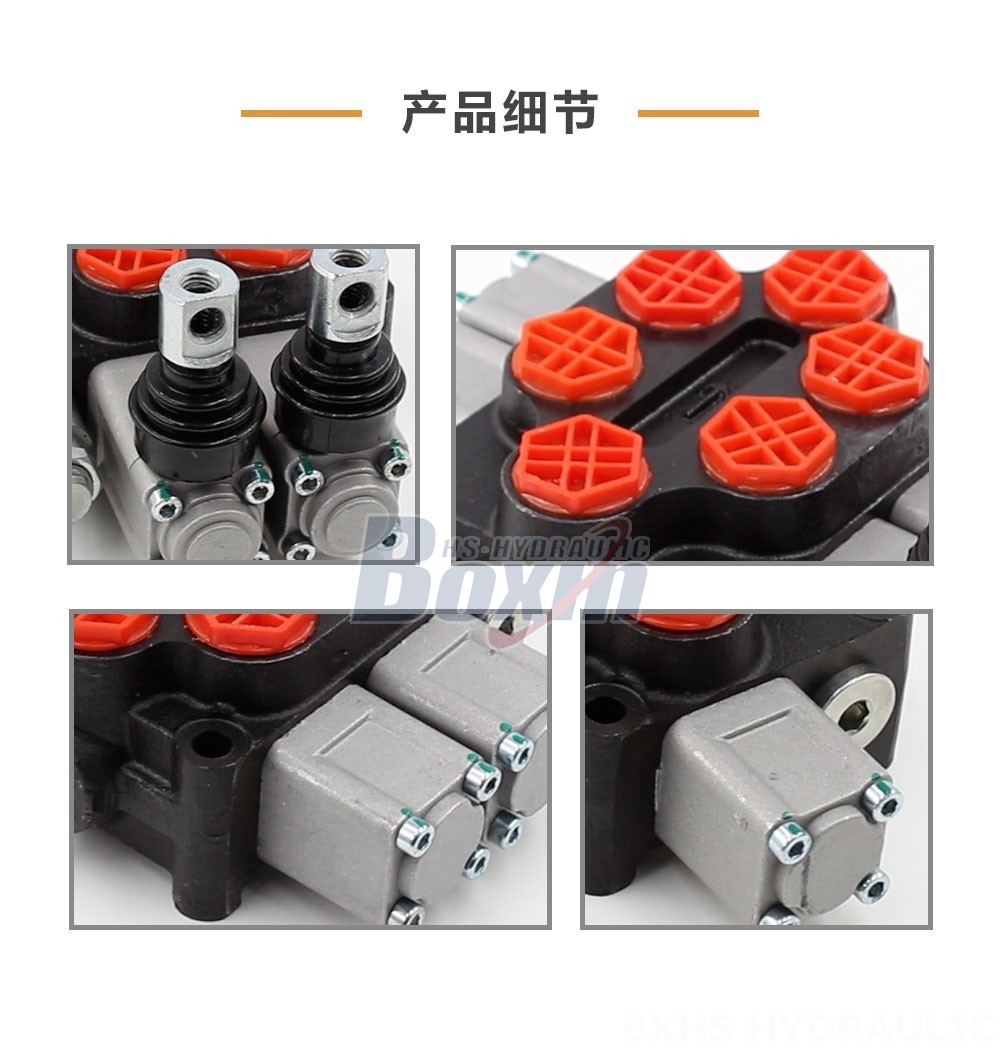

Q45 Manual 2 Spool Monoblock Directional Valve detailed image

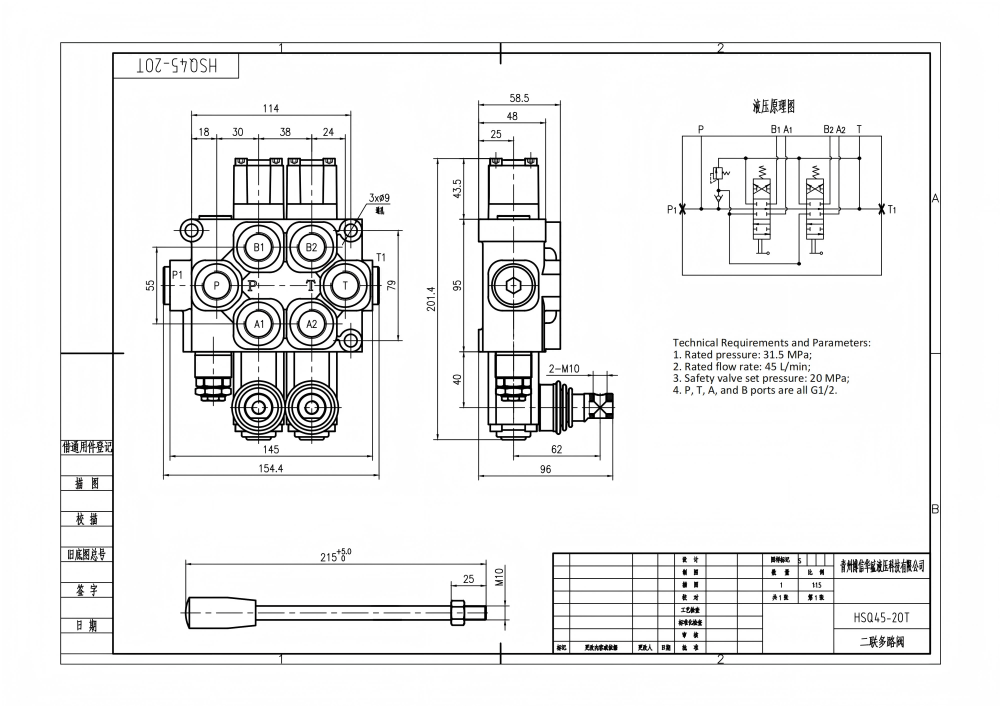

Q45 Manual 2 Spool Monoblock Directional Valve drawing image

The Q45 Manual 2 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a wide range of applications requiring precise control of fluid flow. With a rated flow of 45 L/min (11.8 US gpm) and a maximum pressure of 315 bar (4600 psi), this valve offers exceptional flow capacity and durability. Its compact monoblock design provides a space-saving solution for demanding hydraulic systems.

Q45 Series Monoblock Directional Valve Parameters
Control Method	Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Joystick
Spool	1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Rated Flow	45 L/min (11.8 US gpm)
Max Pressure	315 bar (4600 psi)
Inlet Port	G1/2
Outlet Port	G1/2
Port Size	G1/2
Section	1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Structure Type	Monoblock valve

**Product Features and Benefits:**

* Manual control for precise flow adjustment
* 2 spool design for versatile flow control
* Monoblock construction for compact and robust design
* High flow capacity of 45 L/min (11.8 US gpm)
* Maximum pressure of 315 bar (4600 psi)
* Durable construction for long service life

**Applications:**

This valve is ideally suited for use in various hydraulic applications, including:

* Material handling equipment (forklifts, cranes, stackers)
* Construction machinery (excavators, loaders, graders)
* Agricultural machinery (tractors, harvesters, balers)
* Industrial vehicles (sweepers, compactors, waste handlers)

Q45 Manual 2 Spool Monoblock Directional Valve application image
