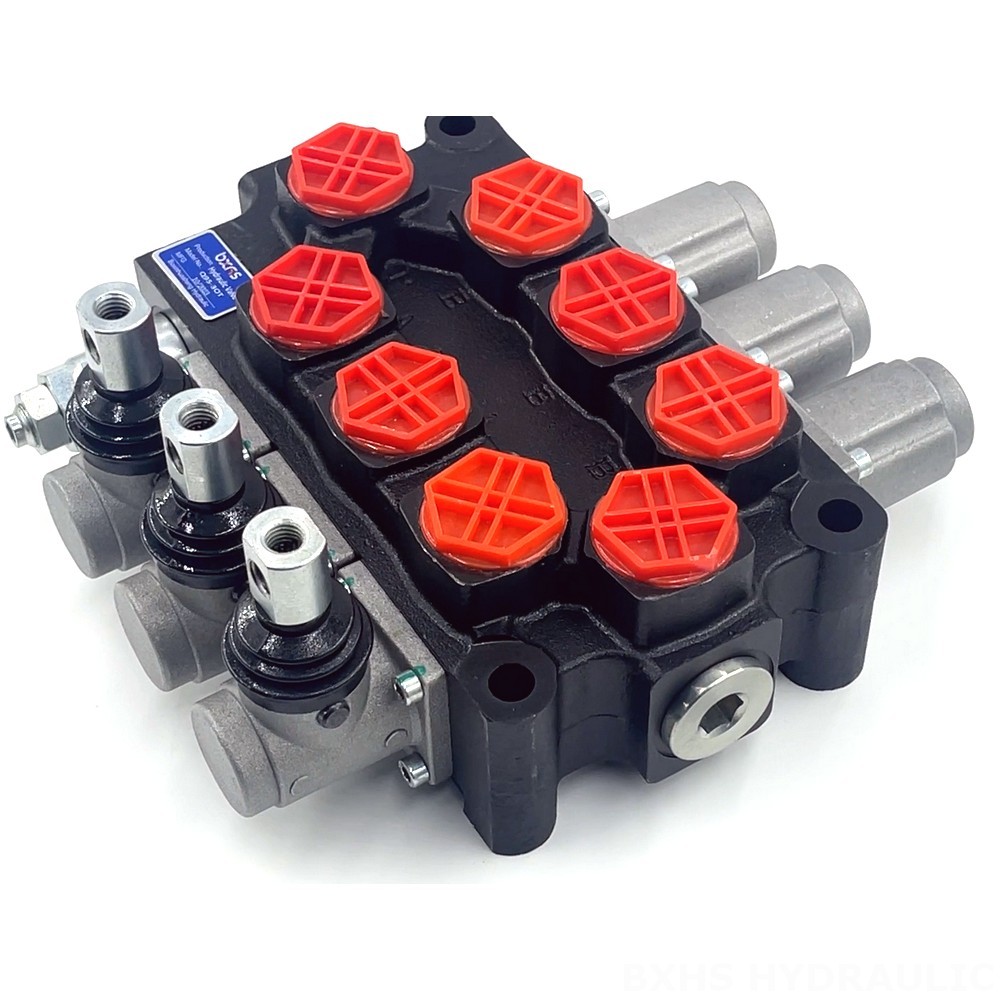

The Q95 Manual 3 Spool Monoblock Directional Valve is a precision-engineered hydraulic component designed for optimal fluid control in demanding applications. Its robust monoblock construction and high-quality materials ensure durability and reliability.
| Q95 Series Monoblock Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Rated Flow | 95 L/min (25.1 US gpm) |
| Max Pressure | 315 bar (4600 psi) |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section |
| Structure Type | Monoblock valve |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
**Key Features of the Q95 Manual 3 Spool Monoblock Directional Valve:**
* Manual control for precise fluid flow regulation
* Monoblock design for compact and leak-proof operation
* 3-spool configuration for versatility and control of multiple fluid paths
* Rated flow of 95 L/min (25.1 US gpm) for efficient fluid transfer
* Max pressure of 315 bar (4600 psi) for handling high-pressure hydraulic systems
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various fluids
* Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for operation in diverse environments
* Wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles
