QFCK-F20L-01 Pneumatic 1 Spool Tipping Valve

Rated Flow:150 L/min (39.6 US gpm)

Vendor:BXHS

Product Type:Tipping Valve

Product Series:QFCK-F20L Series Tipping Valve

Productsize:24.2*18*11

Netweight:6.15 kg

Availability: In Stock

  • Pneumatic
  • 1 Spool
431 Views are Looking for this Product

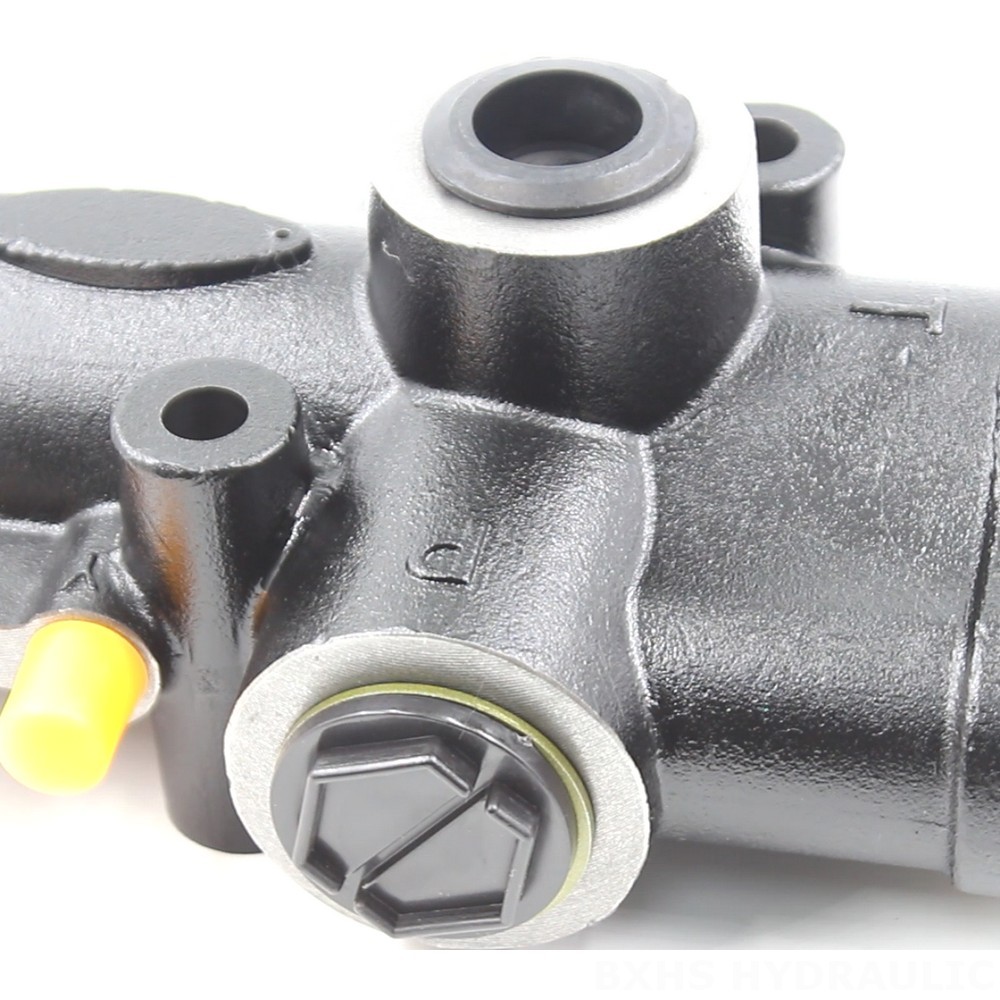

QFCK-F20L-01 Pneumatic 1 Spool Tipping Valve detailed image

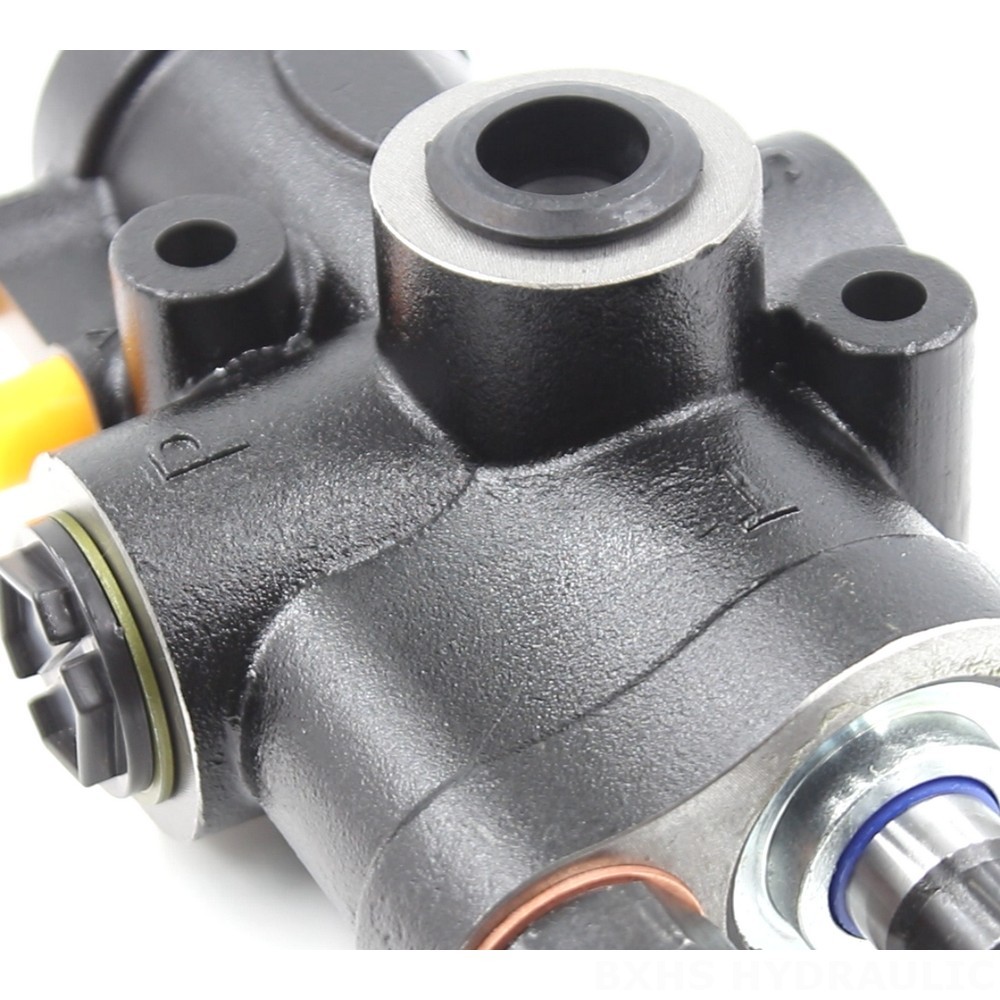

QFCK-F20L-01 Pneumatic 1 Spool Tipping Valve detailed image

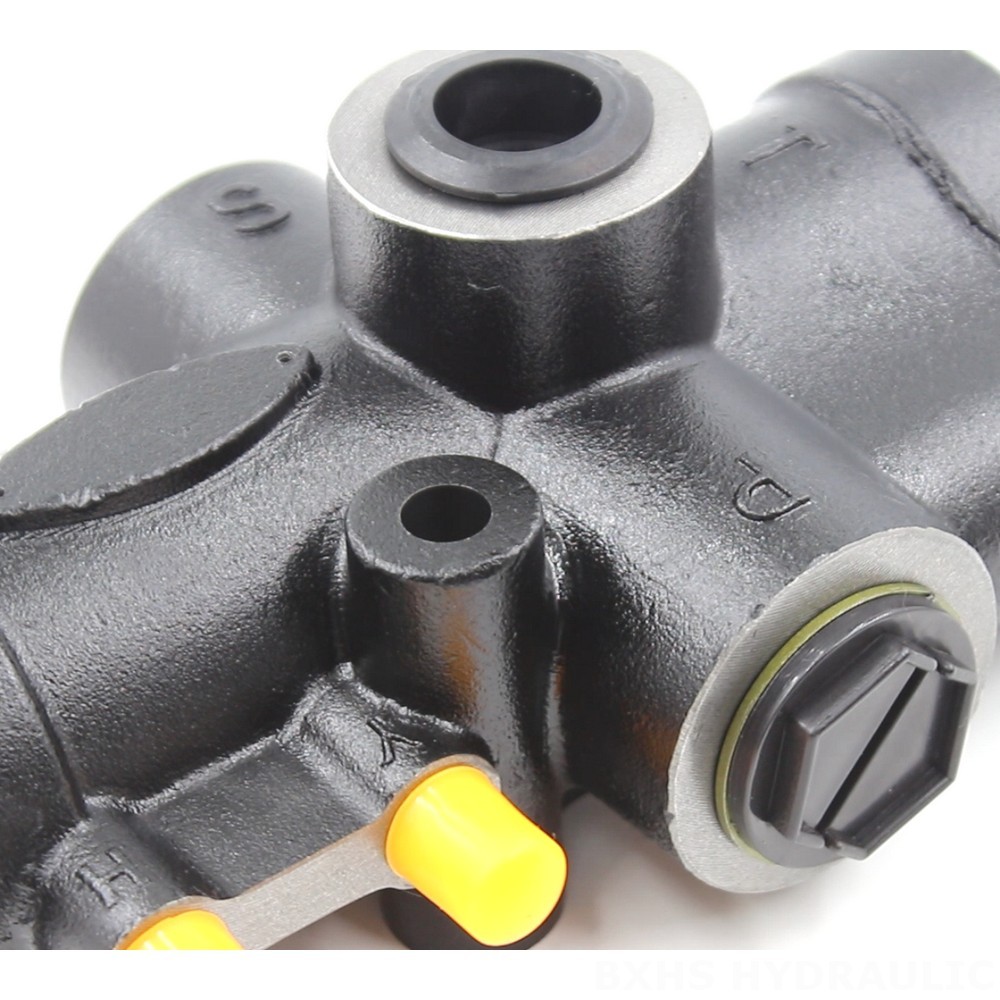

QFCK-F20L-01 Pneumatic 1 Spool Tipping Valve drawing image

The QFCK-F20L-01 is a high-performance, pneumatic, monoblock hydraulic control valve with a single spool, offering a rated flow of 150 L/min and a maximum pressure of 210 bar. Ideal for diverse applications in material handling, construction, agriculture, and industrial vehicles, this robust valve ensures reliable operation in demanding environments.

Section 1 Section
Structure Type Monoblock valve
Control Method Pneumatic
Rated Flow 150 L/min (39.6 US gpm)
Max Pressure 210 bar (3045 psi)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)

The QFCK-F20L-01 pneumatic 1 spool hydraulic control valve is a high-quality, durable component designed for use in a wide variety of applications. Its monoblock structure ensures strength and reliability, while its high flow rate (150 L/min) and pressure rating (210 bar) make it suitable for demanding operating conditions. The valve's pneumatic control mechanism allows for precise and responsive operation, providing accurate control of hydraulic systems. Its broad operating temperature range (-40°C to +80°C) ensures reliable performance in diverse climates. This makes it ideal for use in equipment such as forklifts, telehandlers, skid steer loaders, compact wheel loaders, tractors, mini and midi excavators, backhoe loaders, harvesters, and balers. The valve's compact design simplifies installation and integration into existing systems. We offer manufacturing, OEM, private labeling, customization, and wholesale options, and are actively seeking distributors, wholesalers, agents, and trading companies globally. Contact us to discuss your specific requirements and explore the benefits of partnering with our company.

QFCK-F20L-01 Pneumatic 1 Spool Tipping Valve application image

QFCK-F20L-01 Pneumatic 1 Spool Tipping Valve packing image

QFCK-F20L-01 Pneumatic 1 Spool Tipping Valve company image

QFCK-F20L-01 Pneumatic 1 Spool Tipping Valve certification image
