RD5200-H Manual 2 Spool Hydraulic Control Valve

Rated Flow:100 L/min (26.5 US gpm)

Max Pressure:315 bar (4600 psi)

Vendor:BXHS

Product Type:Hydraulic Control Valve

Product Series:RD Series Hydraulic Control Valve

Productsize:25*19*9

Netweight:11.00 kg

Availability: In Stock

  • Manual
  • 1 Spool
  • 2 Spool
  • 3 Spool
396 Views are Looking for this Product

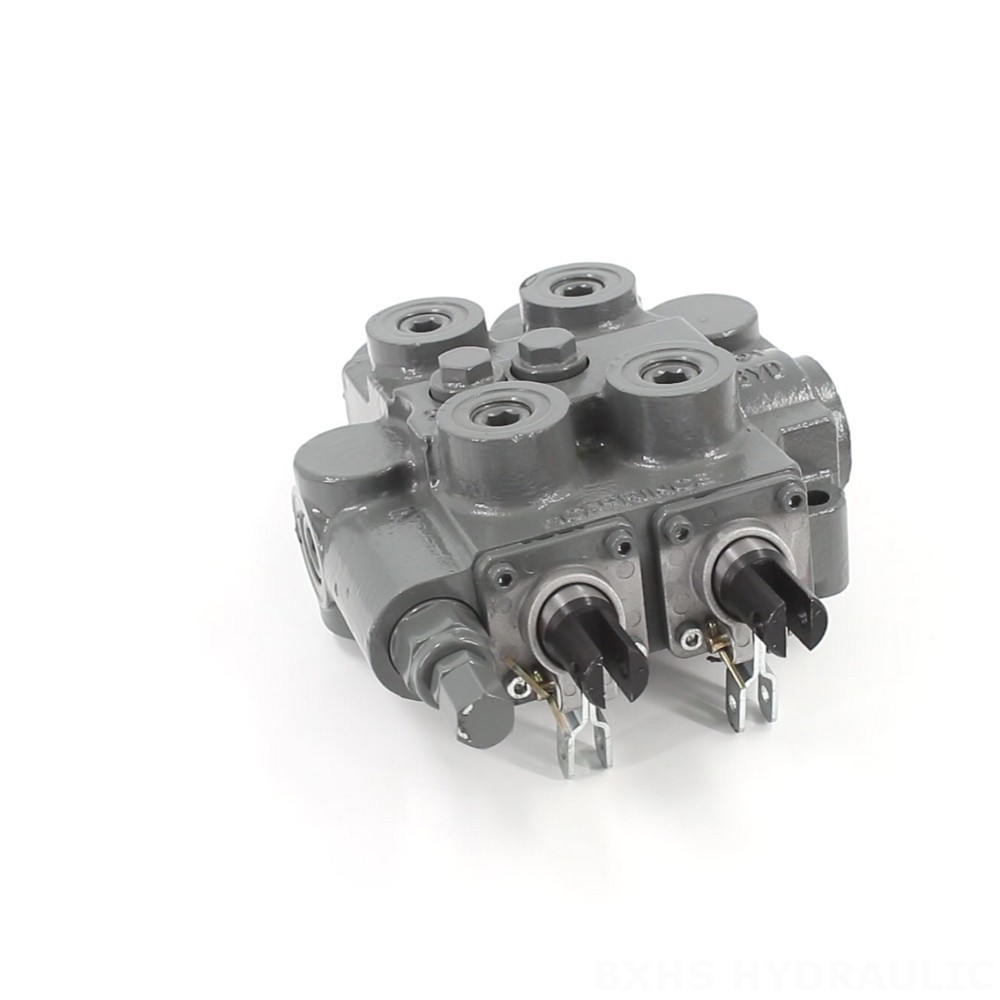

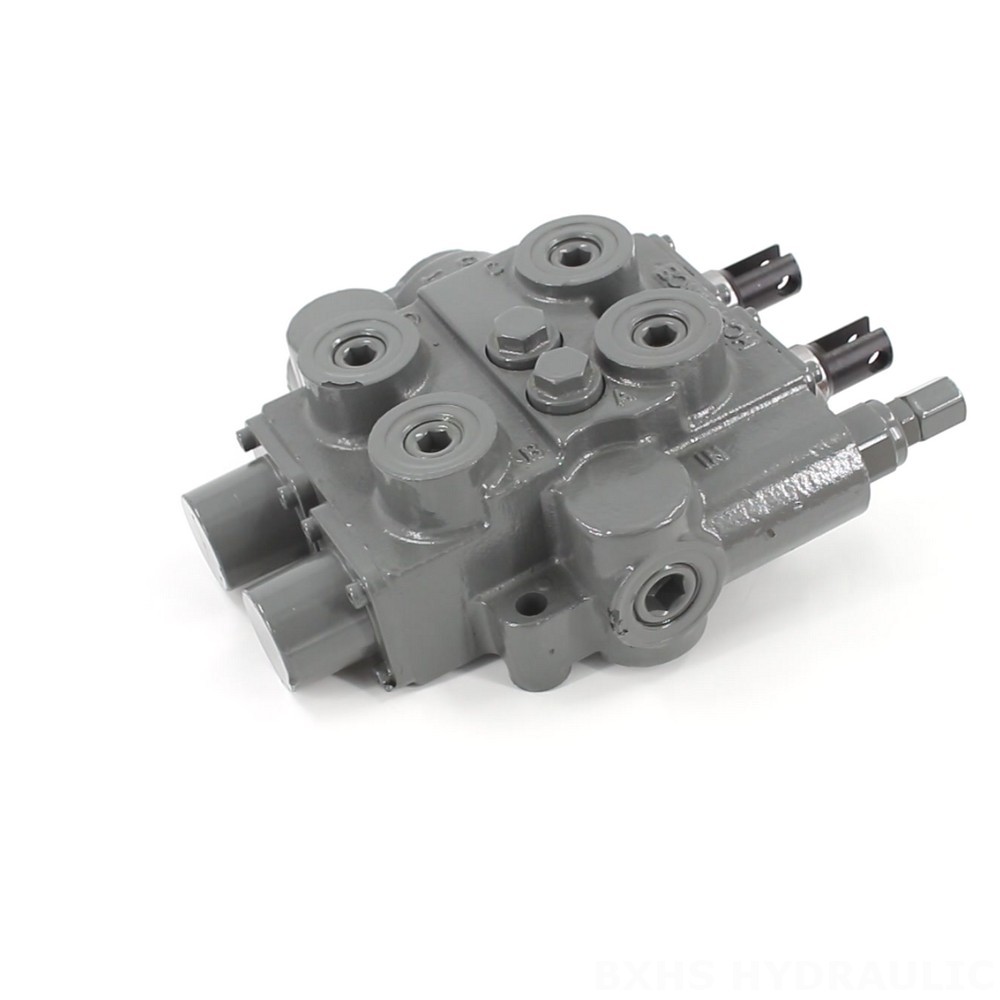

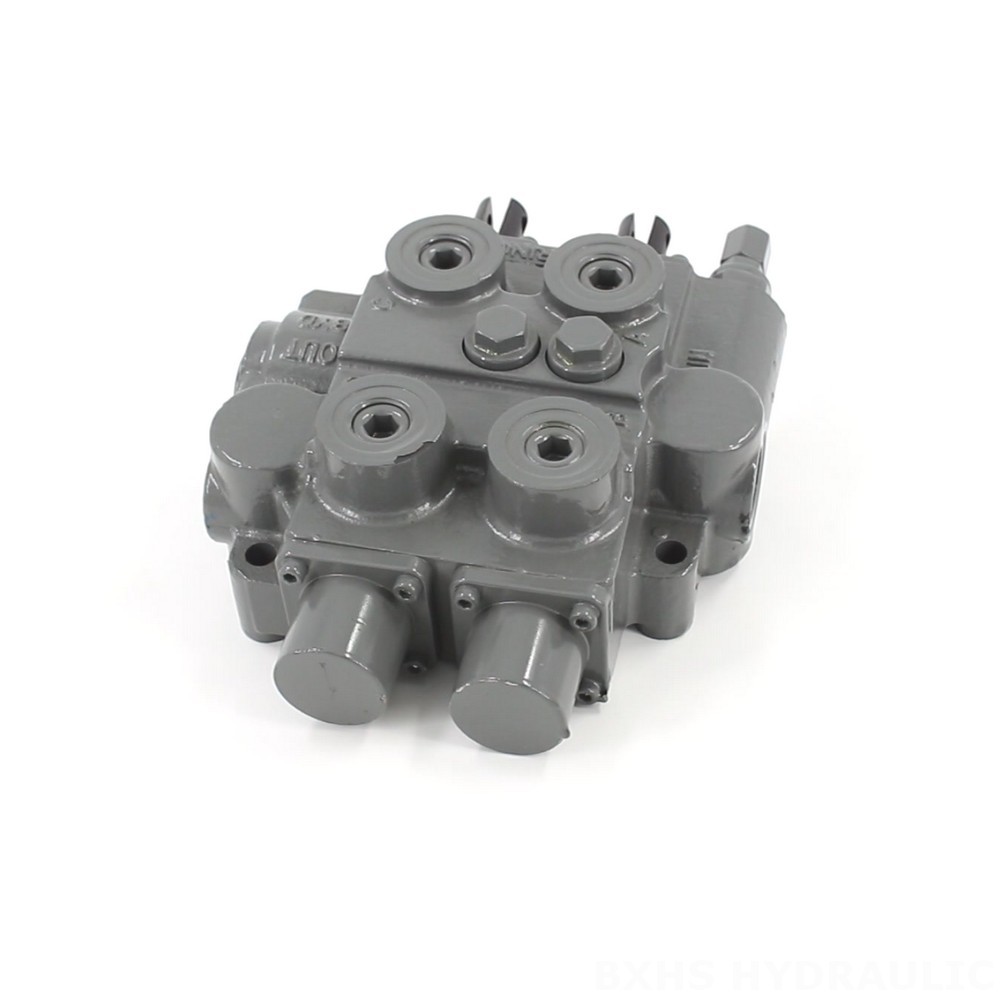

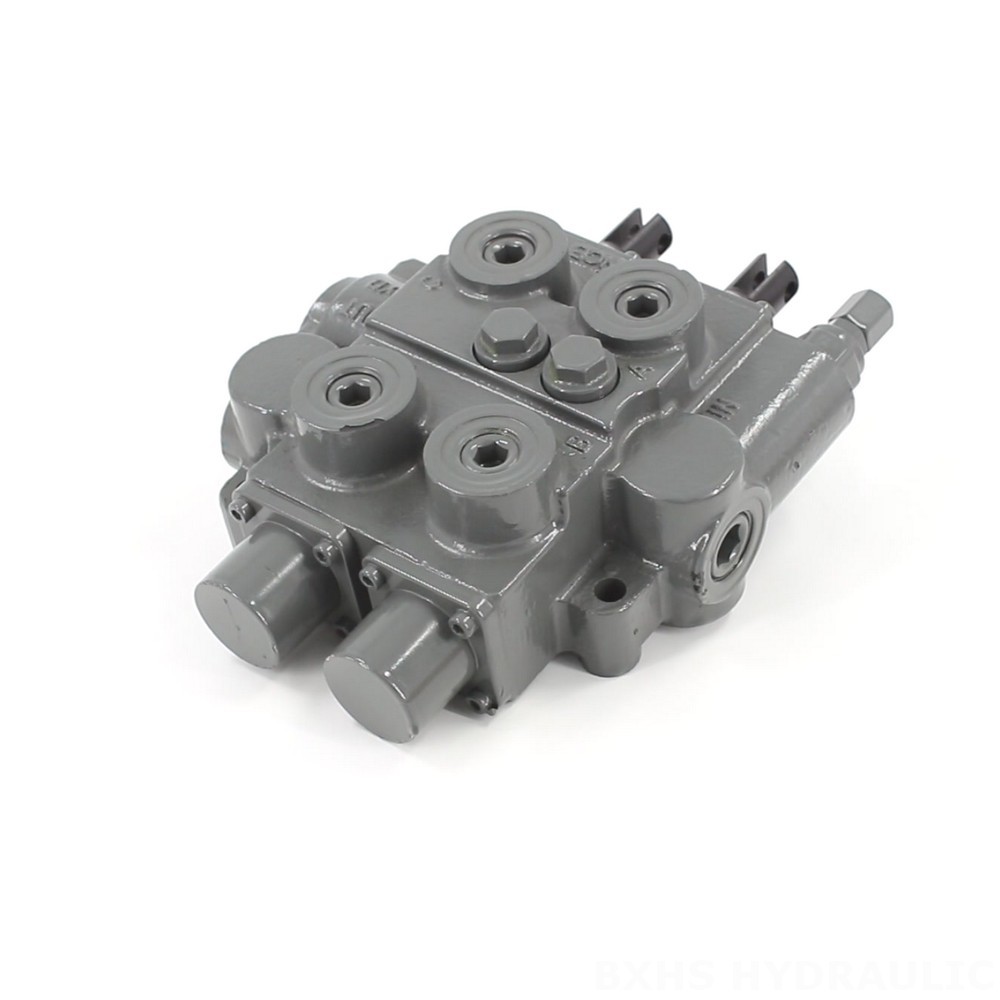

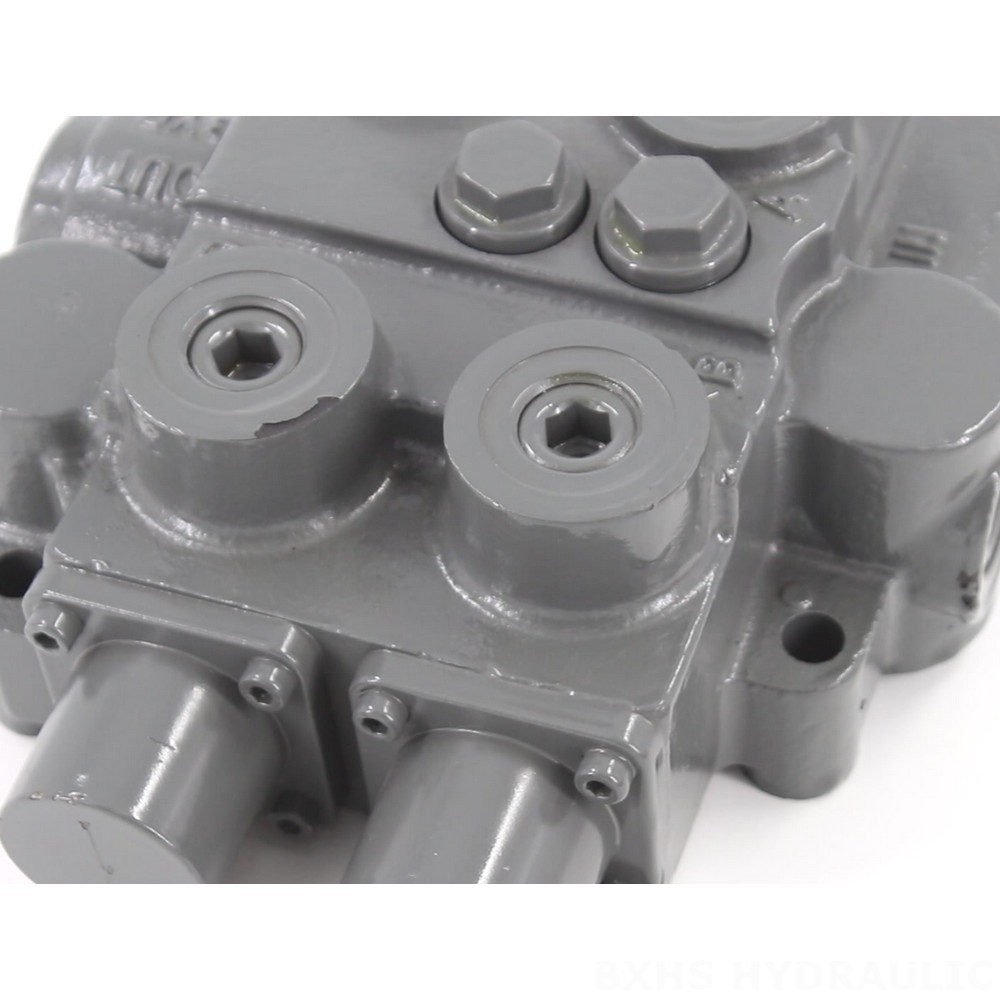

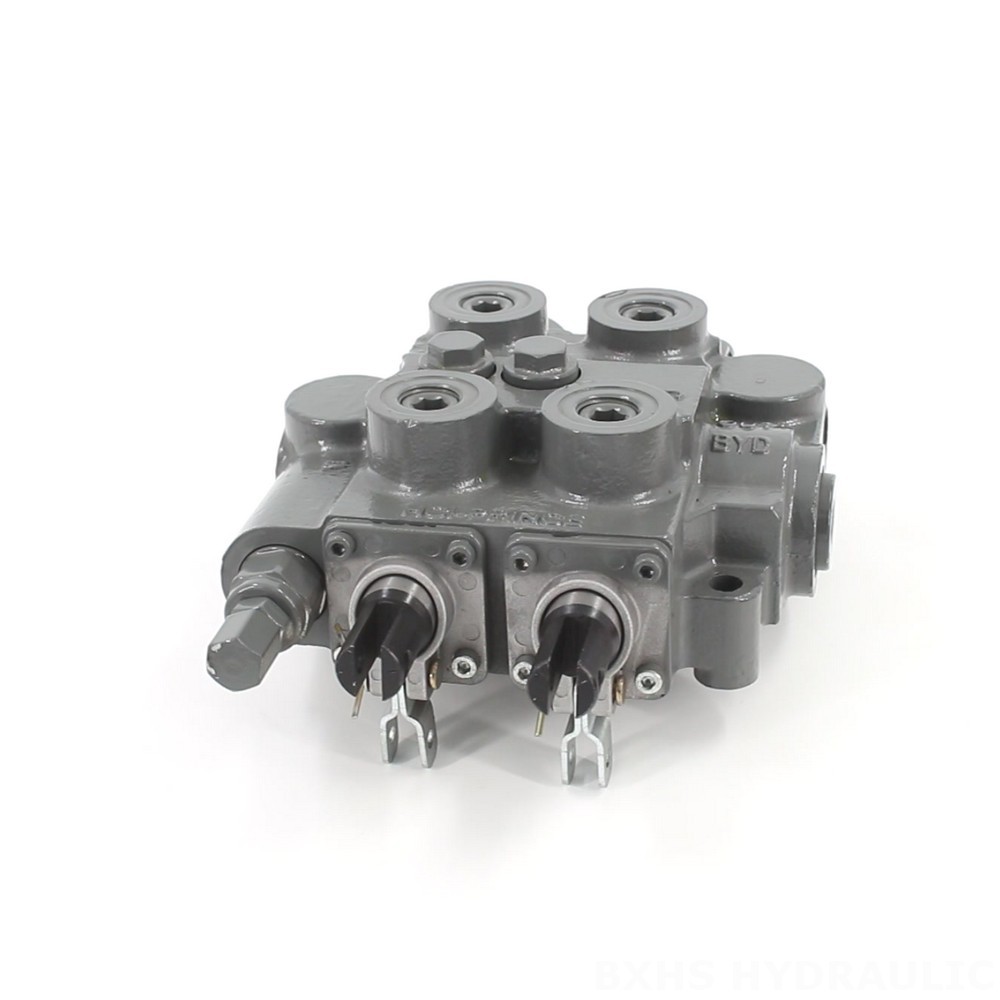

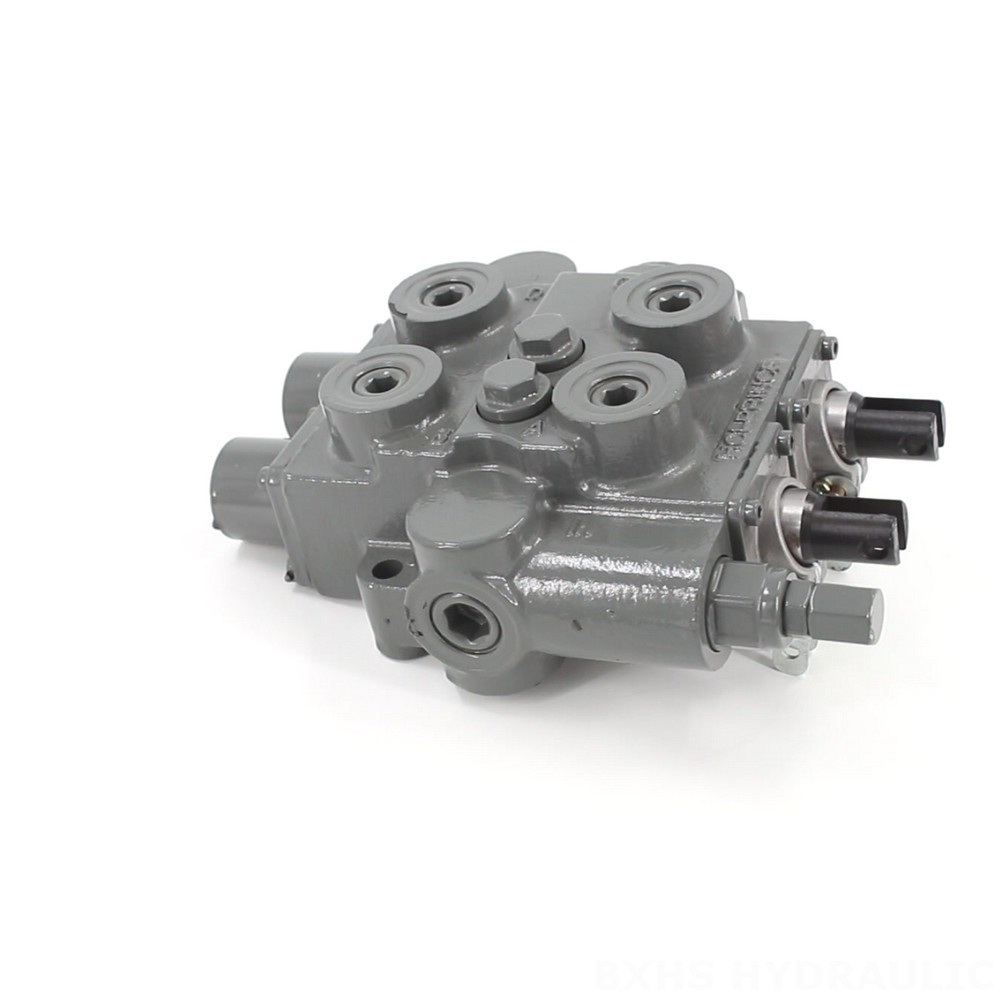

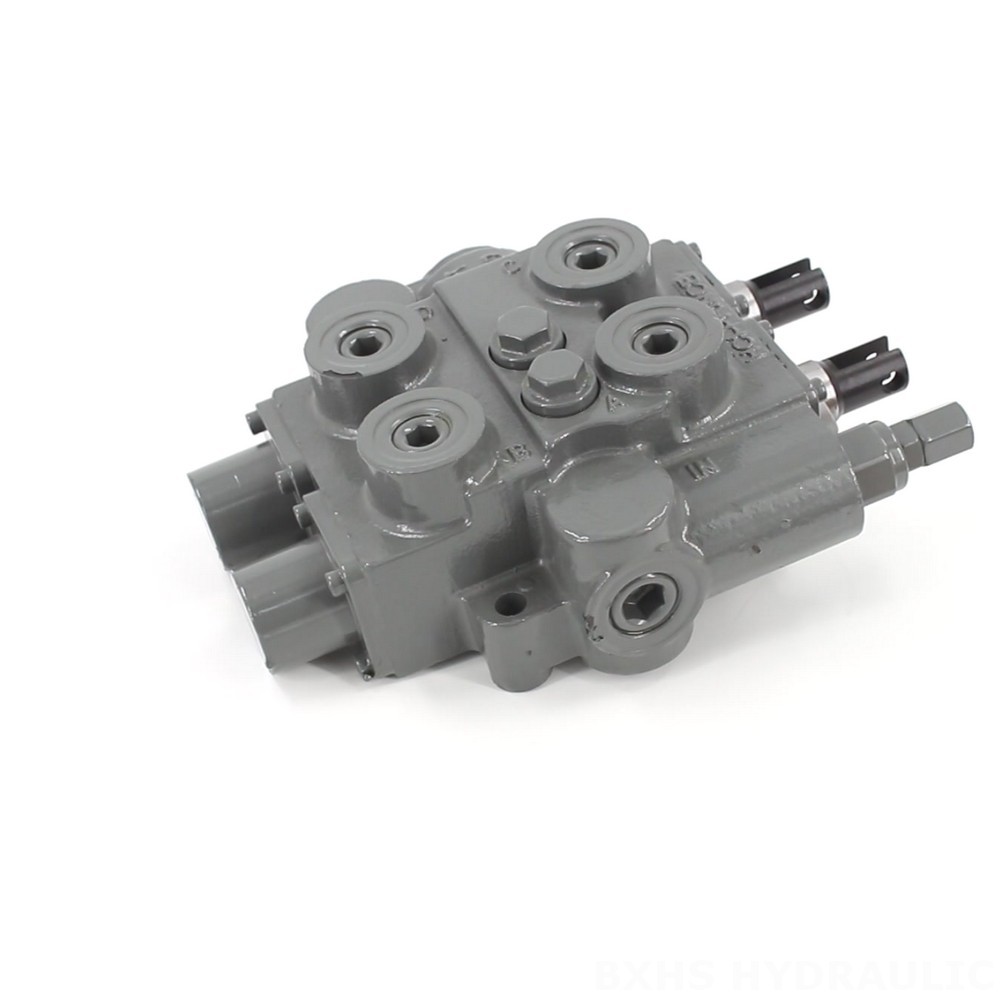

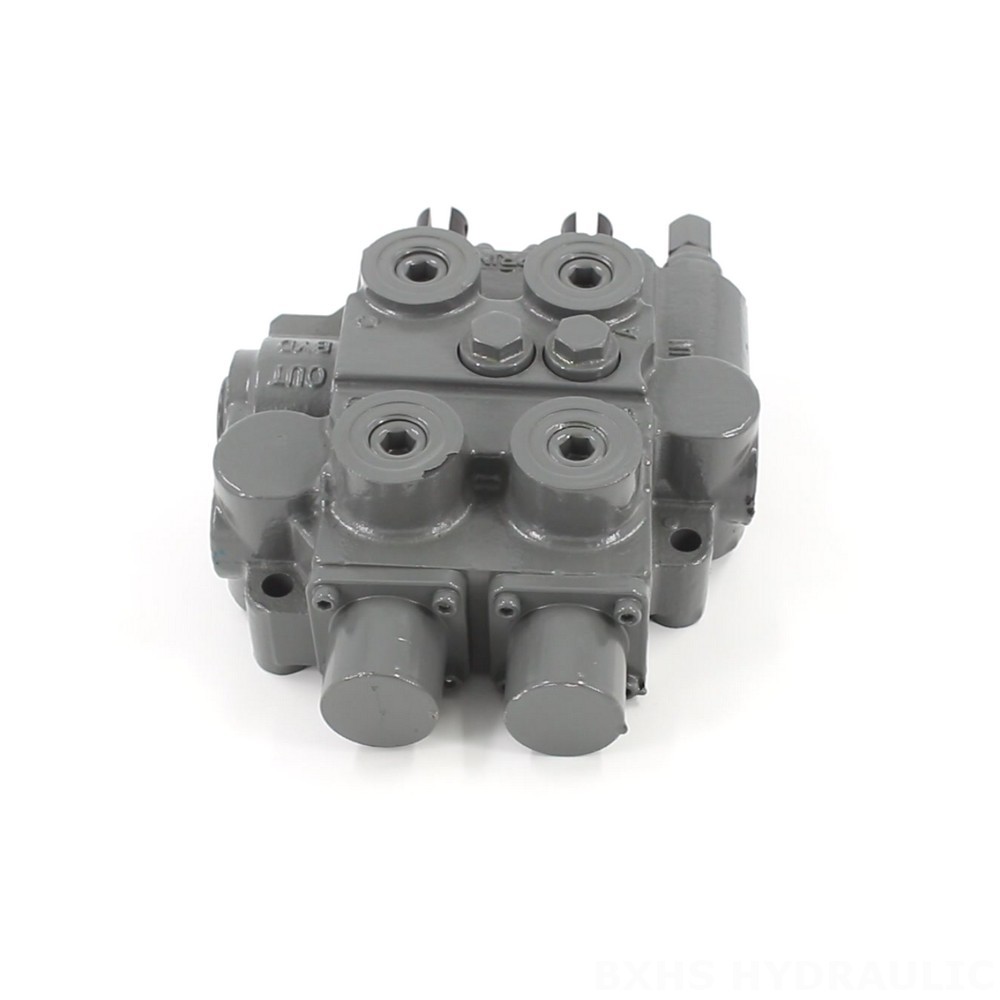

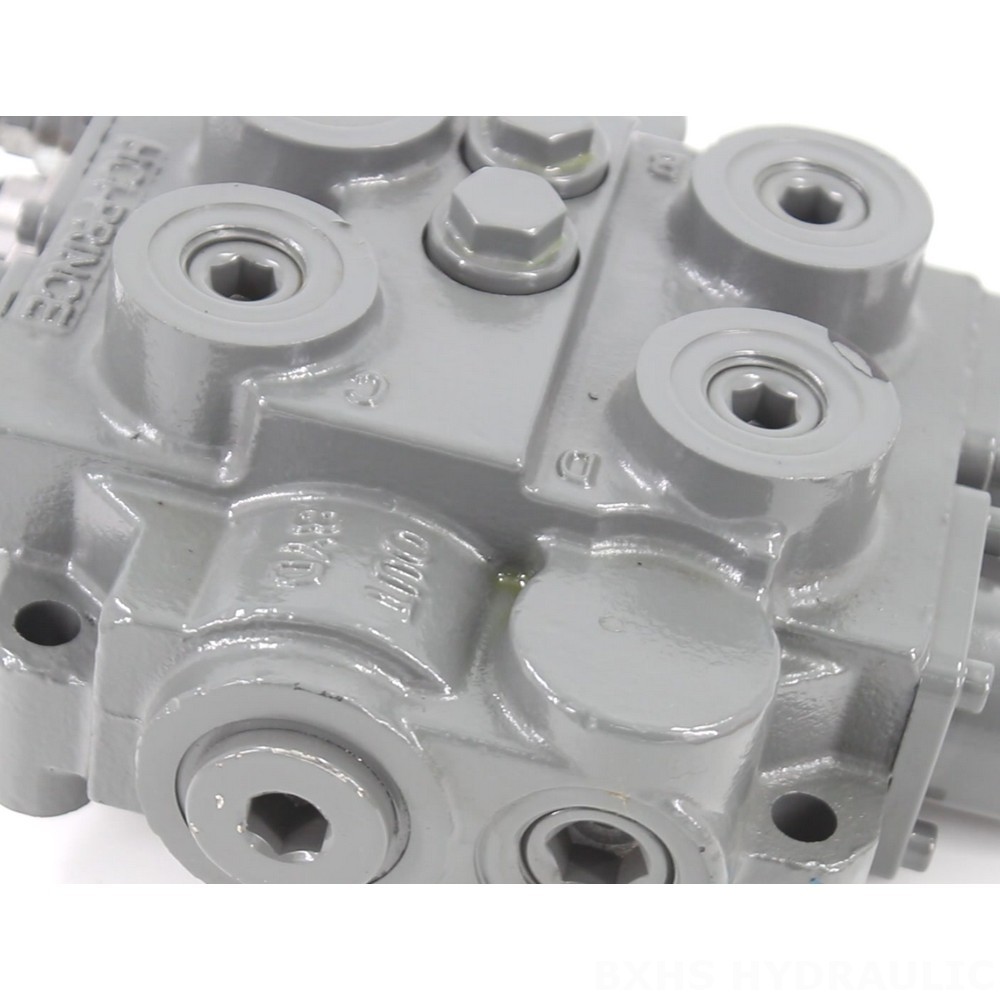

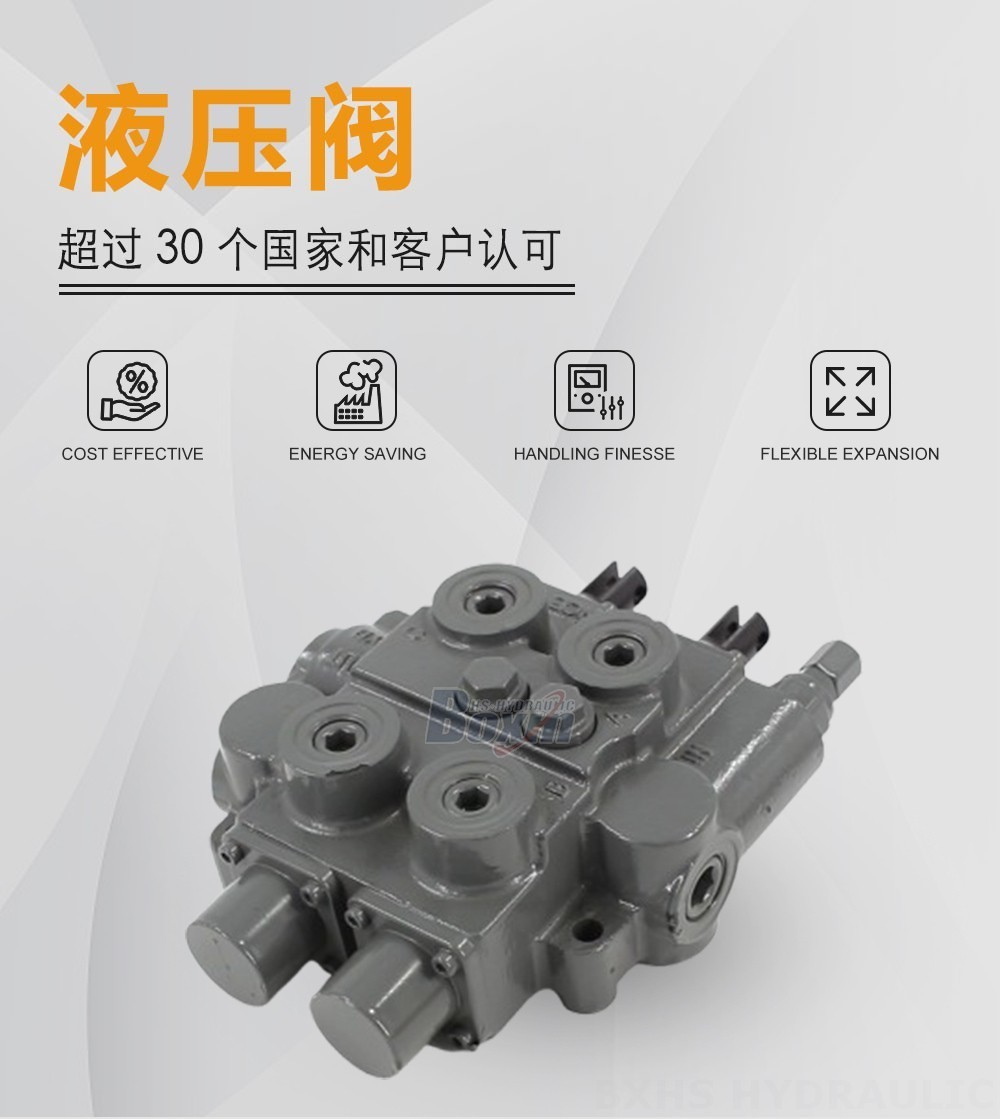

RD5200-H Manual 2 Spool Hydraulic Control Valve detailed image

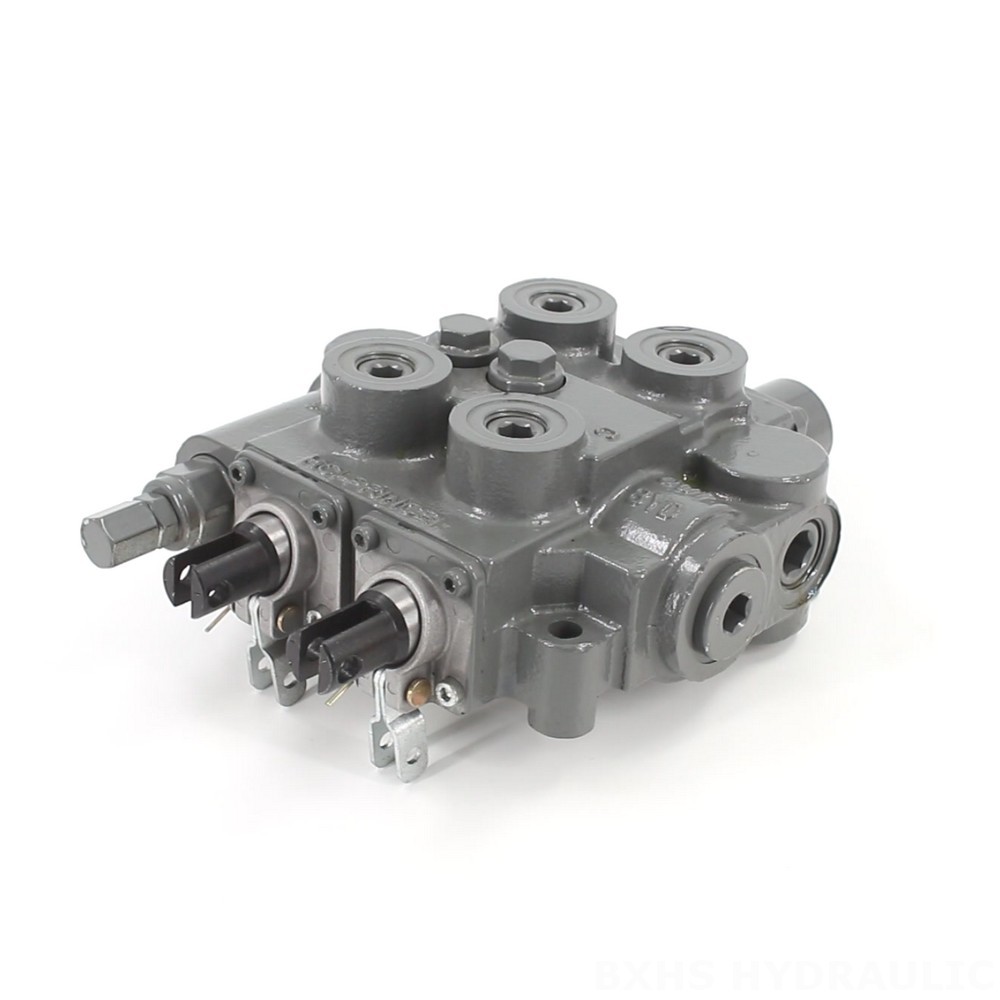

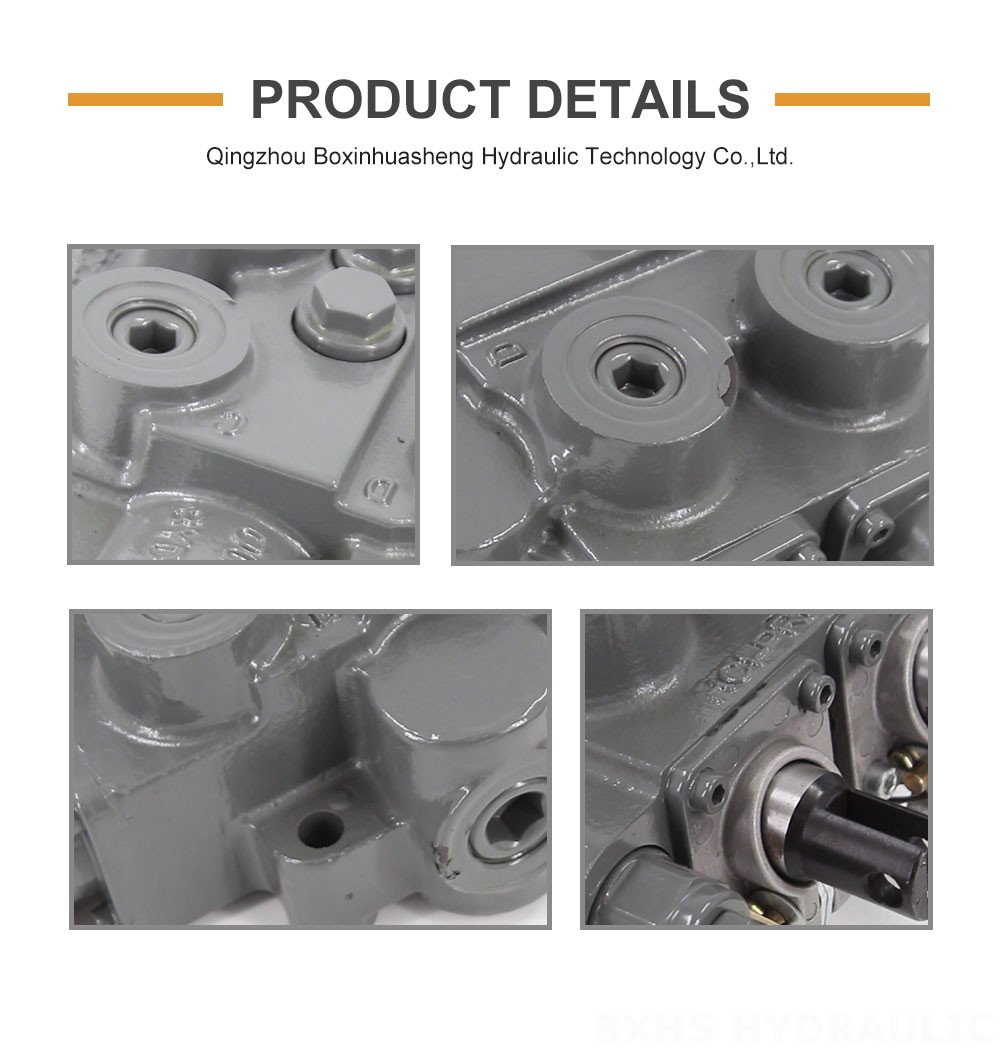

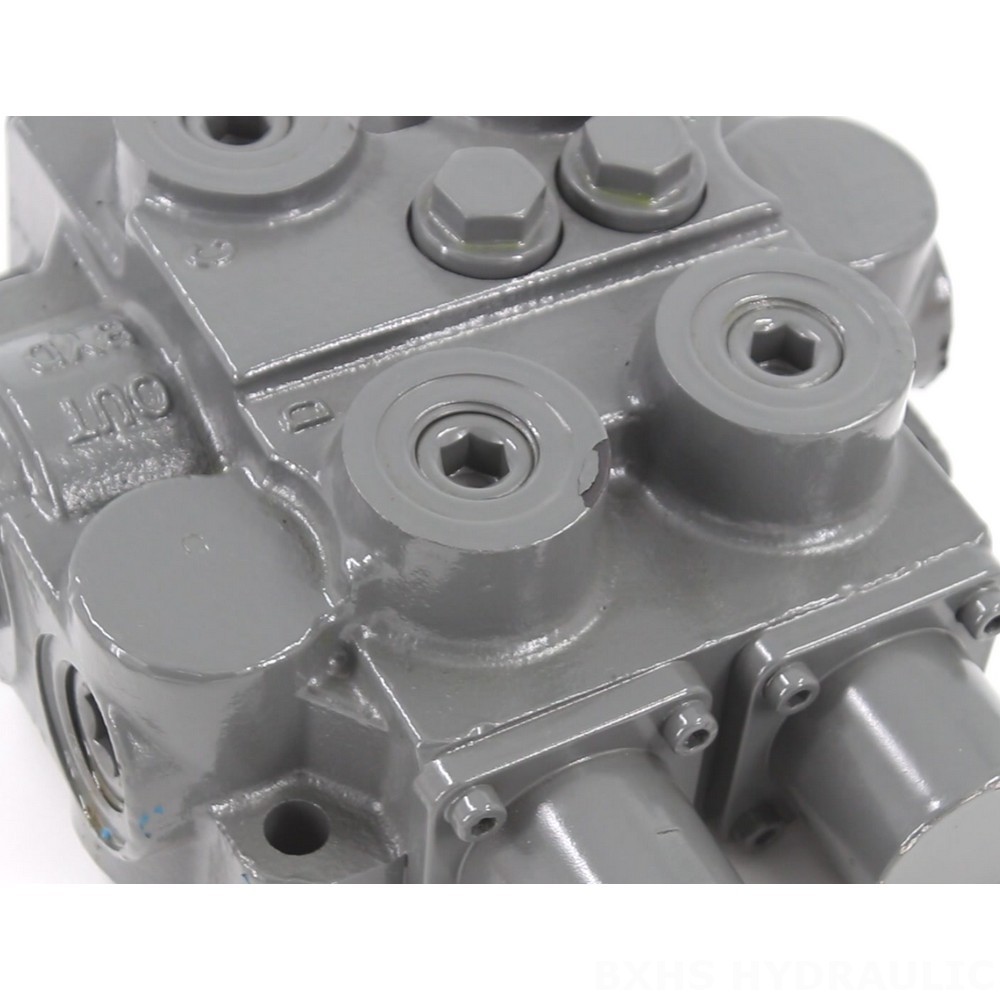

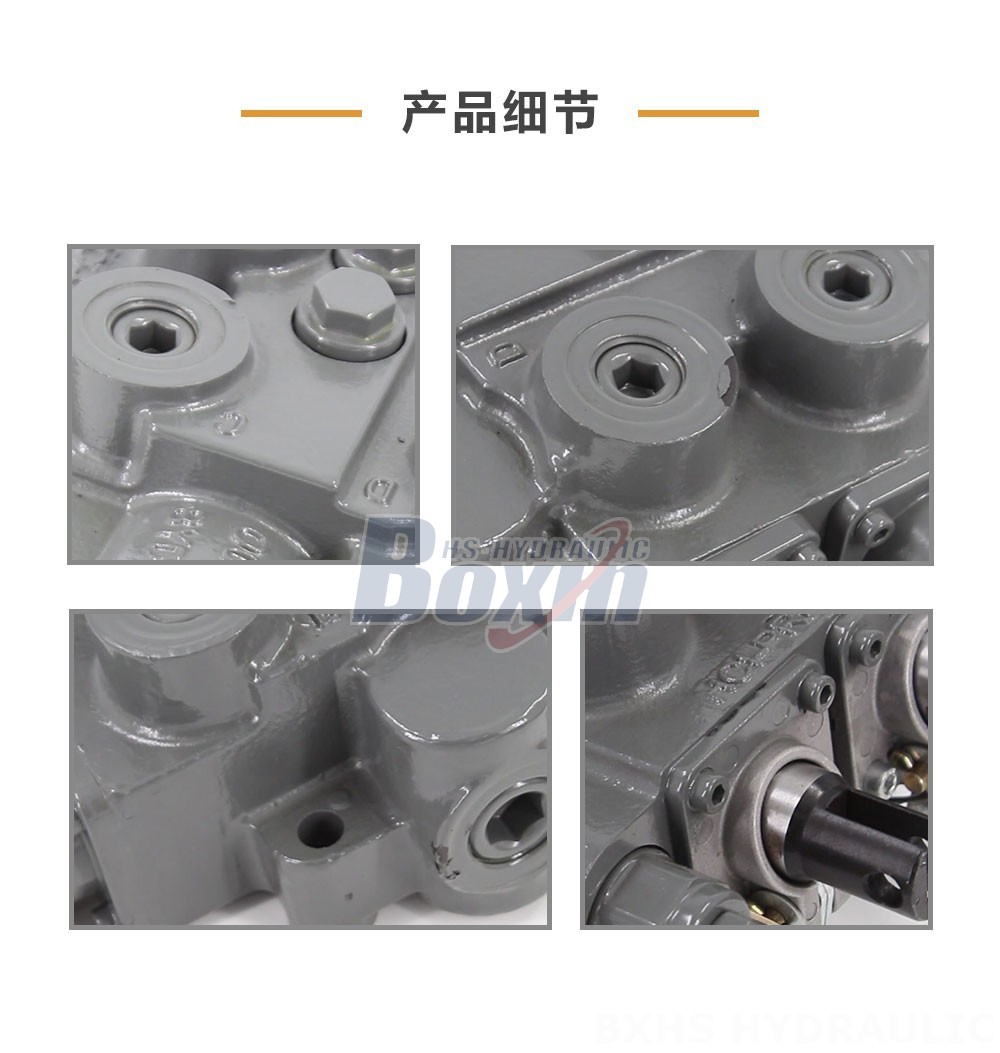

RD5200-H Manual 2 Spool Hydraulic Control Valve detailed image

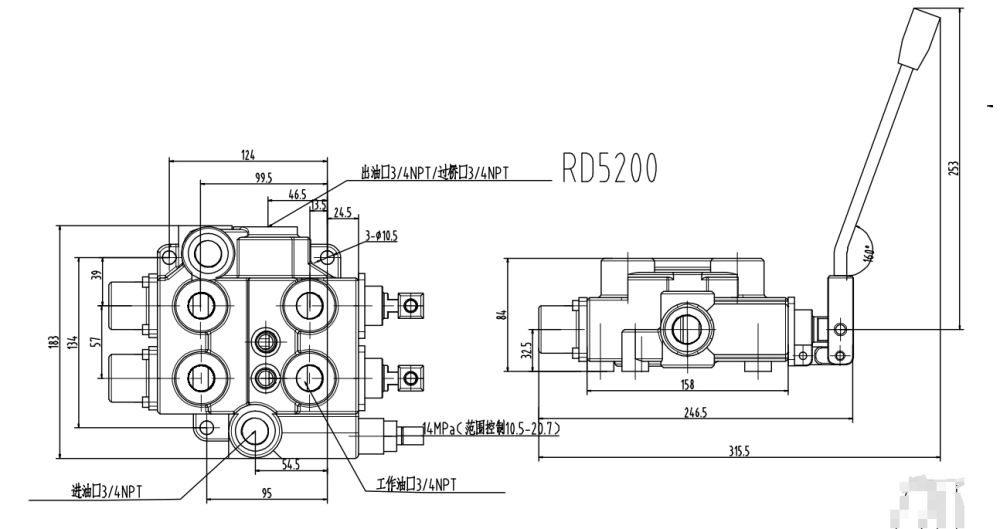

RD5200-H Manual 2 Spool Hydraulic Control Valve drawing image

The RD5200-H is a robust, manual 2-spool monoblock hydraulic control valve designed for high-pressure applications in construction, industrial, agricultural, and material handling equipment. It features a high flow rate (100 L/min) and can withstand pressures up to 315 bar. Its compact design and wide operating temperature range make it suitable for diverse applications.

RD Series Hydraulic Control Valve Parameters
Control Method Manual
Spool 1 Spool, 2 Spool, 3 Spool
Rated Flow 100 L/min (26.5 US gpm)
Max Pressure 315 bar (4600 psi)
Inlet Port G3/4
Outlet Port G3/4
Port Size G1/2, G3/4
Section 1 Section, 2 Section, 3 Section
Structure Type Monoblock valve
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 12 - 400 mm²/s (12 cSt to 400 cSt)

The RD5200-H Manual 2 Spool Hydraulic Control Valve is a high-performance, heavy-duty valve ideal for various applications requiring precise manual control of hydraulic systems. Its monoblock construction ensures durability and reliability, even under demanding operating conditions. Key features include:

* **High Flow Rate:** 100 L/min (26.5 US gpm) ensures efficient operation of hydraulic actuators.
* **High Pressure Capability:** 315 bar (4600 psi) maximum pressure rating handles demanding applications.
* **Wide Viscosity Range:** Operates effectively with fluids ranging from 12 to 400 mm²/s (12 cSt to 400 cSt).
* **Extensive Temperature Range:** -40°C to +80°C (-40°F to +176°F) allows use in diverse climates and operating environments.
* **Durable Construction:** Monoblock design for increased strength and longevity.
* **Manual Control:** Simple and reliable manual operation.
* **Versatile Applications:** Suitable for telehandlers, forklifts, skid steer loaders, compact wheel loaders, tractors, backhoes, mini- and midi- excavators, harvesters, and balers, among others.

This valve offers superior performance, reliability, and ease of use, making it a cost-effective solution for various hydraulic system needs. Its robust design and wide range of applications make it a valuable asset for manufacturers and end-users alike. We offer manufacturing, OEM, private labeling, customization, and wholesale options. We are actively seeking distributors, wholesalers, agents, and trading companies globally.
