RD5200 Manual 2 Spool Hydraulic Control valve

Rated Flow:100 L/min (26.5 US gpm)

Vendor:BXHS

Product Type:Hydraulic Control valve

Product Series:RD Series Hydraulic Control valve

Productsize:24*27*10

Netweight:10.50 kg

Availability: In Stock

Description

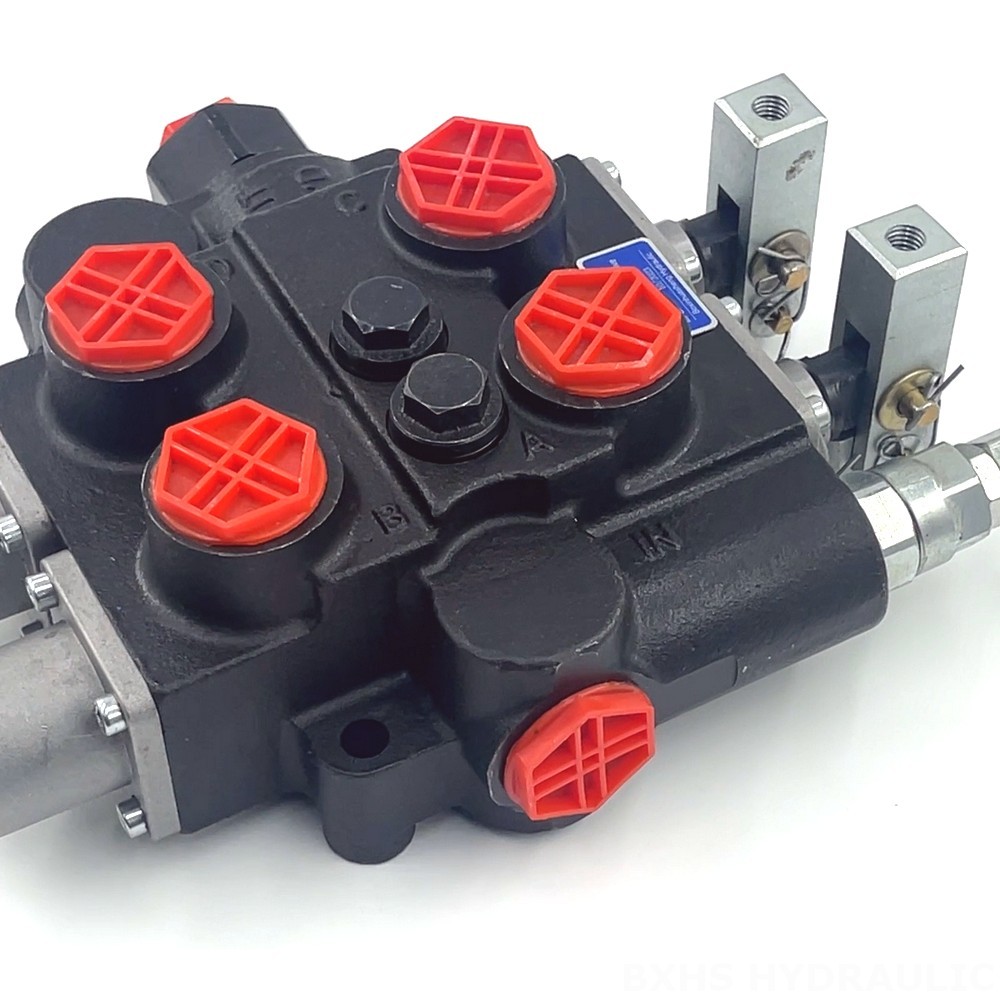

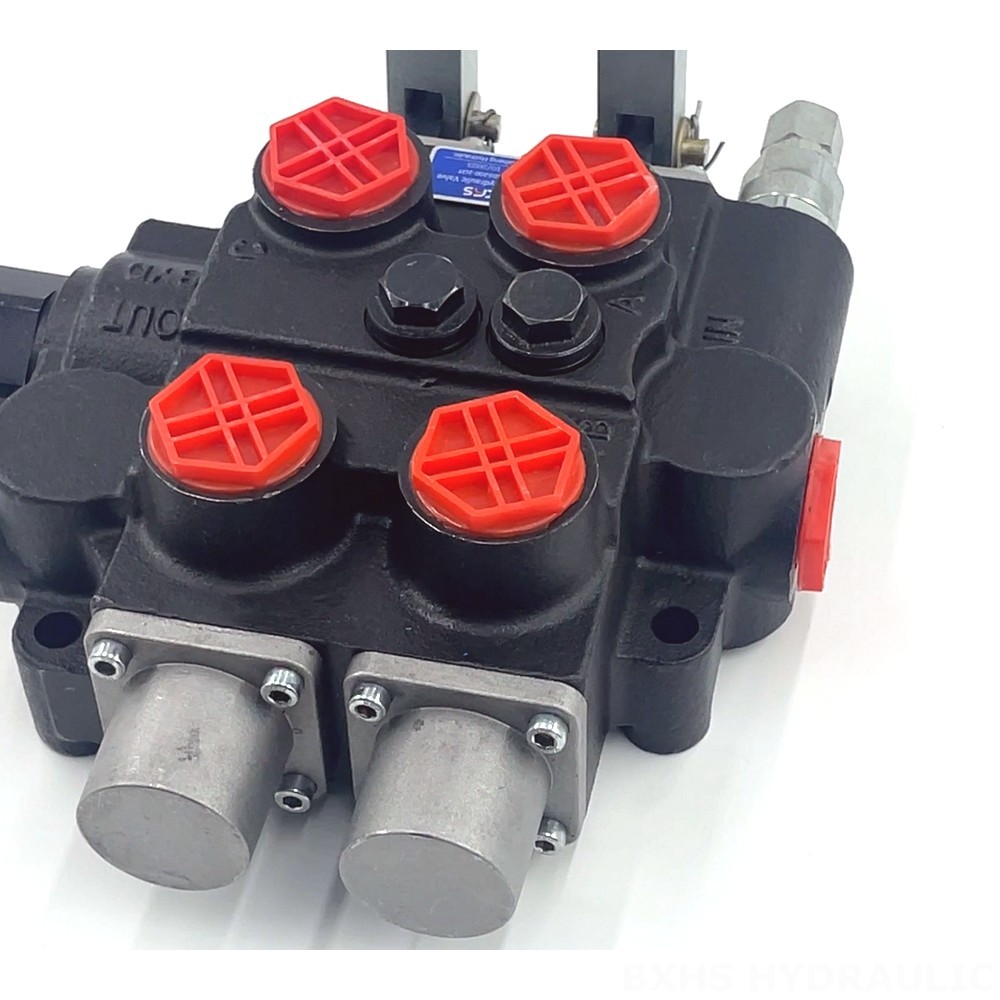

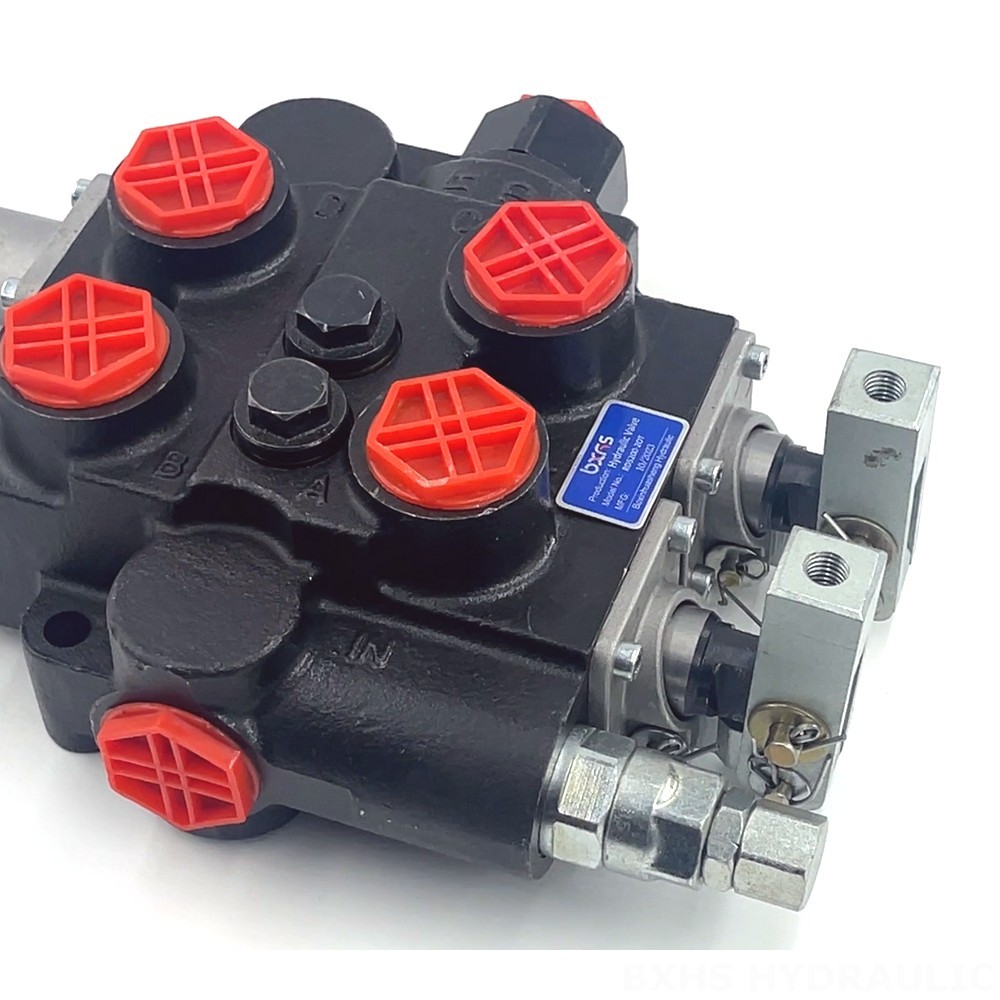

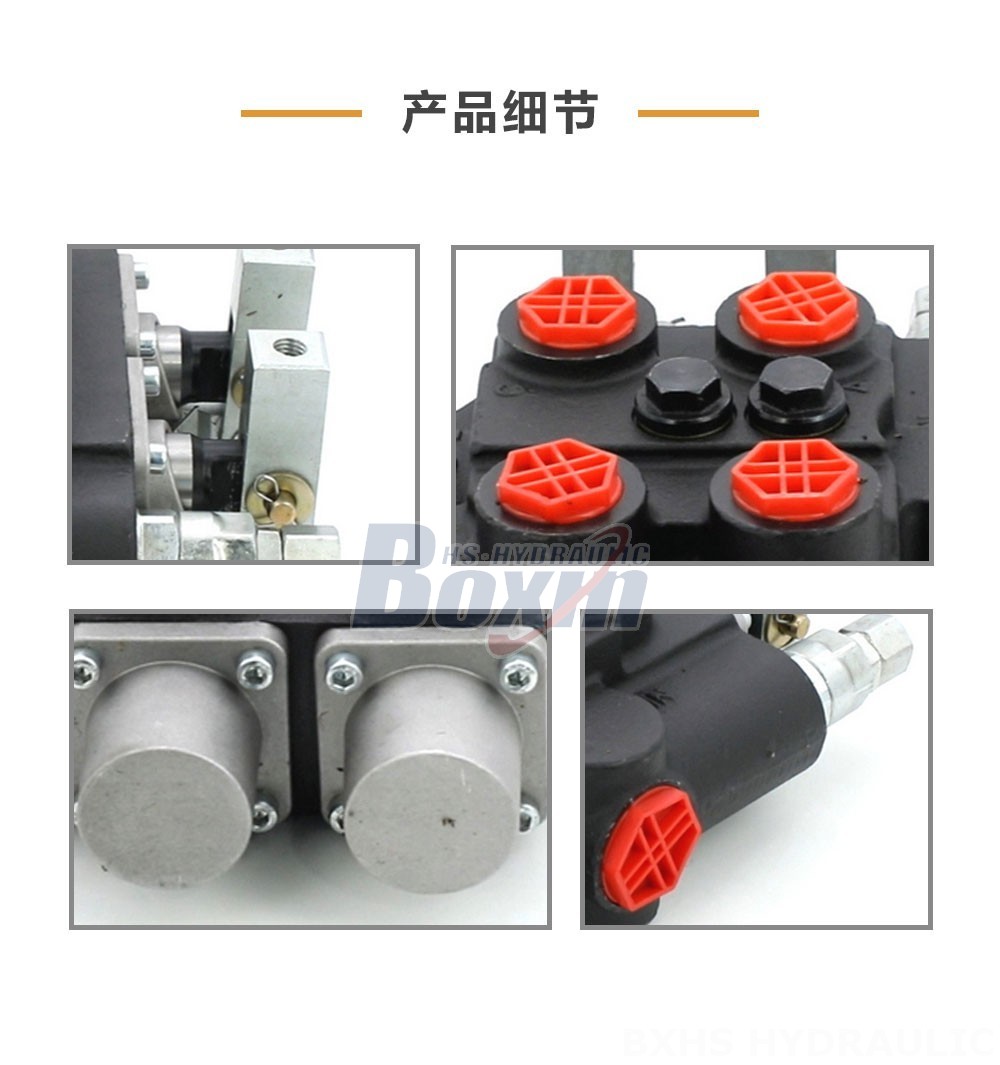

RD5200 Manual 2 Spool Hydraulic Control valve detailed image

RD5200 Manual 2 Spool Hydraulic Control valve drawing image

The RD5200 Manual 2 Spool Monoblock Directional Valve is a high-performance valve designed for use in a wide range of industrial and mobile hydraulic applications. It features a rated flow of 100 L/min and a minimum viscosity of 12 mm2/s. The valve is constructed from durable materials and is built to withstand the harsh conditions of industrial use.

Section	1 Section,2 Section,3 Section
Structure Type	Monoblock valve
Control Method	Manual
Rated Flow	100 L/min (26.5 US gpm)
Max Pressure	315 bar (4600 psi)
Operating Viscosity Range	12 - 400 mm²/s (12 cSt to 400 cSt)
Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)

**Product Features:**

* Rated Flow: 100 L/min (26.5 US gpm)
* Minimum Viscosity: 12 mm2/s
* Kick out set pressure: 70-140 bar
* Manual control
* 2 spool design
* Monoblock construction

**Applications:**

The RD5200 Manual 2 Spool Monoblock Directional Valve is suitable for a wide range of applications, including:

* Material Handling
* Construction and Earth Moving
* Agriculture
* Industrial Vehicles

**Specific applications include:**

* Telehandlers
* Forklifts
* All Terrain Cranes
* Stackers
* Aerial Platforms
* Motor Graders
* Midi-Excavators
* Mini-Excavators
* Skid Steer Loaders
* Compact Wheel Loaders
