Sawmill Hydraulic Valve 3-Spool Solenoid Valve | HDCF50 Model | Factory Direct & Customizable

Max Pressure:160 bar (2300 psi)

Vendor:BXHS

Product Type:Solenoid Control Valve

Product Series:HDCF50 Series Solenoid Control Valve

Productsize:26*22*10.7

Netweight:13.00 kg

Availability: In Stock

Description

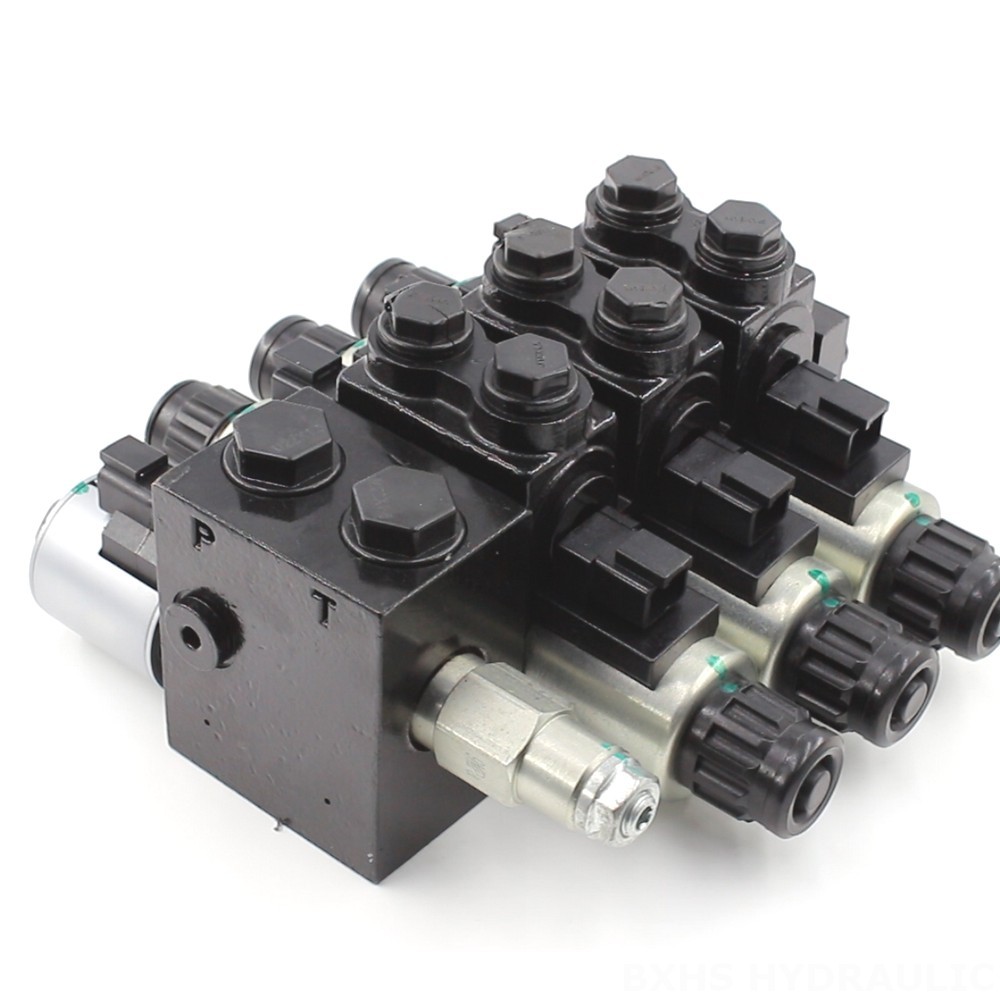

Sawmill Hydraulic Valve 3-Spool Solenoid Valve | HDCF50 Model | Factory Direct & Customizable detailed image

Sawmill Hydraulic Valve 3-Spool Solenoid Valve | HDCF50 Model | Factory Direct & Customizable drawing image

The HDCF50 3-Spool Solenoid Valve is a heavy-duty hydraulic valve designed for use in construction equipment, material handling, agriculture, and industrial vehicles. This valve offers high flow rates, high pressure capability, and customizable options to meet your specific application needs.

Port Size	M22×1.5,SAE 8
Section	1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section,8 Section,9 Section,10 Section
Ambient Temperature Range	-20°C to +80°C (-4°F to +176°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)
Outlet Port	M18×1.5,M22×1.5,SAE 8
Max Pressure	160 bar (2300 psi)
Rated Flow	50 L/min (13.2 US gpm)
Structure Type	Sectional valve
Inlet Port	M18×1.5,M22×1.5,SAE 8

This HDCF50 Series 3-Spool Solenoid Valve is a durable and reliable hydraulic valve with a rated flow of 50 L/min and a maximum pressure of 160 bar. It is suitable for use in a wide range of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini-excavators, and skid steer loaders. This valve is customizable to meet your specific requirements, including voltage and operating viscosity range. With its rugged construction and high performance, this valve is ideal for demanding applications in the construction, material handling, agriculture, and industrial vehicle sectors.

Sawmill Hydraulic Valve 3-Spool Solenoid Valve | HDCF50 Model | Factory Direct & Customizable application image
