SD18 Manual 1 Spool Monoblock Directional Valve

Rated Flow:160 L/min (42.2 US gpm)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:SD18 Series Monoblock Directional Valve

Productsize:18*34*11

Netweight:12.58 kg

Availability: In Stock

  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
329 Views are Looking for this Product

SD18 Manual 1 Spool Monoblock Directional Valve detailed image

SD18 Manual 1 Spool Monoblock Directional Valve detailed image

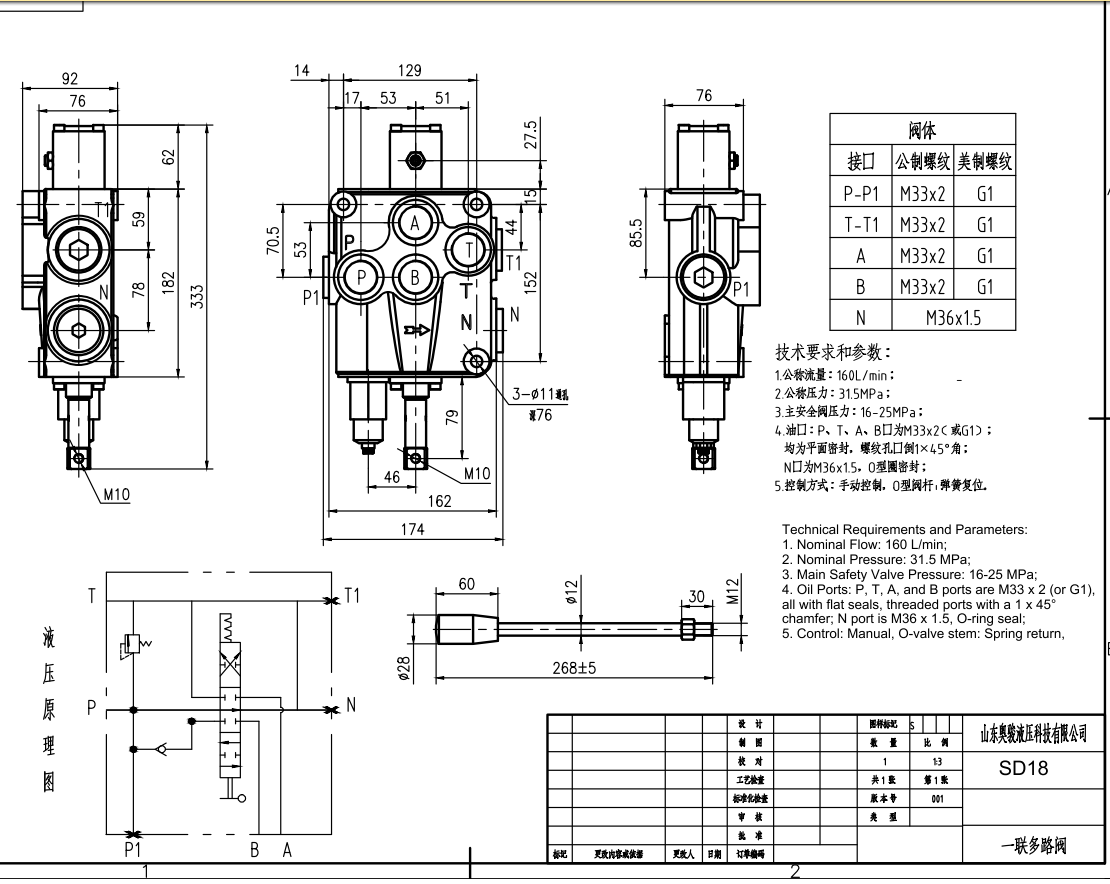

SD18 Manual 1 Spool Monoblock Directional Valve drawing image

The SD18 Manual 1 Spool Monoblock Directional Valve is a compact and reliable valve designed for use in a wide range of hydraulic applications. With a rated flow of 120 L/min and a maximum pressure of 315 bar, it is suitable for use in systems with moderate flow and pressure requirements.

Section 1 Section,2 Section,3 Section,4 Section
Structure Type Monoblock valve
Control Method Manual
Rated Flow 160 L/min (42.2 US gpm)
Max Pressure 315 bar (4600 psi)
Operating Viscosity Range 12 - 400 mm²/s (12 cSt to 400 cSt)
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)

**Product Features and Benefits:**

* Compact and lightweight design
* Manual control for precise and responsive operation
* Monoblock construction for durability and reliability
* Rated flow of 120 L/min for efficient system operation
* Maximum pressure of 315 bar for use in demanding applications
* Operating viscosity range of 12 - 400 mm²/s for compatibility with a wide range of fluids
* Ambient temperature range of -40°C to +80°C for use in harsh environments
* 1 spool for versatility and control

**Applications:**

The SD18 Manual 1 Spool Monoblock Directional Valve is suitable for use in a variety of hydraulic applications, including:

* Material handling equipment
* Construction and earth moving equipment
* Agricultural machinery
* Industrial vehicles
