SD25 Manual 1 Spool Sectional Directional Valve

Rated Flow:240 L/min (63.4 US gpm)

Max Pressure:315 bar (4600 psi)

Vendor:BXHS

Product Type:Sectional Directional Valve

Product Series:SD25 Series Sectional Directional Valve

Productsize:24*40*16

Netweight:27.25 kg

Availability: In Stock

  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • Manual
  • Electro-hydraulic
  • Hydraulic
2049 Views are Looking for this Product

SD25 Manual 1 Spool Sectional Directional Valve detailed image

SD25 Manual 1 Spool Sectional Directional Valve detailed image

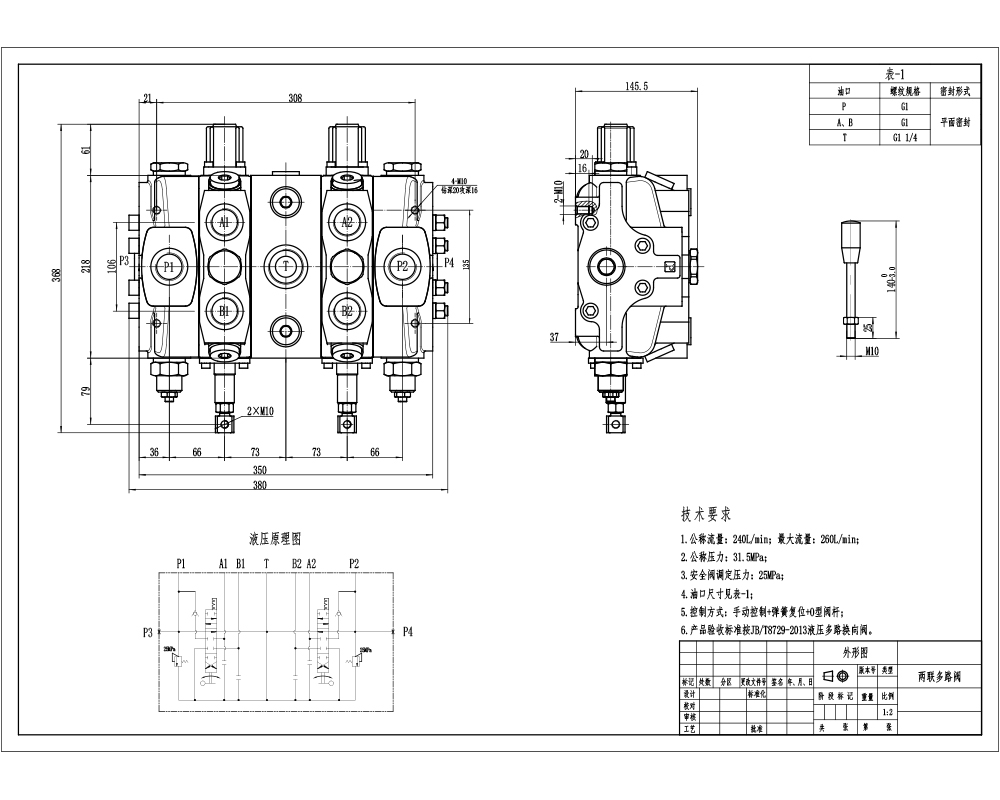

SD25 Manual 1 Spool Sectional Directional Valve drawing image

The SD25 Manual 1 Spool Sectional Directional Valve is a high-performance, manually controlled valve designed for use in a wide range of applications. It features a monoblock construction for increased durability and reliability, and a high flow rate of 240 L/min (63.4 US gpm) to meet the demands of even the most challenging applications.

SD25 Series Sectional Directional Valve Parameters
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool
Control Method Manual, Electro-hydraulic, Hydraulic
Port Size G1, G1-1/4, SAE 12
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 12 - 400 mm²/s (12 cSt to 400 cSt)
Outlet Port G1-1/4, SAE 16
Max Pressure 315 bar (4600 psi)
Rated Flow 240 L/min (63.4 US gpm)
Structure Type Monoblock valve
Inlet Port G1, SAE 16

**Product Features and Benefits:**

* Manual control for precise operation
* Monoblock construction for increased durability and reliability
* High flow rate of 240 L/min (63.4 US gpm) to meet the demands of even the most challenging applications
* Max pressure of 315 bar (4600 psi) for use in high-pressure systems
* Wide temperature range of -40°C to +80°C (-40°F to +176°F) for use in a variety of environments
* 1 Spool for simple and efficient control

**Applications:**

The SD25 Manual 1 Spool Sectional Directional Valve is ideal for use in a wide range of applications, including:

* Material handling
* Construction and earth moving
* Agriculture
* Industrial vehicles
* Telehandlers
* Forklifts
* All terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Mini excavators
* Skid steer loaders
* Compact wheel loaders
* Wheel loaders
