SD5 Electro-hydraulic 2 Spool Monoblock Directional Valve

Rated Flow:45 L/min (11.8 US gpm)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:SD5 Series Monoblock Directional Valve

Productsize:25*15*15

Netweight:8.70 kg

Availability: In Stock

  • Manual
  • Pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
  • Electric
  • Solenoid and Joystick
  • Manual and Joystick
  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
  • 8 Spool
  • 9 Spool
  • 10 Spool
  • 11 Spool
  • 12 Spool
25 Views are Looking for this Product

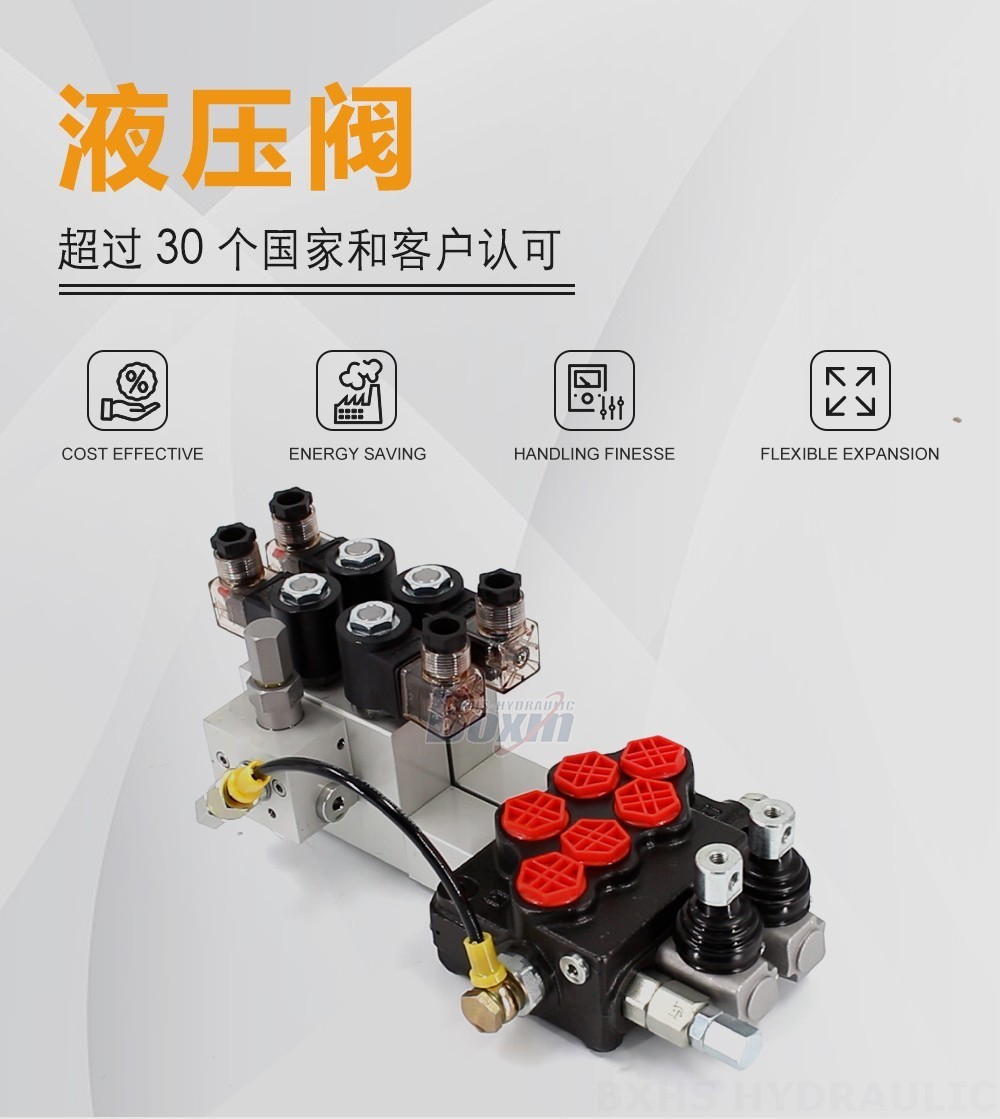

SD5 Electro-hydraulic 2 Spool Monoblock Directional Valve detailed image

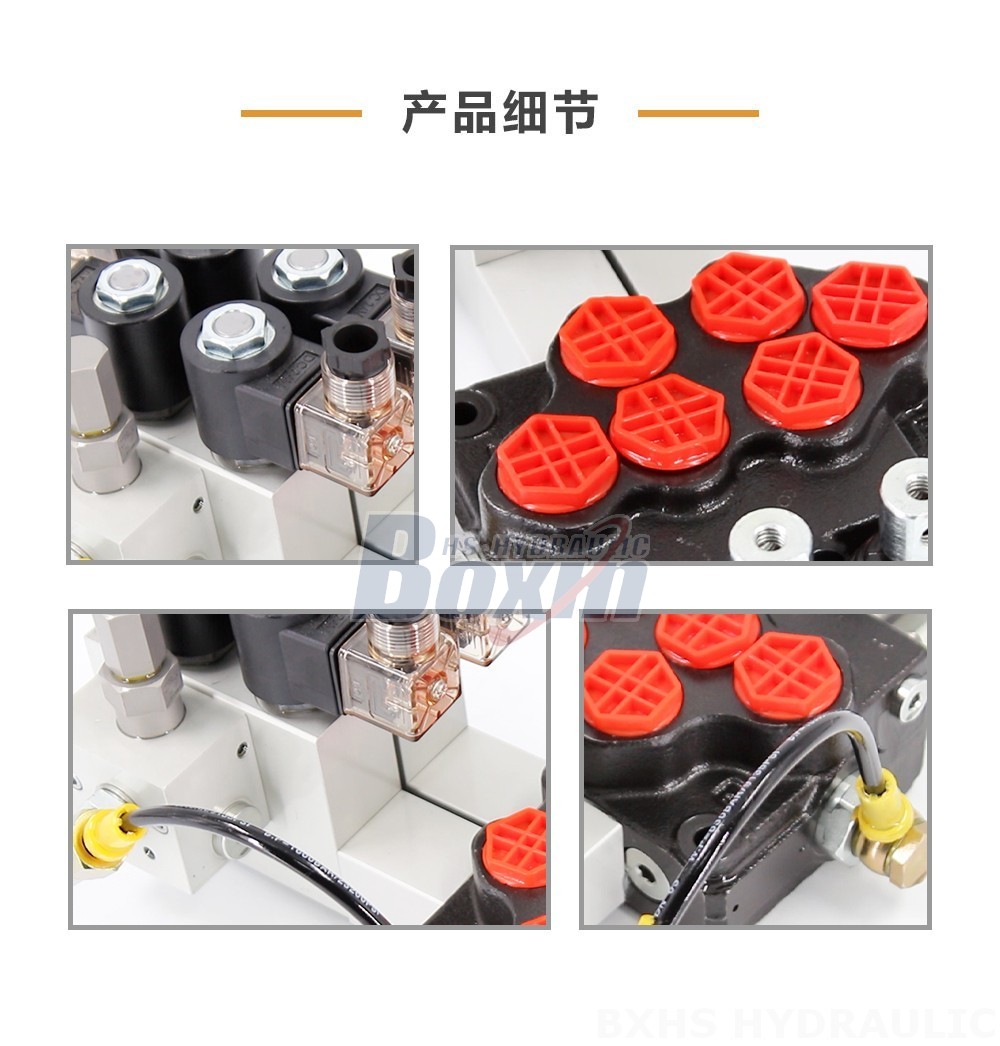

SD5 Electro-hydraulic 2 Spool Monoblock Directional Valve detailed image

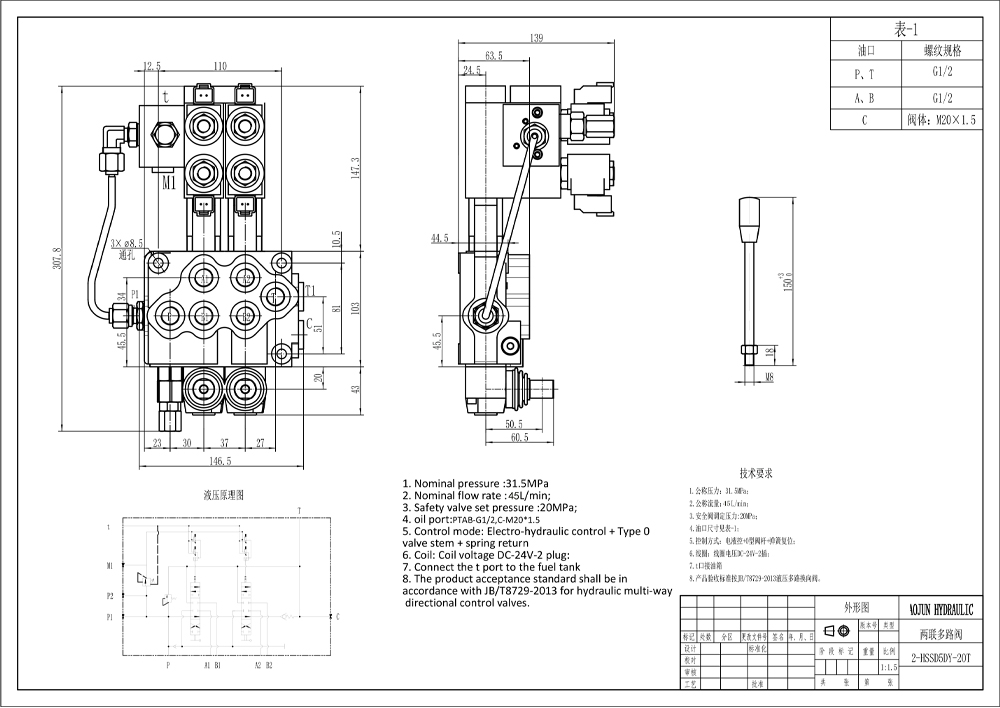

SD5 Electro-hydraulic 2 Spool Monoblock Directional Valve drawing image

The SD5 Electro-hydraulic 2 Spool Monoblock Directional Valve is a high-performance hydraulic control solution designed for a wide range of mobile and industrial applications. Featuring precise electro-hydraulic control, a compact monoblock structure, and a robust design with 2 spools, it handles flows up to 45 L/min and pressures up to 315 bar, ensuring reliable operation in demanding environments. Ideal for manufacturing, OEM, ODM, custom, and wholesale needs.

Outlet Port G1/2
Inlet Port G3/8,G1/2
Rated Flow 45 L/min (11.8 US gpm)
Structure Type Monoblock valve
Control Method Electro-hydraulic
Ambient Temperature Range -20°C to +80°C (-4°F to +176°F)
Max Pressure 315 bar (4600 psi)
Operating Viscosity Range 12 - 400 mm²/s (12 cSt to 400 cSt)

The SD5 Electro-hydraulic 2 Spool Monoblock Directional Valve offers superior control and reliability for demanding hydraulic systems. Its electro-hydraulic control method enables precise and responsive operation, allowing seamless integration with modern electronic control units, joysticks, and automation systems, enhancing efficiency and operator comfort. The compact monoblock design minimizes space requirements and potential leak points, ensuring a robust and durable solution even in harsh environments.

With a robust maximum pressure of 315 bar (4600 psi) and a rated flow of 45 L/min (11.8 US gpm), this valve is engineered for medium to heavy-duty applications. The 2-spool configuration provides versatile control over two independent hydraulic functions, making it ideal for machinery with multiple actuators. It operates reliably across a wide temperature range (-20°C to +80°C) and viscosity range (12-400 mm²/s), ensuring consistent performance globally, suitable for various hydraulic fluids.

**Key Features & Advantages:**
* **Precise Electro-hydraulic Control:** Allows for accurate remote control, automation, and integration with electronic systems for enhanced operational efficiency.
* **Compact Monoblock Design:** Provides high mechanical strength, reduces potential leakage points, and saves valuable space in machinery.
* **Versatile 2-Spool Functionality:** Enables independent or simultaneous control of two distinct hydraulic circuits.
* **High Performance:** Capable of handling significant pressure (315 bar) and flow rates (45 L/min) for demanding tasks and heavy-duty applications.
* **Wide Operating Range:** Ensures reliable performance in diverse environmental conditions, from cold to hot climates.
* **Easy Integration:** Features standard G1/2 (outlet) and G1/2, G3/8 (inlet) porting options, simplifying installation into existing or new hydraulic systems.
* **Durability:** Engineered for long-term reliability and robustness in challenging industrial and mobile environments.

**Application Scenarios:**
This valve is widely applicable in various mobile and industrial hydraulic systems, providing precise directional control for a broad spectrum of machinery:
* **Construction & Earth Moving Machinery:** Essential for controlling booms, buckets, and attachments on mini-excavators, skid steer loaders, wheel loaders, backhoe loaders, dumpers, and other heavy construction equipment.
* **Material Handling Equipment:** Integral for enabling lift, tilt, and steering functions in telehandlers, forklifts, stackers, and aerial platforms, enhancing operational agility and safety.
* **Agricultural Machinery:** Perfect for managing implements on tractors, front-end loaders, harvesters, balers, and specialized agricultural equipment, facilitating efficient farming operations.
* **General Industrial Vehicles:** Used in any mobile or stationary industrial equipment requiring reliable, remote, or automated hydraulic directional control.
