SD5-PG2 Solenoid 6 Spool Monoblock Directional Valve

Rated Flow:45 L/min (11.8 US gpm)

Max Pressure:315 bar (4600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product series:SD5 Series Monoblock Directional Valve

Productsize:29*28*8.2

Netweight:12.50 kg

Availability: In Stock

  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
306 Views are Looking for this Product

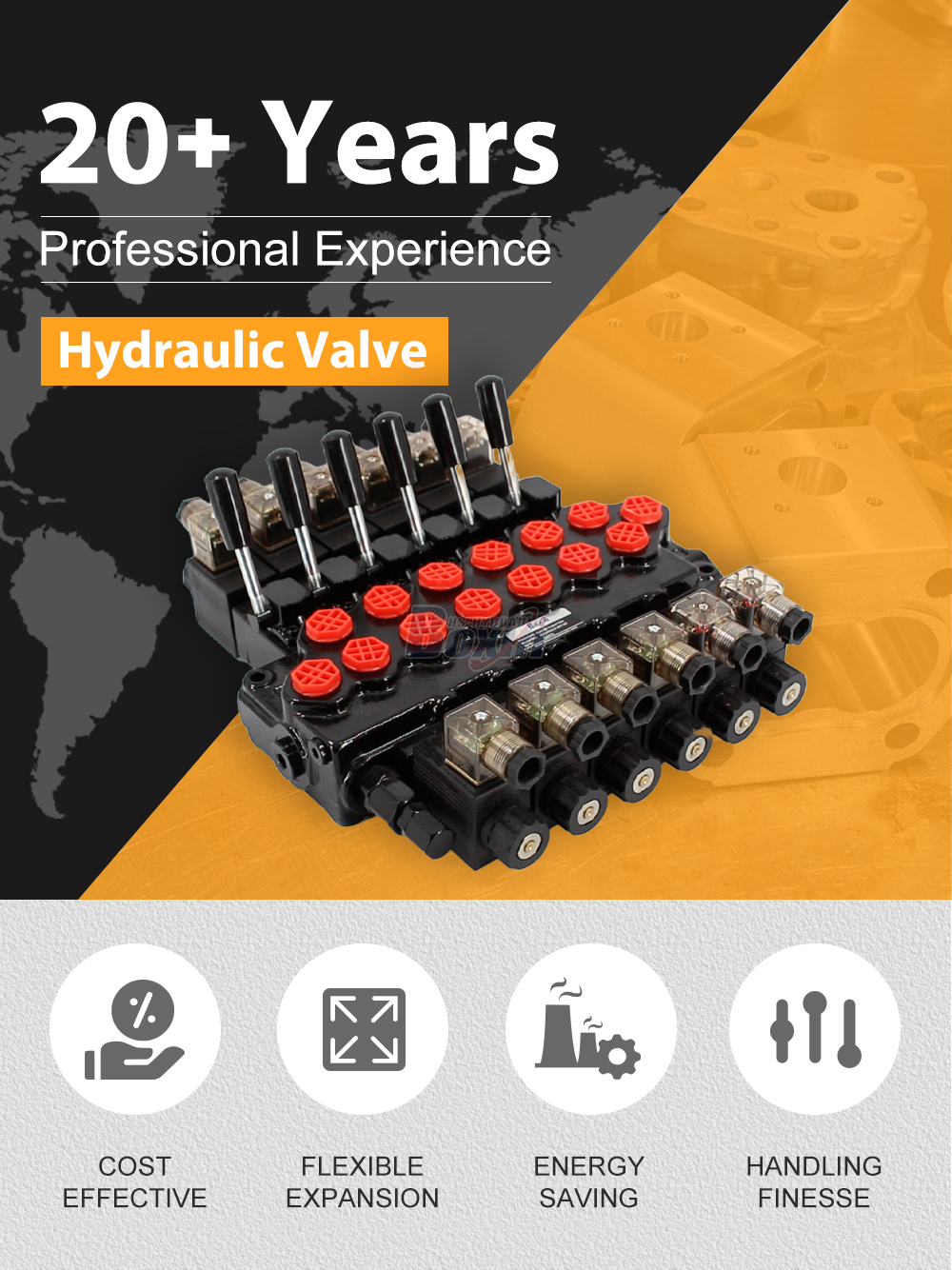

SD5-PG2 Solenoid 6 Spool Monoblock Directional Valve detailed image

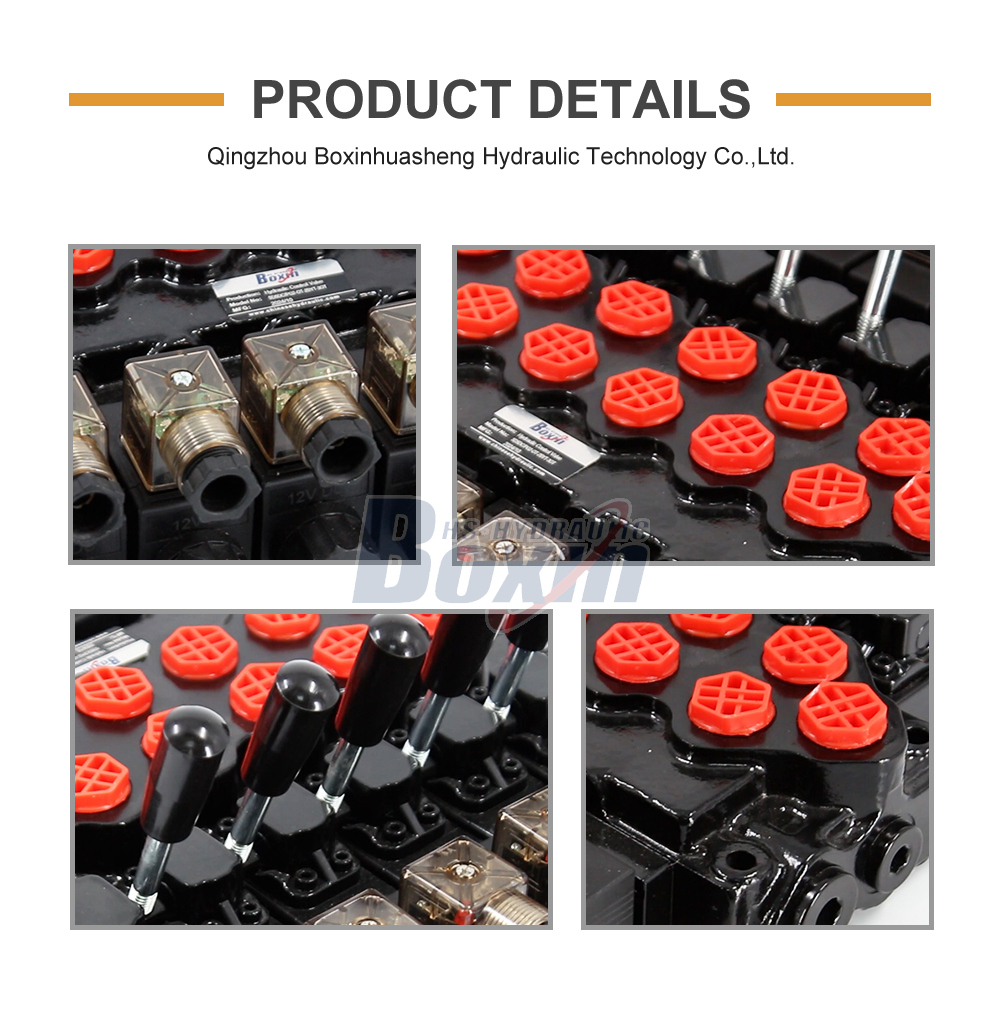

SD5-PG2 Solenoid 6 Spool Monoblock Directional Valve detailed image

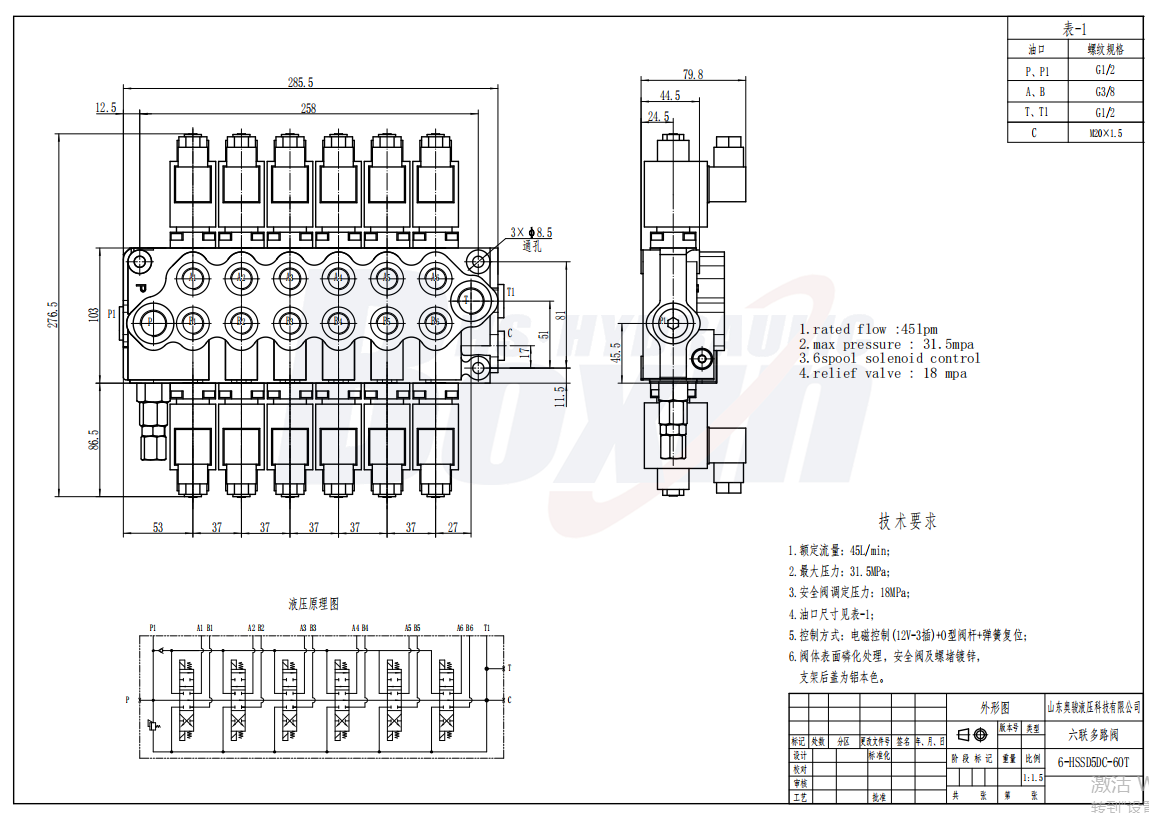

SD5-PG2 Solenoid 6 Spool Monoblock Directional Valve drawing image

The SD5-PG2 is a high-performance 6-spool solenoid-operated monoblock directional valve designed for precision hydraulic control. Featuring a compact structure with a rated flow of 40 L/min and a maximum pressure rating of 305 bar, it provides reliable electronic control for diverse mobile and industrial hydraulic systems.

SD5 Series Monoblock Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Ambient Temperature Range -40°C to +60°C (-40°F to +140°F)
Structure Type Monoblock valve
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Rated Flow 40 L/min (10.5 US gpm)
Max Pressure 305 bar (4400 psi)
Inlet Port G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2
Outlet Port G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8
Port Size G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8

The SD5-PG2 6-spool monoblock valve is engineered for durability and precision in demanding environments. Key benefits include: 1. Compact Integrated Design: The monoblock structure prevents internal leakage and ensures high stability under high pressure. 2. Efficient Solenoid Control: Allows for remote electronic operation, facilitating automation and precise multi-function control. 3. High Versatility: Specifically designed for machines requiring multiple hydraulic functions, with a work flow of 10.5 US gpm and high-pressure tolerance up to 4400 psi. 4. Extreme Adaptability: Performs reliably in temperatures ranging from -40°C to +60°C. 5. Flexible Porting: Supports multiple thread types (G, SAE, Metric) for global compatibility. Ideal for agricultural tractors, material handling forklifts, and compact construction machinery, this valve is the perfect solution for manufacturers and distributors seeking high-quality OEM/ODM hydraulic components.
