Log Splitter Spool Valve Solenoid Hydraulic Valve | SD5 Model | Factory Direct & Customizable

Max Pressure:315 bar (4600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:SD5 Series Monoblock Directional Valve

Productsize:29*12*11

Netweight:4.40 kg

Availability: In Stock

  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
89 Views are Looking for this Product

Log Splitter Spool Valve Solenoid Hydraulic Valve | SD5 Model | Factory Direct & Customizable detailed image

Log Splitter Spool Valve Solenoid Hydraulic Valve | SD5 Model | Factory Direct & Customizable detailed image

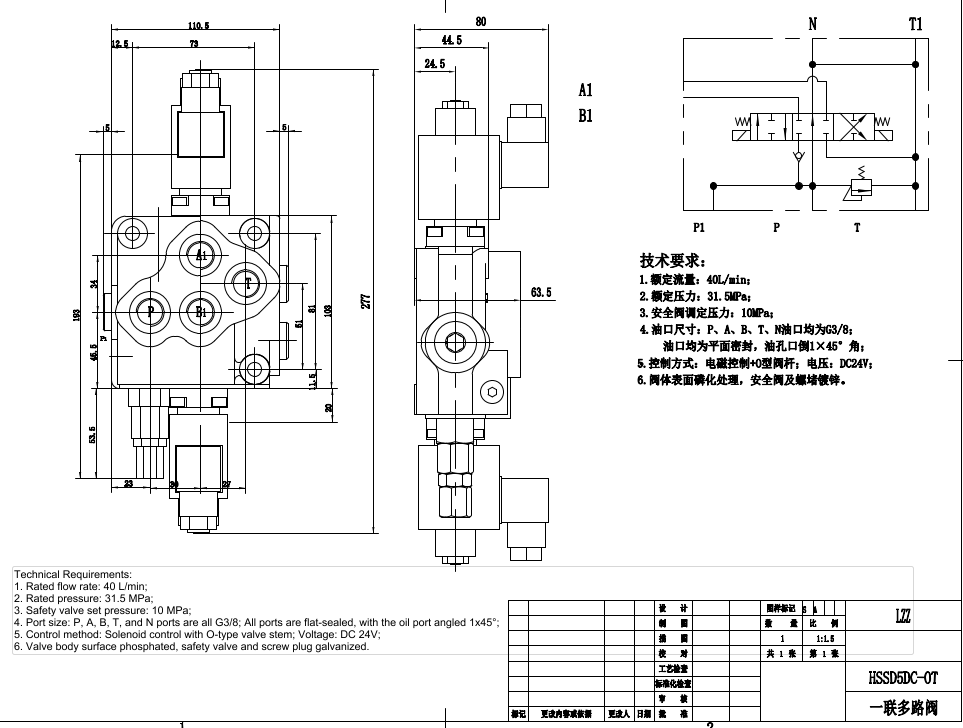

Log Splitter Spool Valve Solenoid Hydraulic Valve | SD5 Model | Factory Direct & Customizable drawing image

The SD5 Series Log Splitter Spool Valve Solenoid Hydraulic Valve is a durable and reliable valve designed for use in a variety of applications, including material handling, construction, agriculture, and industrial vehicles. This monoblock valve features a solenoid control method, 1 section, 40 L/min rated flow, and 305 bar maximum pressure. It's available directly from the factory and can be customized to meet your specific needs.

Section 1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section
Structure Type Monoblock valve
Rated Flow 40 L/min (10.5 US gpm)
Max Pressure 315 bar (4600 psi)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Ambient Temperature Range -40°C to +60°C (-40°F to +140°F)

The SD5 Series Log Splitter Spool Valve Solenoid Hydraulic Valve is a high-performance, heavy-duty valve designed for use in demanding applications. It features a compact design, robust construction, and reliable performance. This monoblock valve is controlled by a solenoid, offering precise and responsive operation. The valve is available in a variety of configurations to meet your specific needs. It is also available with a range of options and accessories, including custom-engineered solutions. The SD5 Series is the perfect choice for a wide range of applications including material handling, construction, agriculture, and industrial vehicles. It is also suitable for use in a variety of harsh environments. Contact us today to learn more about this high-quality hydraulic valve.

Log Splitter Spool Valve Solenoid Hydraulic Valve | SD5 Model | Factory Direct & Customizable application image

Log Splitter Spool Valve Solenoid Hydraulic Valve | SD5 Model | Factory Direct & Customizable packing image

Log Splitter Spool Valve Solenoid Hydraulic Valve | SD5 Model | Factory Direct & Customizable company image

Log Splitter Spool Valve Solenoid Hydraulic Valve | SD5 Model | Factory Direct & Customizable certification image
