SD5 Solenoid 2 Spool Monoblock Directional Valve

Rated Flow:45 L/min (11.8 US gpm)

Max Pressure:315 bar (4600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:SD5 Series Monoblock Directional Valve

Productsize:29*16*14

Netweight:6.60 kg

Availability: In Stock

  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
1040 Views are Looking for this Product

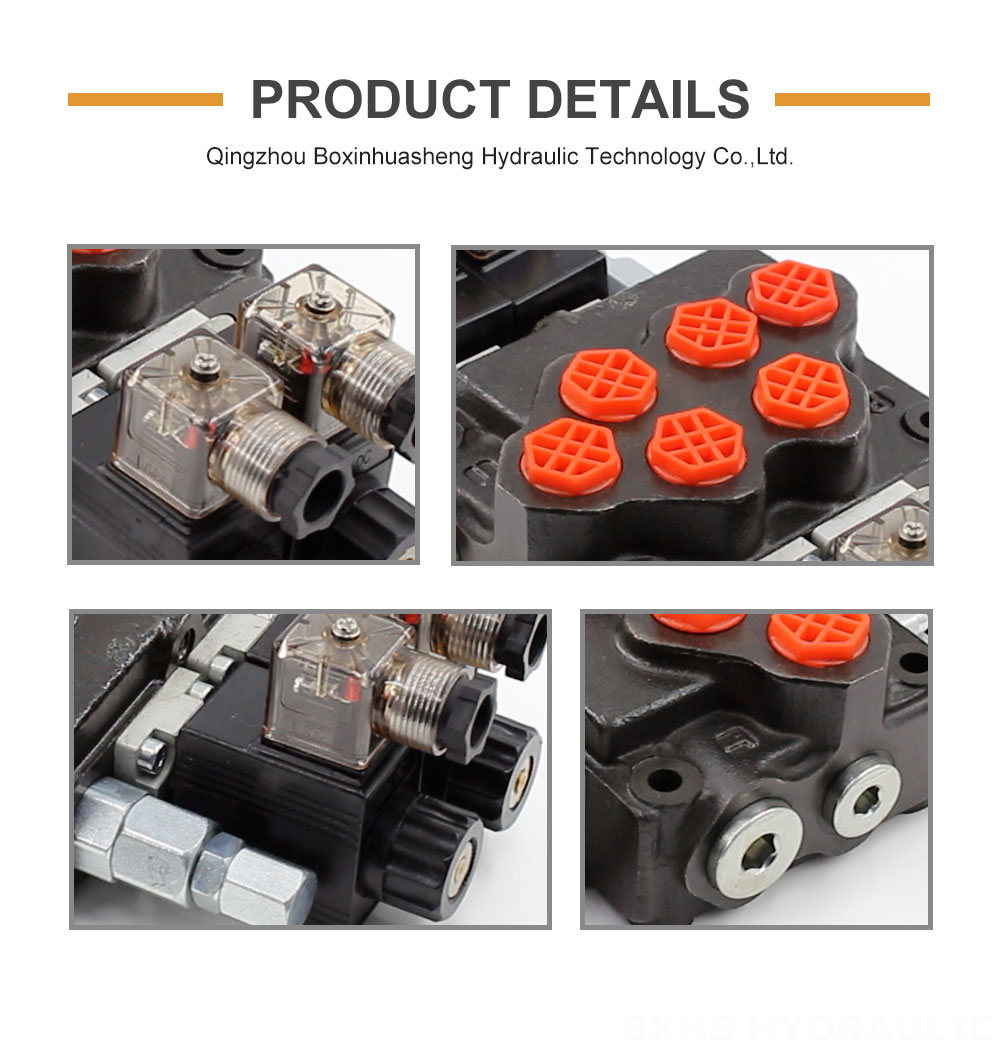

SD5 Solenoid 2 Spool Monoblock Directional Valve detailed image

SD5 Solenoid 2 Spool Monoblock Directional Valve detailed image

SD5 Solenoid 2 Spool Monoblock Directional Valve drawing image

The SD5 Solenoid 2 Spool Monoblock Directional Valve is a compact and reliable hydraulic valve designed for precise control of fluid flow in various applications. With its high flow rate of 40 L/min and maximum pressure of 305 bar, it is well-suited for demanding applications in industries such as material handling, construction, agriculture, and industrial vehicles. The valve's solenoid control ensures quick and accurate response times.

SD5 Series Monoblock Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool
Rated Flow 40 L/min (10.5 US gpm)
Max Pressure 305 bar (4400 psi)
Inlet Port G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2
Outlet Port G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8
Port Size G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Structure Type Monoblock valve
Ambient Temperature Range -40°C to +60°C (-40°F to +140°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

**Product Features and Benefits:**

* Compact and robust monoblock construction for durability and space efficiency
* Solenoid control for precise and responsive operation
* 2 spool design for versatile flow control
* High flow rate of 40 L/min for efficient operation
* Maximum pressure of 305 bar for handling demanding applications
* Wide operating viscosity range of 15 - 75 mm²/s for compatibility with various fluids
* Wide ambient temperature range of -40°C to +60°C for operation in harsh environments

**Applications:**

The SD5 Solenoid 2 Spool Monoblock Directional Valve finds applications in a wide range of industries, including:

* Material Handling: Forklifts, telehandlers, stackers, aerial platforms
* Construction and Earth Moving: Excavators, skid steer loaders, compact wheel loaders, motor graders
* Agriculture: Tractors, harvesters, balers, sprayers
* Industrial Vehicles: Sweepers, waste compactors, hook-loaders
