SD5 Solenoid 3 Spool Monoblock Directional Valve

Rated Flow:45 L/min (11.8 US gpm)

Max Pressure:315 bar (4600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:SD5 Series Monoblock Directional Valve

Productsize:29*20*11

Netweight:7.50 kg

Availability: In Stock

  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
1081 Views are Looking for this Product

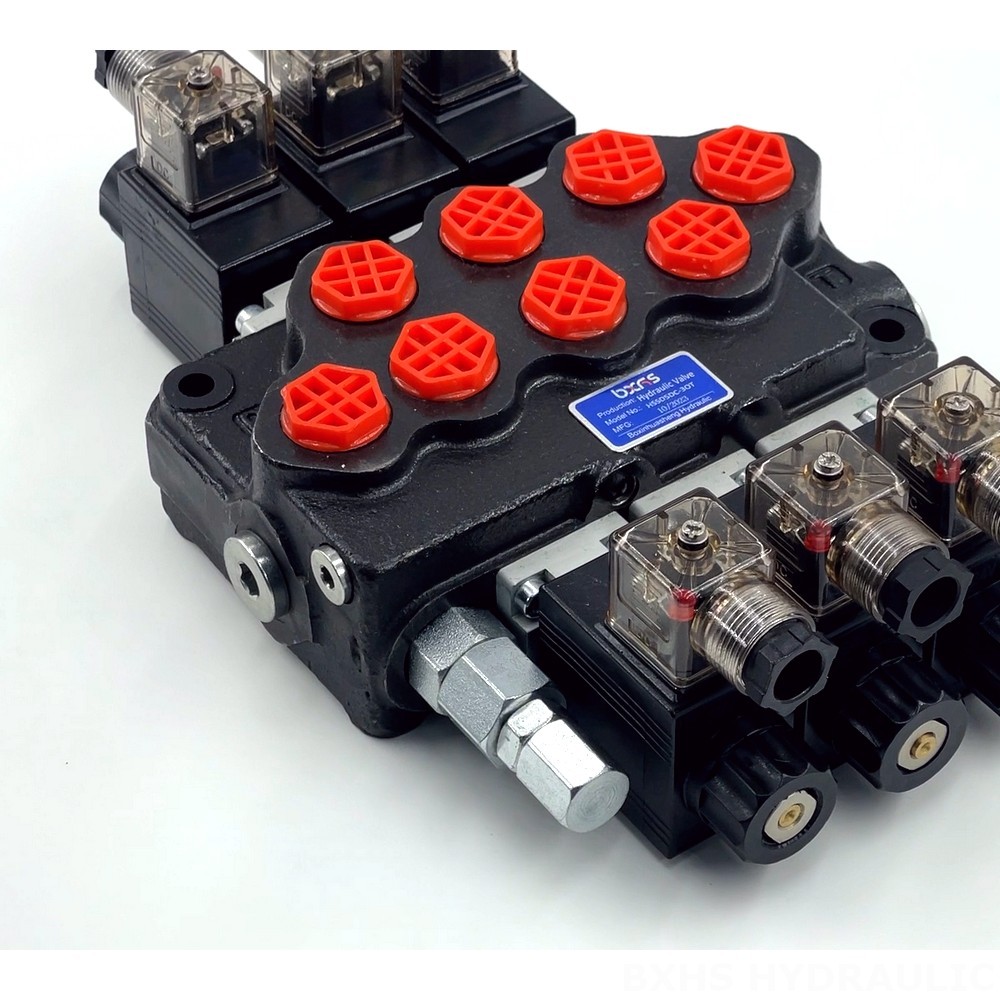

SD5 Solenoid 3 Spool Monoblock Directional Valve detailed image

SD5 Solenoid 3 Spool Monoblock Directional Valve detailed image

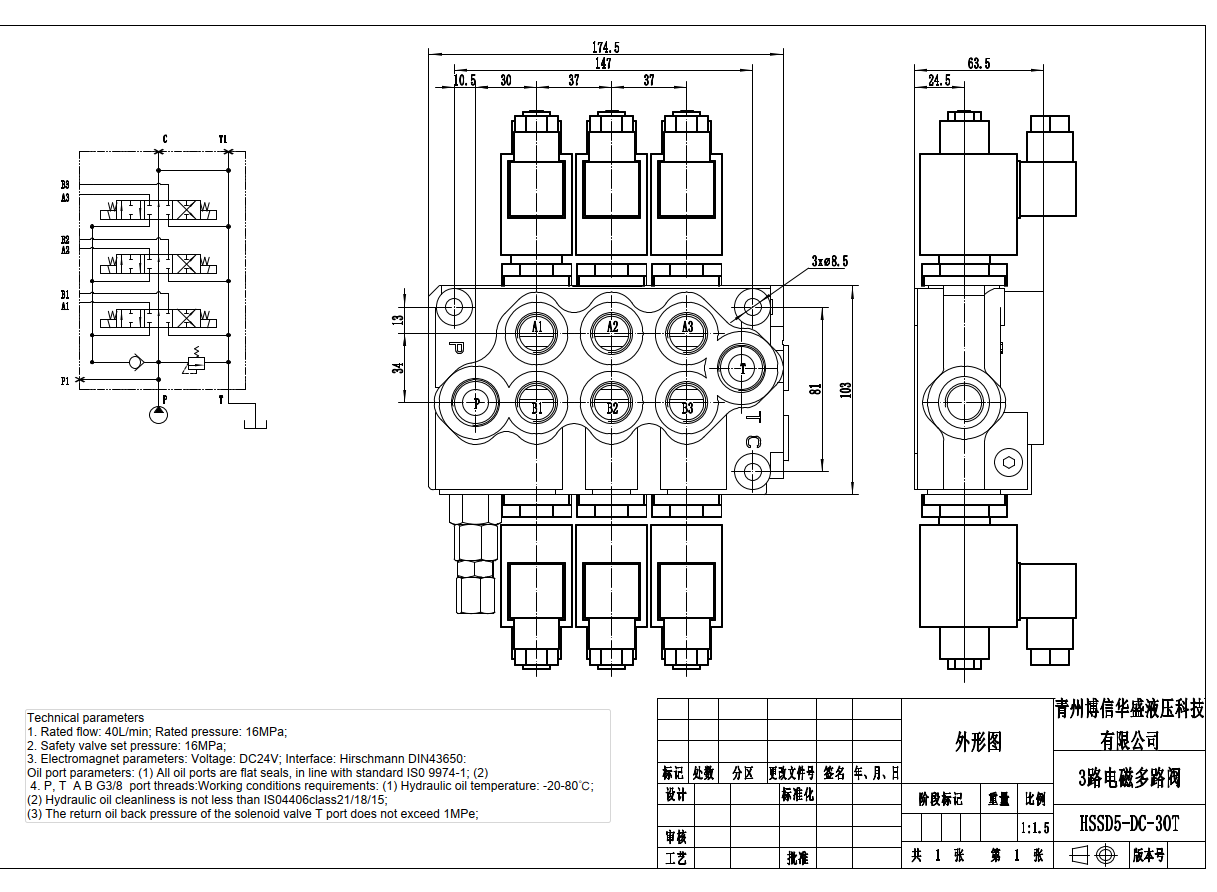

SD5 Solenoid 3 Spool Monoblock Directional Valve drawing image

SD5 Solenoid 3 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for demanding applications. With a rated flow of 40 L/min and a maximum pressure of 305 bar, it offers excellent flow control and pressure handling capabilities. The valve's compact monoblock design ensures durability and reliability in harsh operating conditions.

SD5 Series Monoblock Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool
Rated Flow 40 L/min (10.5 US gpm)
Max Pressure 305 bar (4400 psi)
Inlet Port G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2
Outlet Port G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8
Port Size G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Structure Type Monoblock valve
Ambient Temperature Range -40°C to +60°C (-40°F to +140°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

**Features and Benefits:**

* Compact monoblock design for durability and reliability
* 3-spool design for versatile flow control
* Solenoid control for precise and responsive operation
* Rated flow of 40 L/min for efficient fluid handling
* Maximum pressure of 305 bar for demanding applications
* Operating viscosity range of 15 - 75 mm²/s for compatibility with various fluids
* Ambient temperature range of -40°C to +60°C for operation in extreme conditions

**Applications:**

* Mobile hydraulic systems
* Industrial machinery
* Construction equipment
* Agricultural machinery
* Material handling equipment
