SD8 Electro-hydraulic 1 Spool Sectional Directional Valve

Rated Flow:90 L/min (23.8 US gpm)

Max Pressure:315 bar (4600 psi)

Vendor:BXHS

Product Type:Sectional Directional Valve

Product Series:SD8 Series Sectional Directional Valve

Productsize:395.5*21.6*16.4

Netweight:10.00 kg

Availability: In Stock

  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
  • 8 Spool
  • 9 Spool
  • 10 Spool
  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
  • Solenoid and Joystick
  • Manual and Joystick
1208 Views are Looking for this Product

SD8 Electro-hydraulic 1 Spool Sectional Directional Valve detailed image

SD8 Electro-hydraulic 1 Spool Sectional Directional Valve detailed image

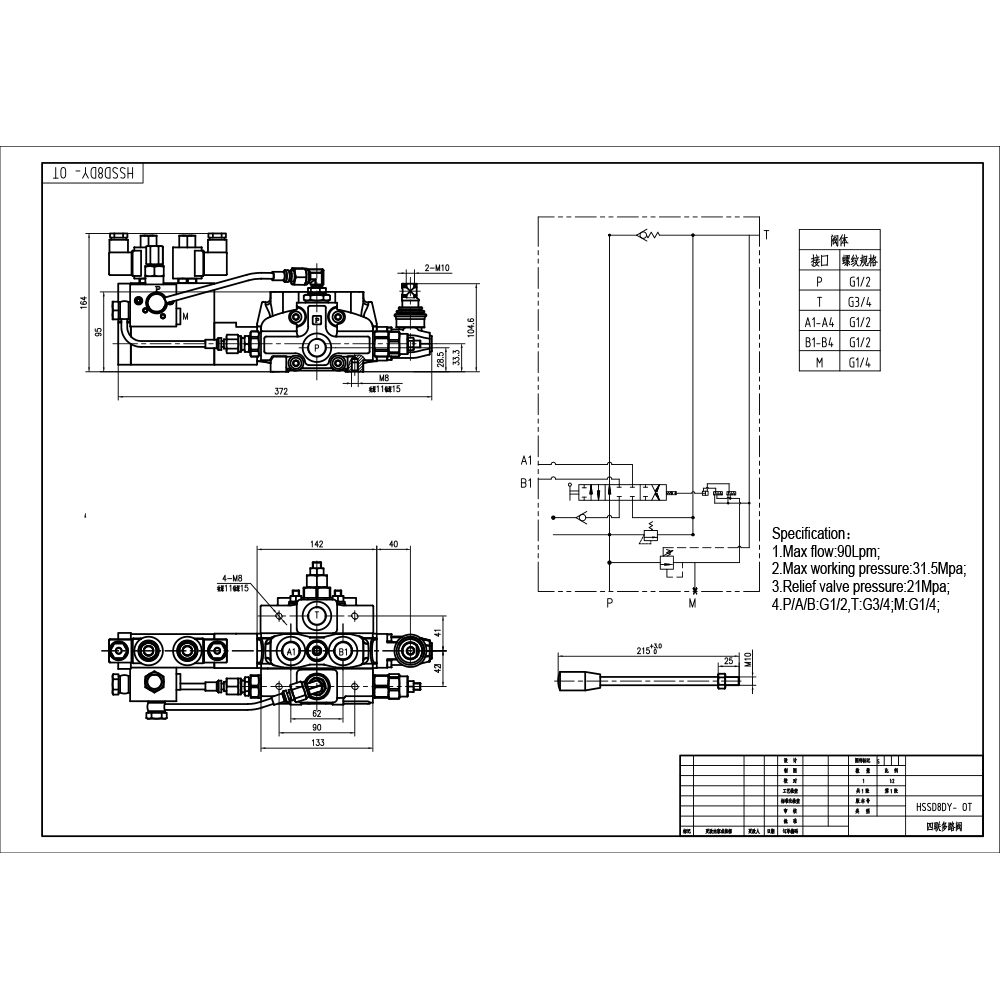

SD8 Electro-hydraulic 1 Spool Sectional Directional Valve drawing image

The SD8 Electro-hydraulic 1 Spool Sectional Directional Valve is a high-performance valve designed for use in a wide range of hydraulic systems. With a rated flow of 90 L/min and a maximum pressure of 350 bar, it is suitable for demanding applications in various industries, including material handling, construction and earth moving, agriculture, and industrial vehicles.

SD8 Series Sectional Directional Valve Parameters
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Solenoid and Joystick, Manual and Joystick
Port Size G1/2, SAE 10
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 12 - 400 mm²/s (12 cSt to 400 cSt)
Outlet Port G1/2, G3/4, SAE 10, 3/4 NPT
Max Pressure 250 bar (3600 psi), 350 bar (5100 psi)
Rated Flow 90 L/min (23.8 US gpm)
Structure Type Sectional valve
Inlet Port G1/2, G3/4, SAE 10

**Product Features and Benefits:**

* Electro-hydraulic control for precise and responsive operation
* Sectional design allows for easy integration into existing hydraulic systems
* High flow capacity and pressure rating for demanding applications
* Durable construction for long service life

**Applications:**

The SD8 Electro-hydraulic 1 Spool Sectional Directional Valve is suitable for a wide range of applications, including:

* Mobile hydraulic systems
* Industrial machinery
* Construction equipment
* Agricultural equipment
* Material handling equipment
