Electro-hydraulic Sectional Directional Valve: Precision Control for Your Applications

Max Pressure:250 bar (3600 psi),350 bar (5100 psi)

Vendor:BXHS

Product Type:Sectional Directional Valve

Product Series:SD8 Series Sectional Directional Valve

Productsize:16.9*37.2*16.4

Netweight:10.00 kg

Availability: In Stock

  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
  • Solenoid and Joystick
  • Manual and Joystick
  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
  • 8 Spool
  • 9 Spool
  • 10 Spool
95 Views are Looking for this Product

Electro-hydraulic Sectional Directional Valve: Precision Control for Your Applications detailed image

Electro-hydraulic Sectional Directional Valve: Precision Control for Your Applications detailed image

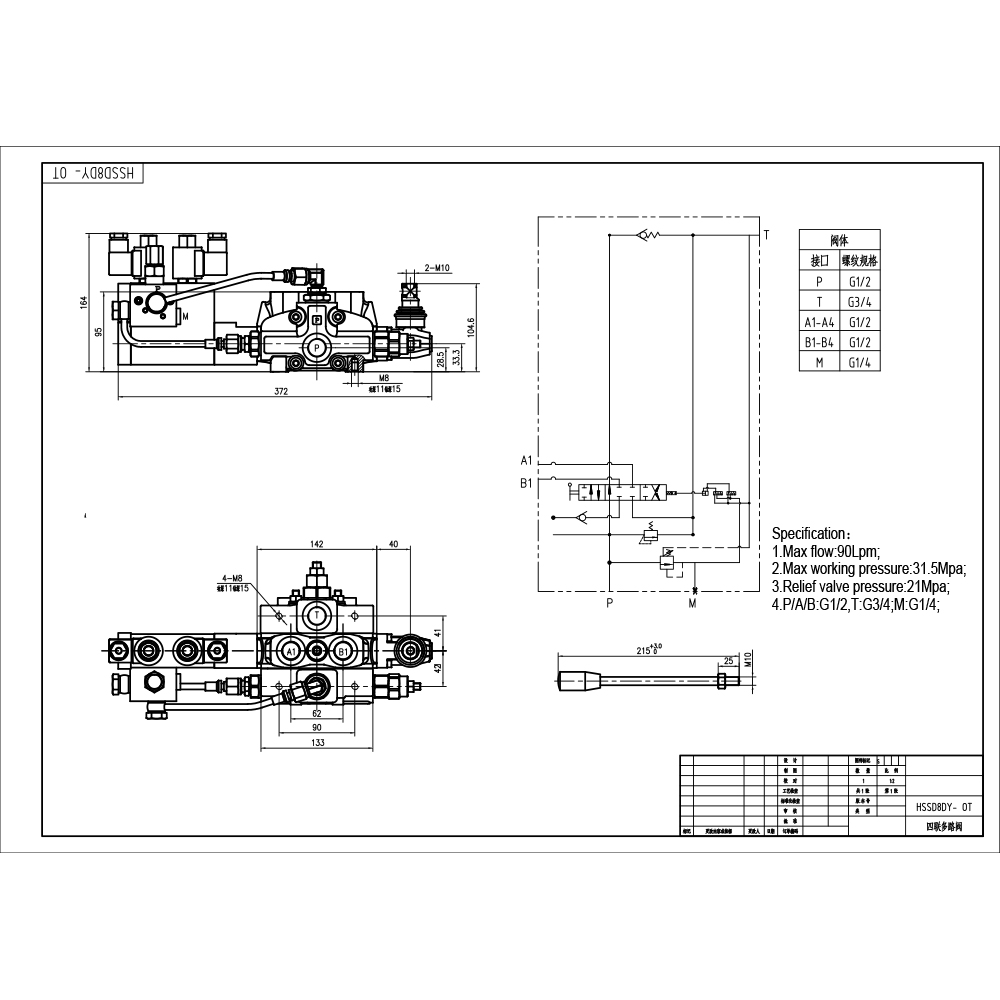

Electro-hydraulic Sectional Directional Valve: Precision Control for Your Applications drawing image

Introducing our Electro-hydraulic Sectional Directional Valve, the ultimate solution for precision control in your hydraulic applications. With its 1 section, sectional valve design, and exceptional performance parameters, this valve delivers unmatched precision and reliability.

Section 1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section,8 Section,9 Section,10 Section
Structure Type Sectional valve
Rated Flow 90 L/min (23.8 US gpm)
Max Pressure 250 bar (3600 psi),350 bar (5100 psi)
Operating Viscosity Range 12 - 400 mm²/s (12 cSt to 400 cSt)
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)

**Key Features and Benefits:**

- **Electro-hydraulic control:** Ensures precise and responsive operation.
- **1 Section:** Allows for independent control of fluid flow in a single circuit.
- **Sectional valve:** Modular design enables easy configuration and customization.
- **High Rated Flow (90 L/min):** Handles demanding flow requirements effortlessly.
- **Max Pressure (350 bar):** Withstands high system pressures.
- **Wide Operating Viscosity Range (12 - 400 mm²/s):** Accommodates various fluid viscosities.
- **1 Spool:** Provides precise flow control with minimal leakage.
- **SD8 Series:** Part of our premium valve range, known for durability and performance.

**Applications:**

- Material Handling: Forklifts, telehandlers, stackers
- Construction and Earth Moving: Motor graders, excavators, skid steer loaders
- Agriculture: Tractors, harvesters
- Industrial Vehicles: Aerial platforms, compact wheel loaders
