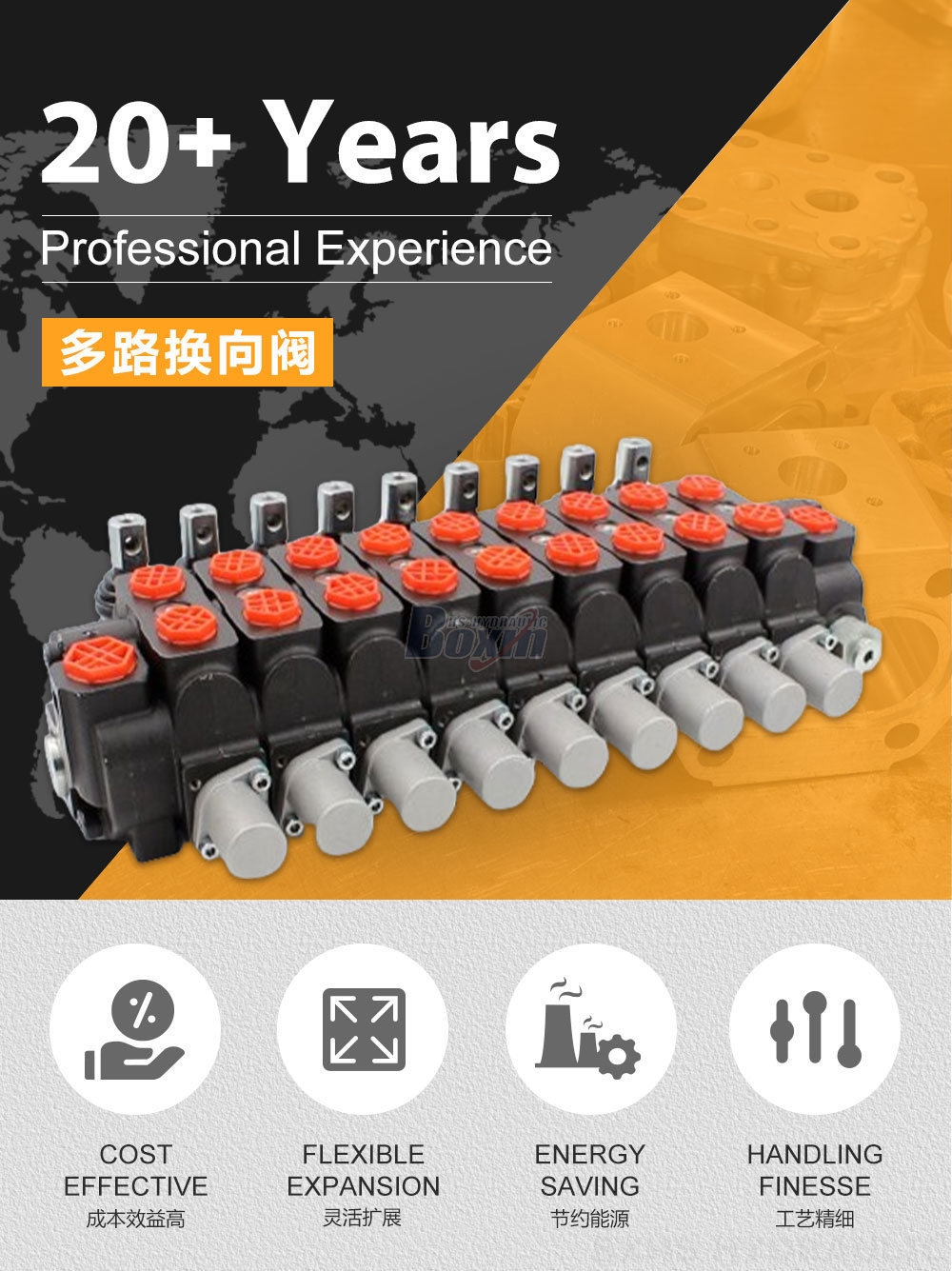

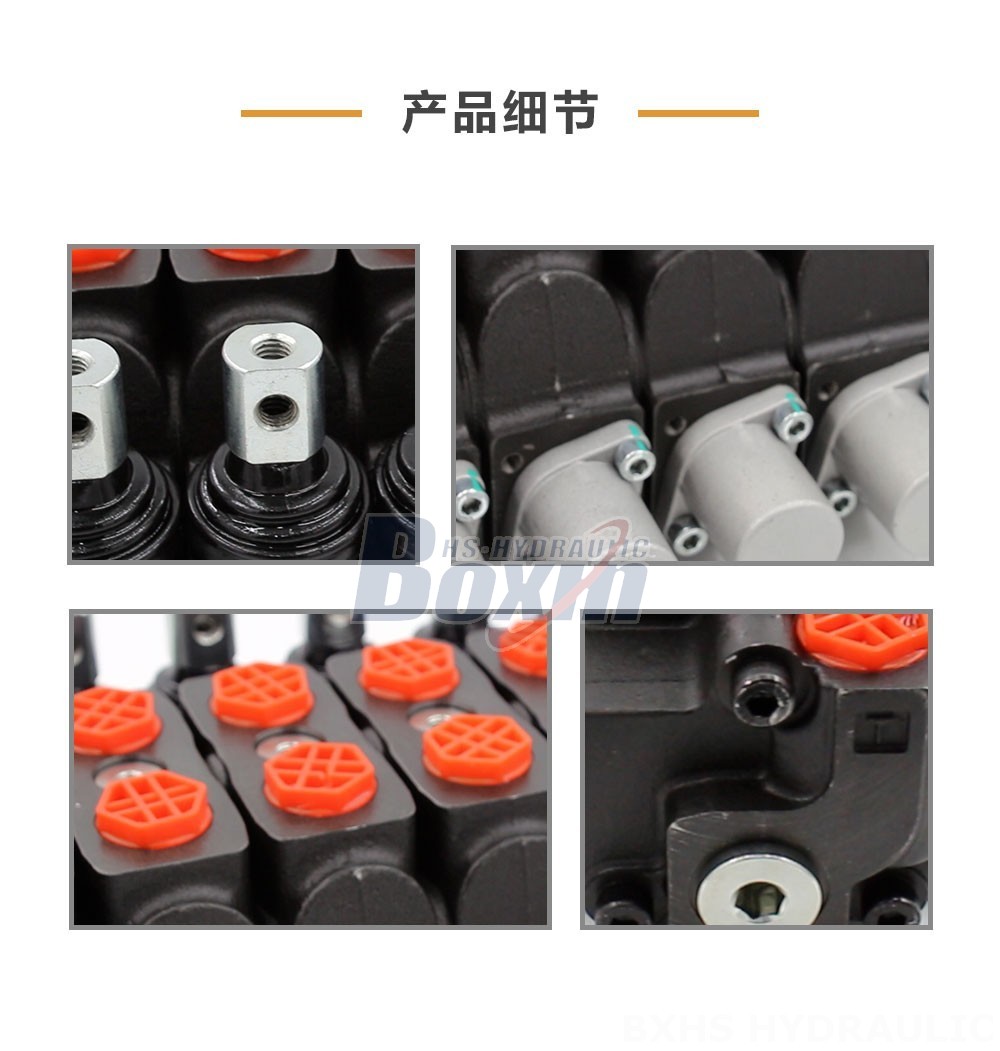

The SD8 Manual 9 Spool Sectional Directional Valve is a high-performance hydraulic valve designed for demanding applications in various industries. It features a compact and modular design, manual control, and exceptional flow and pressure capabilities.
SD8 Series Sectional Directional Valve Parameters | |
---|---|
Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool |
Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Solenoid and Joystick, Manual and Joystick |
Port Size | G1/2, SAE 10 |
Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section |
Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
Operating Viscosity Range | 12 - 400 mm²/s (12 cSt to 400 cSt) |
Outlet Port | G1/2, G3/4, SAE 10, 3/4 NPT |
Max Pressure | 250 bar (3600 psi), 350 bar (5100 psi) |
Rated Flow | 90 L/min (23.8 US gpm) |
Structure Type | Sectional valve |
Inlet Port | G1/2, G3/4, SAE 10 |
**Product Features and Benefits:**
* **Manual Control:** Provides precise and responsive operation for accurate control of hydraulic systems.
* **Sectional Design:** Allows for flexible configuration and easy maintenance, enabling customization to specific application requirements.
* **High Flow Capacity (90 L/min):** Ensures efficient operation and supports demanding hydraulic circuits.
* **High Pressure Rating (350 bar):** Withstands high system pressures, making it suitable for heavy-duty applications.
* **Versatile Operating Viscosity Range (12-400 mm²/s):** Compatible with a wide range of hydraulic fluids, ensuring optimal performance under varying operating conditions.
* **Compact and Durable Construction:** Designed for space optimization and reliability in harsh environments.
**Applications:**
The SD8 Manual 9 Spool Sectional Directional Valve finds applications in a variety of industries, including:
* Material Handling: Forklifts, telehandlers, stackers
* Construction and Earth Moving: Excavators, skid steer loaders, wheel loaders
* Agriculture: Tractors, harvesters, balers
* Industrial Vehicles: Sweepers, hook-loaders, waste compactors
