SD8-OTAMW Manual 4 Spool Sectional Directional Valve

Rated Flow:90 L/min (23.8 US gpm)

Max Pressure:315 bar (4600 psi)

Vendor:BXHS

Product Type:Sectional Directional Valve

Product series:SD8 Series Sectional Directional Valve

Productsize:29.2*28.8*10.4

Netweight:18.00 kg

Availability: In Stock

  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
  • Solenoid and Joystick
  • Manual and Joystick
  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
  • 8 Spool
  • 9 Spool
  • 10 Spool
118 Views are Looking for this Product

SD8-OTAMW Manual 4 Spool Sectional Directional Valve detailed image

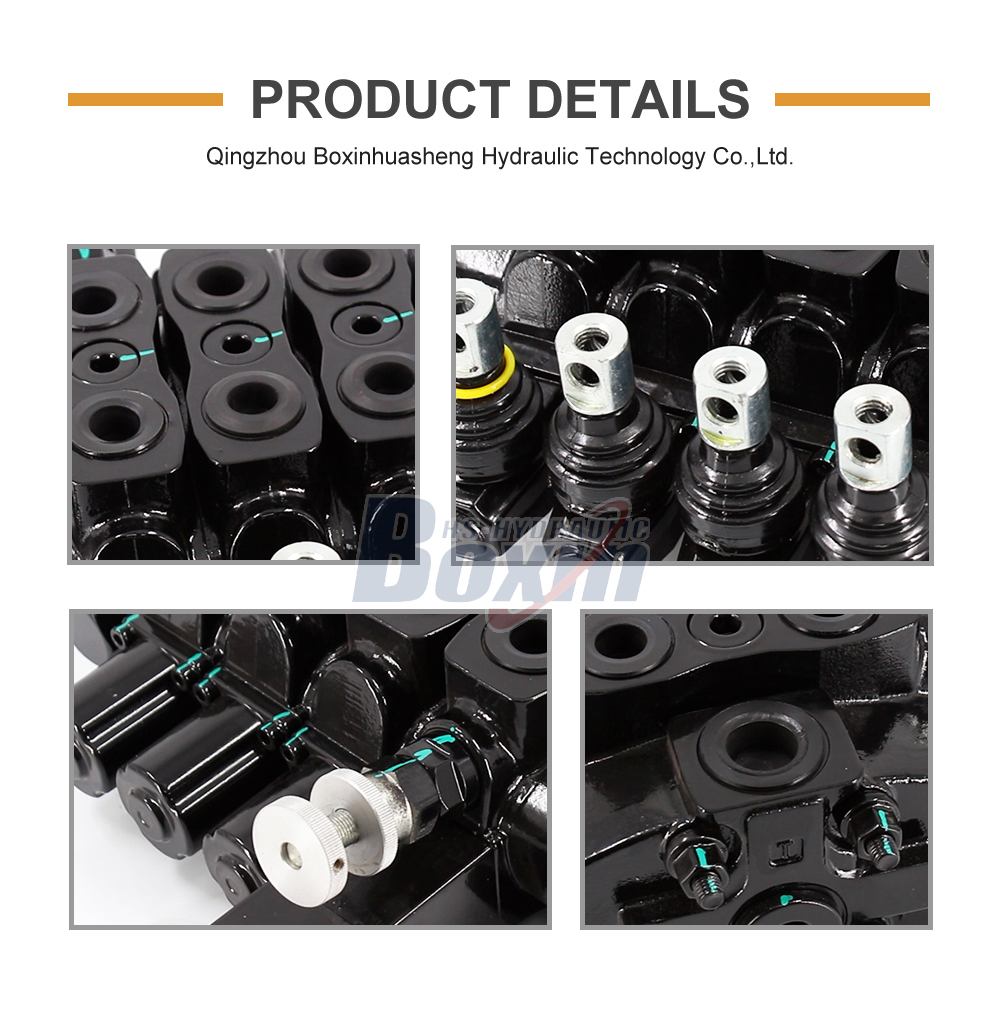

SD8-OTAMW Manual 4 Spool Sectional Directional Valve detailed image

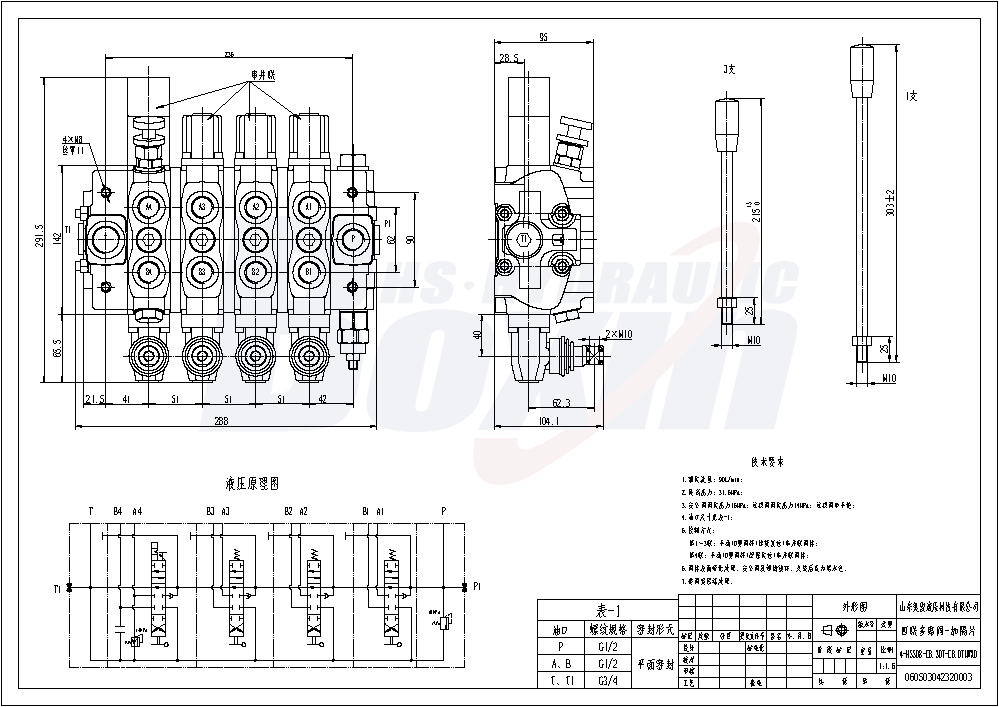

SD8-OTAMW Manual 4 Spool Sectional Directional Valve drawing image

The SD8-OTAMW is a high-performance 4-spool sectional directional control valve designed for demanding fluid power systems, offering a rated flow of 90 L/min and pressure handling up to 315 bar.

SD8 Series Sectional Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Solenoid and Joystick, Manual and Joystick
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Structure Type Sectional valve
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section
Operating Viscosity Range 12 - 400 mm²/s (12 cSt to 400 cSt)
Rated Flow 90 L/min (23.8 US gpm)
Max Pressure 315 bar (4600 psi)
Inlet Port G1/2, G3/4, SAE 10
Outlet Port G1/2, G3/4, SAE 10, 3/4 NPT
Port Size G1/2, SAE 10

The SD8-OTAMW sectional valve is engineered for durability and precision in heavy-duty hydraulic applications. Its modular sectional design allows for customizable configurations, enabling users to adapt the system to specific circuit requirements. Built to withstand extreme environmental conditions from -40°C to +80°C, this valve ensures reliable operation in agriculture, construction, and material handling sectors. Key features include highly responsive manual control, versatile porting options (G and SAE standards), and a robust structure compatible with a wide range of hydraulic fluids and viscosities. Ideal for original equipment manufacturers (OEMs) and wholesalers, this valve delivers consistent flow distribution and pressure management to optimize the performance of loaders, excavators, and various industrial vehicles.
