SD8 Solenoid 2 Spool Sectional Directional Valve

Rated Flow:90 L/min (23.8 US gpm)

Max Pressure:200 bar (2900 psi)

Vendor:BXHS

Product Type:Sectional Directional Valve

Product Series:SD8 Series Sectional Directional Valve

Productsize:35*19*13

Netweight:12.60 kg

Availability: In Stock

  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
  • 8 Spool
  • 9 Spool
  • 10 Spool
  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
  • Solenoid and Joystick
  • Manual and Joystick
1037 Views are Looking for this Product

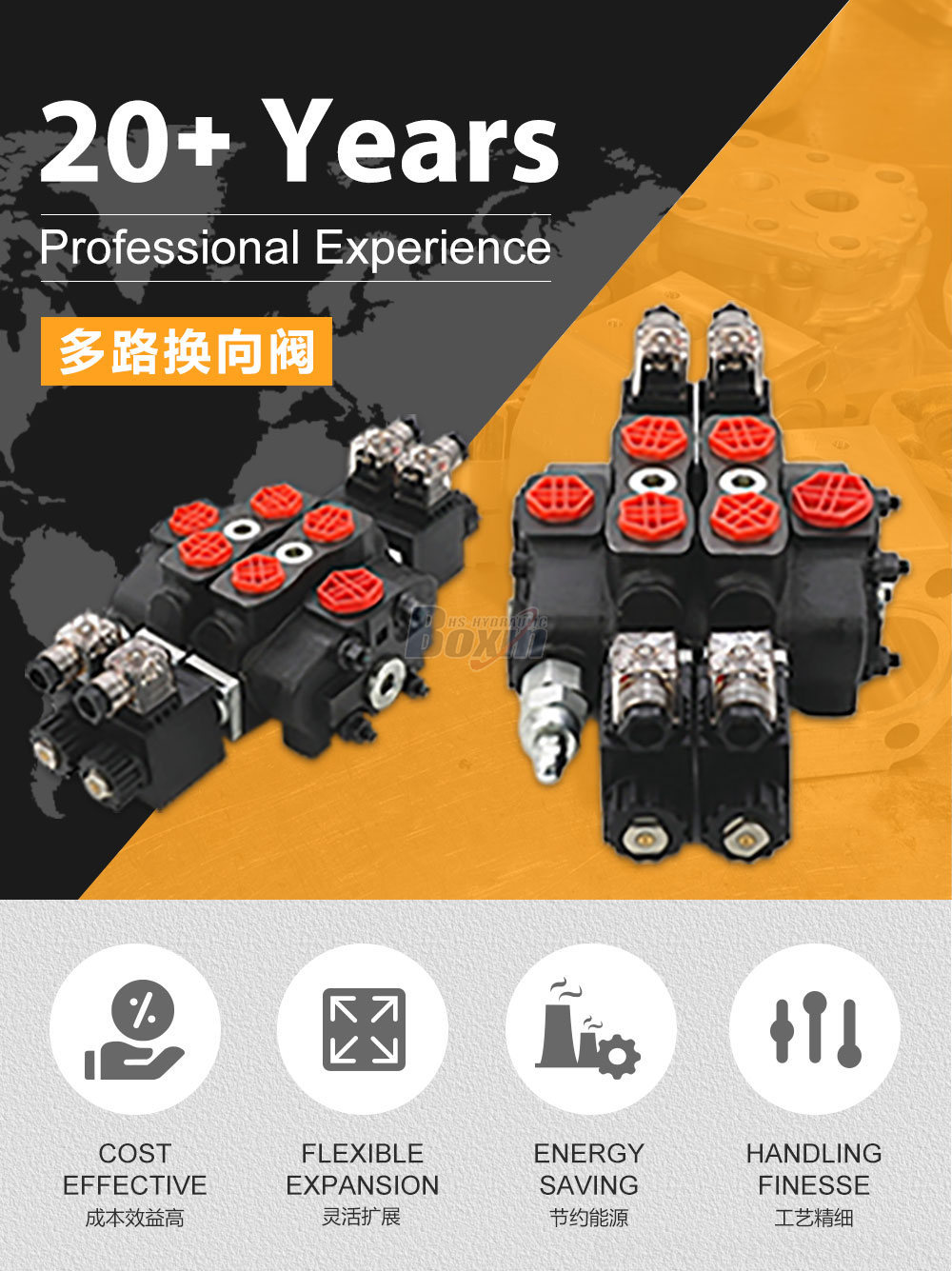

SD8 Solenoid 2 Spool Sectional Directional Valve detailed image

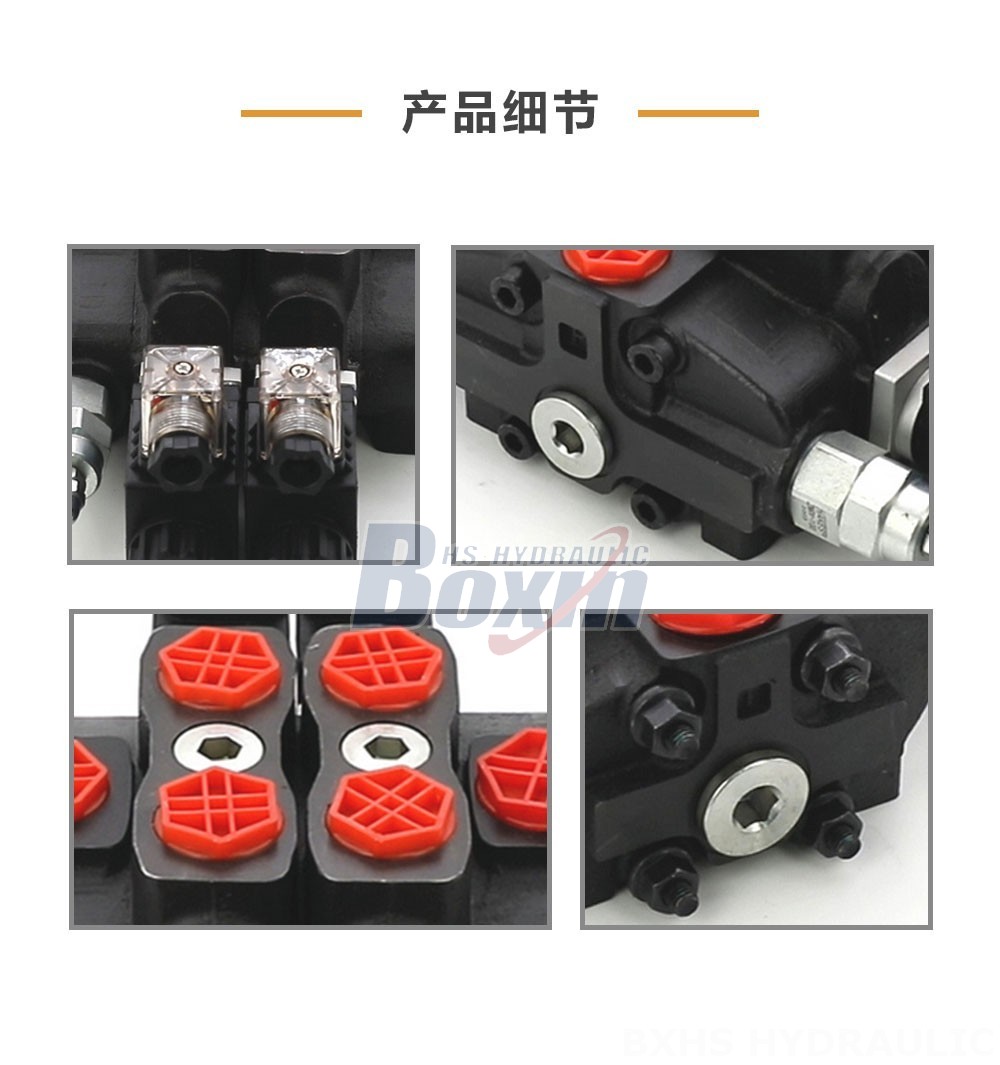

SD8 Solenoid 2 Spool Sectional Directional Valve detailed image

SD8 Solenoid 2 Spool Sectional Directional Valve drawing image

The SD8 Solenoid 2 Spool Sectional Directional Valve is a high-performance valve designed for demanding hydraulic applications. With a rated flow of 90 L/min (23.8 US gpm) and a maximum pressure of 350 bar (5100 psi), it provides reliable and precise flow control. Its sectional design allows for easy customization and integration into various hydraulic systems.

SD8 Series Sectional Directional Valve Parameters
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Solenoid and Joystick, Manual and Joystick
Port Size G1/2, SAE 10
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 12 - 400 mm²/s (12 cSt to 400 cSt)
Outlet Port G1/2, G3/4, SAE 10, 3/4 NPT
Max Pressure 250 bar (3600 psi), 350 bar (5100 psi)
Rated Flow 90 L/min (23.8 US gpm)
Structure Type Sectional valve
Inlet Port G1/2, G3/4, SAE 10

**Product Features and Benefits:**

* **High Flow Capacity:** Delivers up to 90 L/min (23.8 US gpm) for efficient system operation.
* **Robust Construction:** Built to withstand harsh operating conditions and ensure long-term durability.
* **Versatile Sectional Design:** Allows for tailored configurations to meet specific application requirements.
* **Solenoid Control:** Provides precise and responsive flow control for enhanced system performance.
* **Wide Viscosity Range:** Accommodates fluids with viscosities ranging from 12 to 400 mm²/s (12 cSt to 400 cSt) for optimal performance in diverse applications.

**Typical Applications:**

* Material handling equipment
* Construction machinery
* Agricultural vehicles
* Industrial vehicles
* Mobile hydraulic systems
