Selector Valve Hydraulic 2-Spool Pneumatic Valve | SD11 Model | Factory Direct & Customizable

Control Method:Pneumatic

Spool:2 Spool

Rated Flow:70 L/min (18.5 US gpm)

Max Pressure:315 bar (4600 psi)

Inlet Port:G3/4

Outlet Port:G3/4

Port Size:G3/4

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:SD11 Series Monoblock Directional Valve

Packagingsize:21*33*15

Grossweight:12.00 kg

Availability: In Stock

594 Views are Looking for this Product

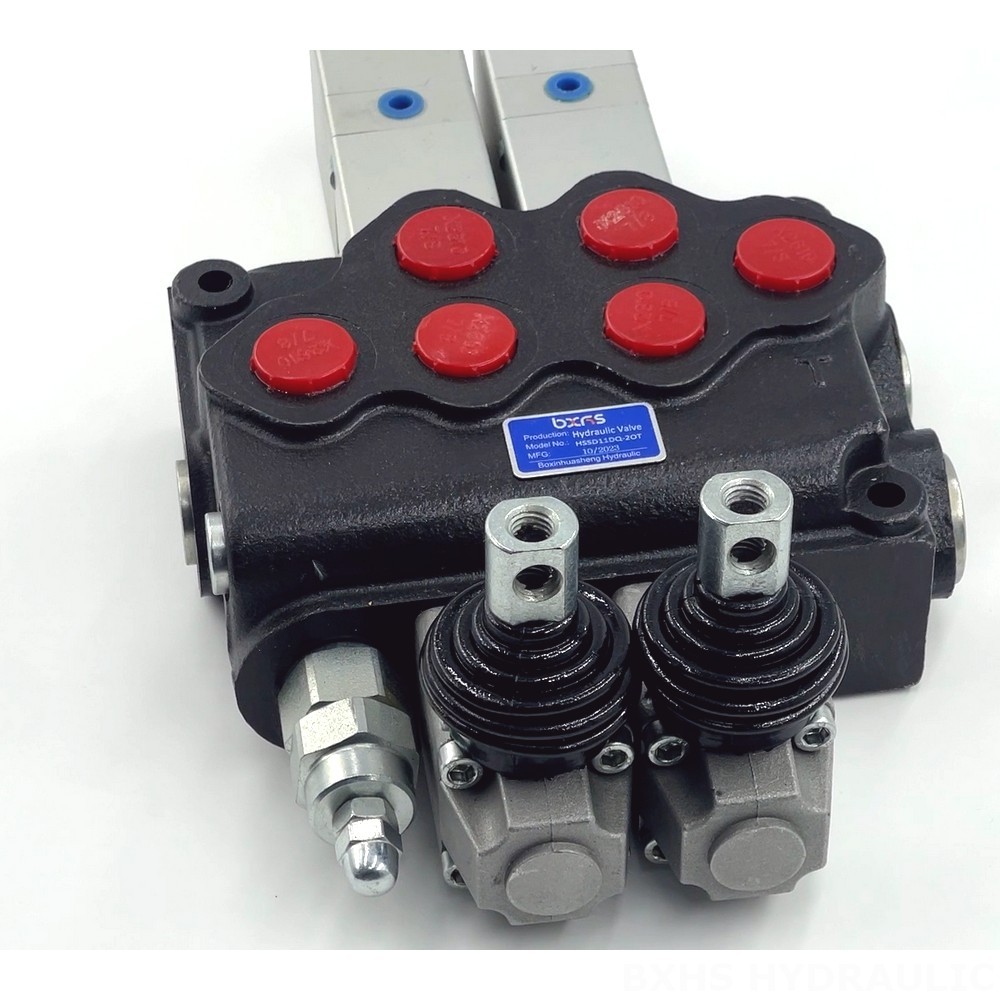

Selector Valve Hydraulic 2-Spool Pneumatic Valve | SD11 Model | Factory Direct & Customizable detailed image

Selector Valve Hydraulic 2-Spool Pneumatic Valve | SD11 Model | Factory Direct & Customizable detailed image

Selector Valve Hydraulic 2-Spool Pneumatic Valve | SD11 Model | Factory Direct & Customizable drawing image

The SD11 Series Selector Valve is a 2-spool, pneumatic controlled monoblock valve designed for heavy-duty applications in material handling, construction, and agriculture. With a rated flow of 70 L/min and a maximum pressure of 250 bar, it's suitable for a wide range of equipment, including telehandlers, forklifts, and excavators. This valve is available directly from the factory and can be customized to meet specific needs.

SD11 Series Monoblock Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Electric
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool
Rated Flow 70 L/min (18.5 US gpm)
Max Pressure 315 bar (4600 psi)
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Structure Type Monoblock valve
Ambient Temperature Range -40°C to +60°C (-40°F to +140°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

The SD11 Series Selector Valve is a high-performance, 2-spool pneumatic control valve designed for demanding applications. It features a monoblock construction for enhanced durability and reliability. The valve offers a rated flow of 70 L/min (18.5 US gpm) and a maximum operating pressure of 250 bar (3600 psi), making it ideal for various hydraulic systems. The SD11 series is engineered for use in a wide range of applications, including material handling, construction, earth moving, and agriculture. Commonly used on equipment such as telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, and dumpers. This valve operates within an ambient temperature range of -40°C to +60°C (-40°F to +140°F) and is compatible with hydraulic fluids having a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). The SD11 Series Selector Valve is available directly from the factory and can be customized to meet specific requirements.
