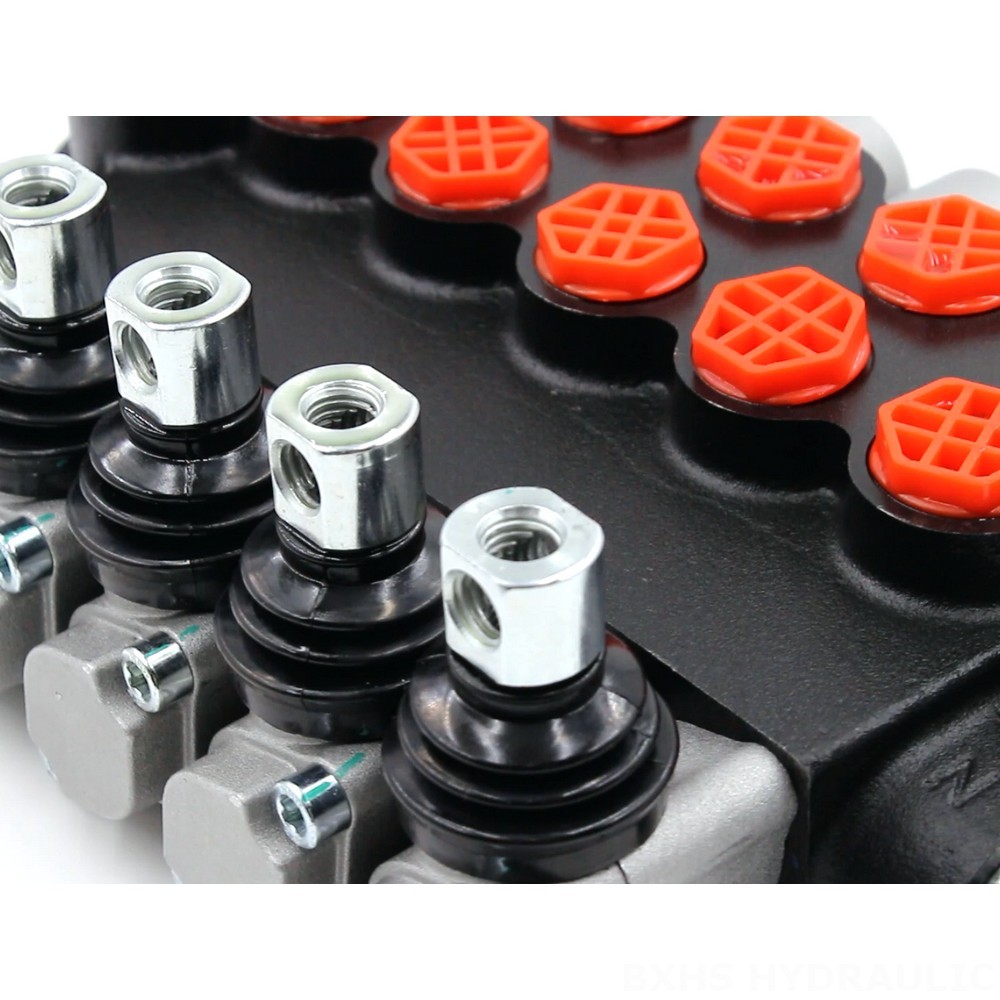

This P40 Series 5 Spool Manual Monoblock Directional Valve is a high-performance hydraulic component designed for use in a wide range of applications, including construction, agriculture, and material handling. It offers a rated flow of 40 L/min, a max pressure of 250 bar, and a robust design for reliable operation.
| Rated Flow | 40 L/min (10.5 US gpm) |
|---|---|
| Max Pressure | 250 bar (3600 psi) |
| Inlet Port | G3/8,G1/2,M18×1.5,M22×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT |
| Outlet Port | G3/8,G1/2,M18×1.5,M22×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT |
| Port Size | G3/8,G1/2,M18×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT |
| Section | 1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section |
| Structure Type | Monoblock valve |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
The P40-G12-G38 Manual 5 Spool Monoblock Directional Valve is a robust and reliable hydraulic component designed for demanding applications. Featuring a 5 section, manual control method, and a rated flow of 40 L/min, this valve is suitable for a wide range of machinery including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini excavators, skid steer loaders, and compact wheel loaders. It offers a maximum pressure of 250 bar and operates within a viscosity range of 15 - 75 mm²/s, ensuring consistent performance across diverse conditions. This valve is ideal for manufacturers and businesses seeking high-quality, durable hydraulic components for their equipment.
