Hydraulic Directional Control Valve | SHFY-G25L-00 Specifications & Applications

Max Pressure:315 bar (4600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:SHFY-G25L-00 Series Monoblock Directional Valve

Productsize:11*28*12

Netweight:6.23 kg

Availability: In Stock

Description

Hydraulic Directional Control Valve | SHFY-G25L-00 Specifications & Applications detailed image

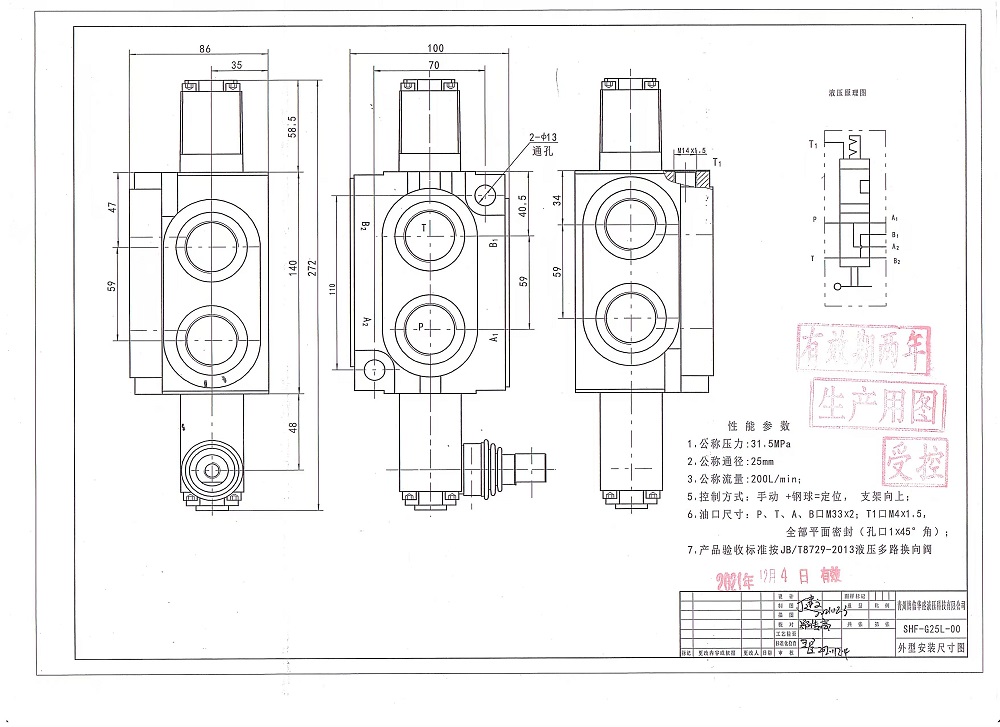

Hydraulic Directional Control Valve | SHFY-G25L-00 Specifications & Applications drawing image

The SHFY-G25L-00 Hydraulic Directional Control Valve is a 1-section, manually controlled sectional valve designed for use in various applications, including material handling, construction, agriculture, and industrial vehicles. With a rated flow of 200 L/min and a maximum pressure of 315 bar, this valve provides precise control of hydraulic systems.

Section	1 Section
Structure Type	Sectional valve
Rated Flow	200 L/min (52 US gpm)
Max Pressure	315 bar (4600 psi)
Operating Viscosity Range	12 - 400 mm²/s (12 cSt to 400 cSt)
Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)

**Product Name:** Hydraulic Directional Control Valve | SHFY-G25L-00

**Control Method:** Manual
**Section:** 1 Section
**Structure Type:** Sectional valve
**Rated Flow:** 200 L/min (52 US gpm)
**Max Pressure:** 315 bar (4600 psi)
**Operating Viscosity Range:** 12 - 400 mm²/s (12 cSt to 400 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 1 Spool
**Series:** SHFY-G25L-00 Series

**Application Area:** MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, AERIAL PLATFORM, MOTOR GRADER, MINI-EXCAVATOR, SKID STEER LOADER, COMPACT WHEEL LOADER, TRACTOR AND FRONT-END LOADER, BALER

Hydraulic Directional Control Valve | SHFY-G25L-00 Specifications & Applications application image
