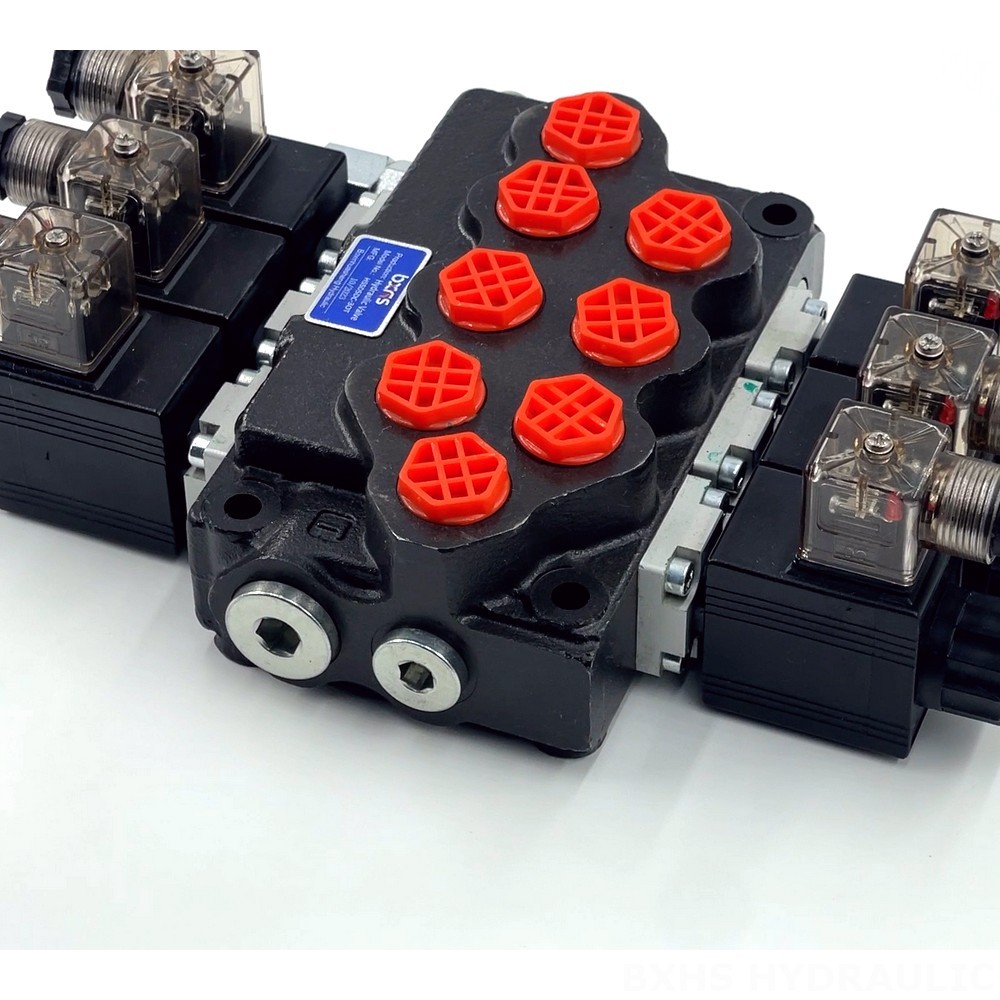

Single Hydraulic Valve 120lmin Customized Hydraulics: SD5 Valve Tailored to Your Specifications

Control Method:Solenoid

Spool:3 Spool

Rated Flow:45 L/min (11.8 US gpm)

Max Pressure:315 bar (4600 psi)

Inlet Port:G3/8

Outlet Port:G3/8

Port Size:G3/8

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:SD5 Series Monoblock Directional Valve

Packagingsize:30*21*13

Grossweight:9.00 kg

Availability: In Stock

597 Views are Looking for this Product

Single Hydraulic Valve 120lmin Customized Hydraulics: SD5 Valve Tailored to Your Specifications detailed image

Single Hydraulic Valve 120lmin Customized Hydraulics: SD5 Valve Tailored to Your Specifications detailed image

Single Hydraulic Valve 120lmin Customized Hydraulics: SD5 Valve Tailored to Your Specifications drawing image

The SD5 Series Single Hydraulic Valve is a robust and versatile monoblock valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. We offer OEM, ODM, and private label options, enabling you to customize the valve to meet your specific requirements.

SD5 Series Monoblock Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool
Rated Flow 40 L/min (10.5 US gpm)
Max Pressure 305 bar (4400 psi)
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Structure Type Monoblock valve
Ambient Temperature Range -40°C to +60°C (-40°F to +140°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

This 3-section solenoid-controlled valve features a rated flow of 40 L/min and a maximum pressure of 305 bar. With its 3 spool design, the SD5 Series valve provides precise control for various hydraulic systems. Our manufacturing expertise allows us to offer OEM, ODM, and private label services, enabling you to tailor the valve to your exact specifications. Whether you need a customized valve for a telehandler, forklift, or any other industrial equipment, our team can deliver a solution that meets your specific needs. We also offer wholesale options for distributors, wholesalers, and traders seeking high-quality hydraulic valves.
