Spool Flow Divider P40-U78 Hydraulic Valve: Factory Wholesale Supply & Global Distribution

Control Method:Manual

Spool:7 Spool

Rated Flow:40 L/min (10.5 US gpm)

Max Pressure:250 bar (3600 psi)

Inlet Port:SAE 10

Outlet Port:SAE 10

Port Size:SAE 10

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Packagingsize:36*23*13

Grossweight:13.50 kg

Availability: In Stock

834 Views are Looking for this Product

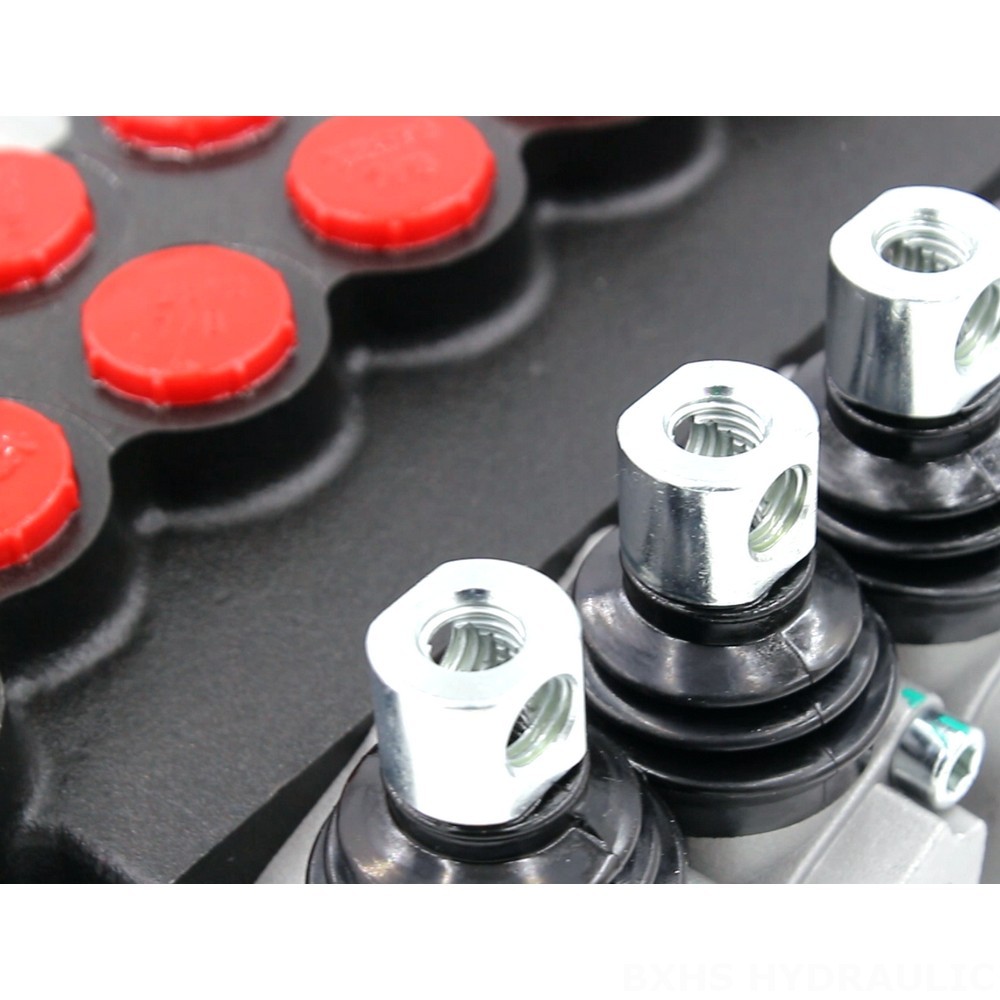

Spool Flow Divider P40-U78 Hydraulic Valve: Factory Wholesale Supply & Global Distribution detailed image

Spool Flow Divider P40-U78 Hydraulic Valve: Factory Wholesale Supply & Global Distribution detailed image

Spool Flow Divider P40-U78 Hydraulic Valve: Factory Wholesale Supply & Global Distribution drawing image

The P40-U78 Hydraulic Valve is a high-performance, 7-section monoblock valve designed for heavy-duty applications in construction, material handling, agriculture, and industrial vehicles. This manual control valve offers a flow rate of 40 L/min and a maximum pressure of 250 bar, making it ideal for a wide range of equipment.

P40 Series Monoblock Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Rated Flow 40 L/min (10.5 US gpm)
Max Pressure 250 bar (3600 psi)
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Structure Type Monoblock valve
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

The P40-U78 Hydraulic Valve is a 7-section, manual control monoblock valve with a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). It operates within a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). This robust valve is suitable for various applications in construction and earth moving, agriculture, and industrial vehicles, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi excavators, mini excavators, and skid steer loaders. The P40-U78 valve is designed for high performance and reliability, making it an ideal choice for demanding applications in heavy equipment.
